| Author |
Thread: Mr. R's Projects ..... |

Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10137
Registered: Jul-05
|
| Posted on Sunday, December 17, 2006 - 12:13 am: |
|
well folks since i decided to do installs & build boxes for ppl in my free time in my country a few mths ago - i have some pix of my stuff & customer's stuff to share with my ecoustics buddies

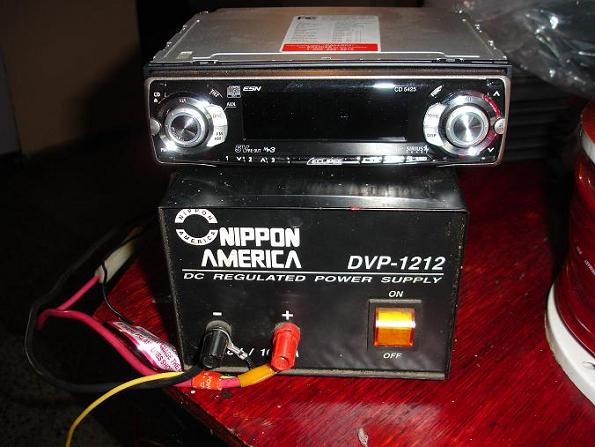

HU i sometimes test stuff with : Eclpise CD5425
had my Rs in a pair of these boxes (a bit dusty-lol)
I just put in these ol azz Phillips home subs in this box just 4 these pix

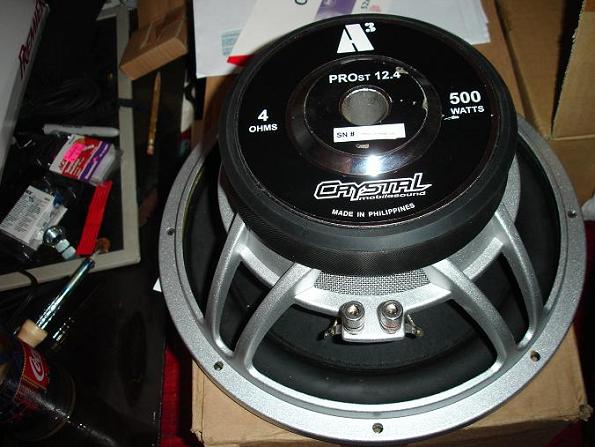

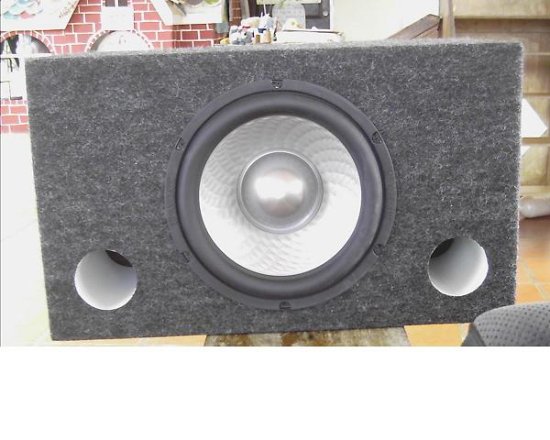

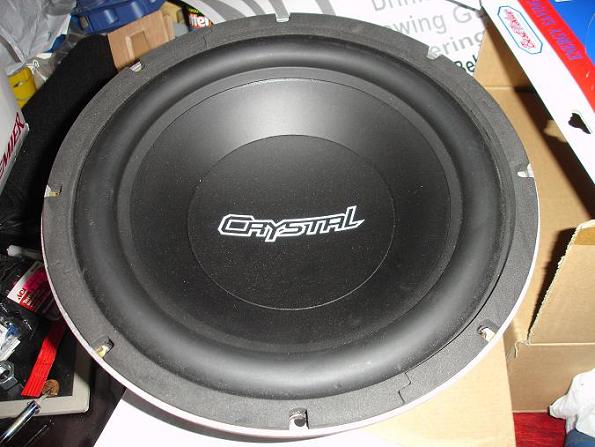

Now 4 a Crystal sub - plays really nice !

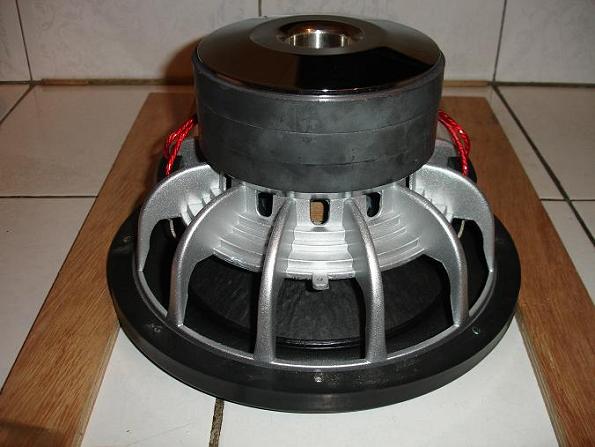

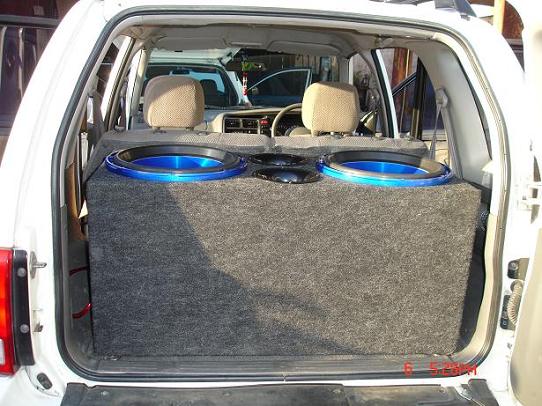

i currently have my premier 3002 sub in this Box
^^^^- I NEED TO SAY THIS ABOUT MISLEADING POSTS I SEE ON THE FORUM ABOUT THIS SUB NOW ! - ppl say its a strictly SPL sub = BS !
When brand new yes its supper stiff & plays a high freq spl annoying like bass BUT when broken in plays quite decent SQL low freq bass
in fact mine is tuned around 32hz & plays really good SQL 4 a low budget sub
more pix coming very soon >>>>>>>>>>>>.......
} |
|
|
|
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10138
Registered: Jul-05
|
| Posted on Sunday, December 17, 2006 - 12:49 am: |
|

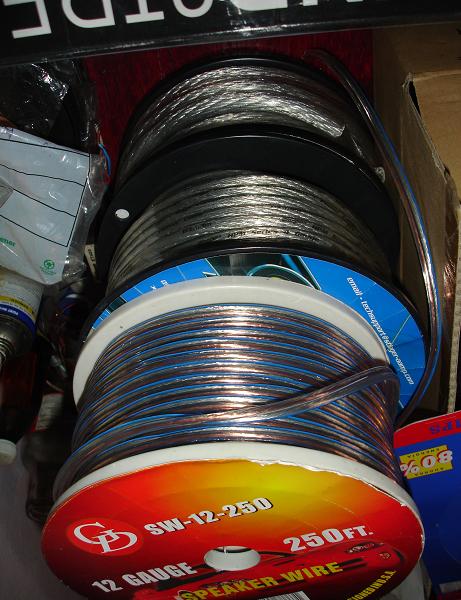

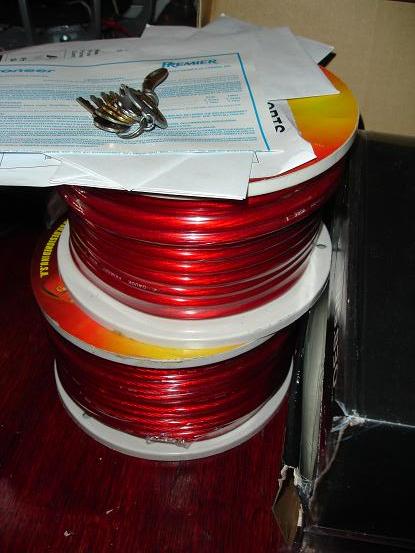

some power cable - Red is a brand called GD ,silver is Stinger

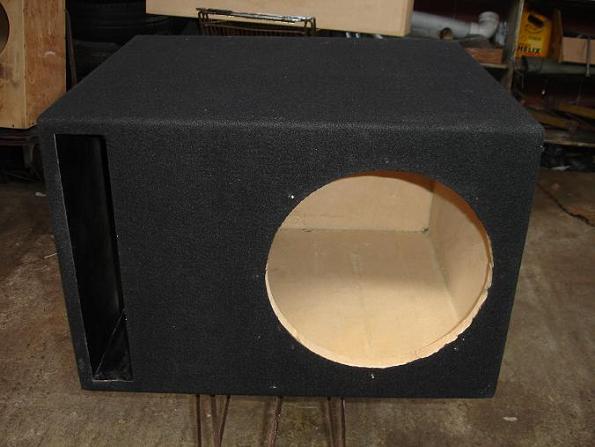

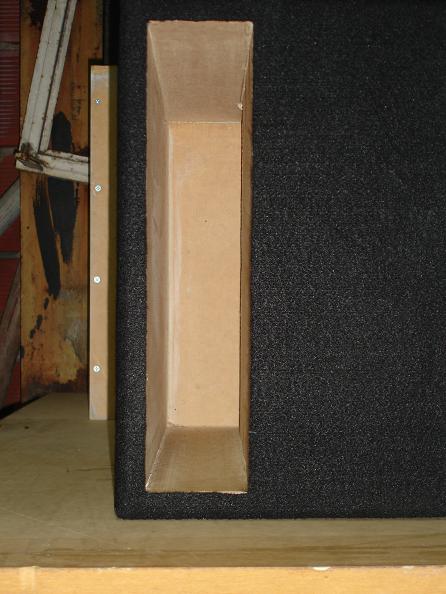

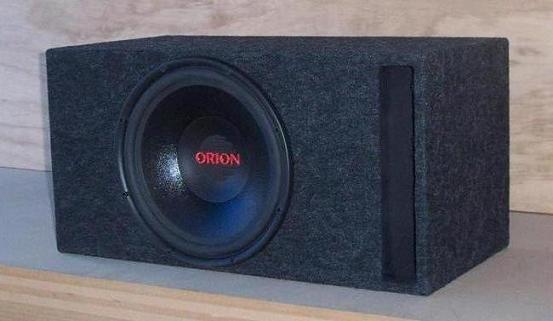

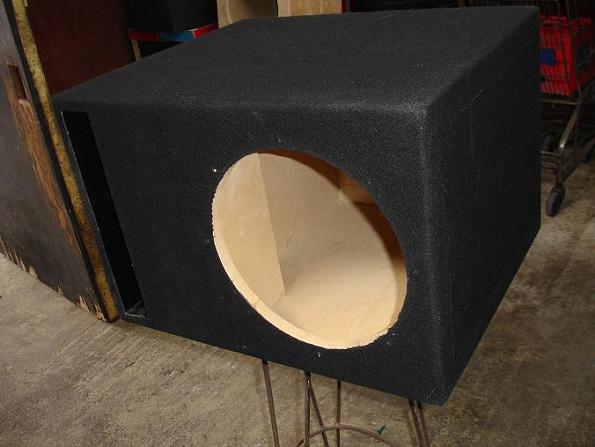

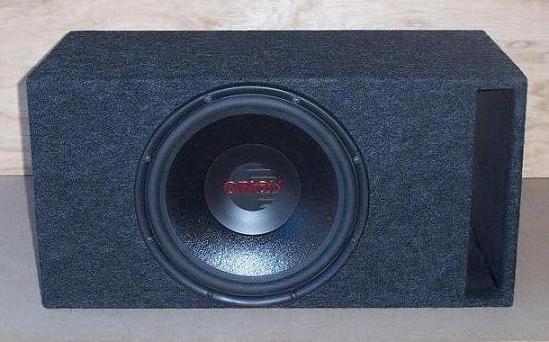

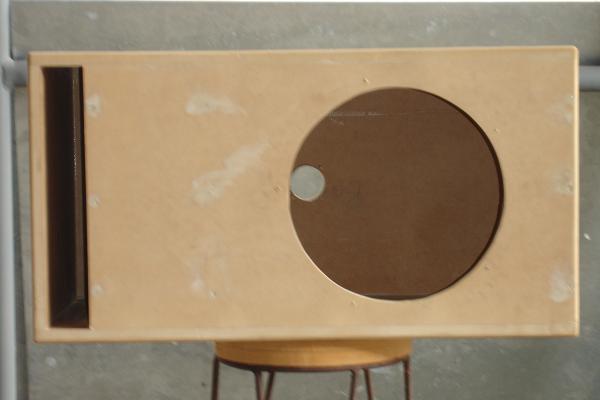

another slot port box
^^^^will post pix of this box with a sub in it soon
===========================================

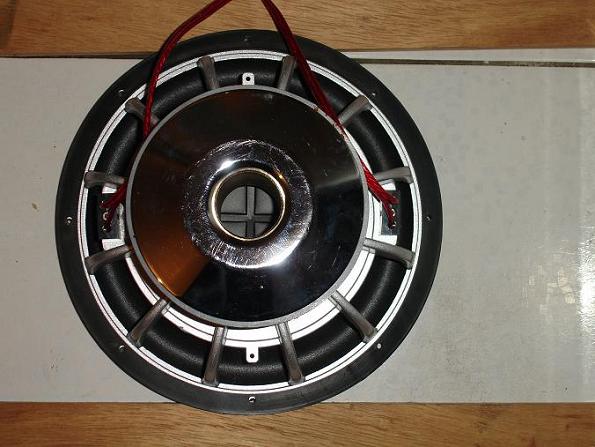

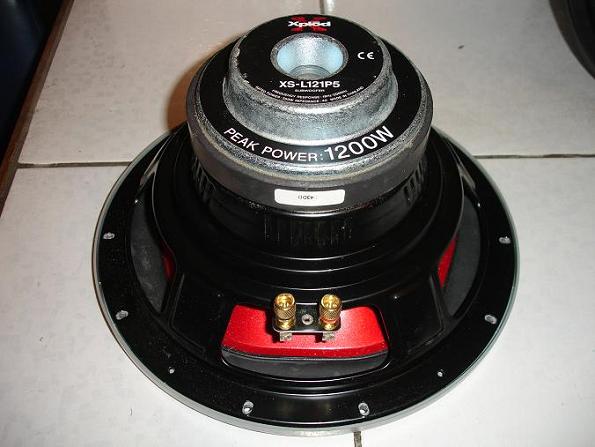

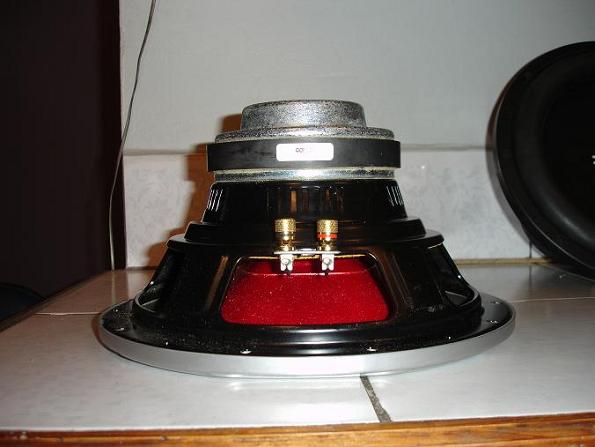

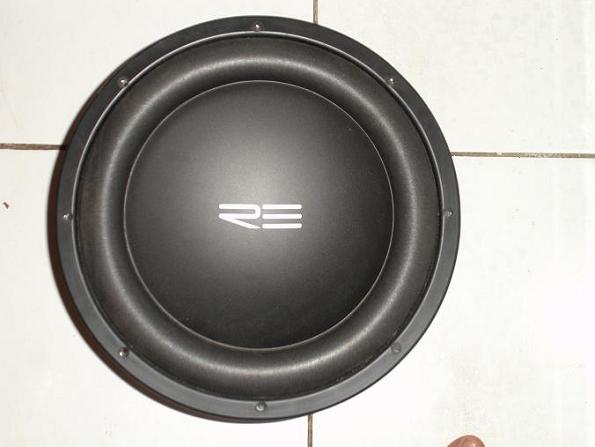

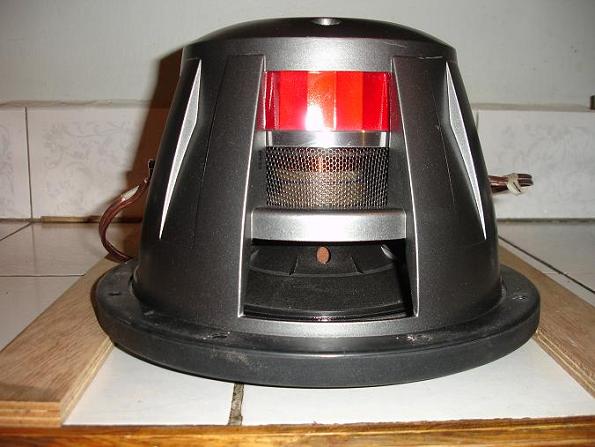

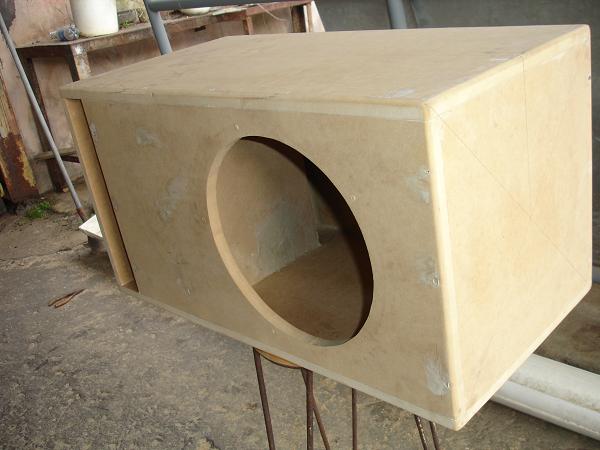

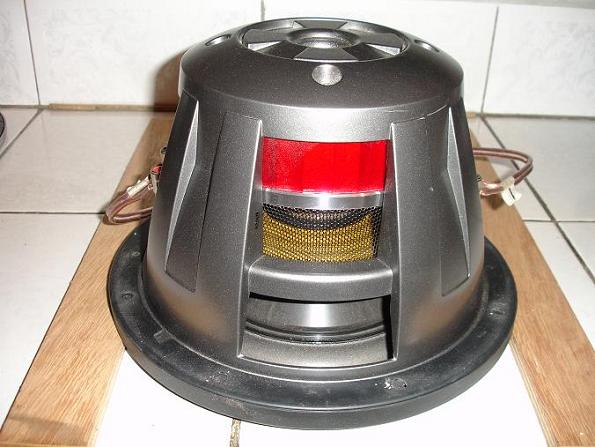

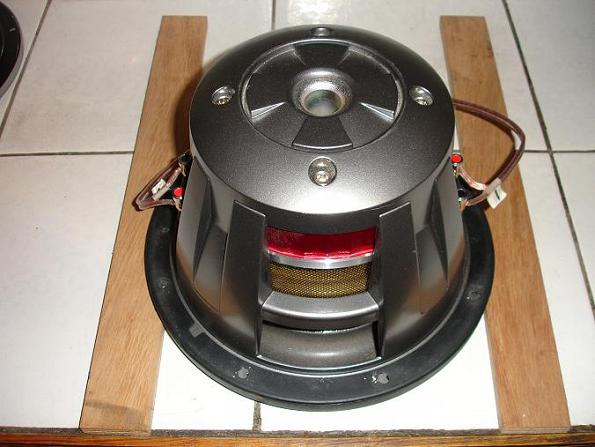

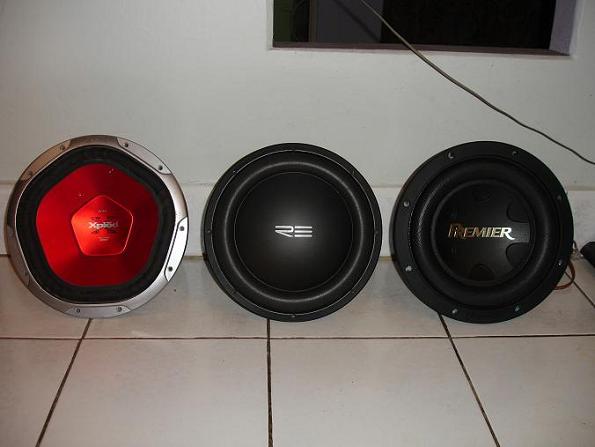

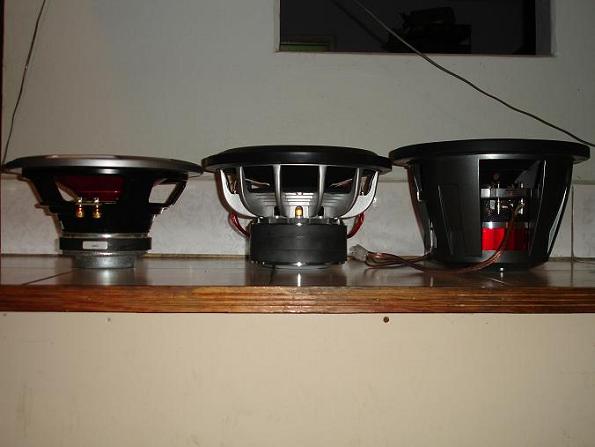

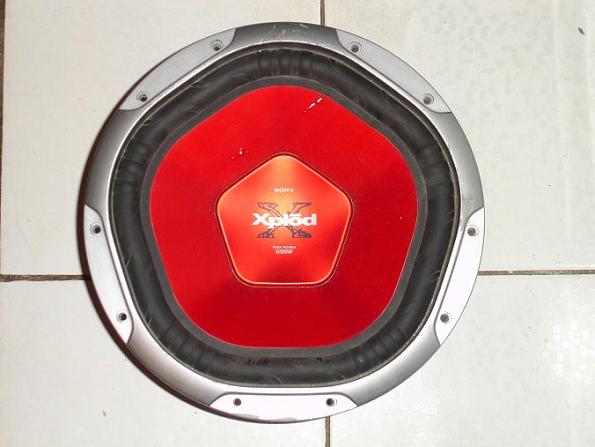

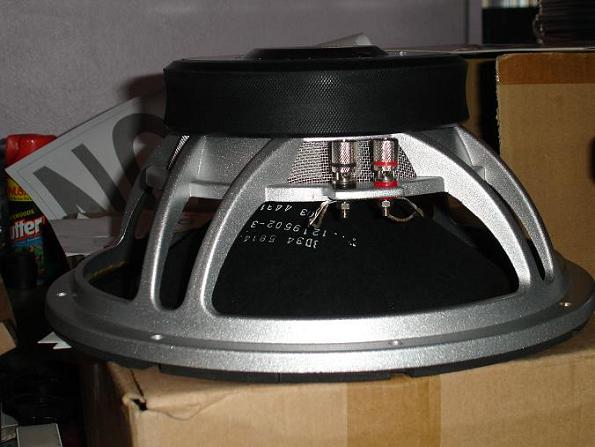

Now i have to build a box for this used Sony XPlode & brand new 12" RE SX sub by tuesday for 2 different owners - 12" 3002 Premier is mine but just thought i let loose some pix on it too

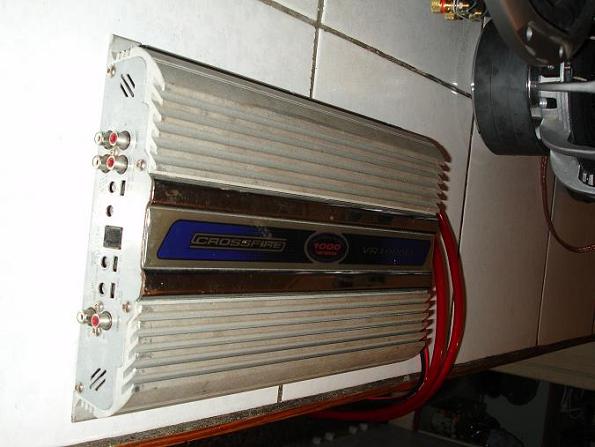

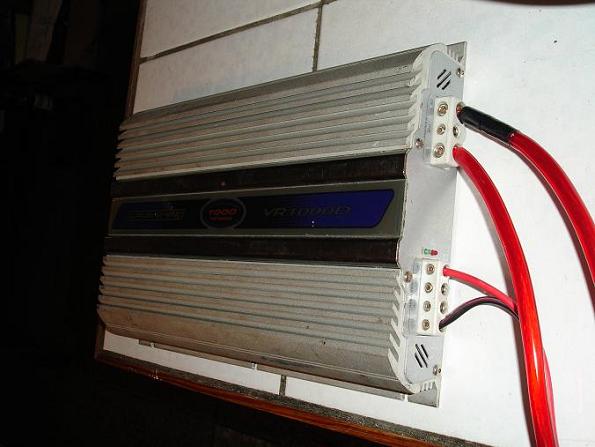

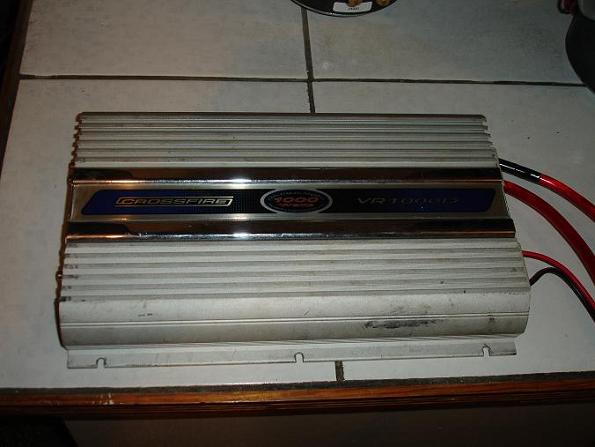

this CF VR1000d is gonna power the RE SX sub in a 2006 ford focus sedan
i know every1 on ecoustics hates sony subs but trust me it sounded quite decent in that black box higher up in this thread - low\fairly loud even though powered a cheap Legacy amp in a 1997 civic
I hope u guys enjoy these pic since it took me over an hr 2 resize all of em - stay tuned 4 boxes 4 these subs being made in a few days by yours truly ........ |
Silver Member Username: Dsmith07
LaGrange,
NC
US oF A
Post Number: 338
Registered: Jun-06
|
| Posted on Sunday, December 17, 2006 - 01:23 am: |
|
that pioneer subs looks beasty, i like. |
Platinum Member Username: Chaunb3400
Huntsville,
Alabama
U.S.
Post Number: 10783
Registered: Jul-05
|
| Posted on Sunday, December 17, 2006 - 01:34 am: |
|
nice pics...i want that amp |
Silver Member Username: Andrew571
Stillwater/Edmond,
Oklahoma
USA
Post Number: 432
Registered: Oct-05
|
| Posted on Sunday, December 17, 2006 - 02:12 am: |
|
good work |
Silver Member Username: I_likes_da_bass
Bentonville,
AR
USA
Post Number: 277
Registered: Jun-06
|
| Posted on Sunday, December 17, 2006 - 06:58 am: |
|
Looks good. I wish I had that kind of talent. |
Gold Member Username: Basshead86
FTW
Post Number: 9572
Registered: Aug-05
|
| Posted on Sunday, December 17, 2006 - 09:53 am: |
|
sweet pics.
awesome boxes as always |
Gold Member Username: 54danny54
KY
More Wang Th...
Post Number: 3021
Registered: Nov-04
|
| Posted on Sunday, December 17, 2006 - 10:12 am: |
|
wish i had all that equip.
that amp will bang the sx HARD. |
Gold Member Username: Delsole
Post Number: 1214
Registered: Feb-05
|
| Posted on Sunday, December 17, 2006 - 10:13 am: |
|
lookin good |
Silver Member Username: Ars88
Post Number: 150
Registered: Nov-06
|
| Posted on Sunday, December 17, 2006 - 10:27 am: |
|
looks really good rov...nice work
u built any fiberglass/plexiglass enclosures yet? |
Gold Member Username: Juliob
Santo Domingo
Dominican Re...
Post Number: 3748
Registered: Dec-05
|
| Posted on Sunday, December 17, 2006 - 10:27 am: |
|
well rovin, i joined the pioneer wangers group hehe, got the subs already. And man i love your boxes, you're the best doing pics thread... |
Gold Member Username: James1115
Use a simple...
Post Number: 8150
Registered: Dec-04
|
| Posted on Sunday, December 17, 2006 - 11:10 am: |
|
that Pioneer looks beefy how does it sound bud? |
Gold Member Username: Nyyfan13
Fi SSD
USA
Post Number: 1645
Registered: Jul-06
|
| Posted on Sunday, December 17, 2006 - 11:32 am: |
|
looks awesome rovin |
Gold Member Username: Bestmankind
Fi Audio
BTL
Post Number: 8077
Registered: Oct-05
|
| Posted on Sunday, December 17, 2006 - 12:18 pm: |
|
very nice. that pio does look beefy. shake some sh!t rovin. |
Gold Member Username: Wingmanalive
Nj
US
Post Number: 2115
Registered: Jun-06
|
| Posted on Sunday, December 17, 2006 - 12:19 pm: |
|
 |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10142
Registered: Jul-05
|
| Posted on Sunday, December 17, 2006 - 09:59 pm: |
|
thanx guys
yep alot of ppl just read online reviews of that 3002 premier sub & then tell every1 its strickly spl but hell NO its quite loud with quite good daily driven SQ
Its almost as loud as my 2 12s type Rs but not quite as clean but hey 4 the $ it cant be beat & to tell u how loud in my ride it shakes ur clothes & affects the way ur voice sounds coming out ur throat : NO lie !
that SX when we tried it yesterday since its new & still as heck plays sorta high freq bass but i know it will gr8ly improve when broken in since thats pretty much how my premier sub sounded @ 1st which was kinda boomy

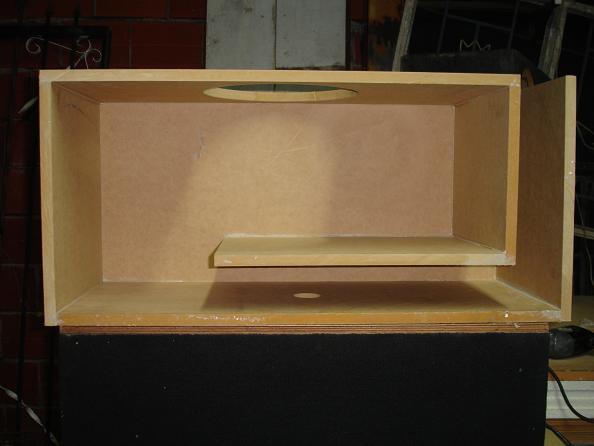

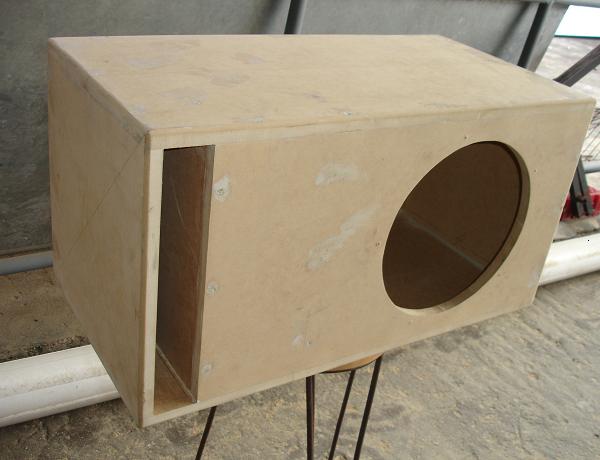

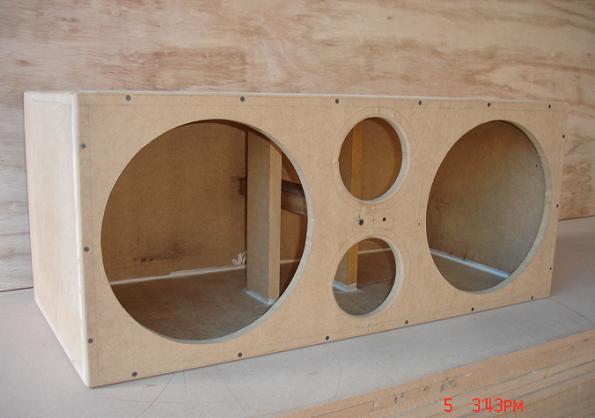

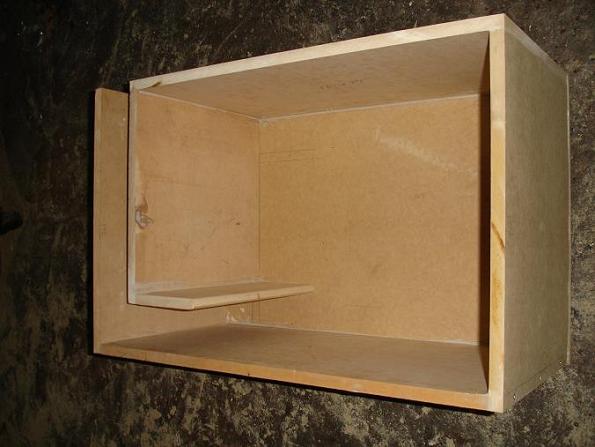

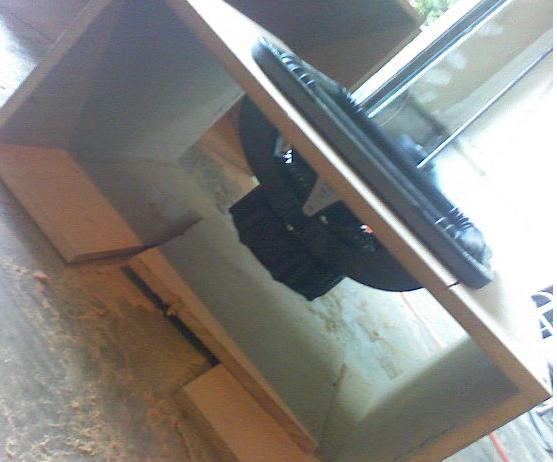

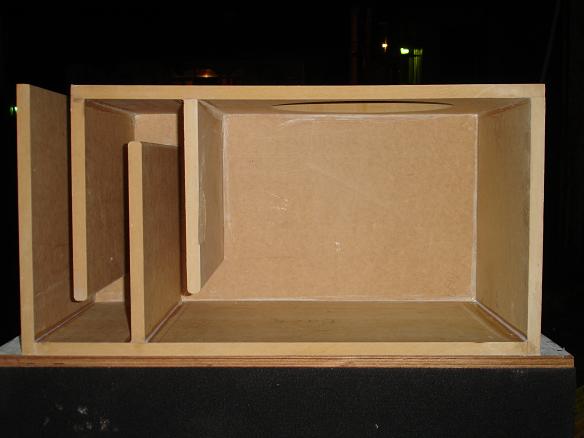

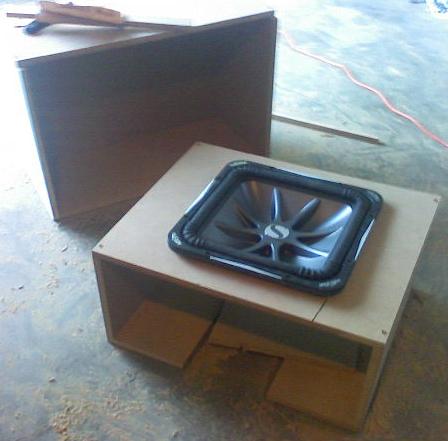

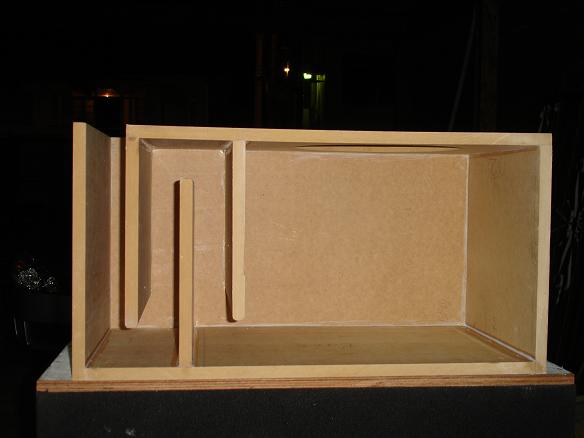

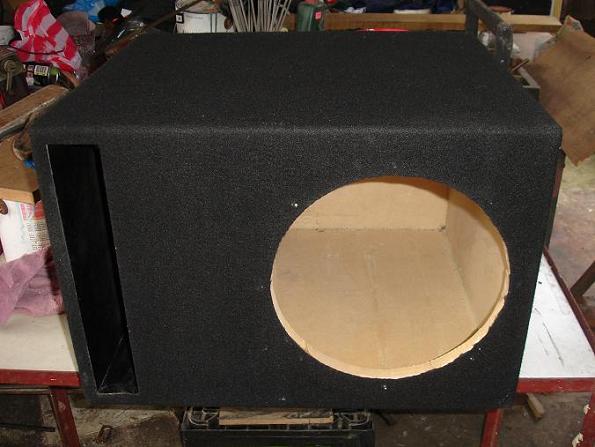

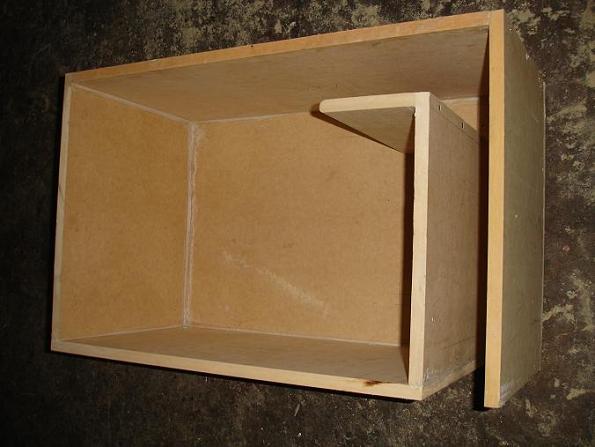

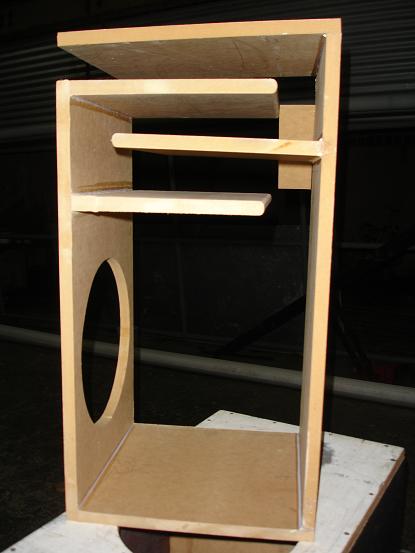

Now i will give u guys a preview of a slot port box im building 4 the xplode sub >>>>>
when i carpet it hopefully tomorrow i will post back some more pix .........
|
Gold Member Username: Adddisorder
West palm,
Florida
Post Number: 2383
Registered: Jan-06
|
| Posted on Monday, December 18, 2006 - 01:04 pm: |
|
awesome job rovin |
Gold Member Username: Sploosh56
Ohio
Post Number: 1576
Registered: May-04
|
| Posted on Monday, December 18, 2006 - 02:26 pm: |
|
great work! the boxes look good. |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10163
Registered: Jul-05
|
| Posted on Wednesday, December 20, 2006 - 10:55 pm: |
|

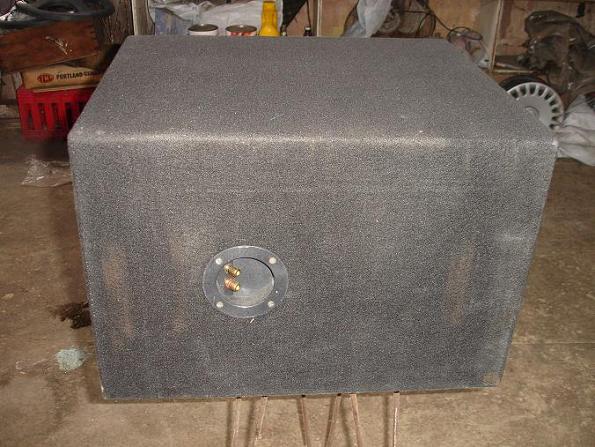

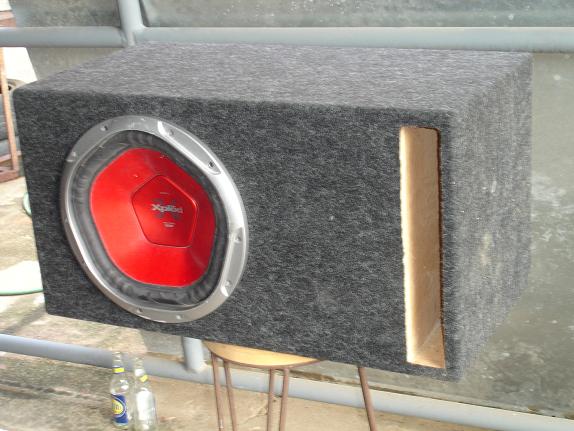

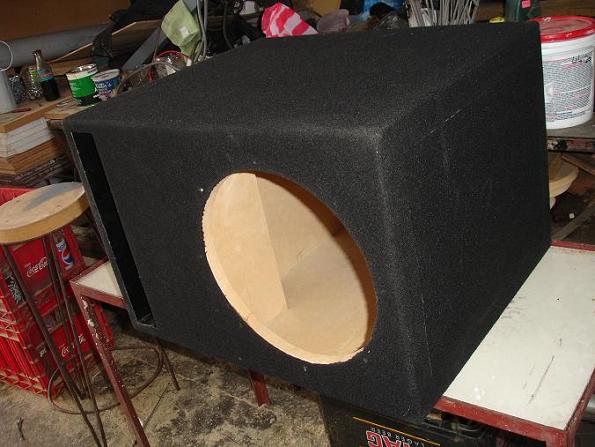

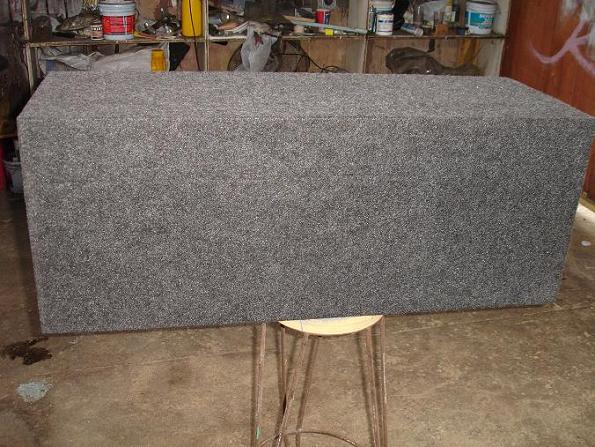

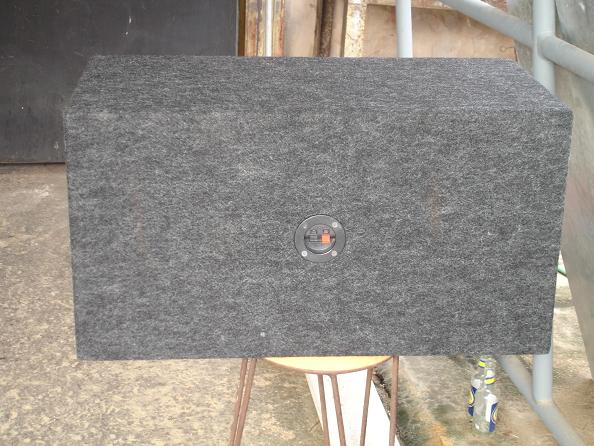

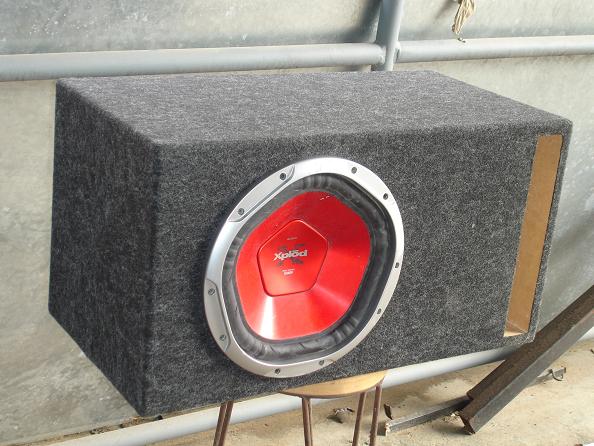

ok peeps - i finished making & carpeted the box 4 that Xplode sub & it REALLY surprised me how good it sounds
 ......
|
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10165
Registered: Jul-05
|
| Posted on Wednesday, December 20, 2006 - 11:21 pm: |
|
oh i did this box job too few wks ago but i only have 1 pic of it
its a UXP12D-4 http://www.bravoxaudio.com/uxp.asp
pretty good sub too & shook with the lows setting off ppl's alarm ,quite loud as well
it went into a 2000 toyota corolla sedan ... |
Silver Member Username: Johnfiac
IL
USA
Post Number: 796
Registered: Mar-06
|
| Posted on Thursday, December 21, 2006 - 08:54 am: |
|
wow few things.... what is that box ported at?? The one that has like 4 boards by the port..... lotta tunneling there lol....
Another thing what kind of ancient subs are those in the one box(LMAO which one?) the black plain paper subs with like water stains on it... please dont tell me sombody payed you to make a box for those things... the box would b worth more then the subs ROFL!!
Nice boxes tho man!! |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10171
Registered: Jul-05
|
| Posted on Thursday, December 21, 2006 - 10:25 am: |
|

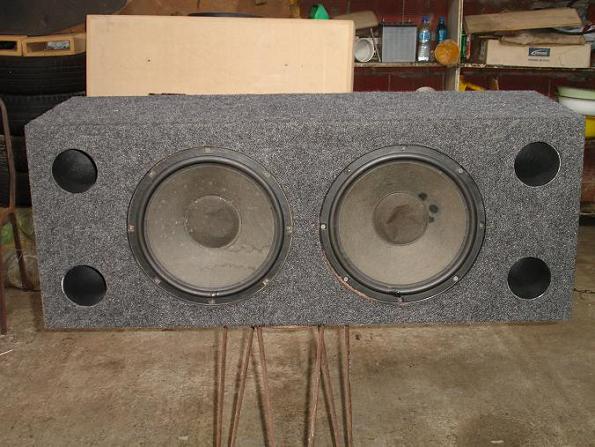

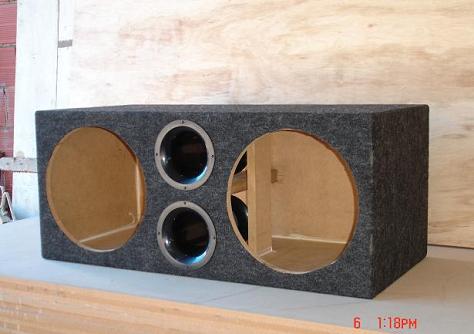

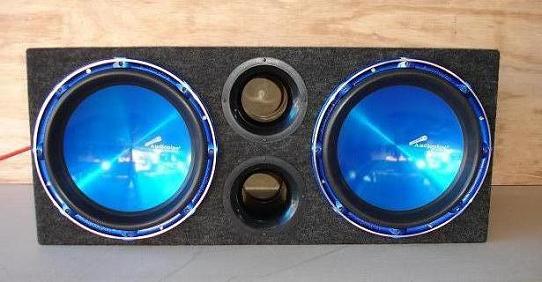

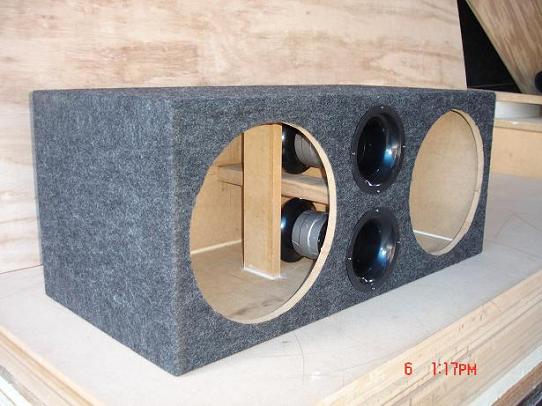

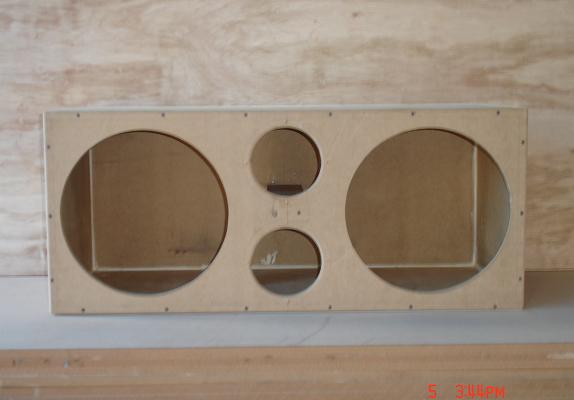

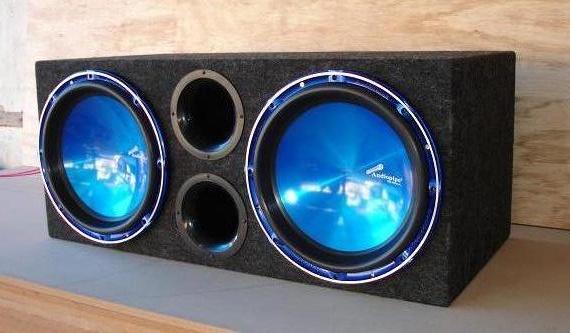

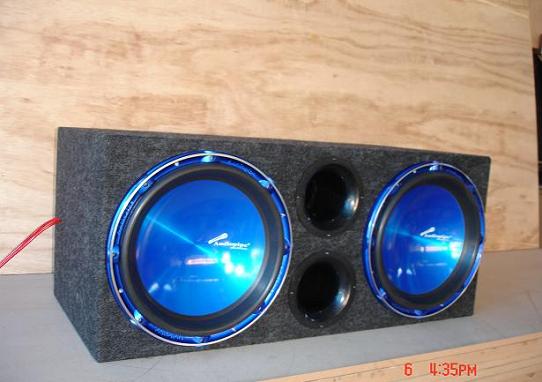

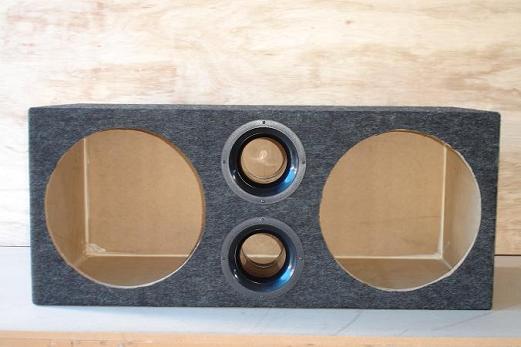

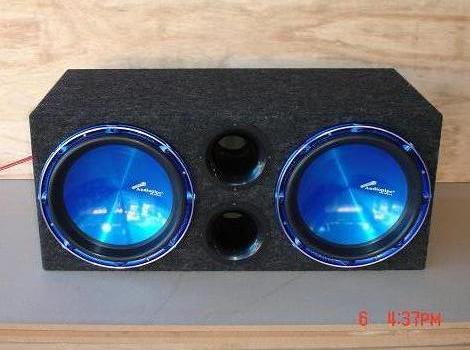

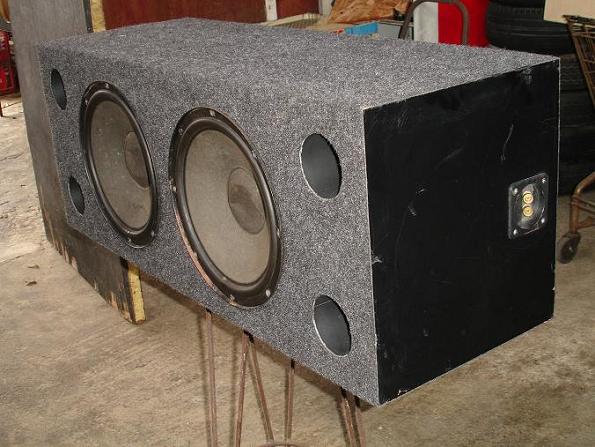

box with 4 ports is tuned about 33/34hz & pounds real nice

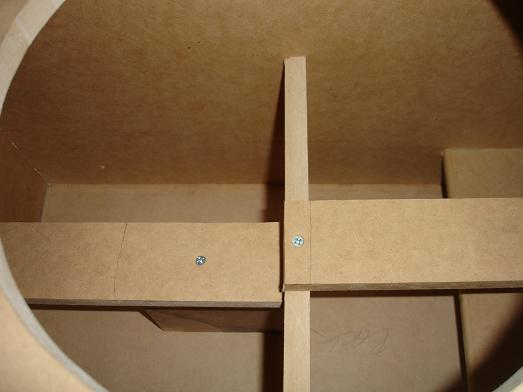

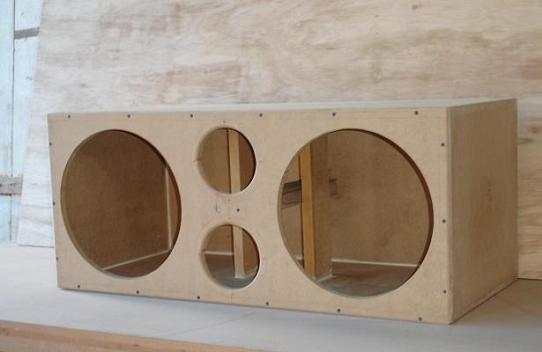

well there is a dividing wall in there so each sub is in its own vol
those ancient subs were just put in there 4 the pix 2 be taken - Phillips house sub actually ....

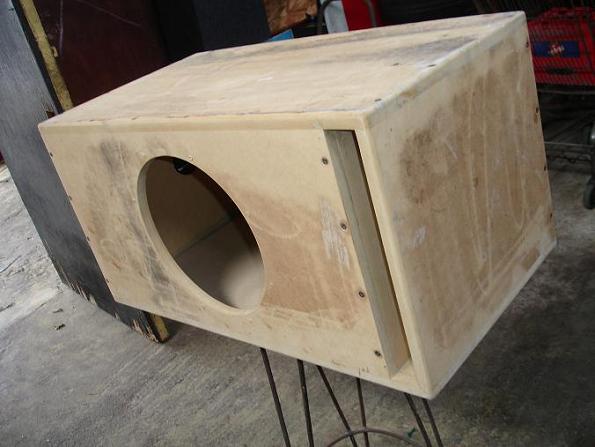

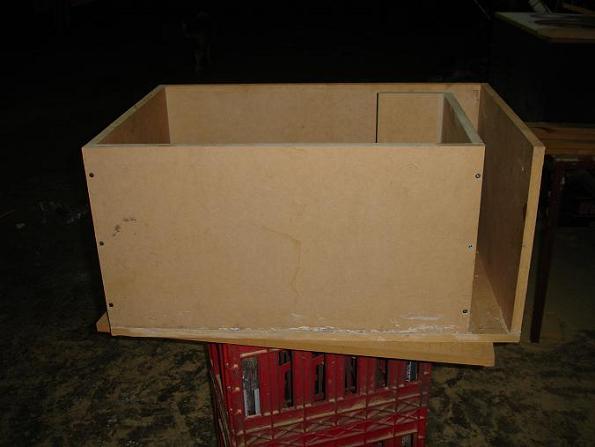

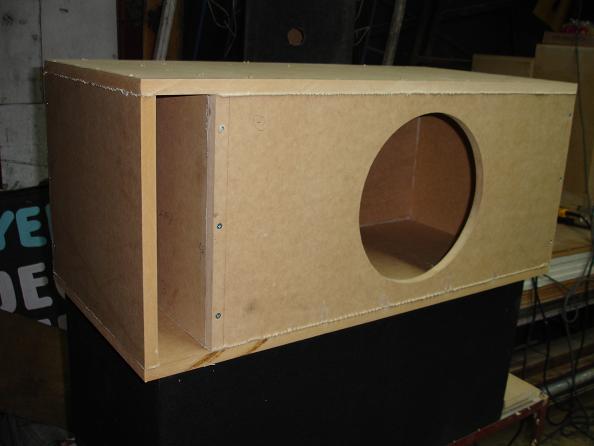

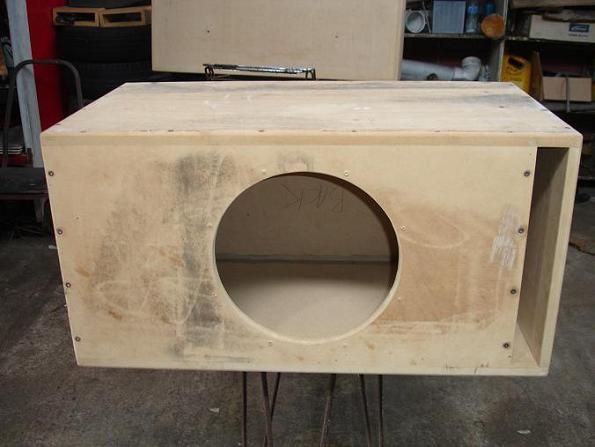

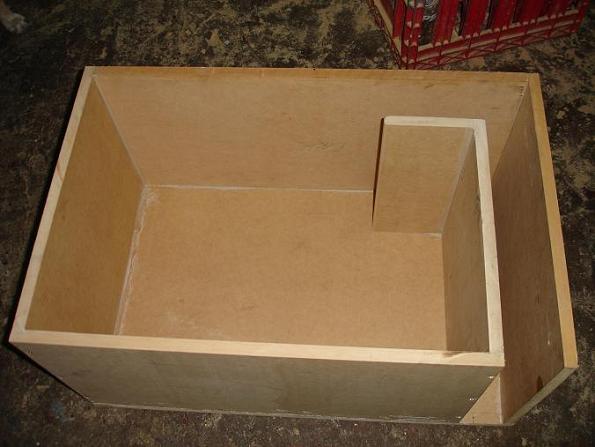

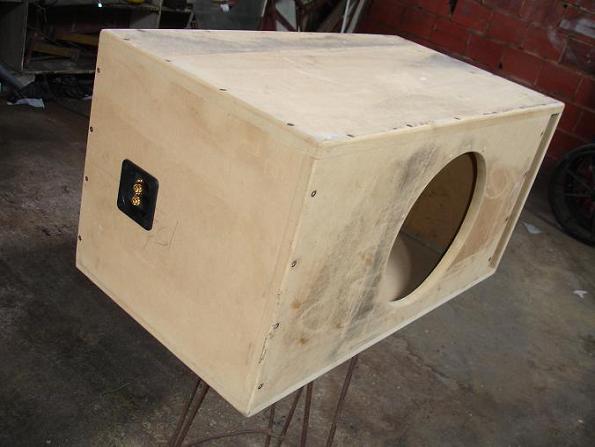

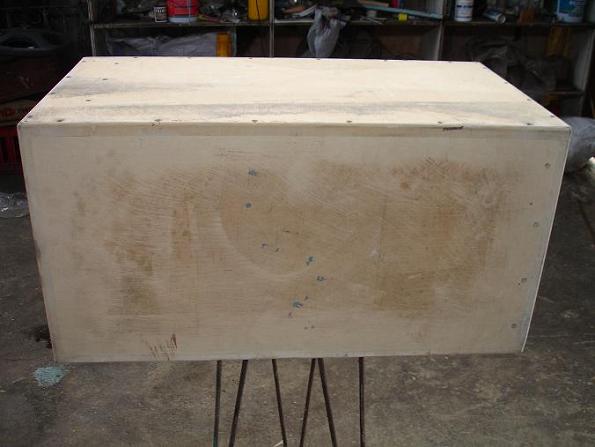

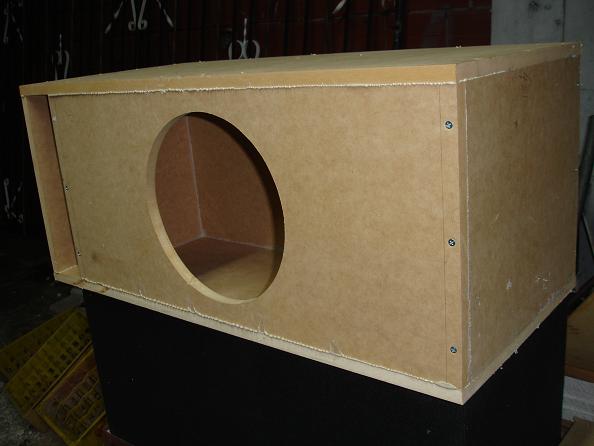

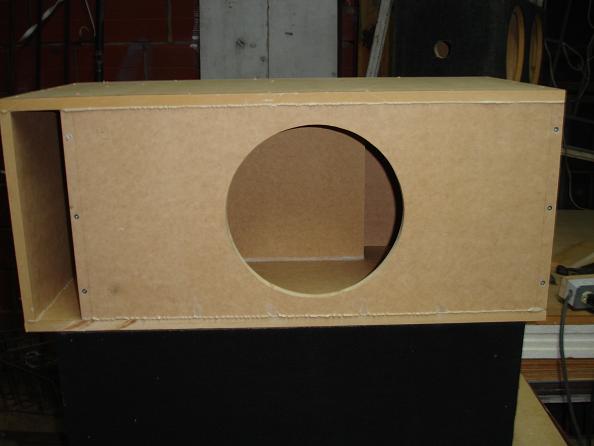

this is my next job - box for 1 12" RE SX sub
here is a preview ,it has 2 be edge sanded slightly then carpeted
 ......
|
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10187
Registered: Jul-05
|
| Posted on Friday, December 22, 2006 - 10:46 pm: |
|

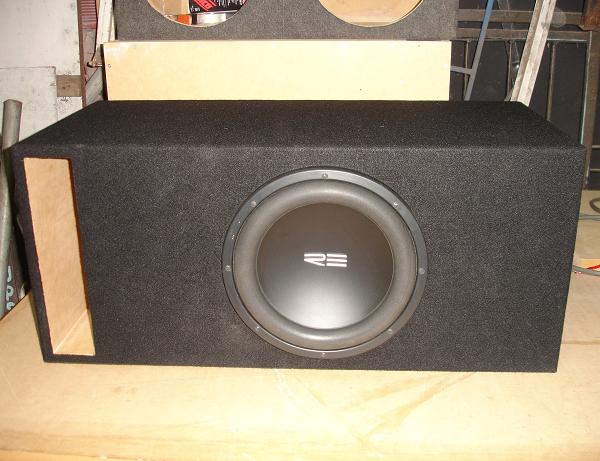

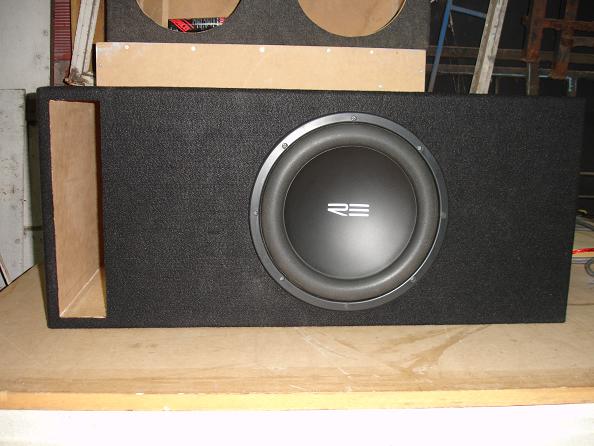

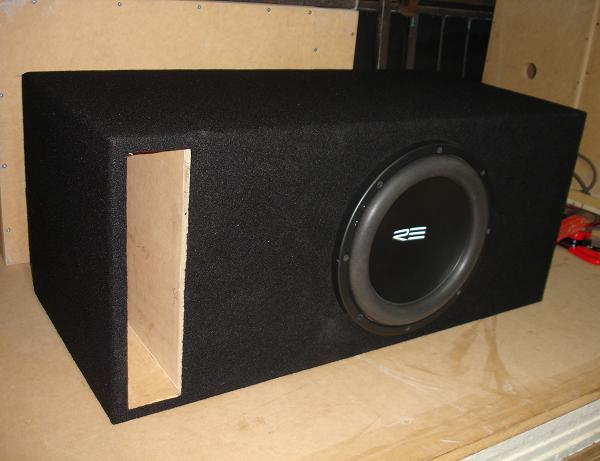

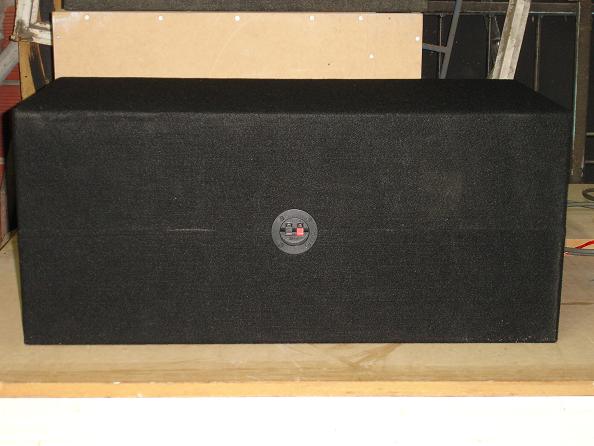

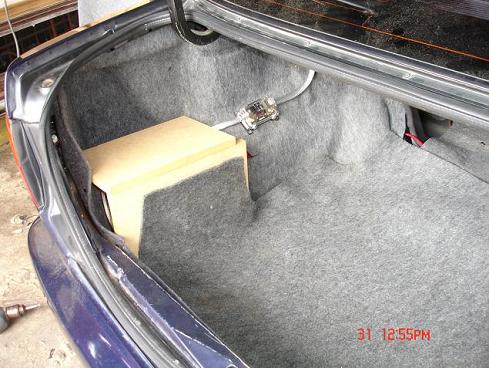

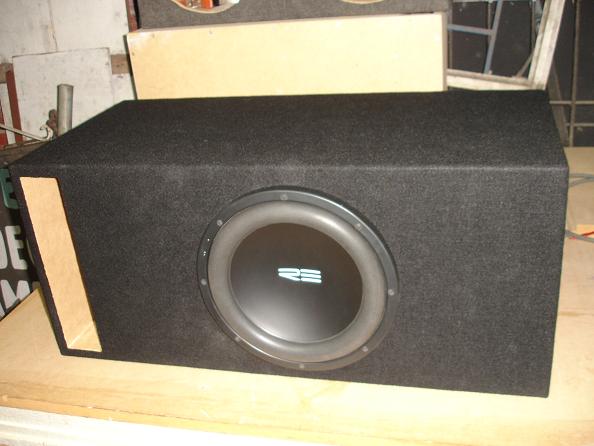

here is the completed carpeted box which is an upgrade of this install http://forum.ecoustics.com/bbs/messages/4/260717.html
lets just say customer was very satisfied as well as worried since within seconds of playing this sub the headliner in car near the 3rd brake light just became detached ! & well everything in his car now is rattleing like a mofo so his next paycheck is full dynamat .
Imagine what will happen when this usb is fully broken in & them damn lows start 2 kick in -lol
& no im not gonna share specs of this box .... |
Gold Member Username: Nyyfan13
Fi SSD
USA
Post Number: 1879
Registered: Jul-06
|
| Posted on Friday, December 22, 2006 - 10:56 pm: |
|
yuo are quite the box maker.
all of those look awesome |
Platinum Member Username: Project6
Post Number: 12254
Registered: Dec-03
|
| Posted on Saturday, January 06, 2007 - 12:08 pm: |
|
Awesome work there, Rovin! |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10346
Registered: Jul-05
|
| Posted on Monday, January 08, 2007 - 12:22 am: |
|
Thanks buddy ^^ ...
here is my premier in the trunk of its new owner

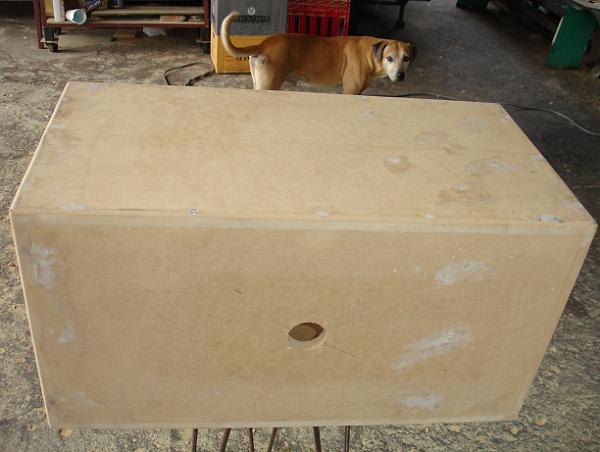

was building this box 4 a project but changed my mind & will sell it to some1 locally in my country now

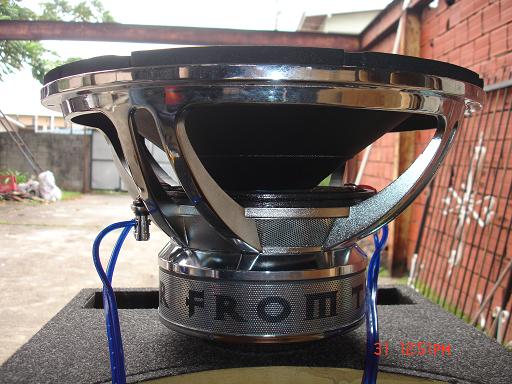

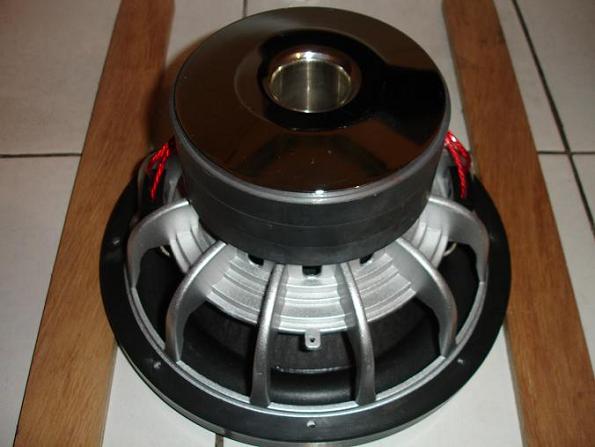

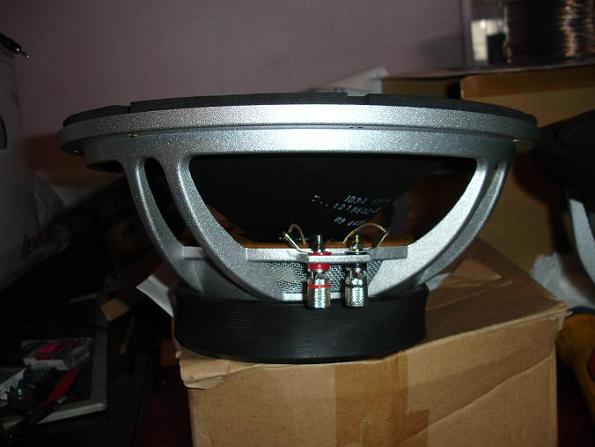

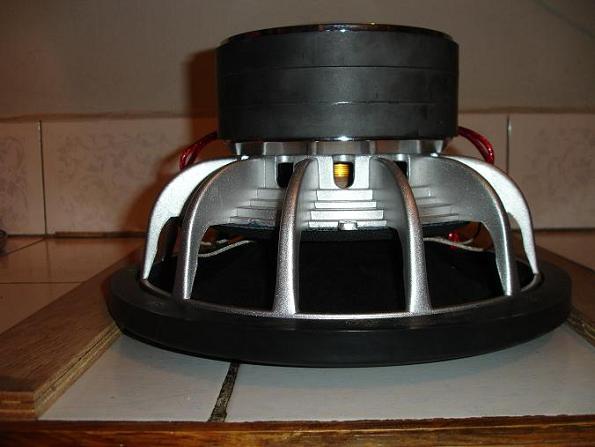

Pix of my new sub 1 12" ATOMIC QUANTUM Series
gonna build a kickass box for it soon .... |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10347
Registered: Jul-05
|
| Posted on Monday, January 08, 2007 - 12:24 am: |
|
Thanks buddy ^^ ...
here is my premier in the trunk of its new owner
was building this box 4 a project but changed my mind & will sell it to some1 locally in my country now
Pix of my new sub 1 12" ATOMIC QUANTUM Series
gonna build a kickass box for it soon ....} |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10348
Registered: Jul-05
|
| Posted on Monday, January 08, 2007 - 12:34 am: |
|
Thanks buddy ^^ ...
here is my 12" premier in the trunk of its new owner who has a wagon like mine
was building this box 4 a project but changed my mind & will sell it to some1 locally in my country now
Pix of my new sub 1 12" ATOMIC QUANTUM Series
gonna build a kickass box for it soon ....}} |
Platinum Member Username: Rovin
1 12 Premier...
Post Number: 10349
Registered: Jul-05
|
| Posted on Monday, January 08, 2007 - 12:39 am: |
|
damn ! - i kept getting a "SERVER ERROR" mesage & somehow triple posted
admin - edit this 4 me please ....... |
Silver Member Username: Teddy21
Ann Arbor,
MI
USA
Post Number: 376
Registered: Feb-06
|
| Posted on Monday, January 08, 2007 - 01:39 am: |
|
lol...i was wondering why im seeing so many pictures of that box with the pvc pipe |
Gold Member Username: Bestmankind
Fi Audio BTL
Post Number: 8892
Registered: Oct-05
|
| Posted on Monday, January 08, 2007 - 11:59 am: |
|
damn that box looks clean rovin. the atomic is killer sub. it looks so beautiful.
at first i didn't like their logo on the dustcap but it grows on you. |
Platinum Member Username: Chaunb3400
Huntsville,
Alabama
U.S.
Post Number: 11052
Registered: Jul-05
|
| Posted on Friday, January 12, 2007 - 12:10 am: |
|
^^X2 |
Gold Member Username: Juliob
Santo Domingo
Dominican Re...
Post Number: 3885
Registered: Dec-05
|
| Posted on Friday, January 12, 2007 - 09:37 am: |
|
ROVIN!!! |
New member Username: Killerdestroyer
Sarasota,
Florida
United States
Post Number: 3
Registered: Feb-07
|
| Posted on Friday, February 16, 2007 - 04:09 pm: |
|
Wow Rovin, you do, what looks like, amazing work. Keep it up. My boxes are each for a 10" Blaupunkt sub. And they are really thick fiber board with one vent hole and have no lining, but sound beautiful. |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11416
Registered: Jul-05
|
| Posted on Saturday, May 05, 2007 - 11:32 pm: |
|
wow i havent added to this thread since january & have done so much stuff since then & sometimes it just slips my mind to take pix - well i owe u guys some pix so here goes :

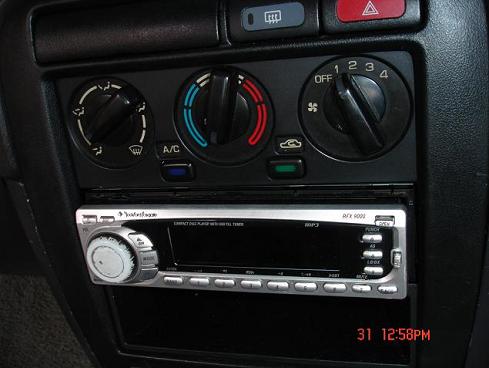

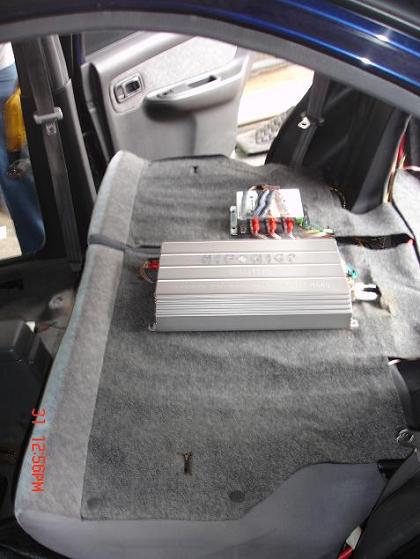

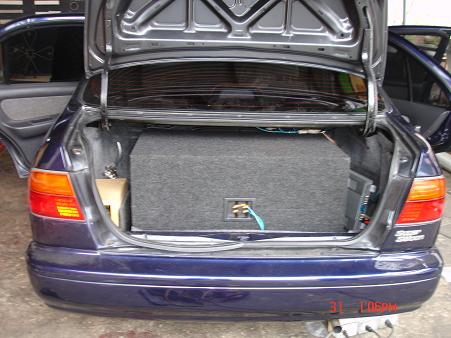

this install was in janaury on a 1997 Nissan Sentra which i worked on alongside the owner & his bro
car is shaped like this
System is this :
RF Hu

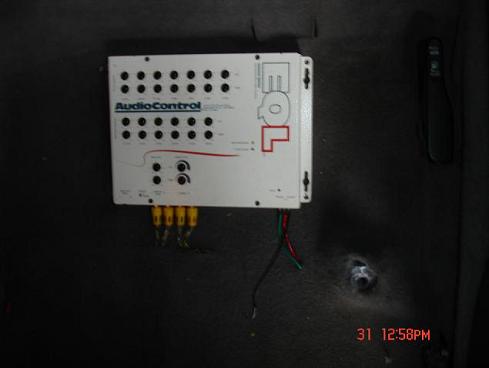

AC EQL
Autotek Xover

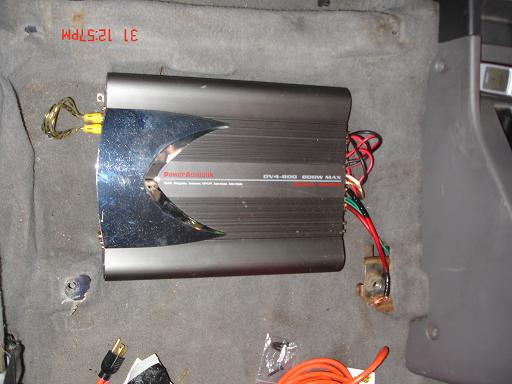

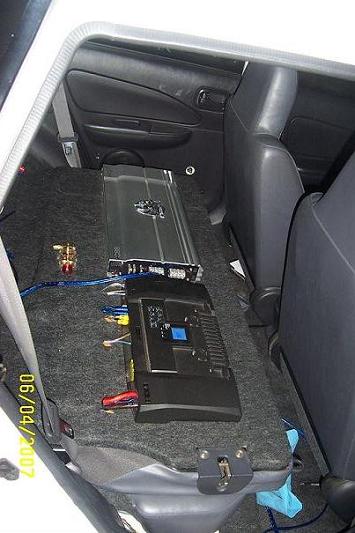

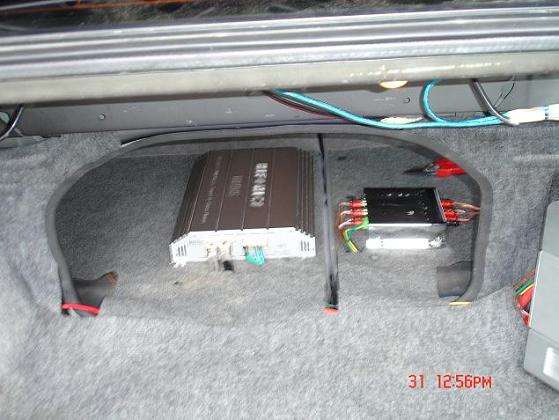

Power Acoustik Gothic Series 4 chan amp powering 2 6s in fr doors , 2 1" PA Tweets & 2 PA Bullet tweets in the rear

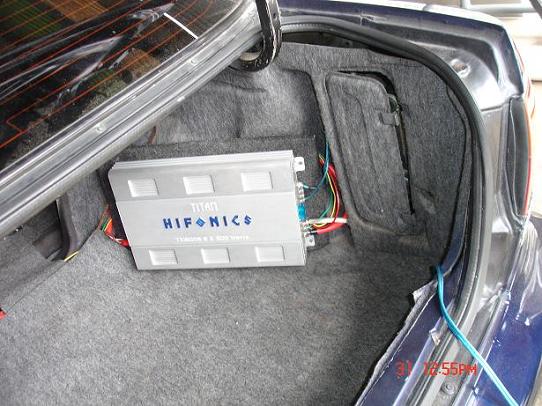

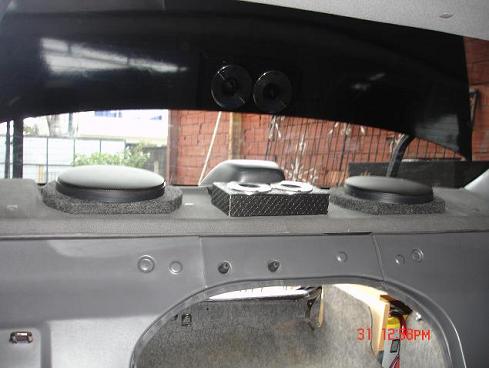

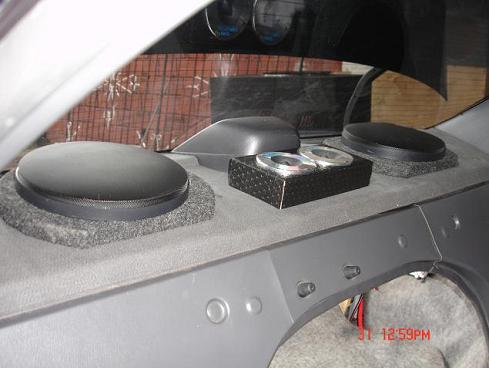

Hifonics 2 channel powering 2 8s Beyma midrange speakers on rear dash
Hif Brutus 200D mono on a

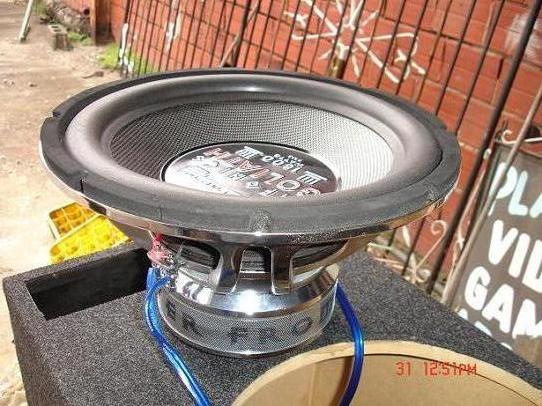

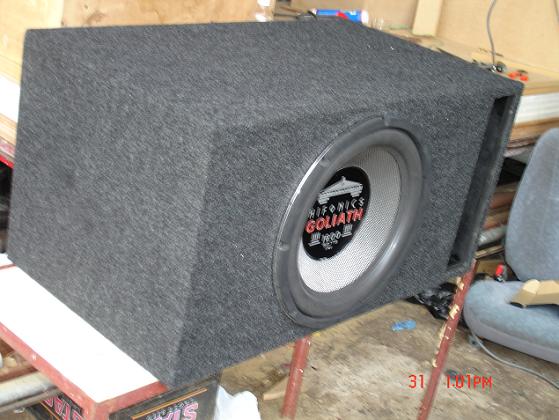

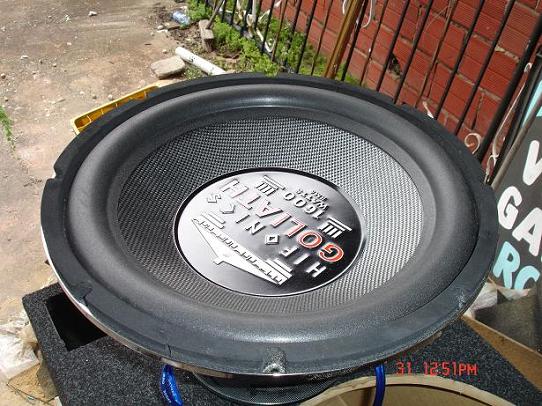

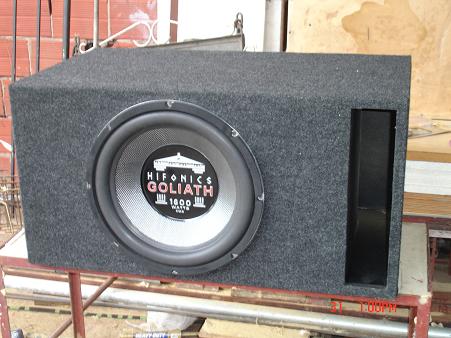

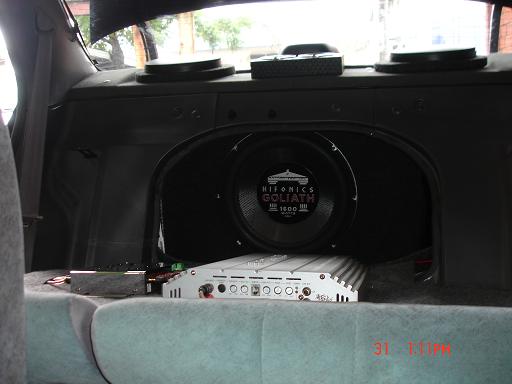

15" Hif Goliath sub - i did not build the box since the owner already had it
Stinger wiring
1 yellow top in the trunk
some parts of this may look unfinished but it was neatened up after pix were taken
system was made for the streets & quit loud\clear ...
more pix of other stuff coming sooooon ! ..... |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11417
Registered: Jul-05
|
| Posted on Sunday, May 06, 2007 - 12:10 am: |
|
like i said above - done other stuff too but no pix was taken cause i keep forgetting to take them

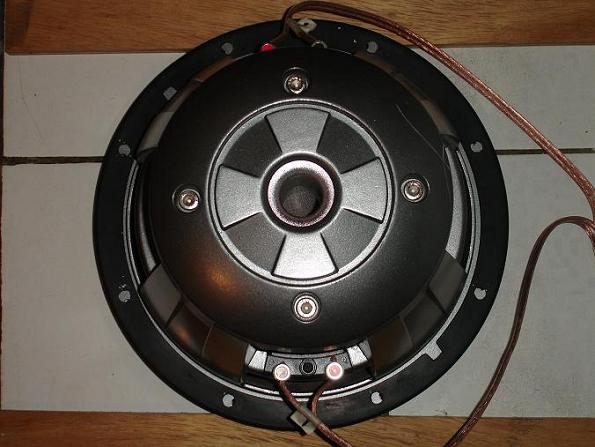

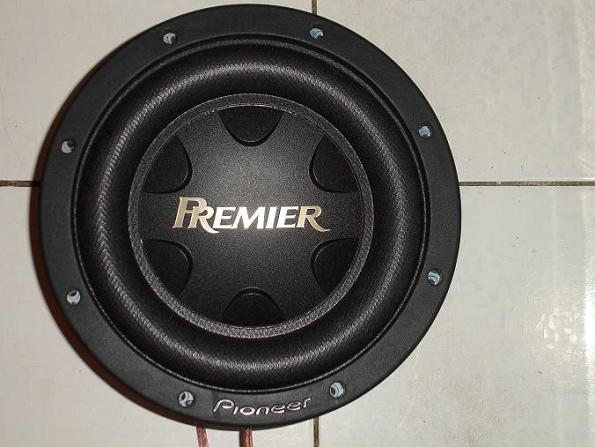

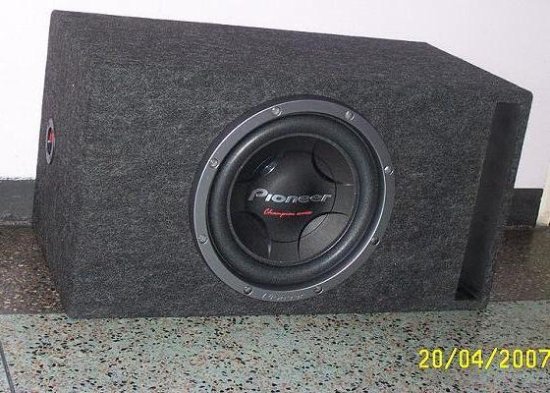

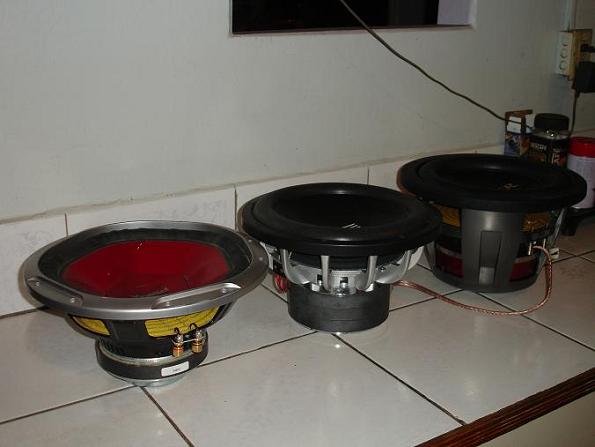

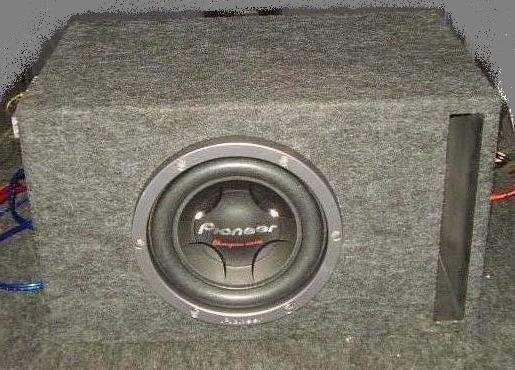

2007 10" pioneer TS-w257D2 ...every1 who has heard this b4 seeing it ask if its a 12" .....shakes steering column in my ride

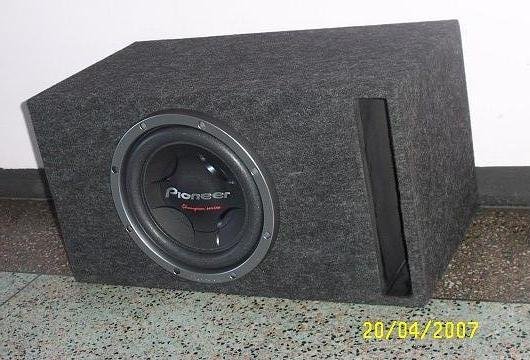

2007 12" Pioneer TS-W307D2
what i currently run in my wagon right now is a pair of crystal 50wrms 6.5" coax in front doors
here are my soundstream 2 chan amp & the ol' alpine F545

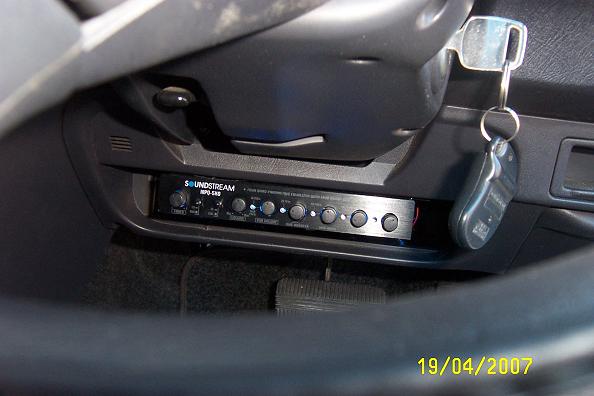

Recent addition , Soundstream 5xo Preamp - this thing puts out a rca voltage of 10v ! & makes a hugh difference of overall system output

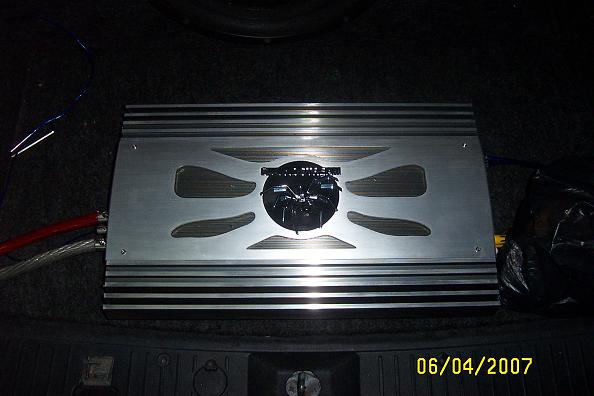

My current bass amp - Soundstream Picasso 2000D

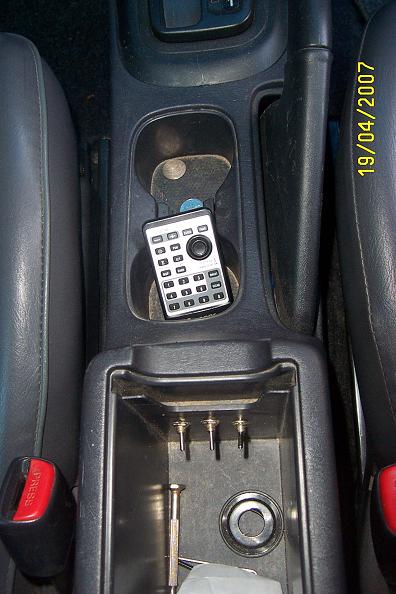

these r my 3 "bat-mobile" type switches lol, each can instantly shut off each of the 3 amps individually (*its simple to do - since each is connected to the REM wire)
1 yellow top in trunk (1 more in engine bay)

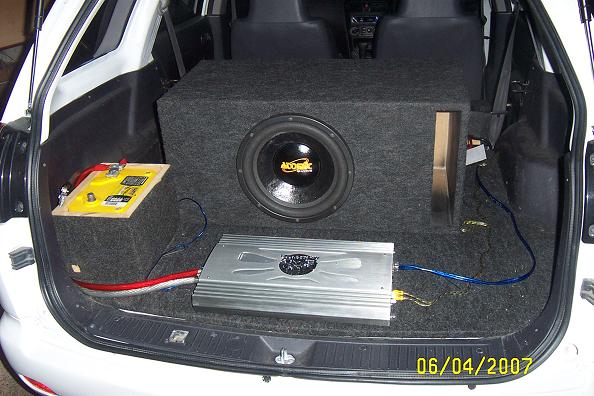

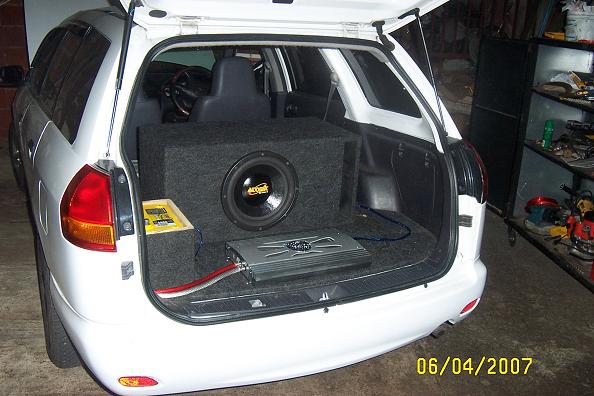

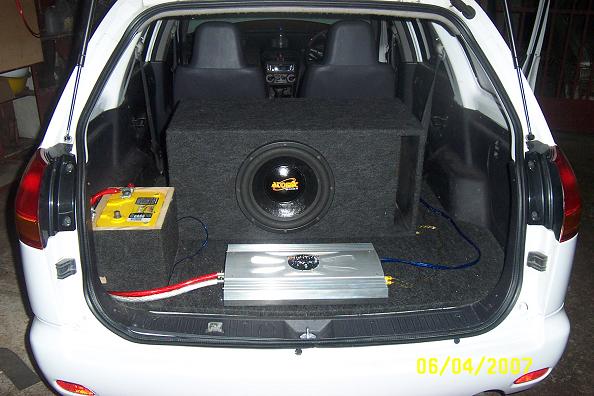

& my current sub since January - 1 12" Atomic Quantum series , rated 500wrms but itakes 1,000wrms regularly without complaining lol
 ..... |
Silver Member Username: Imalik
SD2.5,
New Jersey
Audioque...N...
Post Number: 262
Registered: May-06
|
| Posted on Sunday, May 06, 2007 - 12:33 am: |
|
Nice work. real clean. |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11419
Registered: Jul-05
|
| Posted on Sunday, May 06, 2007 - 12:40 am: |
|
i did a box last wk for 1 brand new 15 RF HEX2 but damn i forgot to take pix of it b4 owner came for it & it sounded so loooud\deeeeeeep\cleannnnnnn but he said he will email some pix of it
but here is what i finished up today for another person ...
2 Blue 15" Audiopipe 1,000wrms model
space was very limited in his suzuki vitara 4 seaters since its trunk is not big @ all
due to space limit it could have only worked in a 5.8 cuft after displacment single chamber box with only 2 4" Aeroports tuned 34-35hz & u can see how serious i braced it inside
ever though slightly undersized this sh!t wangs HARD | DEEP | LOUD ! - SQ is not super accurate but decent enough for a budget sub & box has no vibrations u can feel , both subs r dual 4ohms & powered by a Soundstream Picasso 2000d amp with 8g power wire on the subs .....pretty darn good loud\budget system ......} |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11420
Registered: Jul-05
|
| Posted on Sunday, May 06, 2007 - 12:41 am: |
|
i did a box last wk for 1 brand new 15 RF HEX2 but damn i forgot to take pix of it b4 owner came for it & it sounded so loooud\deeeeeeep\cleannnnnnn but he said he will email some pix of it
but here is what i finished up today for another person ...
2 Blue 15" Audiopipe 1,000wrms model
space was very limited in his suzuki vitara 4 seaters since its trunk is not big @ all
due to space limit it could have only worked in a 5.8 cuft after displacment single chamber box with only 2 4" Aeroports tuned 34-35hz & u can see how serious i braced it inside
ever though slightly undersized this sh!t wangs HARD | DEEP | LOUD ! - SQ is not super accurate but decent enough for a budget sub & box has no vibrations u can feel , both subs r dual 4ohms & powered by a Soundstream Picasso 2000d amp with 8g power wire on the subs .....pretty darn good loud\budget system ......}}} |
Silver Member Username: Volfenhagking1600
15 SSD Wangin,
Shawano, Wis...
USA
Post Number: 692
Registered: Oct-06
|
| Posted on Sunday, May 06, 2007 - 01:12 am: |
|
damn rovin...nice work |
Gold Member Username: Matt12490
California
USA
Post Number: 2329
Registered: May-05
|
| Posted on Sunday, May 06, 2007 - 04:01 am: |
|
Those Audiopipes gotta have port noise.. do they? |
Silver Member Username: Paogr
Athens
Greece
Post Number: 125
Registered: Dec-05
|
| Posted on Sunday, May 06, 2007 - 06:33 am: |
|
Nice wrok Rovin!
Tell me how big is the box for the 2007 12" Pioneer TS-W307D2 and where is tune to? |
Gold Member Username: Th3pwn3r
Post Number:...
Post Number: 2418
Registered: Jul-06
|
| Posted on Sunday, May 06, 2007 - 12:06 pm: |
|
I'm curious to hear that Hifonics Goliath sub myself I nearly ran for of them a while back. |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11427
Registered: Jul-05
|
| Posted on Sunday, May 06, 2007 - 06:25 pm: |
|
Thanks guys !
well story with the audiopipe subs was that the owner & i talked about him getting either 1 good 15 or 2 12s but when he went to buy these subs were fairly cheap so he got nutty & went overboard & bought 2 15s then asked me to work with it in such a limited space . So only 2 tube ports could fit & i had decided to use aeroports to reduce any port noise & give more output from it .
It pounds very hard skipping my premier 860 deck & cause the hood to flap on certain songs in my ride when i tried it in there - but no audible port noise
Tasos - i answered in the sub section
The Hif sub played decent even though it was tuned 37hz to handle the brutus 2000d on it - i personally would have tuned it about 35hz to get more lows . Its not something i would get for myself but the owner loves it ....... |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11429
Registered: Jul-05
|
| Posted on Sunday, May 06, 2007 - 06:27 pm: |
|
Thanks guys !
well story with the audiopipe subs was that the owner & i talked about him getting either 1 good 15 or 2 12s but when he went to buy these subs were fairly cheap so he got nutty & went overboard & bought 2 15s then asked me to work with it in such a limited space . So only 2 tube ports could fit & i had decided to use aeroports to reduce any port noise & give more output from it .
It pounds very hard skipping my premier 860 deck & cause the hood to flap on certain songs in my ride when i tried it in there - but no audible port noise
Tasos - i answered in the sub section
The Hif sub played decent even though it was tuned 37hz to handle the brutus 2000d on it - i personally would have tuned it about 35hz to get more lows . Its not something i would get for myself but the owner loves it .......} |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11431
Registered: Jul-05
|
| Posted on Sunday, May 06, 2007 - 06:29 pm: |
|
Thanks guys !
well story with the audiopipe subs was that the owner & i talked about him getting either 1 good 15 or 2 12s but when he went to buy these subs were fairly cheap so he got nutty & went overboard & bought 2 15s then asked me to work with it in such a limited space . So only 2 tube ports could fit & i had decided to use aeroports to reduce any port noise & give more output from it .
It pounds very hard skipping my premier 860 deck & cause the hood to flap on certain songs in my ride when i tried it in there - but no audible port noise
Tasos - i answered in the sub section
The Hif sub played decent even though it was tuned 37hz to handle the brutus 2000d on it - i personally would have tuned it about 35hz to get more lows . Its not something i would get for myself but the owner loves it .......}} |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11464
Registered: Jul-05
|
| Posted on Thursday, May 10, 2007 - 11:13 pm: |
|
 k kidz this s what i made today for some1
single chamber single port 4.5cuft box for a 1998 Mitsubishi Galant VRG Sedan (rather small trunk for such a long car) - 2 12s Audiobahn AW1200V rated 700wrms each ,those blasted subs has a Fs of 35hz ! - so i tuned it 37hz for SQL streetbass
now the owner didnt bring the AB subs when he came to collect the box so i tested my 2 12s Soundstream XPRO 500wrms subs in em
& MAN IT SLAMS HARD !
Mr. Rovin does it once again ..... |
Silver Member Username: Waterboy2289
Georgia,
DiRtY SoUtH ...
2 18 SX w/ ...
Post Number: 403
Registered: Jan-06
|
| Posted on Friday, May 11, 2007 - 12:23 am: |
|
You do good work! I'm very impressed! |
Silver Member Username: Wolf_hound
Post Number: 191
Registered: Sep-05
|
| Posted on Friday, May 11, 2007 - 12:48 am: |
|
how bout a vid of some of this stuff in action |
Platinum Member Username: Rovin
My 1 12 Atom...
Post Number: 11523
Registered: Jul-05
|
| Posted on Thursday, May 17, 2007 - 11:42 pm: |
|
thanks matt
well i have sh1tty dial up here so it would be a pain to load any up .... |
Bronze Member Username: Khae
Post Number: 21
Registered: May-07
|
| Posted on Friday, May 18, 2007 - 01:44 am: |
|
hey do you guys think that this will hit hard in this box that im building? its goin to be a ported with about 3.4 cubic feet not a single port but two of them one on each side of the sub.....
 |
Platinum Member Username: Rovin
2 10 Pioneer...
Post Number: 11586
Registered: Jul-05
|
| Posted on Monday, May 28, 2007 - 09:34 pm: |
|
^^^facking hijacking my thread FTL !
did this box today for a guy - orion 15" XTR dual 4ohms rated only 200wrms but hits very decent for such a low wattage sub
 ..... |
Silver Member Username: Sheriff
Post Number: 418
Registered: Jan-07
|
| Posted on Monday, May 28, 2007 - 09:46 pm: |
|
Looking good. Keep building and updating. |
Platinum Member Username: Rovin
4 10 Pioneer...
Post Number: 11875
Registered: Jul-05
|
| Posted on Saturday, July 28, 2007 - 12:27 am: |
|
^^^thanks been doing alot of stuff lately but too busy to update here (sometimes i 4get about this thread too)
last stuff i did was 144.4DBs
http://forum.ecoustics.com/bbs/messages/4/373122.html ....... |
Bronze Member Username: Thed42
Post Number: 61
Registered: Jun-06
|
| Posted on Wednesday, August 01, 2007 - 08:44 am: |
|
nice looking boxes, were you able to hide the seems...look like it |
