Thread: Shawn M's system... So far... |

Silver Member Username: Shawnomak
Sask
Canada
Post Number: 321
Registered: May-05
|
| Posted on Monday, August 14, 2006 - 12:37 am: |
|
This is what I have done so far. It's a nice sound quality system. I like it, but there's still some things I have to get done. Progress is slow because I've had alot of work to do lately... But, here it is:

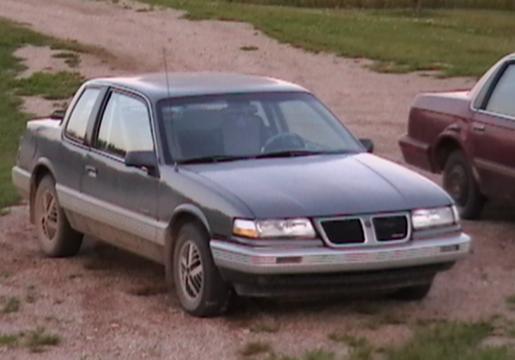

This is my car. Nothing to brag about, an '89 Grand Am:
" " Another:

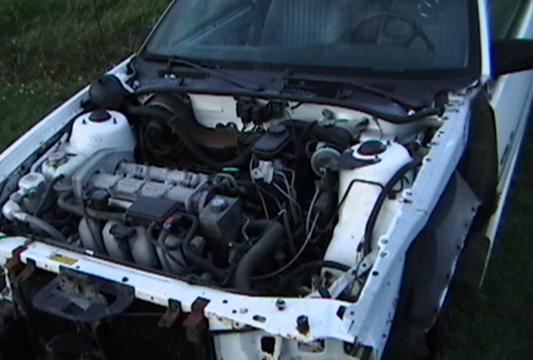

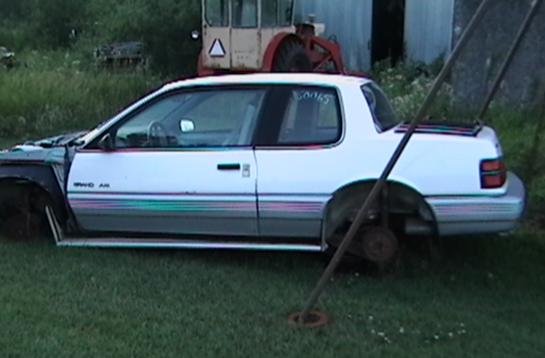

The donor car I got to fix the little rust spots, and for the power windows/locks:
" " Another :

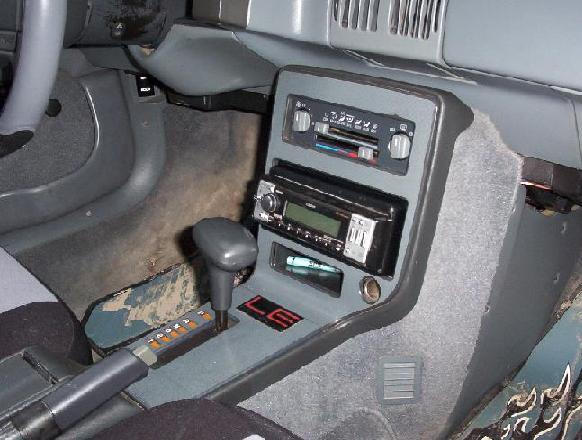

This is my head unit, a Clarion DEH655MP

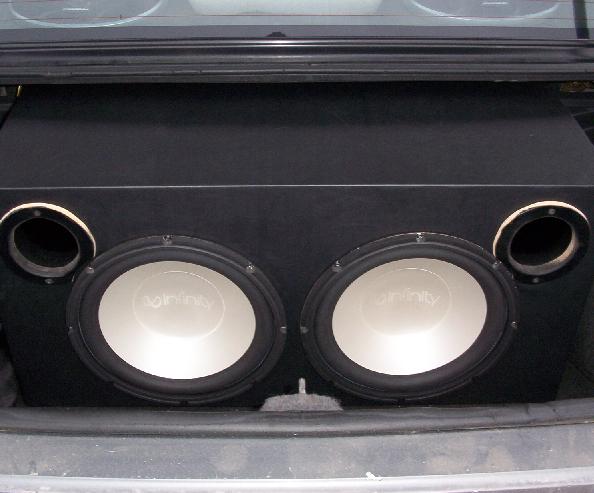

My first sub box, pvc ported tuned to 33Hz but there's port noise (ugh!):

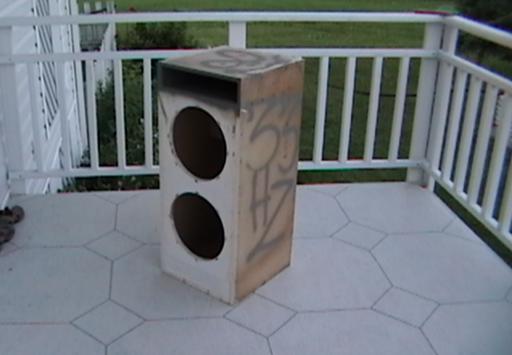

My second box, slot ported and also tuned to 33Hz. I still have to cover it in leather like the first one:

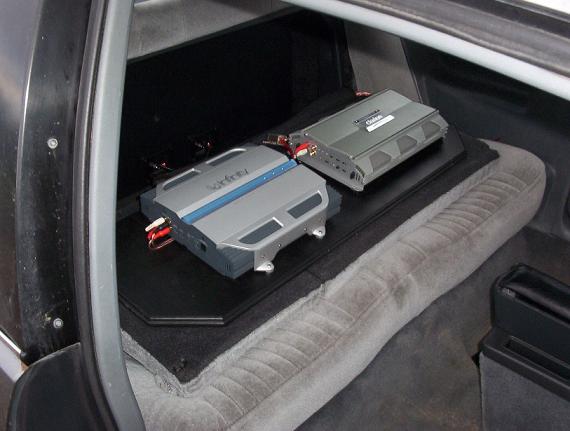

This is when I had my friends Clarion amp in my car along with my old Infinity 310A:
This is the first amp I had. Infinity 310a:

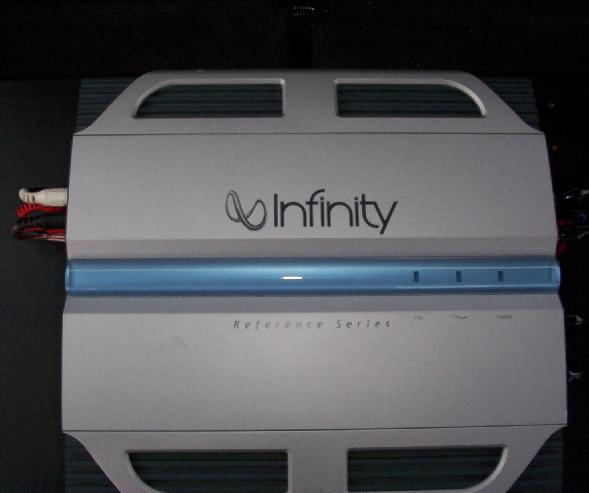

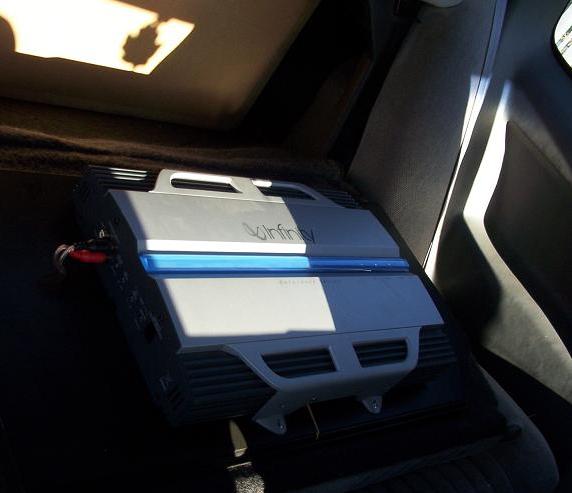

New amp I got a few months ago. Infinity 611A:

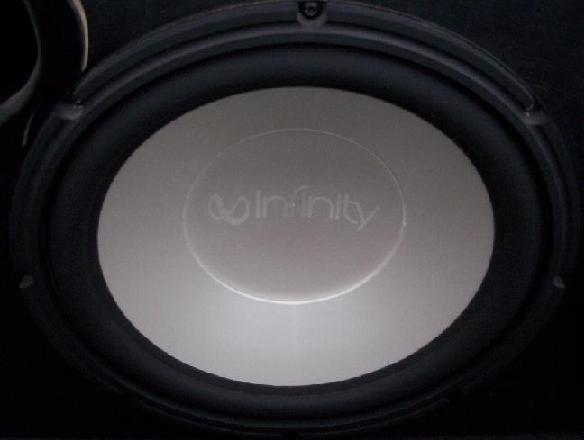

My subs, I have two of these. Infinity 1230:

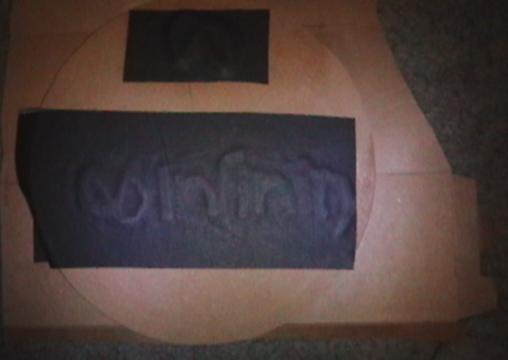

This is what I plan on doing when I cover my sub box. Raise the lettering. This was done quickly just to see how it would look:
Well that's it folks. Let me know what you think. I plan on getting some Infiniy 6.5" component speakers for the doors after I get rid of the window handles and get the power windows put in. |
|
|
|
Silver Member Username: Camaro823
British Colu...
Canada
Post Number: 585
Registered: Jun-05
|
| Posted on Monday, August 14, 2006 - 01:34 am: |
|
About time you got it on here, looks good though |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 322
Registered: May-05
|
| Posted on Monday, August 14, 2006 - 03:42 am: |
|
See how the seat with the amps mounted folds down and you can see the back of the sub box? I usually drive around that way because it sounds better/louder. I was thinking of using foam to do that raised look under the leather so when you look back at it, it doesnt just look plain like the back of a sub box. The terminals are on the side, out of sight, so you can't see any wires and that amp rack has all the wires ran underneath it. When i get my car cleaned out I'll post more pics, and when I get all the body work done and a paint job, I'll post more. Until then, keep the messages coming. :-) |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 325
Registered: May-05
|
| Posted on Wednesday, August 23, 2006 - 12:44 am: |
|
Here's some more:
This is the port with a routered flare:
This is the foam flame design on the back you see when the seat is down:
The Infinity logo:
And here is the finished box:
I'll take more pictures of it in the trunk tomorrow if I have time. |
Silver Member Username: Van_man
Boston South,
MA
Post Number: 835
Registered: Mar-06
|
| Posted on Thursday, August 24, 2006 - 09:17 pm: |
|
Nice job. I like the flames on the sub box. |
Silver Member Username: Camaro823
British Colu...
Canada
Post Number: 636
Registered: Jun-05
|
| Posted on Friday, August 25, 2006 - 12:18 am: |
|
nice work, love the infinity logo |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 326
Registered: May-05
|
| Posted on Friday, August 25, 2006 - 05:51 pm: |
|
Got a few more pictures:
Back seat:
Pull the seat down - 611a, no wires running everywhere:
The trunk:
Open it up - 2 12" Infinitys, ported box tuned to 33Hz:
More of the box and subs sitting in the trunk:
The port, hard to see, but it's there:
 |
Gold Member Username: Stnorris
IA
US
Post Number: 1205
Registered: Apr-06
|
| Posted on Saturday, August 26, 2006 - 06:37 pm: |
|
what size were the tube ports on ur box, and what size was the box???
they look like 2" ports, and they dont look like they are flared, i think thats why u had port noise. not enought port area, and no flare for enter and exit. |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 329
Registered: May-05
|
| Posted on Saturday, August 26, 2006 - 10:44 pm: |
|
Those were 4" ports, and I think the port noise was from the inserts to hide the seem of the vinyl, but it also whistled when it was just painted, and there was a routered flare then too. Its probablly because it wasn't flared at the other end. |
Silver Member Username: Delsole
Post Number: 450
Registered: Feb-05
|
| Posted on Tuesday, August 29, 2006 - 03:46 pm: |
|
looks pretty clean |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 346
Registered: May-05
|
| Posted on Friday, September 08, 2006 - 12:01 am: |
|
Thanks man.
Someone offered me $350 for my 310a. Done deal. :-) |
Gold Member Username: Juliob
Santo Domingo
Dominican Re...
Post Number: 2368
Registered: Dec-05
|
| Posted on Sunday, September 17, 2006 - 12:59 pm: |
|
i like those infinity subs... good SQ for the money |
Bronze Member Username: Motomaze
Ont
Canada
Post Number: 21
Registered: Sep-06
|
| Posted on Monday, October 02, 2006 - 01:46 am: |
|
good job alot cleaner than some of wiring that ive seen here |
Gold Member Username: Basshead86
Try Google
Post Number: 6597
Registered: Aug-05
|
| Posted on Monday, October 02, 2006 - 04:44 pm: |
|
definitely....lol |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 351
Registered: May-05
|
| Posted on Monday, October 23, 2006 - 08:17 pm: |
|
Hmm.. I posted 12 pictures on my first post up there, and more pictures on the next few, but I can't see any of them except the first 12 anymore. Do they show up on anyones computer? |
Silver Member Username: Shawnomak
Sask
Canada
Post Number: 361
Registered: May-05
|
| Posted on Sunday, December 09, 2007 - 07:56 pm: |
|
I haven't been on this site in a LONG time. Since my last post I got a new car and started university.. So progress has been slow. I have some plans and I'll MAYBE get around to them this summer time. I'll be getting some new speakers and making ANOTHER new sub box.. Probably using some Fiberglas. Spring loaded fold down back seats to show a nice amp rack.. I have all the things I need.. Except time to do it all! |
