| Author |
Thread: 2 type R's Custom Box |

New member Username: Rboudreau
Weymouth,
Ma
United States
Post Number: 2
Registered: Nov-09
|
| Posted on Thursday, November 05, 2009 - 05:39 pm: |
|

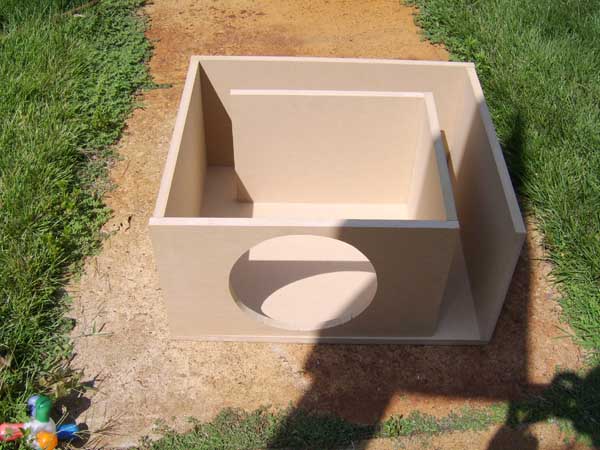

hey guys sorry im new on the forums ..... Let me be a bit more specific. I have 2 DVC 4Ohm type R's with a Rockford P1000 rated at 1614@ 1 OHM. I wana build a custom ported box but do not have the true knowledge on how to calculate it. I am hoping i could get some Specs/Dimensions for a box similar to this design shown below. Again i would really appreciate any help i could get at this point as i want to start ASAP  } |
|
|
|
Gold Member Username: Dustin3
D&L Audio Tech.
Dustin
Post Number: 5162
Registered: Oct-05
|
| Posted on Thursday, November 05, 2009 - 07:17 pm: |
|
what size are the type r's? |
Gold Member Username: Hittin1
TEAM REVOLUTION,
La.
Lake Charles...
Post Number: 4084
Registered: May-07
|
| Posted on Thursday, November 05, 2009 - 07:23 pm: |
|

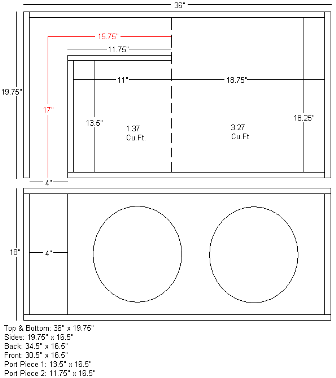

Without knowing what max dimentions are and assuming they are 12" subs this is the best I can do... Got this design from CA.com. Moe Lester posted a bunch of free plans on there. Hope it works out for you. |
Gold Member Username: Hittin1
TEAM REVOLUTION,
La.
Lake Charles...
Post Number: 4085
Registered: May-07
|
| Posted on Thursday, November 05, 2009 - 07:25 pm: |
|
http://img35.imageshack.us/my.php?image=44cubes32hz66sqin7et.png
link to original and larger design.
4.4^3 ft. 32hz |
New member Username: Rboudreau
Weymouth,
Ma
United States
Post Number: 3
Registered: Nov-09
|
| Posted on Thursday, November 05, 2009 - 07:41 pm: |
|
they are 12''s but i want deep low bass ive seen people say 2 cubic ft and now 4.4 idk whats beter? |
Gold Member Username: Dustin3
D&L Audio Tech.
Dustin
Post Number: 5163
Registered: Oct-05
|
| Posted on Thursday, November 05, 2009 - 07:49 pm: |
|
they probably meant 2 cuft per sub. |
Gold Member Username: Hittin1
TEAM REVOLUTION,
La.
Lake Charles...
Post Number: 4089
Registered: May-07
|
| Posted on Thursday, November 05, 2009 - 07:57 pm: |
|
2-2.25^3ft / sub will be fine.
If that box design will fit in your ride, it will do the job..Will definitely be louder than your sealed box. |
Gold Member Username: Drant19
DUB-C,
TX
Post Number: 2131
Registered: Aug-07
|
| Posted on Thursday, November 05, 2009 - 09:52 pm: |
|
Rovin has done MANY boxes for type-rs.. he always recommends 4-4.5 cubes @ 32-35Hz.
if you want low bass then tune to 32 Hz. im not sure if they will like lower tuning, but hey try it n see if it fits your tastes! Trial n Error works |
Platinum Member Username: Rovin
1 15 = 152.5 DBs ...
Trinidad & T...
Post Number: 15614
Registered: Jul-05
|
| Posted on Thursday, November 05, 2009 - 10:02 pm: |
|
^yes thats pretty good
12-16sq" of port \ cuft
tuned 33hz & ur good to go ... |
Diamond Member Username: Wingmanalive
Www.stainles...
.ecrater.com
Post Number: 21565
Registered: Jun-06
|
| Posted on Thursday, November 05, 2009 - 10:26 pm: |
|
Type Rs for ®ovin.
Coincidence lol? |
