Thread: FI build log(picssss) |

Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 234
Registered: Nov-08
|
| Posted on Sunday, October 25, 2009 - 11:21 pm: |
|
finished my box a lil while ago, now just waiting for my 2nd sub to come in. ups is taking longer than i had hoped..
Box for 2 FI ssd 12s. Box is 4.3ft^3 before displacements tuned to 34hz with 67.5 sq. in. of port.

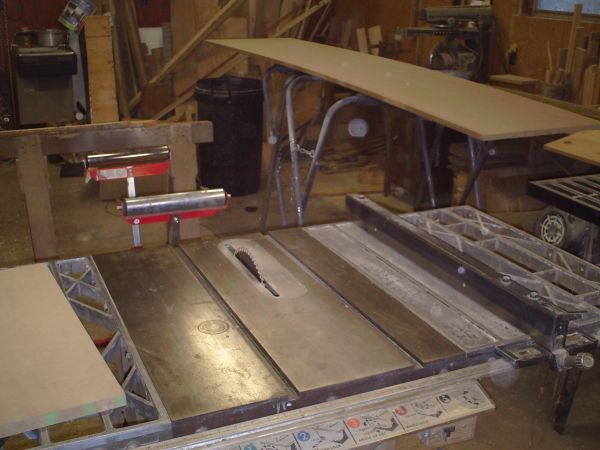

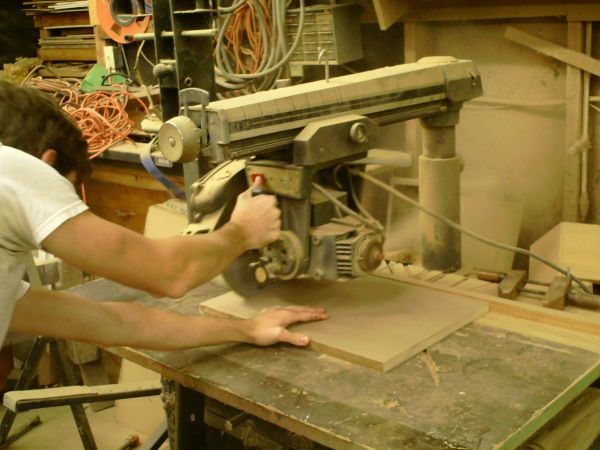

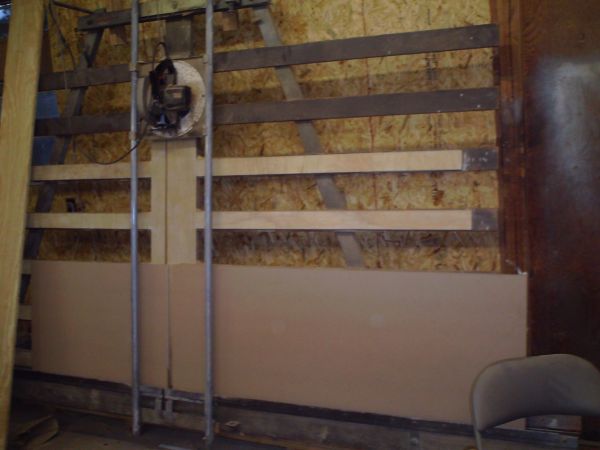

Heres just 3 random pics of the only 3 saws in the shop that i really use. Table saw, Circular saw, Panel Saw...

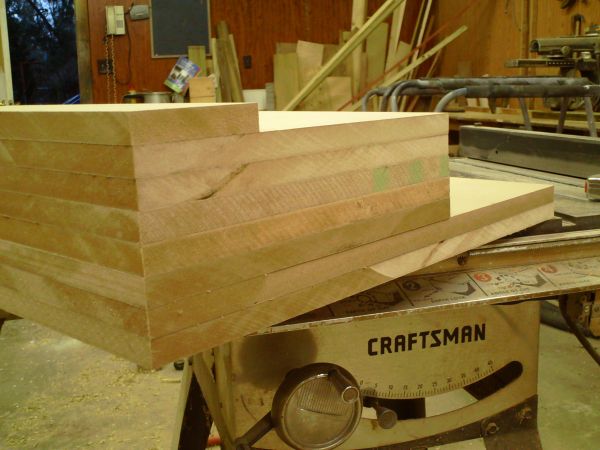

My stack after the cuts.

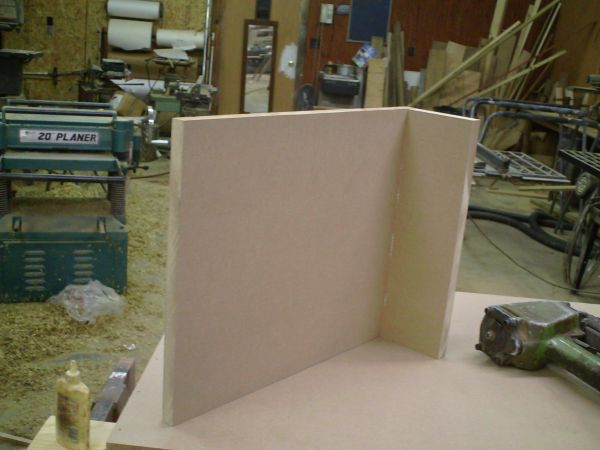

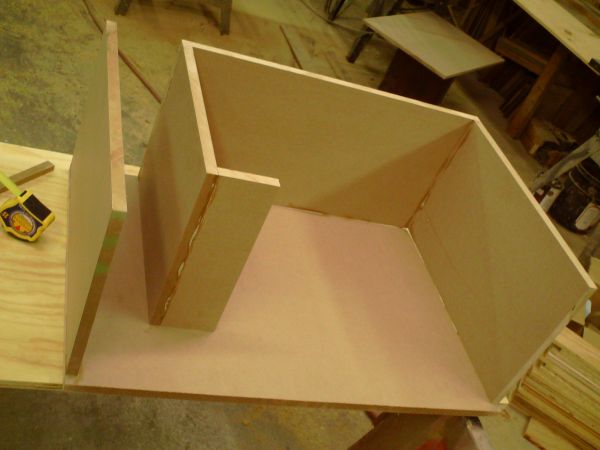

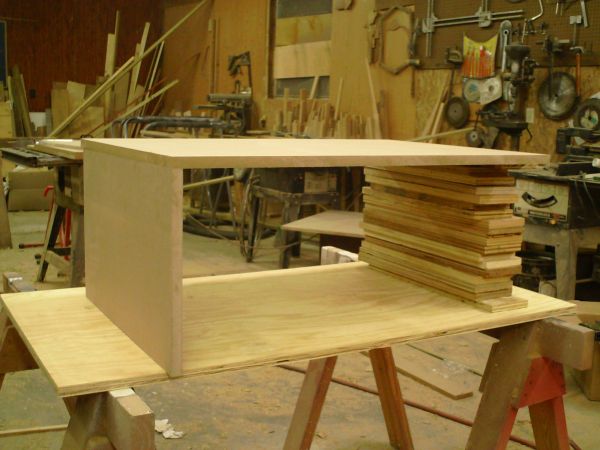

just a little technique i use to help me to staple the sides. kinda hard doing it by myself

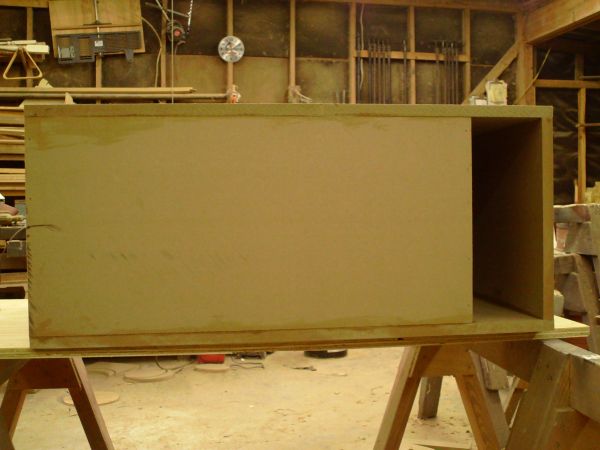

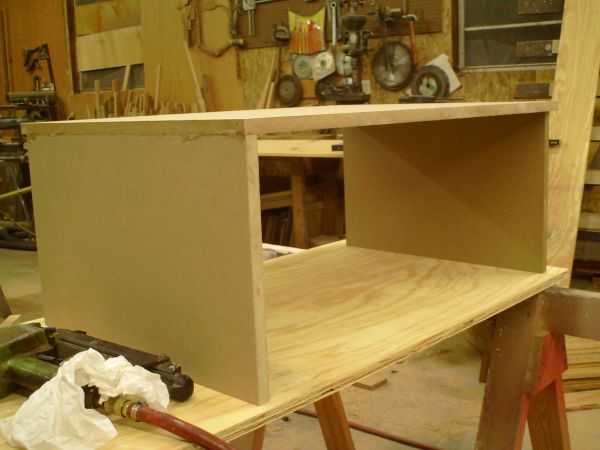

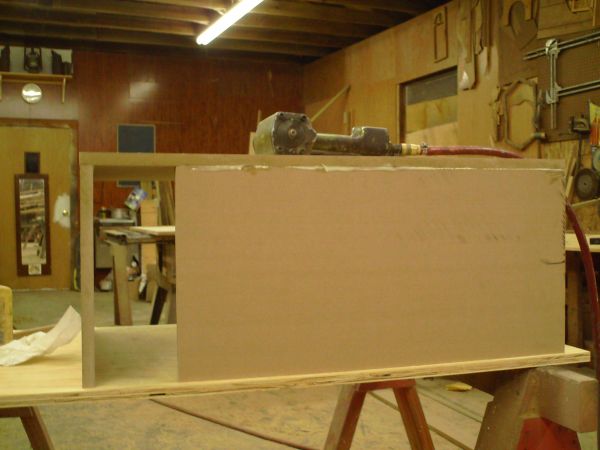

both sides glued and nailed

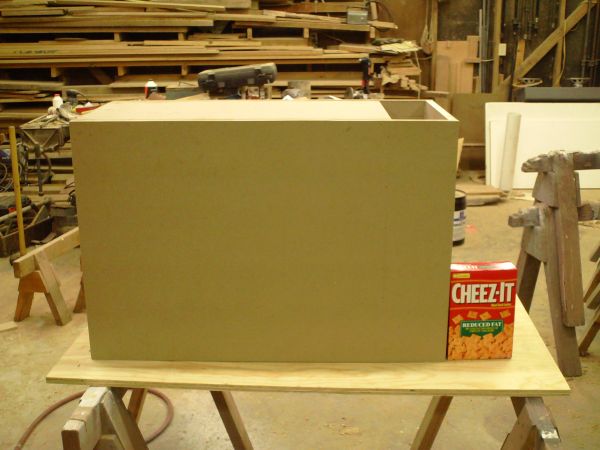

just a size comparison...

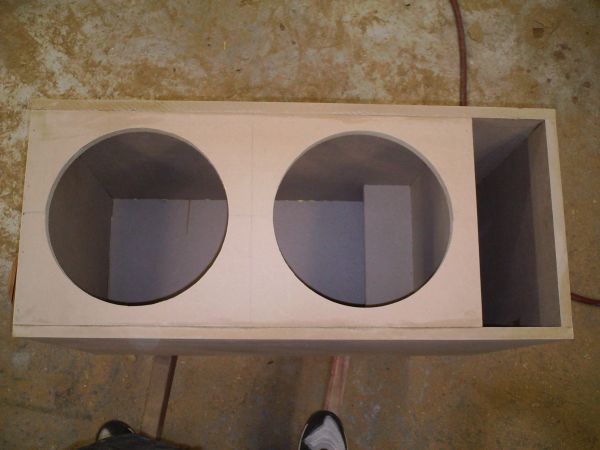

after i took the router to the box and cut das holes!!
wasnt a really long build log, nor did it have many pictures. hope you guys enjoy though, and lemme know what ya think. |
|
|
|
Silver Member Username: 813thumper
Tampa,
FL
United States
Post Number: 126
Registered: Sep-09
|
| Posted on Sunday, October 25, 2009 - 11:37 pm: |
|
would a jigsaw suffice when it comes to cutting the holes?
box looks good man. |
Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 235
Registered: Nov-08
|
| Posted on Sunday, October 25, 2009 - 11:44 pm: |
|
yeah, jigsaws work fine, a little harder and more time consuming.. but still, u can use one |
Gold Member Username: Tejcurrent
Post Number: 1981
Registered: Apr-07
|
| Posted on Sunday, October 25, 2009 - 11:48 pm: |
|
Nice job.
I'm liking the panel saw- do you know where it's possible to buy one or the parts for one? |
Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 236
Registered: Nov-08
|
| Posted on Sunday, October 25, 2009 - 11:53 pm: |
|
umm. we bought ours from our local scottys that used to be here. im sure you could get one from lowes. our lowes has them. |
New member Username: Cory51191
Post Number: 6
Registered: Oct-09
|
| Posted on Monday, October 26, 2009 - 12:24 am: |
|
how does this box sound? |
Gold Member Username: Tejcurrent
Post Number: 1982
Registered: Apr-07
|
| Posted on Monday, October 26, 2009 - 12:25 am: |
|
Couldn't find one at my local lowes
Maybe if I ask it's possibly a special order? Thanks though. |
Gold Member Username: Dustin3
D&L Audio Tech.
Dustin
Post Number: 5156
Registered: Oct-05
|
| Posted on Monday, October 26, 2009 - 01:10 am: |
|
radial arm saws = amazing |
Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 237
Registered: Nov-08
|
| Posted on Monday, October 26, 2009 - 01:28 am: |
|
yeah, youre welcome troy.. cory, idk how it sounds yet, because i still havent gotten my 2nd sub from ups yet.. and yeah the radial arm saws are great... hey troy or anyone, you think im gonna have any port noise or muddy response from this box? i dont want my subs to be bottoming out or anything. or do u think the box is pretty close to good?? |
Platinum Member Username: Insearchofbass
York,
Pennsylvania
Post Number: 12755
Registered: Jun-04
|
| Posted on Monday, October 26, 2009 - 01:34 am: |
|
Looks good. |
Bronze Member Username: Cory51191
Post Number: 12
Registered: Oct-09
|
| Posted on Monday, October 26, 2009 - 01:45 am: |
|
how do you know what measurements to get for your subs for a box like this? |
Gold Member Username: Dustin3
D&L Audio Tech.
Dustin
Post Number: 5157
Registered: Oct-05
|
| Posted on Monday, October 26, 2009 - 03:37 am: |
|
doesnt look like you will be having nay port noise with that much port area. did you graph is at all to find out? Round out the edges of the port walls too. |
Gold Member Username: Dustin3
D&L Audio Tech.
Dustin
Post Number: 5158
Registered: Oct-05
|
| Posted on Monday, October 26, 2009 - 03:39 am: |
|
and cory,
it just takes working with different box programs and tweaking inputs until you get what you want. |
Bronze Member Username: Cory51191
Post Number: 13
Registered: Oct-09
|
| Posted on Monday, October 26, 2009 - 07:50 am: |
|
so basically i shouldn't even try. |
Gold Member Username: Basebalz13
Moneta,
Va
Usa
Post Number: 1860
Registered: Aug-07
|
| Posted on Monday, October 26, 2009 - 10:12 am: |
|
well let us know!
and nice tools  |
Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 238
Registered: Nov-08
|
| Posted on Monday, October 26, 2009 - 11:11 am: |
|
yeah ill keep updated. haha and thanks about the tools |
Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 239
Registered: Nov-08
|
| Posted on Monday, October 26, 2009 - 11:24 am: |
|
cory, just look at what your speakers require. most 12s require 2.2-5 cu ft per sub. then get the maximum dimensions you can use in your vehicle. then go to reaudio.com and use their speaker box calculator. it practically builds the box for you... |
Diamond Member Username: Wingmanalive
Www.stainles...
.ecrater.com
Post Number: 21513
Registered: Jun-06
|
| Posted on Monday, October 26, 2009 - 12:37 pm: |
|
Nice job! Let us know how stapling works for ya. It looks like someone logs in a lot of time in that well equipped shop.
<<<<<<<<<Mucho jealous. |
Silver Member Username: M0nstar
Toledo,
OH
U.S.
Post Number: 372
Registered: Dec-08
|
| Posted on Monday, October 26, 2009 - 01:04 pm: |
|
get one of those little radial or whatever bits for your router and hit the whole box up to give it that "finished" look... after that no matter what you do to it for the final skin it looks good. i.e. carpet, paint, alligator skin that matches your car..
*btw everyone a guy at my stepdads work has red gator skin in a roll that he bought but cant use it now cuz he doesnt know how to apply it is gonna sell it to me and im thinking of doin my seats in the center so theres a strip of red behind your back and the grey stock seats on the sides... $250 for everything.. yay or nay?*
not thread jacking. |
Silver Member Username: Ericmb
Waycross,
Georgia
United States
Post Number: 240
Registered: Nov-08
|
| Posted on Monday, October 26, 2009 - 01:56 pm: |
|
haha nahh its cool dude.. and stapling has never failed me. ive actually had more problems screwing then snapling. its a type of staple(not sure of the name) that when sunk, it locks in the wood. they work rather well. they go in that green gun that u see sitting on top of my box hooked up to that air compressor. |
