Thread: DD9512g Smells Funny |

New member Username: Harrypm82
Post Number: 1
Registered: Nov-08
|
| Posted on Saturday, November 08, 2008 - 04:13 pm: |
|
Hi Guys I am new here. I recently got a dd9512g with the composite cone running off a z2 amplifier.I run it at two ohms Cause I am not sure if I have enough power in the car to run it properly yet. I don't do spl, just pissing about over town listening to loud music. When I turn the sub up, the bass will be clean but after about two songs, I will get a smell similar to wood burning. Doesn't smell electric at all. It def comes from the sub cause I can smell it in the port vent. Also will the z2 amplifier cut out if it doesn't get enough power?Both are brand new. Thanks in advance
 |
|
|
|
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 18833
Registered: Jun-06
|
| Posted on Saturday, November 08, 2008 - 04:28 pm: |
|
Gains, bass boost. Sounds like the coil frying.

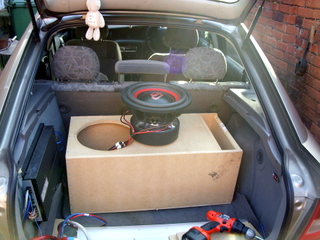

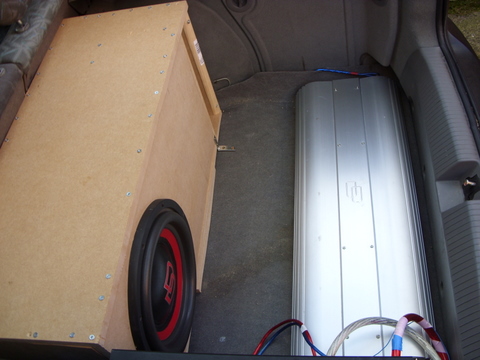

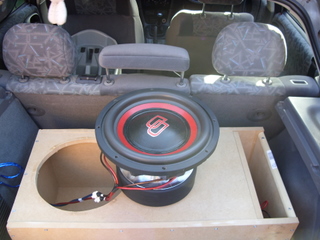

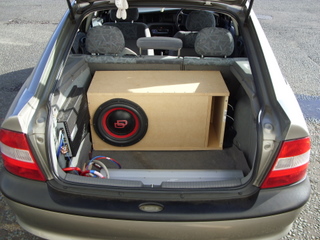

Holy moly do the screws in your box need spaced out more evenly lol.
Nice stuff though. |
New member Username: Harrypm82
Post Number: 3
Registered: Nov-08
|
| Posted on Saturday, November 08, 2008 - 04:37 pm: |
|
Thanks lol. I had four hours of daylight to build the box and install the stuff and it was pretty much touch and go for a 250 mile trip home after that. I am seeking some box designs as I am only using this one for testing purposes, thus no acoustic carpet and bad wiring. I am planning to rip the bottom of the boot out and replacing it with 3/4" mdf and work from there. Thanks for the reply though |
New member Username: Harrypm82
Post Number: 4
Registered: Nov-08
|
| Posted on Saturday, November 08, 2008 - 04:41 pm: |
|
 |
Gold Member Username: Southernrebel
Monroe,
Louisiana
Team Audible...
Post Number: 7022
Registered: Mar-04
|
| Posted on Saturday, November 08, 2008 - 06:53 pm: |
|
What kind of charging system do you have?
Batts/alt? |
New member Username: Harrypm82
Post Number: 5
Registered: Nov-08
|
| Posted on Saturday, November 08, 2008 - 08:18 pm: |
|
At the moment it's just the stock 70a alternator and 45a bat. I had a nsb90 but gave it to a friend just before i got these! Need to do an upgrade on the big 3 as well. |
Gold Member Username: Talon01
Team Revolution ,
Pa
Usa
Post Number: 1746
Registered: Jun-07
|
| Posted on Saturday, November 08, 2008 - 09:49 pm: |
|
that is way to much power for stock electrical. also to much power for the sub daily. that z2 does 4400wa at 2ohm |
Gold Member Username: Andrew571
Stillwater/Edmond,
Oklahoma
USA
Post Number: 2103
Registered: Oct-05
|
| Posted on Saturday, November 08, 2008 - 09:51 pm: |
|
you are ruining a very sexy sub.... |
Gold Member Username: Nd4spd18
Philadelphia,
PA
Post Number: 8884
Registered: Jul-06
|
| Posted on Saturday, November 08, 2008 - 09:59 pm: |
|
Set gain right and make sure bass boost is off......
And yeah that electical systems only about 100x too small for that amp lol. |
Gold Member Username: Nd4spd18
Philadelphia,
PA
Post Number: 8885
Registered: Jul-06
|
| Posted on Saturday, November 08, 2008 - 10:07 pm: |
|
Set gain right and make sure bass boost is off......
And yeah that electical systems only about 100x too small for that amp lol.
If you smell anything turn it down immedietly, it's already damaging the sub at that point |
Gold Member Username: Frkkevin
Team DLS
SuperNatural...
Post Number: 5876
Registered: Nov-05
|
| Posted on Saturday, November 08, 2008 - 10:11 pm: |
|
if the sub is brand new it could just be burning off excess glue |
Gold Member Username: Southernrebel
Monroe,
Louisiana
Team Audible...
Post Number: 7027
Registered: Mar-04
|
| Posted on Saturday, November 08, 2008 - 10:58 pm: |
|
check you voltage and see how far it is dropping.
It its getting below 10v, you are clipping the fu}k out of that amp. |
New member Username: Harrypm82
Post Number: 6
Registered: Nov-08
|
| Posted on Sunday, November 09, 2008 - 08:44 am: |
|
The minimum it reads at the back is 10.34 volts and that is when I play it over the volume I normally listen to. At the same volume, the front jumps between 11.60 and 12.60 volts. I obviously need to do my big 3 and do a few more 0 gauge runs to the back. What do you think? |
Silver Member Username: Kingandsons07
TEAM REVOLUTION
Lincoln,NE
Post Number: 269
Registered: Aug-08
|
| Posted on Sunday, November 09, 2008 - 09:22 am: |
|
really nice setup need better electical systems asap |
Gold Member Username: Redliner
Wilmington,
Ma
Post Number: 4588
Registered: Jun-05
|
| Posted on Sunday, November 09, 2008 - 09:26 am: |
|
ya you def need new alt, batts, big 3, and what not or you will ruin that very very nice and pricy setup. It is nice though |
New member Username: Harrypm82
Post Number: 7
Registered: Nov-08
|
| Posted on Sunday, November 09, 2008 - 01:15 pm: |
|
will a 120a alternator be sufficient? |
Gold Member Username: Nd4spd18
Philadelphia,
PA
Post Number: 8890
Registered: Jul-06
|
| Posted on Sunday, November 09, 2008 - 04:13 pm: |
|
Haha hell no
200+ amps and a new battery |
Gold Member Username: Stateprop486
PA
Post Number: 1705
Registered: Jan-08
|
| Posted on Sunday, November 09, 2008 - 04:47 pm: |
|
if you had money to spend on that nice equipment you should have money to spend on a good alt and battery. lol |
New member Username: Harrypm82
Post Number: 8
Registered: Nov-08
|
| Posted on Sunday, November 09, 2008 - 04:51 pm: |
|
Cheeky. I actually traded it for 2 atomic apxx subs. |
Gold Member Username: Redliner
Wilmington,
Ma
Post Number: 4591
Registered: Jun-05
|
| Posted on Sunday, November 09, 2008 - 05:46 pm: |
|
ya u def need 200-300 amps for a alt. Then you need to grab 1-2 batts |
Gold Member Username: Renegadesrun
Lafayette,
IN
US
Post Number: 1014
Registered: Oct-04
|
| Posted on Monday, November 10, 2008 - 01:39 pm: |
|
Wow.
Next thread prediction.
"My car burnt to the ground, what should i buy next?" |
