Thread: How do you bridge two amps together to each power one sub |

New member Username: Konruff2010
Pinedale,
Wyoming
United States
Post Number: 1
Registered: Jun-08
|
| Posted on Wednesday, June 18, 2008 - 06:16 pm: |
|

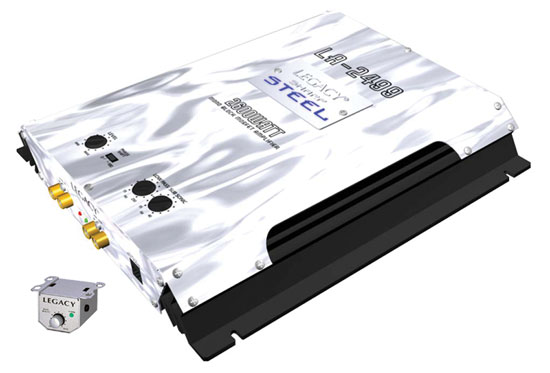

okay i have two Legacy LA-2499 Blue Steel Series 2600 Watt Mono Block MOSFET amplifiers  and i need to know how to bridge them together so they each power a different sub  ...can anyone give me some help or instructions???? thanx |
|
|
|
Gold Member Username: Van_man
Boston South,
MA
Post Number: 4080
Registered: Mar-06
|
| Posted on Wednesday, June 18, 2008 - 06:44 pm: |
|
wire each amp to each sub.
Thats not really bridging, or strapping amps. thats just running 2 amps, 2 subs. |
New member Username: Konruff2010
Pinedale,
Wyoming
United States
Post Number: 2
Registered: Jun-08
|
| Posted on Wednesday, June 18, 2008 - 08:57 pm: |
|
but i mean wht do you do for the ground and power and ignition wiring to each sub?? can you combine them or no??? |
Gold Member Username: N2audio
Lawrence,
Ks
USA
Post Number: 1589
Registered: Mar-04
|
| Posted on Wednesday, June 18, 2008 - 09:24 pm: |
|
typically you'd use distribution blocks. You run a single large power wire into the (fused) d-block - 4 ga in your case, and two 8 ga wires go from there to the amp (+). From each amp (-) you run another 8 ga wire to the ground (unfused) d-block, and a 4 ga from there to chassis ground.
You would also want to put a ~80A fuse on the 4 ga primary wire somewhere near the battery (within a foot or so).
Your trigger wire can just piggy-back from one amp to the next, and the RCA's will work the same way. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 4085
Registered: Mar-06
|
| Posted on Wednesday, June 18, 2008 - 09:32 pm: |
|
 |
Gold Member Username: N2audio
Lawrence,
Ks
USA
Post Number: 1590
Registered: Mar-04
|
| Posted on Thursday, June 19, 2008 - 10:01 am: |
|

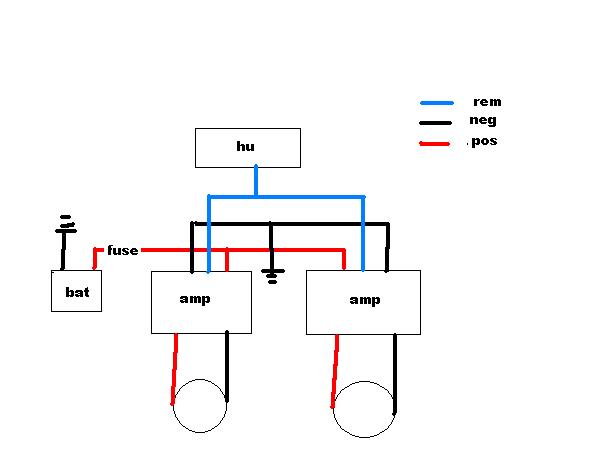

I would add this for clarity...
 |
New member Username: Konruff2010
Pinedale,
Wyoming
United States
Post Number: 3
Registered: Jun-08
|
| Posted on Thursday, June 19, 2008 - 05:11 pm: |
|
alright thanx both of you guys for lettin me know much abliged |
|
