| Author |
Thread: Lowlife....Gus, your box |

Diamond Member Username: Bestmankind
Post Number: 21153
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 12:29 pm: |
|

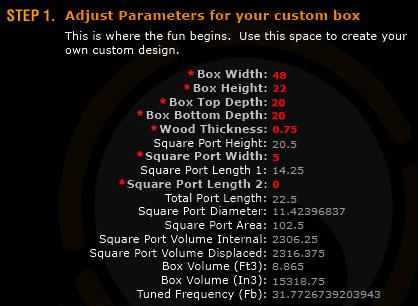

ok with the dimensions you gave me, you can make a box this size.
8.865 cuft with 102.5 sq inches of port area. it will be tuned to around 32hz. since we have a lot of volume to work with, your box is able to achieve the desired tuning frequency without the L bend. no L bend = less turbulance.
you car will be so fricking loud and clean i can't wait to hear it.
2 re xxx 15s with 2 rd audio 1750.1. man just thinking about it is giving me a woody. DAYAM!!!
 |
|
|
|
Diamond Member Username: Bestmankind
Post Number: 21154
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 12:35 pm: |
|
once the box is built and put in to place, you can listen to it.
then on another day, we will....
1. use spray foam deadener to fill in the gap between the box and the car.
2. once the deadener hardens, we will resin it with resin mat.
3. once the resin cures, sand it and make it smooth.
4. use body filler for any imperfections.
5. sand it again and paint it or cover it with vinyl.
your car will look sick after that. |
Diamond Member Username: Bestmankind
Post Number: 21155
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 12:38 pm: |
|
also later we can make a sick looking amp rack and place it like in the pic below.
 |
Gold Member Username: Philly306
James Carrol is the re...
Post Number: 1113
Registered: Apr-07
|
| Posted on Thursday, June 05, 2008 - 12:56 pm: |
|
lol nice pic chad.
lowlife get this install done now. i want vids |
Gold Member Username: Insearchofbass
Post Number: 9433
Registered: Jun-04
|
| Posted on Thursday, June 05, 2008 - 01:07 pm: |
|
wow you need that much airspace for those subs |
Diamond Member Username: Bestmankind
Post Number: 21156
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 01:28 pm: |
|
we could make it smaller sean but 4.3cuft per sub is cool. |
Gold Member Username: Insearchofbass
Post Number: 9438
Registered: Jun-04
|
| Posted on Thursday, June 05, 2008 - 01:30 pm: |
|
ok |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2187
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 01:34 pm: |
|
wow thank you chad. i was thinking of the amp rack behind the seats? but your idea works too. What the diff with port in the middle or one port? |
Diamond Member Username: Bestmankind
Post Number: 21157
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 01:39 pm: |
|
not sure about difference but i was thinking of putting the port on the driver side.
we can do middle too if you like. its just if we do the port along side one of the walls, its easier to add length to it if you want it lower tuned. |
Diamond Member Username: Bestmankind
Post Number: 21158
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 01:47 pm: |
|

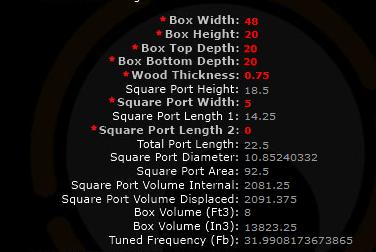

ok after sean's comment, i got to thinking. i think we are getting too greedy with the volume of the box. so i decided it should be a tad smaller. it comes out to 8 cuft. with the driver displacement it will be a bit smaller than that. i think it would be better like this.

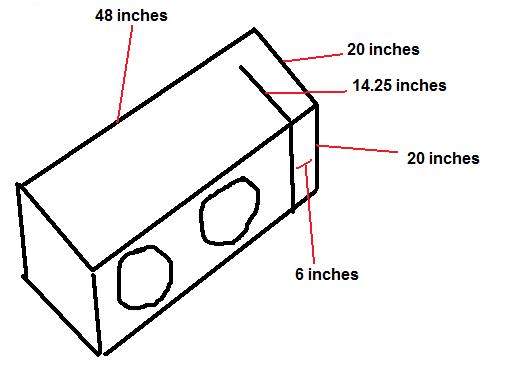

as you can see, i shaved off 2 inches from the height.
 |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2188
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 02:05 pm: |
|
Chad does this look right? |
Diamond Member Username: Bestmankind
Post Number: 21162
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 02:17 pm: |
|
 |
Silver Member Username: Phil_salisbury
Post Number: 687
Registered: Sep-06
|
| Posted on Thursday, June 05, 2008 - 02:21 pm: |
|
Gus, didn't want me to do the design? |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4068
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 02:21 pm: |
|
You named his box Gus? |
Diamond Member Username: Bestmankind
Post Number: 21164
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 02:23 pm: |
|
lol lowlife's real name is gus.
btw brad where the F were you? i didn't stay in chat too long cause you weren't there. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2189
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 02:26 pm: |
|
No Phil i had asked Chad but that was like two months ago. he replied yesterday saying he would have it ready for today. Thank you Phil. Okay going to get everything cut by this weekend. |
Diamond Member Username: Bestmankind
Post Number: 21165
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 02:31 pm: |
|

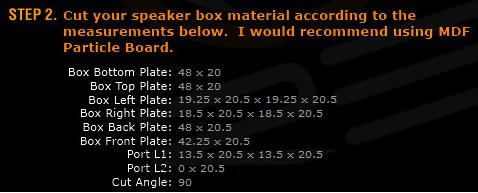

when you get it cut, remember the thickness of the mdf is .75 inch. |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4069
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 02:46 pm: |
|
Chad I was in the studio pretty much all night. |
Diamond Member Username: Bestmankind
Post Number: 21166
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 02:56 pm: |
|
nice. that explains it. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2190
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 02:57 pm: |
|
Should i make it double or single? |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4071
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 02:59 pm: |
|
At least double. |
Diamond Member Username: Bestmankind
Post Number: 21167
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 02:59 pm: |
|
double baffle all around and possibly triple front? |
Gold Member Username: Jtown
Texas
Post Number: 2952
Registered: Mar-07
|
| Posted on Thursday, June 05, 2008 - 03:25 pm: |
|
the amp rack is nice.. |
Gold Member Username: Frkkevin
Team DLS
SuperNatural...
Post Number: 5195
Registered: Nov-05
|
| Posted on Thursday, June 05, 2008 - 03:25 pm: |
|

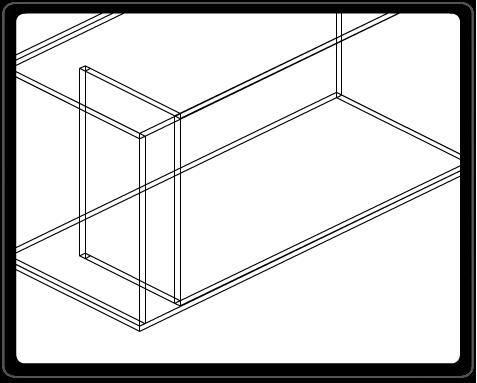

nice drawings |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2192
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 04:05 pm: |
|
Should i make it double or single? |
Diamond Member Username: Bestmankind
Post Number: 21169
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 04:20 pm: |
|
double. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2193
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 04:58 pm: |
|
Sorry Chad i hadn't refresh my page. How close are you to Olympic and los angles |
Diamond Member Username: Bestmankind
Post Number: 21170
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 05:27 pm: |
|
i am about 5 minutes walking distance from there.
as you can see from this map i am not that far away.
 |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4072
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 05:46 pm: |
|
I wouldn't be walking to often through that area if I were you Chad lol. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2194
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 05:50 pm: |
|
I was wondering how close you were to the fires. |
Diamond Member Username: Bestmankind
Post Number: 21171
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 06:00 pm: |
|
brad you really need to come out here and take a look. its all cleaned up and its all businesses here. but i don't live here so its cool.
oh yeah the fire. yeah it was pretty damn close. |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4073
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 06:05 pm: |
|
http://abclocal.go.com/kabc/story?section=news/local&id=6053090 |
Diamond Member Username: Bestmankind
Post Number: 21172
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 06:07 pm: |
|
thats no where near my work. lol. also no where near where i live. hahaha. but yeah east los angeles is crazy. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2195
Registered: Feb-05
|
| Posted on Thursday, June 05, 2008 - 06:35 pm: |
|
Downtown and east los are two diff worlds.
Norwalk is like beverly hills |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4074
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 06:40 pm: |
|
I didn't realize Olympic was so long. |
Diamond Member Username: Bestmankind
Post Number: 21173
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 06:45 pm: |
|
lol yeah. it goes all the way to west hollywood.
btw brad, i am just searching remastered music that is ripped in flac format now. lol. i found boston, metallica (justice for all), and metallica (ride the lightening).
i love flac format. |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4075
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 07:09 pm: |
|
FLAC rules. See you in chat at 6:00PM
Lakers FTW in six. |
Diamond Member Username: Bestmankind
Post Number: 21174
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 07:11 pm: |
|
i won't be in chat til the game is over. |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4076
Registered: Dec-06
|
| Posted on Thursday, June 05, 2008 - 07:50 pm: |
|
That's why the |
