Thread: If you build it, DEEBEEZ will come...or so the voices tell me. |

Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6407
Registered: Mar-04
|
| Posted on Saturday, May 31, 2008 - 10:26 pm: |
|

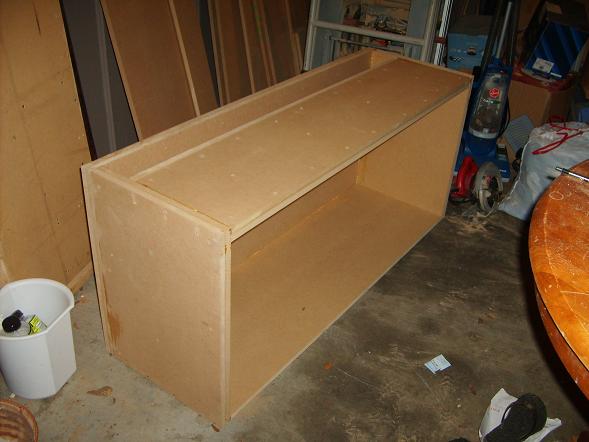

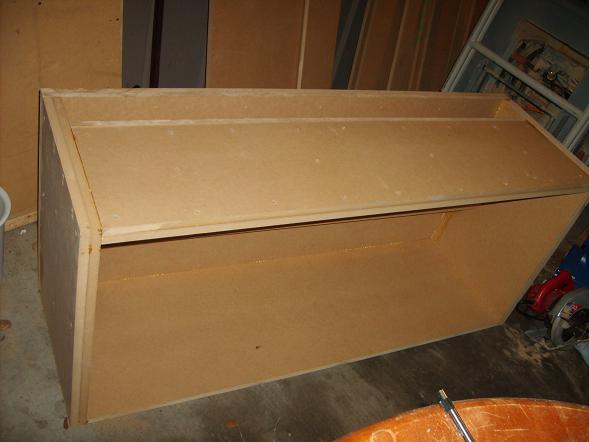

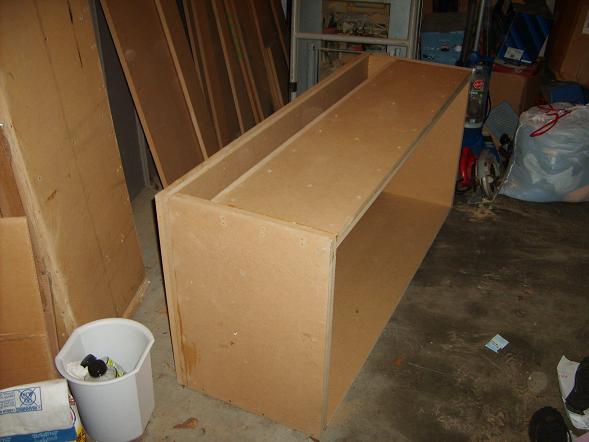

Well, I started on the 3 DD3515 box today.
EVERYTHING is going to be doubled...the baffle will be tripled.
165sq inches of port and the port will have 2 dividers in it to allow me to block 1/3 of it for daily driving
So...on to the pix:
 |
|
|
|
Bronze Member Username: Gibsonguy
Post Number: 66
Registered: May-08
|
| Posted on Saturday, May 31, 2008 - 10:28 pm: |
|
can't wait for the deeebeeezzz to come. looks like a nice start to me. |
Silver Member Username: Exige
CDT & Audiopulse Deale...
Post Number: 369
Registered: Nov-07
|
| Posted on Saturday, May 31, 2008 - 10:39 pm: |
|
lookin good |
Gold Member Username: Hdubb
Team Revolution
Post Number: 3717
Registered: Nov-04
|
| Posted on Saturday, May 31, 2008 - 10:54 pm: |
|
subs forward port up? why not more sq in? is this also daily? it looks good. youve always built good boxes man. always impressed. this wont be any different. =0)looks good so far |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 4027
Registered: Dec-06
|
| Posted on Saturday, May 31, 2008 - 11:12 pm: |
|
Phone rings....
Canaan: Hello?
Me: Sup Marshall?
Canaan: What?
Me: I said sup Marshall?
Canaan: What?
Me: WHAT IS UP MARSHALL!?!?
Canaan: What? |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16890
Registered: Jun-06
|
| Posted on Saturday, May 31, 2008 - 11:41 pm: |
|
 |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6408
Registered: Mar-04
|
| Posted on Sunday, June 01, 2008 - 12:48 am: |
|
Yea, I'm going to try subs forward, port up. It works in mini-trucks, but to tell you the true I have never seen a loud full-size truck w/ this design.
Well, really I don't see many loud full size trucks at all...unless they are all out walled.
I have no idea if this box will do well or not, but I wanted to try it. I thought about subs up, port up on driver's side...but thought that may lead to some loading issues w/ 3 subs.
The port will actually kinda like my interchangeable slot-vent design but w/ no T-nuts. It will not be as easy to remove and change, but will be swappable. I can easily change the port width from 3.25" to 4" (or anything between). With alil more work, the port length can be changed also.
This first port should peak at 46-48hz if I looked at it right. I can always open up the port and get the note up alil though. The box is only going to be ~9.5cuft net. |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6409
Registered: Mar-04
|
| Posted on Sunday, June 01, 2008 - 12:50 am: |
|
Oh, and if all goes well I should be testing by Monday/Tuesday  |
Gold Member Username: Insearchofbass
Post Number: 9341
Registered: Jun-04
|
| Posted on Sunday, June 01, 2008 - 10:43 am: |
|
box looks good....I look forward to the results |
Gold Member Username: Hdubb
Team Revolution
Post Number: 3720
Registered: Nov-04
|
| Posted on Sunday, June 01, 2008 - 10:44 am: |
|
well the mini trucks have tiny cubes for each 15. ao I think canaan....go with 3 18s across with 4 cubes a piece. and 150 sq. in of port for each sub. hahba.but I don't think that's going to fit. =( maybe 100sq in per sub |
Platinum Member Username: Rovin
1 15 = 149.1DBs
Trinidad & T...
Post Number: 13841
Registered: Jul-05
|
| Posted on Sunday, June 01, 2008 - 11:59 am: |
|
thats alot of weight
looking good thus far ... |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6410
Registered: Mar-04
|
| Posted on Sunday, June 01, 2008 - 07:55 pm: |
|
HunterW,
My truck like's ~48-51hz depending on how much space I take up in the cab w/ the box. This box is going to give me ~3.15cuft per sub. I know mini-trucks go w/ 2-2.5cuft per 15", but they peak in the 58-68hz range.

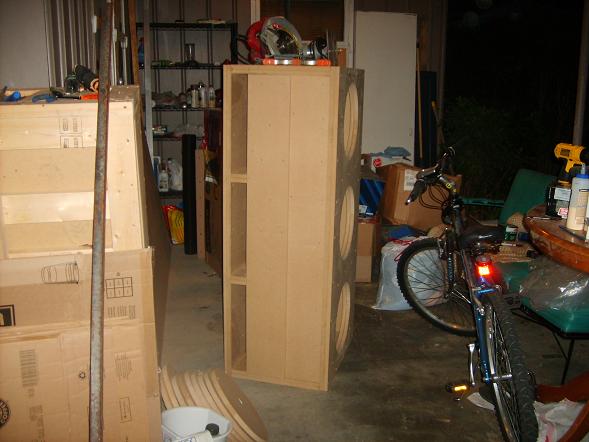

I got the box mostly done today...only 2 baffles though for now. I will add the 3rd tomorrow and do some sanding. Going to do some caulking later, gotta get some food right now.
I'm going to get everything mounted tomorrow after work. May even get some #'s unless my neighbors b7tch.
Moar pics coming soon. |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6414
Registered: Mar-04
|
| Posted on Tuesday, June 03, 2008 - 12:22 am: |
|

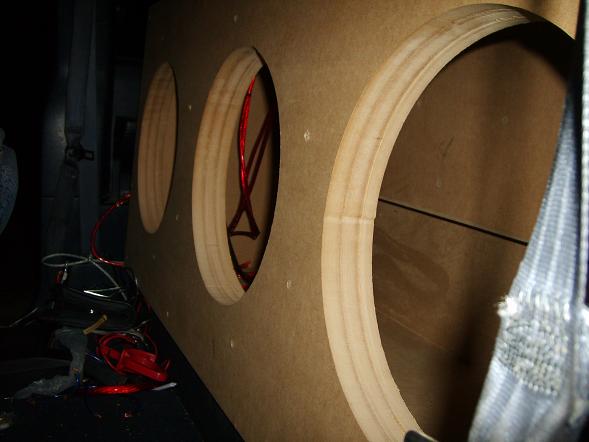

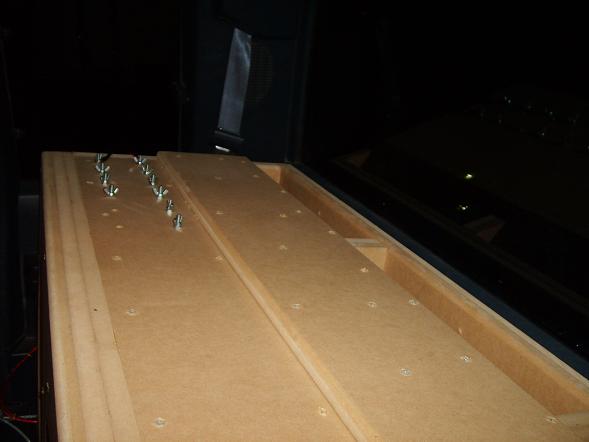

I jumped on it this evening and got alot more done. Got the third baffle layer on and got alot of sanding/routering done.
Ran into alil hang up though.

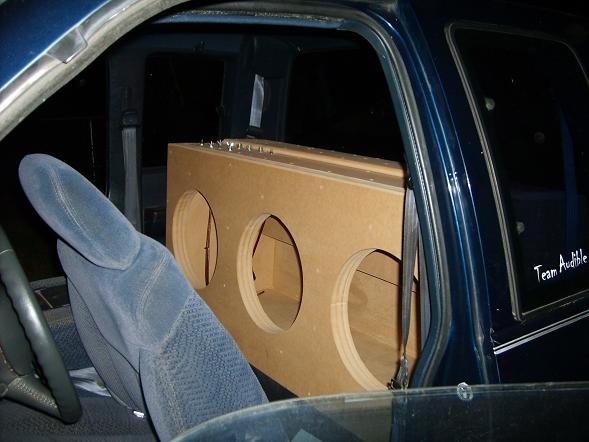

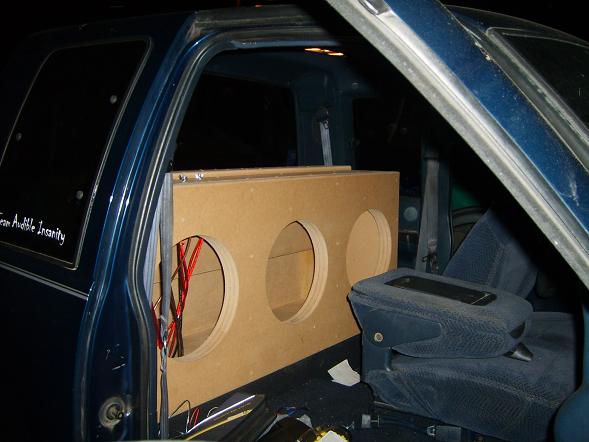

I pulled the seats and old box out of my truck, only to find that I had no one at home to help me get this heavy SOB in the truck!!!
So, I fought w/ this dam thing to get it in the cab. Its a hell was of a tight squeeze and its fvking heavy!!! But I got the dam thing in the truck.

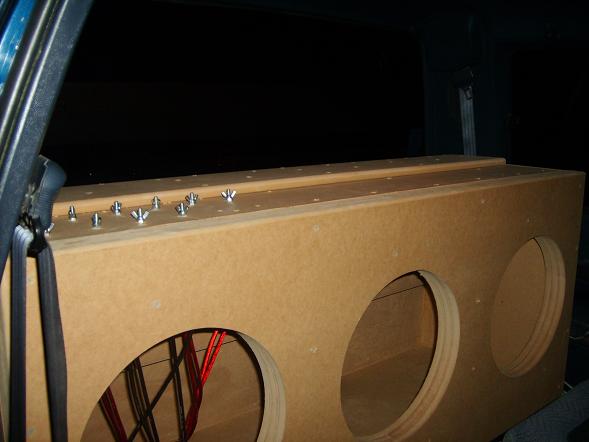

So...moar pics:
 |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6415
Registered: Mar-04
|
| Posted on Tuesday, June 03, 2008 - 12:24 am: |
|

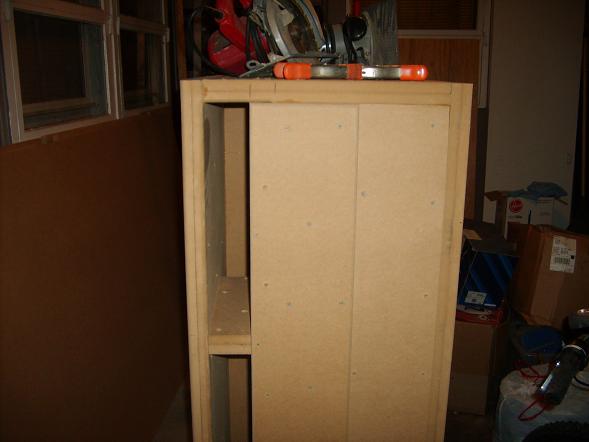

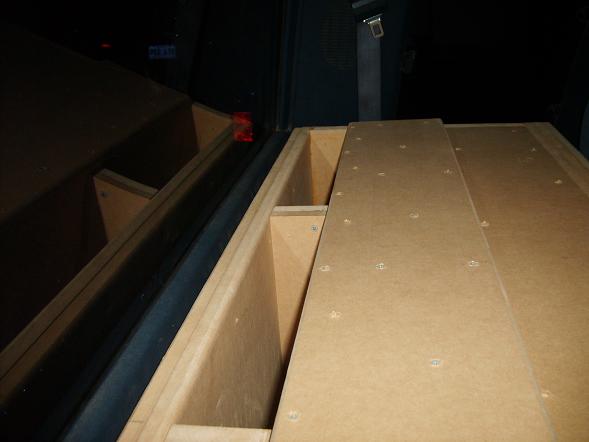

When I say everything is doubled...I mean EVERYTHING. Even the port and port braces.
 |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6416
Registered: Mar-04
|
| Posted on Tuesday, June 03, 2008 - 12:26 am: |
|
Ran out of bolts for terminals, gotta get some more tomorrow.
It WILL play tomorrow after work...I just took me so long fighting it to get in the truck that I ran out of light. |
Gold Member Username: Naledge503
Portland,
Or
Post Number: 3778
Registered: Jun-06
|
| Posted on Tuesday, June 03, 2008 - 12:29 am: |
|
Great work Canaan! |
Gold Member Username: Mgbcs
Lincoln,
Nebraska
Post Number: 2521
Registered: Dec-06
|
| Posted on Tuesday, June 03, 2008 - 12:52 am: |
|
Nice! Can't wait for results |
Silver Member Username: Surferdude9371
Im BTL Bumpin
Post Number: 994
Registered: Mar-07
|
| Posted on Tuesday, June 03, 2008 - 04:20 pm: |
|
thats insane bud great work seamless |
Gold Member Username: Insearchofbass
Post Number: 9392
Registered: Jun-04
|
| Posted on Tuesday, June 03, 2008 - 05:48 pm: |
|
very nice build |
Bronze Member Username: Kenny_coleman
Post Number: 28
Registered: Oct-07
|
| Posted on Tuesday, June 03, 2008 - 07:01 pm: |
|
My guess a 153 - 154 outlaw. Need to make some changes to the box. |
Gold Member Username: Naledge503
Portland,
Or
Post Number: 3793
Registered: Jun-06
|
| Posted on Tuesday, June 03, 2008 - 07:05 pm: |
|
I believe he was doing 150-151 legal, with 2 3515's before. I hope he can do those numbers legal with all of the testing he has done. |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6417
Registered: Mar-04
|
| Posted on Wednesday, June 04, 2008 - 12:34 am: |
|
With 2 3515's...subs and port up, I did 153.1dB @ 46hz (kick) and hi-151's legal at .38ohm dcr. It would street beat 150+ at 1.5ohm w/ DJ Magic Mike.
Like I say, I never actually see this design in fullsize trucks. Its usually in mini's. But, like some mini's...my truck has been known to like sub up, port to drivers side. I got 149.8 @ 48hz out of a 9515D and 1 20.1 w/ just the stock batt w/ a box like that.
I'm just looking for 54-55's w/ this box. I know it needs a few changes, but that will come later. I still have some time to test before Scrapin'.
I played it today just for a little bit, its loud but not sure how loud. Its wired to 1ohm now, will drop to 1/4 for a burp tomorrow. I am also putting a cheap lil Clarion 185mp in the bed for burp purposes.
Kenny,
Have you ever messed around w/ fullsize trucks for SPL? (other than walls)
I seem to be all alone w/ this truck in the SPL world...lol. |
Bronze Member Username: 4realadeala
Tampa,
Florida
Post Number: 46
Registered: Mar-08
|
| Posted on Wednesday, June 04, 2008 - 03:56 pm: |
|
Hey nice work, but why not just use Birch wood it should work with just one baffle? |
Bronze Member Username: Kenny_coleman
Post Number: 29
Registered: Oct-07
|
| Posted on Wednesday, June 04, 2008 - 04:10 pm: |
|
The design you have now works best outlaw. I tried the same port setup as you and plugging ports really made no difference. The design you had previous works best legal. I'll pm you my # on the usaci board, give me call. |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6422
Registered: Mar-04
|
| Posted on Wednesday, June 04, 2008 - 04:30 pm: |
|
Yea, thats kinda what I was going for...doing USACi and running daily.
I'm stuck in Mod0-1000, so I know this won't be 'national-level loud'...but even w/ 2 35's I did pretty well in TX, LA, and MS shows.
Oh, are you going to Scrapin?
I have 2 empty rooms that are going to waste if you need em. $79 a night. |
Bronze Member Username: Kenny_coleman
Post Number: 32
Registered: Oct-07
|
| Posted on Wednesday, June 04, 2008 - 04:32 pm: |
|
Yep we will be there call me |
Diamond Member Username: Bestmankind
Post Number: 21149
Registered: Oct-05
|
| Posted on Thursday, June 05, 2008 - 11:56 am: |
|
canaan never seizes to amaze me. NICE!!!! |
Silver Member Username: Bonhamd
TC,
MI
USA
Post Number: 724
Registered: Nov-07
|
| Posted on Thursday, June 05, 2008 - 12:22 pm: |
|
awesome work |
Gold Member Username: Hdubb
Team Revolution
Post Number: 3743
Registered: Nov-04
|
| Posted on Thursday, June 05, 2008 - 01:02 pm: |
|
haha I bet that box is heavy as sh.it! haha. looks good man. wish you'd hurry and get some numbers! haha |
Gold Member Username: Insearchofbass
Post Number: 9434
Registered: Jun-04
|
| Posted on Thursday, June 05, 2008 - 01:09 pm: |
|
"wish you'd hurry and get some numbers! haha"
x2 |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6428
Registered: Mar-04
|
| Posted on Thursday, June 05, 2008 - 03:54 pm: |
|
As soon as my new laptop comes in, I'll load up the TL and get some #'s.
I got the laptop overnighted, so it should be here tomorrow |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6430
Registered: Mar-04
|
| Posted on Friday, June 06, 2008 - 10:29 am: |
|
Well, metered a few times last night.
Wired to 1ohm (daily wiring), played w/ it for alil while and it topped out at 154.2dB. The the batts started dipping.
I didn't have some of the plastic panels in my truck, so that # my go up or down when I put em in. But w/ the last box, I gained 0.2 w/ the plastics in the truck.
Its pretty intense
Plays pretty much any song and will do 51+ on dam near any of them.
I wired em down to 1/4ohm, but I think I had a sub out or phase (wired it fast in the dark). I lost 1-1.5dB going to 1/4ohm. Amps took it well though.
Gotta get the batts charged back up before the comp in TX this weekend. Also, I have a thing or two else I'm gonna try. |
Silver Member Username: Bonhamd
TC,
MI
USA
Post Number: 731
Registered: Nov-07
|
| Posted on Friday, June 06, 2008 - 10:31 am: |
|
thats some awesome stuff canaan |
Gold Member Username: Insearchofbass
Post Number: 9458
Registered: Jun-04
|
| Posted on Friday, June 06, 2008 - 01:27 pm: |
|
"With 2 3515's...subs and port up, I did 153.1dB @ 46hz (kick)"
"Wired to 1ohm (daily wiring), played w/ it for alil while and it topped out at 154.2dB. The the batts started dipping."
I didnt expect very much of a gain with the third sub but 1.1 db is a gain im sure youll take....50's on music thats slammin for sure....it would be cool too gain a little more with the plastic panels in too |
