Thread: Blown Orion H2 (Pictures) |

New member Username: Jamon
Post Number: 5
Registered: May-08
|
| Posted on Saturday, May 17, 2008 - 08:20 pm: |
|

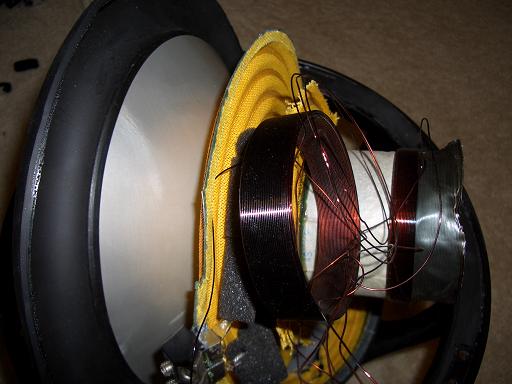

So here is the picture of my blown Orion H2. The driver started having a slight scratching sound during low power movements, (some sort of mechanical failure)
It looks like part of the coil became unglued from the Aluminum former. The voice coil wire actually doesn’t look too bad.
Now I did have a hard time getting the voice coil out of the magnet, so everything here looks worse than it probably was. The bottom of the former if flared outward because I had been messing with it.
The raw wire itself seems in relatively good condition. Both coil runs maintain proper resistance, so they didn’t actually melt, fuse, or blow.
 |
|
|
|
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3956
Registered: Mar-06
|
| Posted on Saturday, May 17, 2008 - 08:30 pm: |
|
ohh. sorry for your loss. |
New member Username: Jamon
Post Number: 6
Registered: May-08
|
| Posted on Saturday, May 17, 2008 - 08:32 pm: |
|
Just one more thing. I might just get another H2, and hope this won't happen again. One thing I've head that for the price, the Alpine Type R is really good.
I was wondering if you all think 2 Type-Rs would be louder than 1 Orion H2? |
Silver Member Username: Yukhui
4 15 AA Havocs,
Memphis 4kw!!
Post Number: 921
Registered: Jan-06
|
| Posted on Saturday, May 17, 2008 - 11:25 pm: |
|
From what I've heard, those H2's are all around Shitty and don't last very long.
But the scratching noise is most likely because your former became warped in some areas and started scraping the pole piece. |
Gold Member Username: Hdubb
Team Revolution
Post Number: 3683
Registered: Nov-04
|
| Posted on Saturday, May 17, 2008 - 11:27 pm: |
|
looks like over excursion, and you were hitting the bootom of the former against the topplate and bent it bad and the coild slid off =( |
Silver Member Username: Yukhui
4 15 AA Havocs,
Memphis 4kw!!
Post Number: 922
Registered: Jan-06
|
| Posted on Saturday, May 17, 2008 - 11:42 pm: |
|
"The bottom of the former if flared outward because I had been messing with it." |
Gold Member Username: Hdubb
Team Revolution
Post Number: 3684
Registered: Nov-04
|
| Posted on Saturday, May 17, 2008 - 11:56 pm: |
|
you cant mess with the former until you pull it out out the motor structure silly |
|
