Thread: New Box Build (pics) |

Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 589
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 06:23 am: |
|
Sorry for not taking the time to post it all on here. im kinda in a hurry.
http://www.stevemeadedesigns.com/board/index.php?showtopic=21809
Also i need a new method for drawing cut out circles the woofer hole. What do you guys do? |
|
Relevant Product Info
|
|
Gold Member Username: Insearchofbass
Post Number: 9201
Registered: Jun-04
|
| Posted on Wednesday, May 14, 2008 - 09:21 am: |
|
Box build looks decent...cant wait for vids of that 18
what you do for the circle is either get a tool for it or use a wood scrap thats long enough and measure things out for your subwoofer placement and then take that wood scrap and put a hole in it and screw it in the center of the placement and then put another hole in the position that matches the outside measurement and place your pencil point in that hole and just spin it around and until the complete circle is drawn and youll have a perfect circle |
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 591
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 09:41 am: |
|
I never thought about doing it that way. i guess im going to try that. I was hoping the sub would get here before i had to leave but it looks like its not. well ill have pictures when i get home. hopefully vids after i get it in. |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2158
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 10:09 am: |
|
Box looks good. Get some videos up! |
Gold Member Username: Nyyfan13
15 Mag
USA
Post Number: 9599
Registered: Jul-06
|
| Posted on Wednesday, May 14, 2008 - 10:29 am: |
|
"what you do for the circle is either get a tool for it or use a wood scrap thats long enough and measure things out for your subwoofer placement and then take that wood scrap and put a hole in it and screw it in the center of the placement and then put another hole in the position that matches the outside measurement and place your pencil point in that hole and just spin it around and until the complete circle is drawn and youll have a perfect circle"
^^Word. Thats what I did.
Box is looking goof Jack. New 18" HDC3? |
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 592
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 10:35 am: |
|
Thanks staven. i will lol.
Yanks, its actually an 18" Fi BL. I've always wanted to try and Fi product. so far i dont even have the woofer yet and im pleased with Fi because there customer service. i made a mistake and ordered extreme leads and they noticed it and changed it for me. |
Silver Member Username: Mesodumm
Tri-City,
Az
Usa
Post Number: 485
Registered: Apr-07
|
| Posted on Wednesday, May 14, 2008 - 11:29 am: |
|

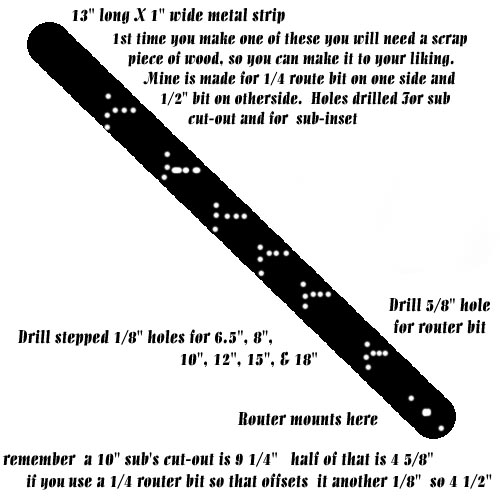

This is a router jig I have used for 20 plus years. Build one, build it right and you will have it for a long time.
 |
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 593
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 06:29 pm: |
|
Ok well i got it and put it in and it doesn't sound the greatest. im not sure if its because it still needs to be broken in and or the box. its tuned to at like 31.6 hz basically 32 hz. well it's not picking up anything past like 45hz and it just doesn't seem that loud. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3937
Registered: Mar-06
|
| Posted on Wednesday, May 14, 2008 - 08:13 pm: |
|
whats the hpf set at? what are you powerering it with? Check the settings on the amp and HU. an 18 should get half loud. Nice box btw. |
|
|
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 594
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 08:55 pm: |
|
Thanks man, I have a zx1000.1 powering it. also if im talking about the same thing you are... 125hz. What should i set the x-over freq at? it goes from 50 to 200 on the amp. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3939
Registered: Mar-06
|
| Posted on Wednesday, May 14, 2008 - 09:02 pm: |
|
80 is a good choice for most. But if you have it at 125, it should play all freqs up to that. check the HU settings. It should be set to full or pass or thru or ~80 |
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 595
Registered: Mar-07
|
| Posted on Wednesday, May 14, 2008 - 09:06 pm: |
|
im not sure what you talking about on the headunit. i have a pioneer premier 6900ub. im going to go look at it now.
i really think its just the box. because it will play the freq but it sounds horrible. it almost seems like the box is tuned too low. |
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 597
Registered: Mar-07
|
| Posted on Thursday, May 15, 2008 - 06:44 am: |
|
Well i ended up not going out to my car and looking at my headunit. I'll do that today. But does anyone know what i should set my X Over freq at on my amp? |
Gold Member Username: Insearchofbass
Post Number: 9203
Registered: Jun-04
|
| Posted on Thursday, May 15, 2008 - 06:51 am: |
|
80 hz (low pass) like Marc said |
Silver Member Username: Explictx
Glen Burnie,
Maryland
USA
Post Number: 598
Registered: Mar-07
|
| Posted on Thursday, May 15, 2008 - 06:55 am: |
|
Oh wow i didn't even realize. thanks. |
Gold Member Username: Insearchofbass
Post Number: 9204
Registered: Jun-04
|
| Posted on Thursday, May 15, 2008 - 06:59 am: |
|
yw |
