Thread: Build your box in the trunk |

Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 892
Registered: Jul-07
|
| Posted on Saturday, May 10, 2008 - 03:12 am: |
|
ok i know my box is going to be bigger then the trunk opening so i was thinking will it be hard to build it right in the trunk or whats your alls recommendations. |
|
|
|
Gold Member Username: Andrew571
Stillwater/Edmond,
Oklahoma
USA
Post Number: 1810
Registered: Oct-05
|
| Posted on Saturday, May 10, 2008 - 03:21 am: |
|
yep its hard. But if you do it right it works
one thing u ned.... L brackets.... |
Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 893
Registered: Jul-07
|
| Posted on Saturday, May 10, 2008 - 03:49 am: |
|
ok il remeber them this is my first box and im hoping to be putting 2 aq hdc15's in there as soon as i find the money |
Gold Member Username: Andrew571
Stillwater/Edmond,
Oklahoma
USA
Post Number: 1812
Registered: Oct-05
|
| Posted on Saturday, May 10, 2008 - 04:15 am: |
|
two 15s in a trunk?  i gotta see this |
Silver Member Username: Turnmat
Racine,
Wi
Post Number: 713
Registered: Feb-07
|
| Posted on Saturday, May 10, 2008 - 08:00 am: |
|
It can be done! just make sure you leave a gap so the sound wave can pass from the trunk into the cabin of the car |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 2575
Registered: Mar-06
|
| Posted on Saturday, May 10, 2008 - 12:05 pm: |
|
could you not slide it in from the back of the car? even if you have to take the backseat out... |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16542
Registered: Jun-06
|
| Posted on Saturday, May 10, 2008 - 12:22 pm: |
|
One things for sure when you build it in is pizzing thieves off.
They'd probably take it out on the subs tho. |
Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 894
Registered: Jul-07
|
| Posted on Saturday, May 10, 2008 - 01:43 pm: |
|
lol i usurall keep the alarm on and the doors locked |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 5045
Registered: Nov-05
|
| Posted on Saturday, May 10, 2008 - 01:49 pm: |
|

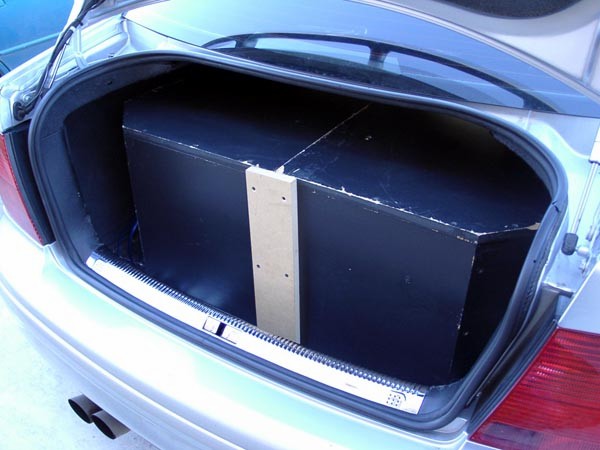

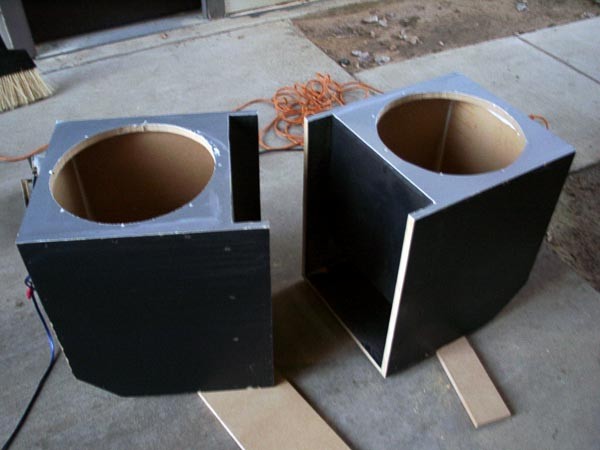

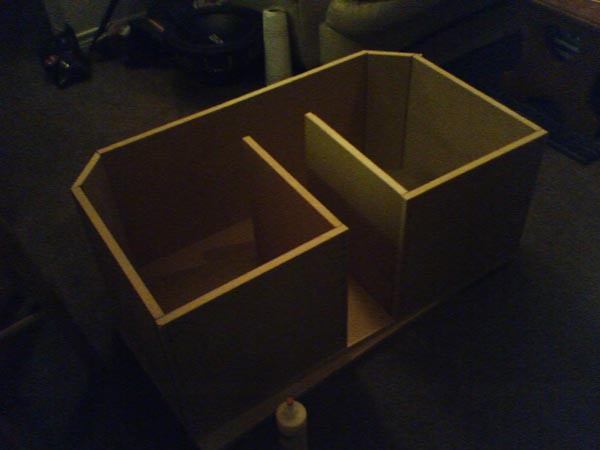

i built my box then cut it in half.. installed it in two pieces and put it together inside the trunk..
 |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 5046
Registered: Nov-05
|
| Posted on Saturday, May 10, 2008 - 01:51 pm: |
|
oh, btw, i removed the backseat completely .. cut the top of the trunk metal a bit and bent it all upwards to give more clearance then i slide the two pieces in from the seat opening.. then i just bent that metal back down and put dynamat all across it so you'd never know ... |
Bronze Member Username: Peakohm
Post Number: 93
Registered: Apr-08
|
| Posted on Saturday, May 10, 2008 - 03:11 pm: |
|
hmm...damn that's pretty cool. everything sound okay? no leaks or anything? |
Silver Member Username: Shade
Moxee,
Wa
U.S.
Post Number: 652
Registered: Nov-06
|
| Posted on Saturday, May 10, 2008 - 03:22 pm: |
|
i'd assemble 2/3's of the box and put it in the trunk,then get those rubber sealers that refridgerators have, so that when u tighten up the rest of the box, i'll be airtight. |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 5047
Registered: Nov-05
|
| Posted on Saturday, May 10, 2008 - 09:37 pm: |
|
i had no leaks at all.. of course i cut it in the port so even if it leaked a little it would be no prob..
needless to say when it was time for it to come out i undid the sections holding it together but everything was together so good with the glue it had to be destroyed in pieces to get out

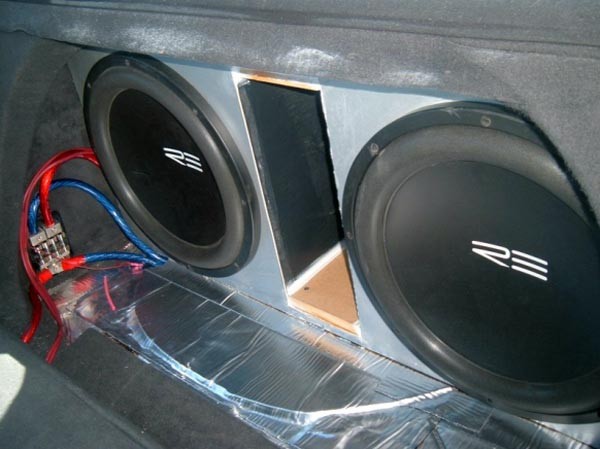

sounded great.. burped a 151.6dB @ 49hz with those two SX 15"s and two RE 35.1s |
Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 896
Registered: Jul-07
|
| Posted on Sunday, May 11, 2008 - 01:18 am: |
|
thinks for the pic's jack im think i might do it the way you did yours my neighbor has the same car so he knows how to remove the seats and im gonna ask him to show me how to do it on mine cuz i really ant to keep the back seats i like to stay looking stock |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 5050
Registered: Nov-05
|
| Posted on Sunday, May 11, 2008 - 02:54 am: |
|
the seats went back in.. just took them out to put the box in through that opening since it was larger than the trunk opening |
Silver Member Username: Charlesbhs
Dallas,
Tx
USA
Post Number: 569
Registered: Jan-07
|
| Posted on Sunday, May 11, 2008 - 11:02 am: |
|
that looks pretty cool kevin. |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4488
Registered: Jan-06
|
| Posted on Sunday, May 11, 2008 - 11:11 am: |
|
Hey Kev how wide was that box? Polo.. |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 5053
Registered: Nov-05
|
| Posted on Sunday, May 11, 2008 - 02:42 pm: |
|
honestly I don't remember.. I want to say it was right around 40" wide.. it set up against the side of the trunk flush with only 0.5" inch on the passenger side to allow for wire.. it was as wide as I could go..
in order to get both pieces to align I had to remove the spare tire and everything in there to tilt on part in then force the other in and tilt them upward together
I could have gone only about 6" deeper before the whole trunk was filled..
1 amp was in the side cubby, the other along with a yellowtop was under the box where the spare tire used to be.. i built a quick board to fill the gap where the tire was, you can see it if you look in front of the box where the gap would have been
It still was not quite as big as needed.. after port/sub displacement I swear it was 5.4^3ft |
Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 900
Registered: Jul-07
|
| Posted on Sunday, May 11, 2008 - 03:44 pm: |
|
ok im gonna need a box thats atleast 9 cuft after displacements for the 2 HDC315s right???? is this even possible in a car trunk |
Gold Member Username: Crayola0
Portage,
Wisconsin
Post Number: 2387
Registered: Jun-06
|
| Posted on Sunday, May 11, 2008 - 03:48 pm: |
|
no i guarentee u wont be able to fit it just take out the back seats and put the box there thats what chad did for his 2 15" BTL's |
Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 901
Registered: Jul-07
|
| Posted on Sunday, May 11, 2008 - 04:59 pm: |
|
im going to get some mesaurements from all the sites im finding there saying i have 18.40 cuft back there |
Silver Member Username: B3n07
Louisville,
Ky
USA
Post Number: 905
Registered: Jul-07
|
| Posted on Monday, May 12, 2008 - 11:01 pm: |
|
ok i got some measuerments
33" long 38" wide and 12 1/2" tall and can go even bigger but howm any cuft is this |
