Thread: Nick V's door pod build log |

Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1646
Registered: Mar-07
|
| Posted on Saturday, May 03, 2008 - 12:00 am: |
|
Well guys, here is my first attempt at fiberglassing. I figured I would start with a good beginner project, so here it is.
Speakers: FREE Boston Z6s

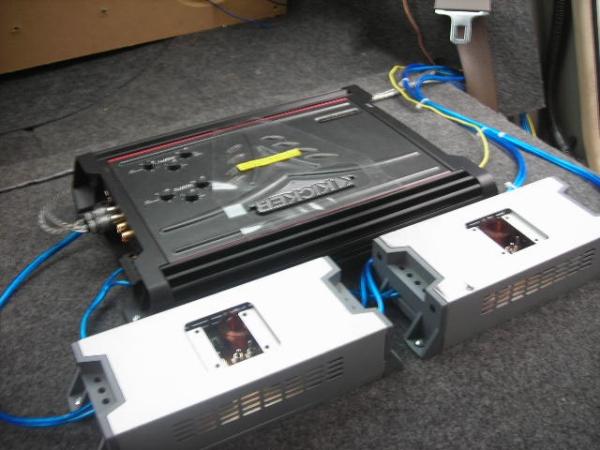

Amp: Kicker 350.4 (I don't know if I am going to go passive or active yet)
Day one:

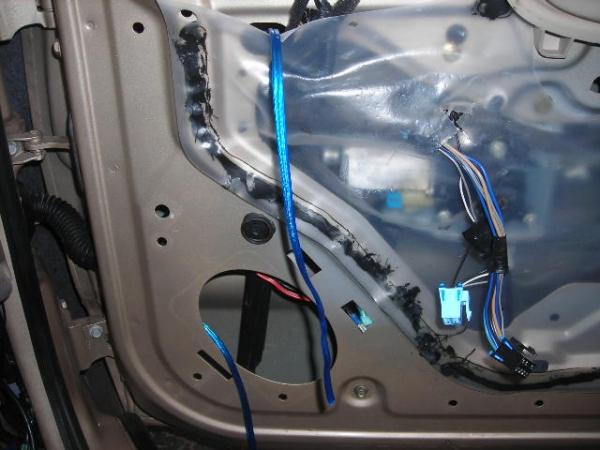

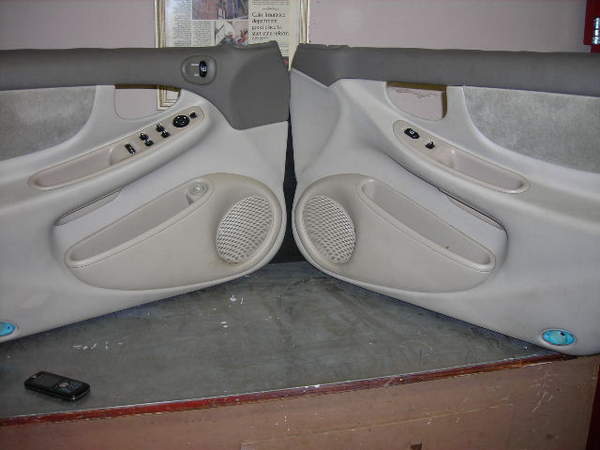

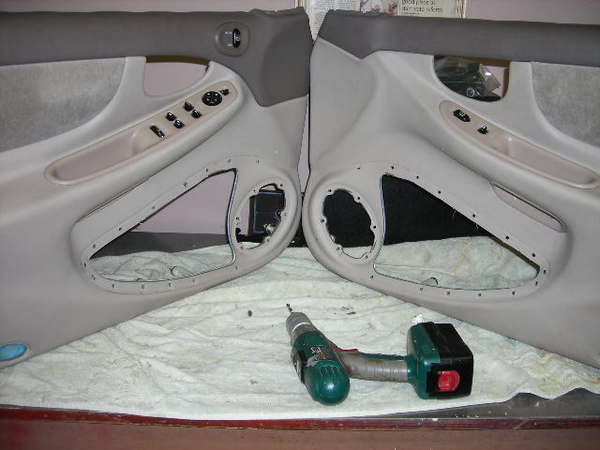

Took off the door panels.
The map pockets had to go

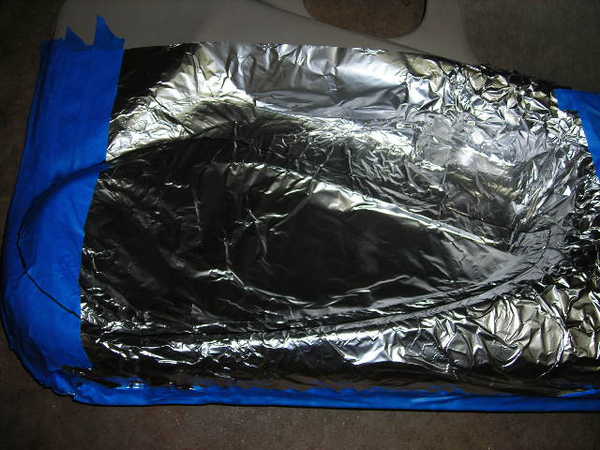

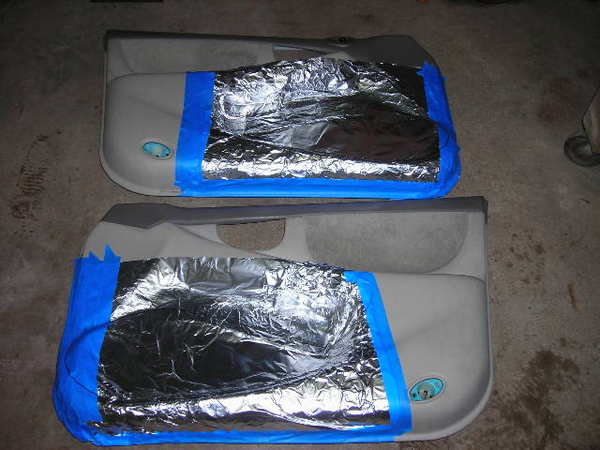

Got my mold laid out with tin foil and a perm marker

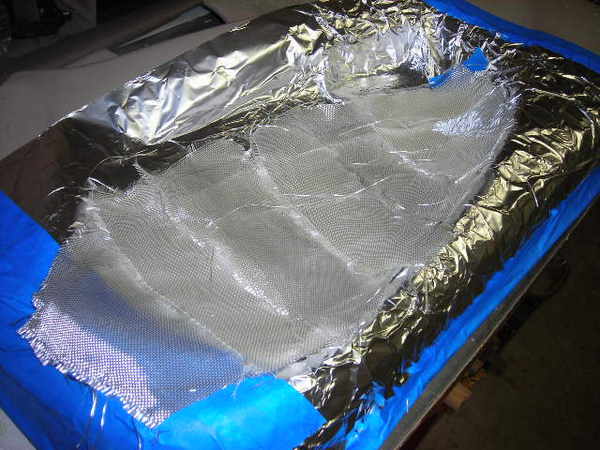

Got the matt cut and laid out to see how it will go.

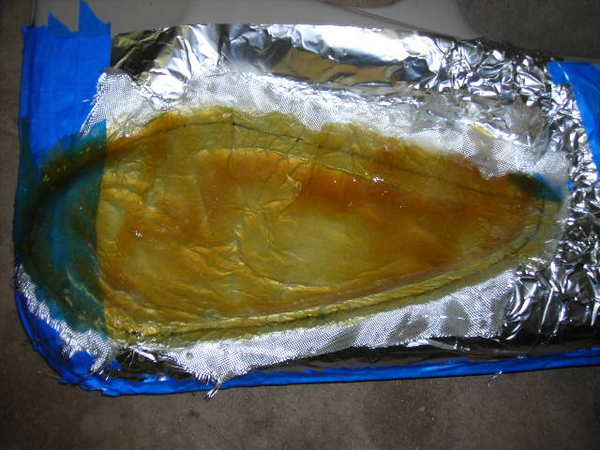

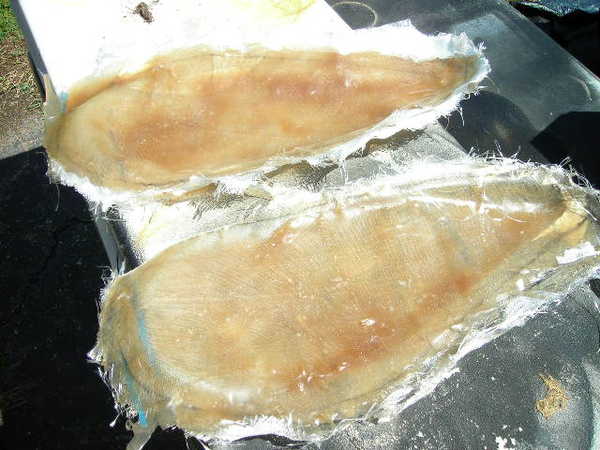

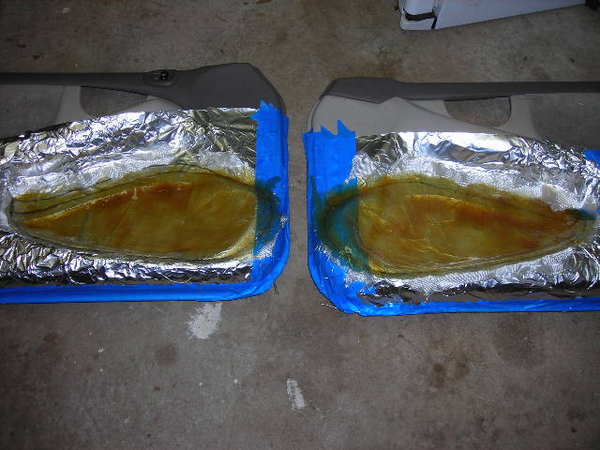

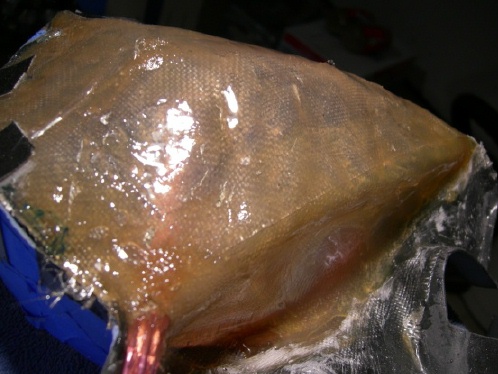

Well here is the mold. Has 3 layers of matt on each. I used the whole quart of resin lol.
That's it for day one :D
Tomorrow morning I will make a wal-mart run and buy some dowels, more resin, and some fleece to make the top part of the pods This is my first so don't go too hard on me :p |
|
|
|
Gold Member Username: Philly306
James Carrol is the re...
Post Number: 1083
Registered: Apr-07
|
| Posted on Saturday, May 03, 2008 - 12:03 am: |
|
looks good, ive never seen the tin foil idea before usually just covered with tape
what type of mat tape did you use? |
Gold Member Username: Denali_on_22s
I get Bucks like Milwa...
Post Number: 5648
Registered: Feb-06
|
| Posted on Saturday, May 03, 2008 - 12:06 am: |
|
looking good man. keep it up. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1647
Registered: Mar-07
|
| Posted on Saturday, May 03, 2008 - 12:10 am: |
|
"what type of mat tape did you use?"
Resin and matt is Bondo
"looking good man. keep it up."
Thanks Reece |
Gold Member Username: Philly306
James Carrol is the re...
Post Number: 1084
Registered: Apr-07
|
| Posted on Saturday, May 03, 2008 - 12:12 am: |
|
on ff forums the guys don't think too highly of bondo but i hope it works out for you. |
Gold Member Username: Bernymac
Cambodia
Post Number: 3922
Registered: Sep-04
|
| Posted on Saturday, May 03, 2008 - 12:13 am: |
|
bondo brand ftl, but looks good. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1648
Registered: Mar-07
|
| Posted on Saturday, May 03, 2008 - 12:16 am: |
|
"on ff forums the guys don't think too highly of bondo but i hope it works out for you."
Yeah I know, but it is just my first project.
"bondo brand ftl, but looks good."
Knew the bondo comments were coming lol. Thanks berny and Phil |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6349
Registered: Mar-04
|
| Posted on Saturday, May 03, 2008 - 01:10 am: |
|
How many layers of mat did you lay? |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1649
Registered: Mar-07
|
| Posted on Saturday, May 03, 2008 - 01:21 am: |
|
I laid 3 canaan. I used all the matt, so like on 1/3 of the passenger pod there is only 2 layers  |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2051
Registered: Mar-07
|
| Posted on Saturday, May 03, 2008 - 06:39 pm: |
|
Looks awesome Nick. I can't wait to get started on mine. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3886
Registered: Mar-06
|
| Posted on Saturday, May 03, 2008 - 09:22 pm: |
|
Looks good. Ease up on the resin. Looks like its puddleing. Should just use enought resin to wet the mat, one layer at a time. But looks good. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1650
Registered: Mar-07
|
| Posted on Saturday, May 03, 2008 - 11:16 pm: |
|
Yeah Marc, I learned to use alot less lol. I think I am getting the hang of it. I'm about to go mount the speaker rings. More pics in a few hours guys. |
Gold Member Username: Joebruce
Mach5Audio M...
Post Number: 2053
Registered: May-04
|
| Posted on Saturday, May 03, 2008 - 11:36 pm: |
|
How did you get free speakers? |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1651
Registered: Mar-07
|
| Posted on Sunday, May 04, 2008 - 02:06 am: |
|
Day 2:
Well guys, got a little bit done today, but tonight I ran into a few problems concerning speaker placement. I'm going to have to spend a full day just trial and erroring how exactly to mount the speakers. I went thought a pack of dowel rods tonight with no luck. I'm also going to have to trim the molds some more in order for the pods to not get in the way of the dash. *sigh* The Alero is just too crowded.

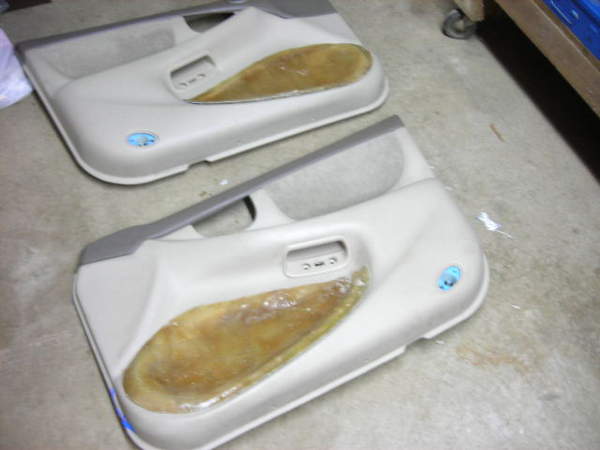

Molds out the door

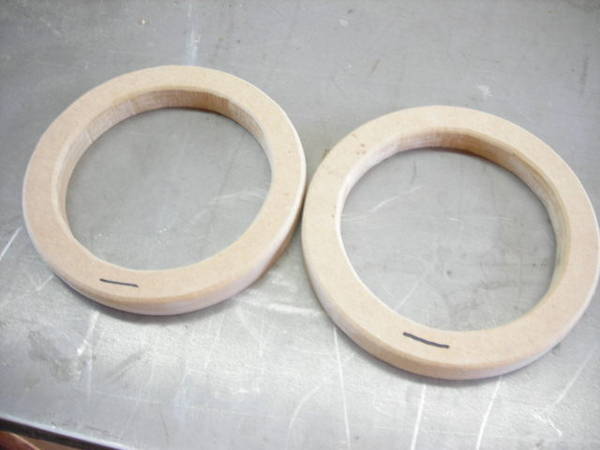

Speaker rings FTW
Molds trimmed up
That's all the pics for today, I will try to work some more on it tomorrow |
Gold Member Username: Bernymac
Cambodia
Post Number: 3924
Registered: Sep-04
|
| Posted on Sunday, May 04, 2008 - 02:17 am: |
|
very nice nick, your now a pro. |
Silver Member Username: Mesodumm
Tri-City,
Az
Usa
Post Number: 481
Registered: Apr-07
|
| Posted on Sunday, May 04, 2008 - 02:21 am: |
|
saran wrap and clear tape is all you need!! I've never seen tin foil used! did it stick?? let me know! thx |
Gold Member Username: Nyyfan13
15 MAG
USA
Post Number: 9500
Registered: Jul-06
|
| Posted on Sunday, May 04, 2008 - 11:27 am: |
|
Looking good Nick. Nice bud |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4456
Registered: Jan-06
|
| Posted on Sunday, May 04, 2008 - 11:47 am: |
|
I have always used foil, works best if you use shiny side up. Honestly to me it works better than anything it tends to stay in place and conform nicely. Polo. |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 5013
Registered: Nov-05
|
| Posted on Sunday, May 04, 2008 - 11:49 am: |
|
^^ yep.. and if it does stick for some reason it tears easy and you can just leave it on the back of the pod :P |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1652
Registered: Mar-07
|
| Posted on Sunday, May 04, 2008 - 11:59 am: |
|
The tin foil works great. It stayed in place and took the absolute shape of the door. It also doesn't seem to mind how hot I mix the resin :D

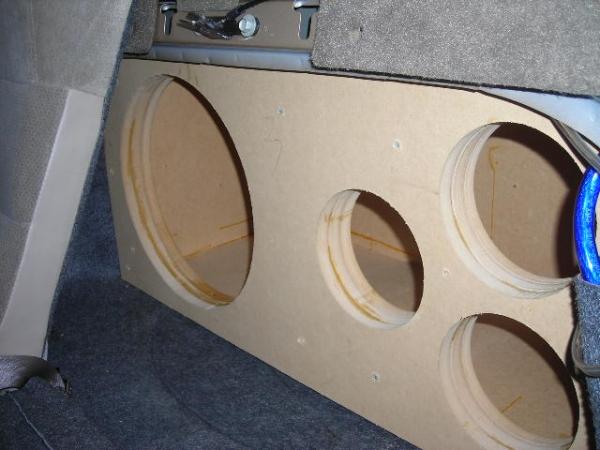

Im about to go put these 15s in a dodge truck today, so I might not get too much done today : |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4457
Registered: Jan-06
|
| Posted on Sunday, May 04, 2008 - 08:23 pm: |
|
^^^^ Mix it to hot and it will stay tacky, been there done that!!! Had to remove the old sh!t and start over on an old box I did. I now mix it in 3oz cups with exactly 14d drops/oz of resin, works perfect and I get plenty highhhh. BTW will be pouring more tonight. Polo.  |
Gold Member Username: Jakeyplaysbass
St. Louis,
MO / ASU
Post Number: 2680
Registered: Jul-05
|
| Posted on Sunday, May 04, 2008 - 10:17 pm: |
|
Looking pretty good so far Nick..keep it up. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1653
Registered: Mar-07
|
| Posted on Monday, May 05, 2008 - 01:14 am: |
|
Well guys, I did not get to work on it today at all because of work. Tomorrow I have work and school so I probably wont be able to work on it then. Same thing for Tuesday and Wednesday I probably will not get time to work on it anymore until the weekend because I need daylight.
"I now mix it in 3oz cups with exactly 14d drops/oz of resin"
I mix 4 ounces of resin with about 50-60 drops or so total. That usually gives me enough time to place it all out before it starts to jelly
"Looking pretty good so far Nick..keep it up."
Thanks Jake and everyone else that had given some feedback. I just hope I will get this all in soon, so the build log does not die into the archives. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1661
Registered: Mar-07
|
| Posted on Wednesday, May 07, 2008 - 11:02 pm: |
|
Ok, I have been extremely busy lastely with other people's stuff and I still am lol. 'm just bumping this topic up to save it from the archives.
Tomorrow I hope to at least get the pod trimmed so the door will close and maybe the speaker placed. |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2102
Registered: Mar-07
|
| Posted on Wednesday, May 07, 2008 - 11:31 pm: |
|
we need pics! |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2106
Registered: Mar-07
|
| Posted on Thursday, May 08, 2008 - 11:39 pm: |
|
bump! |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1686
Registered: Mar-07
|
| Posted on Sunday, May 18, 2008 - 04:18 pm: |
|
Figured I would bump this up.
I will post a few pics tonight on my progress
Haven't been able to work on it for a few days because I've been working on something else. Today I couldn't get much done due to burning my hand. |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 3956
Registered: Dec-06
|
| Posted on Sunday, May 18, 2008 - 04:19 pm: |
|
Flare up in the meth lab? |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1687
Registered: Mar-07
|
| Posted on Sunday, May 18, 2008 - 04:20 pm: |
|
Setting 24gauge wire on fire then grabbing it |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 3958
Registered: Dec-06
|
| Posted on Sunday, May 18, 2008 - 04:22 pm: |
|
Oh damn man  Did the plastic burn into your skin? |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1688
Registered: Mar-07
|
| Posted on Sunday, May 18, 2008 - 04:23 pm: |
|
Yeap. Will post some pics later tonight. |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 3959
Registered: Dec-06
|
| Posted on Sunday, May 18, 2008 - 04:30 pm: |
|
At least it wasn't 1/0. That's hospital time. |
Gold Member Username: Nd4spd18
Northwest PA
Post Number: 7521
Registered: Jul-06
|
| Posted on Sunday, May 18, 2008 - 08:30 pm: |
|
More importantly HOW did you manage to burn yourself with wire and more importantly than that, WHY did that wire not have a fuse on it. |
Bronze Member Username: Tkilla
Bastrop
Usa
Post Number: 59
Registered: Feb-08
|
| Posted on Sunday, May 18, 2008 - 10:17 pm: |
|
i was there it was a site 2 see let me tell ya!!!!!1 |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1690
Registered: Mar-07
|
| Posted on Monday, May 19, 2008 - 12:55 am: |
|
Ok guys, Here are some pics finnally lol.

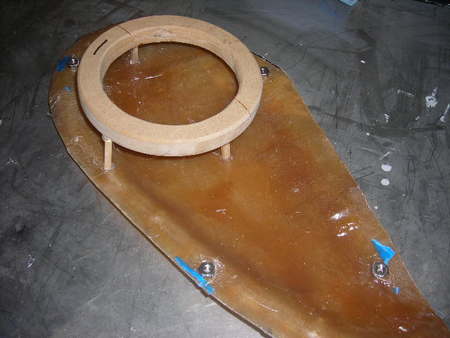

I got my rings mounted like I wanted them.

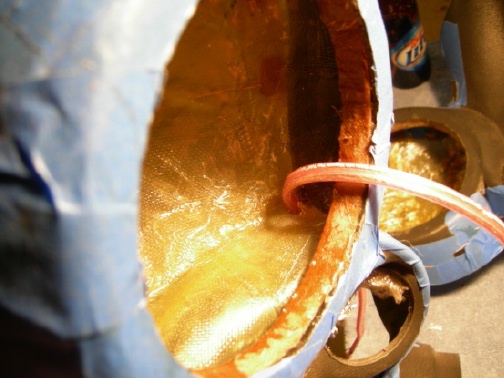

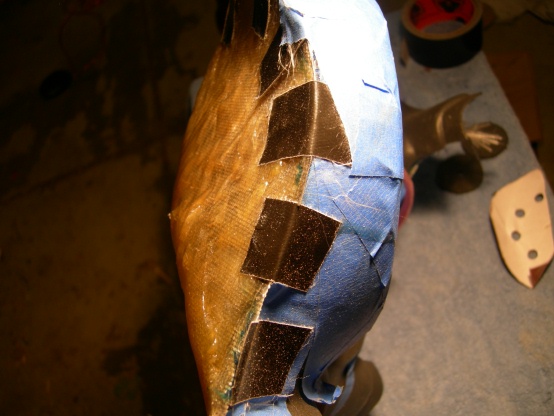

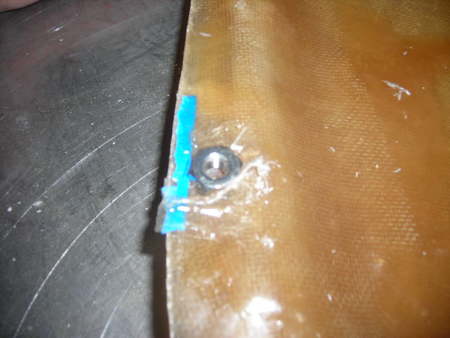

I came up with this idea to resin botls onto the molds and bolt them onto the door through the factory rivet holes :D

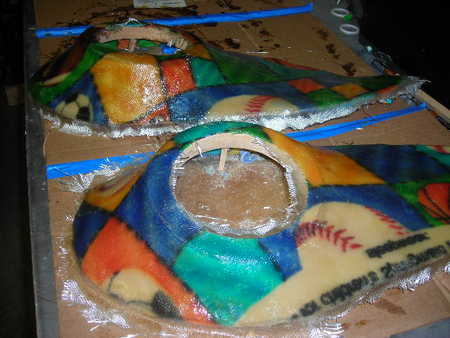

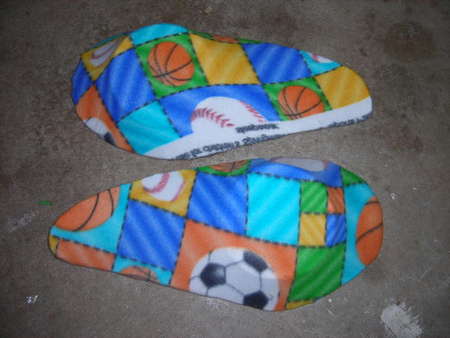

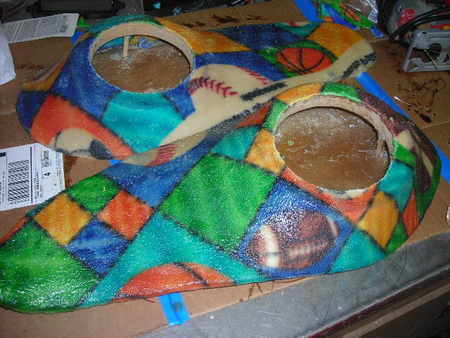

I have my rings wrapped and ready to glass. I messed one once already because I wasn't sure how to approach it, but now I think i have a better idea of what to expect :D
the gf being bored with the camera lol

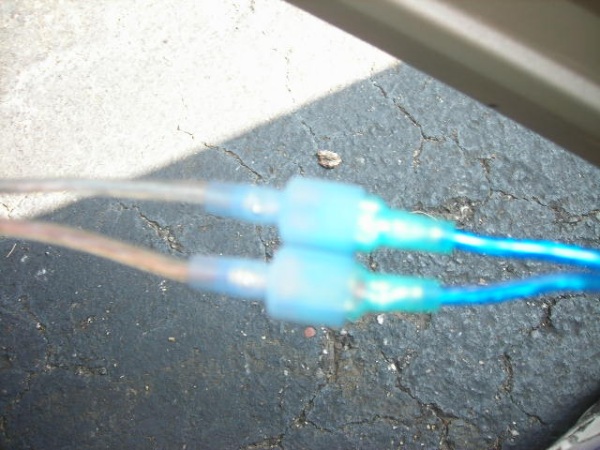

"More importantly HOW did you manage to burn yourself with wire and more importantly than that, WHY did that wire not have a fuse on it."

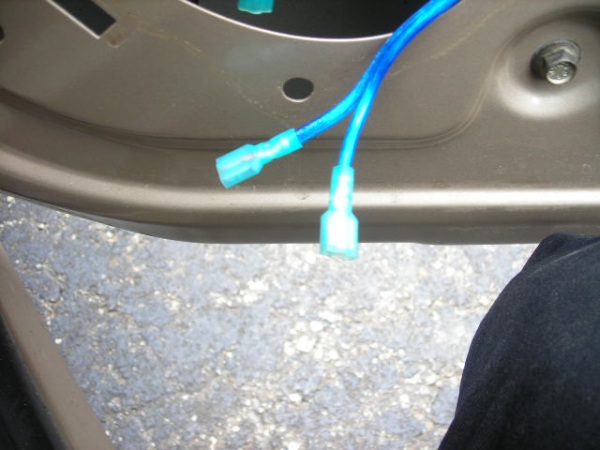

I am not sure why the wire was burning up. I had my temporary HU hooked up in the back of the car testing out a customer's amp, and the next thing i know, the wire started burning up. So without thinking, I grabbed the burning wires and ripped them from the spades connecting them to the battery. I have used this hu on the same wires a few times and it has never given me any trouble till now. Why didn't I fuse it? Because I created this harness the night before a competition the next morning and I did not have a inline fuse handy. It is only hooked up while I'm sitting there burping. My inline fused I ordered for it a few days ago has not yet arrived. It really is not a big deal though lol. Just a few burn/cuts on my fingers. |
Silver Member Username: Surferdude9371
Im BTL Bumpin
Post Number: 928
Registered: Mar-07
|
| Posted on Monday, May 19, 2008 - 01:46 am: |
|
looks good make sure that fleece is tight cute pattern btw  |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1692
Registered: Mar-07
|
| Posted on Monday, May 19, 2008 - 01:18 pm: |
|
"cute pattern btw"
Awe thanks :D It's the thickest fleece they had at wal-mart. |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4527
Registered: Jan-06
|
| Posted on Monday, May 19, 2008 - 06:26 pm: |
|
I use stolen AA plane blankets, by far the thickest... Polo.. |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2182
Registered: Mar-07
|
| Posted on Monday, May 19, 2008 - 06:49 pm: |
|
Looks like its coming along nicely. Good idea with the nuts. Post more pics and keep inspiring me. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2099
Registered: Feb-05
|
| Posted on Monday, May 19, 2008 - 07:50 pm: |
|
That looks good Nick |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1700
Registered: Mar-07
|
| Posted on Friday, May 23, 2008 - 12:58 am: |
|

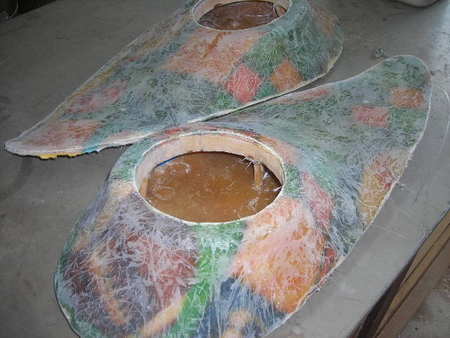

Iight guys. I have done a little bit more work in the last two nights. All I got left to do tomorrow is sand, filler, sand, sand, and some more sanding to get these things ready for paint in the near future.
I resined the fleece to the edges.

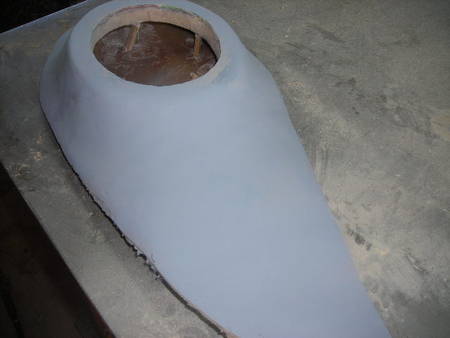

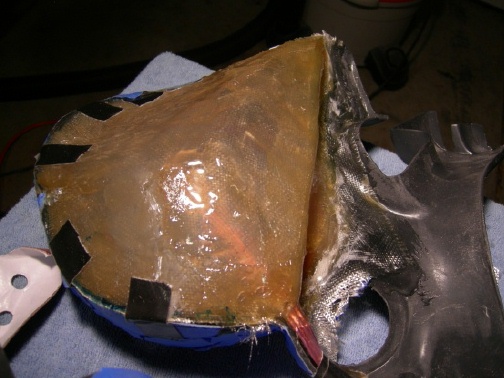

Once those cured, I applied a layer of mat for strength. This is where I left off tonight. I will let them dry over night and work with them some more tomorrow.
And always remember...
 |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2199
Registered: Mar-07
|
| Posted on Friday, May 23, 2008 - 01:27 am: |
|
Lovin the sticker. lol |
Gold Member Username: Bernymac
Cambodia
Post Number: 3960
Registered: Sep-04
|
| Posted on Friday, May 23, 2008 - 01:40 am: |
|
looks good nick. |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4546
Registered: Jan-06
|
| Posted on Friday, May 23, 2008 - 10:59 am: |
|
Hey while were waiting for you to post pics how about pacifying us with pics of your GF?  Polo... |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8080
Registered: Jul-06
|
| Posted on Friday, May 23, 2008 - 05:36 pm: |
|
Go figure Polo would say something like that. |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4547
Registered: Jan-06
|
| Posted on Friday, May 23, 2008 - 06:00 pm: |
|
Hey Rob, GOT PICS?
Polo  |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8081
Registered: Jul-06
|
| Posted on Friday, May 23, 2008 - 09:51 pm: |
|
I got what you need Polo! =/ That sounds half h0mo. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16739
Registered: Jun-06
|
| Posted on Friday, May 23, 2008 - 10:05 pm: |
|
"I got what you need Polo! =/ That sounds half h0mo."
X2=?
|
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8082
Registered: Jul-06
|
| Posted on Friday, May 23, 2008 - 10:30 pm: |
|
The only thing I see wrong here is the tiny amount of air space your speakers will have. I guess they'll work depending on what you install though. |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8086
Registered: Jul-06
|
| Posted on Saturday, May 24, 2008 - 09:39 am: |
|
Anyone else have concerns with the air space or is it just me? We'll see how my project turns out haha. |
Gold Member Username: Insearchofbass
Post Number: 9292
Registered: Jun-04
|
| Posted on Saturday, May 24, 2008 - 10:30 am: |
|
nice work Nick....what project might that be Rob |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1711
Registered: Mar-07
|
| Posted on Sunday, May 25, 2008 - 05:28 pm: |
|
Alright guys, today i got one pod filled and primed. The first attempt was a mild failure since I am learning and trying to figure this out as I go. Here are a few pics
The sisters with their matts nice and trimmed ;)

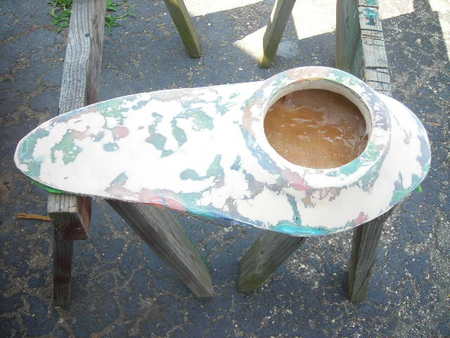

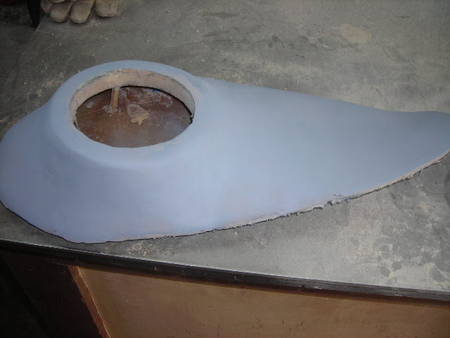

A pic of the first attempt at filler on the pod

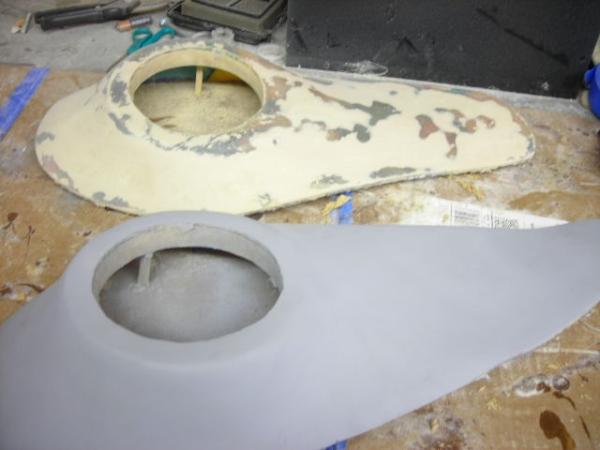

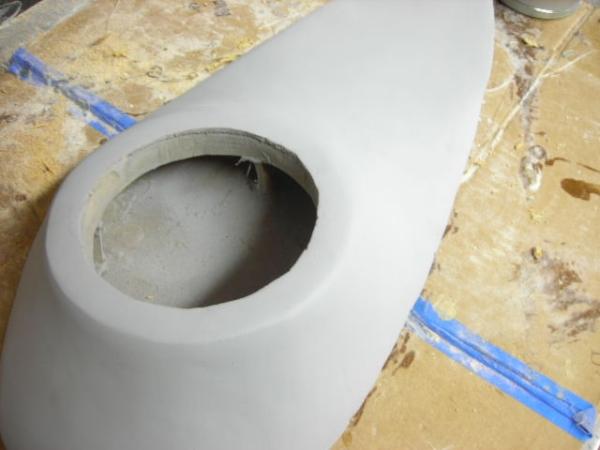

A coat of primer. I do have a few pinholes and a few minor sanding imperfections that I think can easily be fixed, I just have to figure out how to do it.
If anyone has any tips on fixing the pinholes and any tutorials on body filler, it would be greatly appreciated. I want to get this one pod perfect before I start on the next |
Gold Member Username: Philly306
James Carrol is the re...
Post Number: 1101
Registered: Apr-07
|
| Posted on Sunday, May 25, 2008 - 06:37 pm: |
|
Its coming along nicely Nick. Keep it up. |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2206
Registered: Mar-07
|
| Posted on Sunday, May 25, 2008 - 06:42 pm: |
|
Those look awesome, Nick. Keep us updated. |
Gold Member Username: Frkkevin
Team DLS
SuperNatural...
Post Number: 5152
Registered: Nov-05
|
| Posted on Sunday, May 25, 2008 - 08:26 pm: |
|
if its just pinholes, get yourself some fiberglass jelly resin and just dab it on the pin holes and smooth it out.. let it all dry and resand
best thing to do is get flat black spray paint and then sand, youll see your high spots very quick when you start sanding over the paint |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1713
Registered: Mar-07
|
| Posted on Sunday, May 25, 2008 - 10:41 pm: |
|
Thanks for all the feedback guys.
I just got back from getting some spot putty. I'm going to see how this works tomorrow with filling in my minor pinholes |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4551
Registered: Jan-06
|
| Posted on Monday, May 26, 2008 - 12:08 am: |
|
Ya Rob I thought the same thing but chances are it is just the depth perception of the pic, I know a Cadence CVL would not fit in there. I had to constantly have driver on hand to make sure it would fit at every step. I found when using actual fiberglass instead of fleece It cam eout alot smoother, easier to work with but need more layers which was ok, let me build it up/more flexible. I will have pics of my modified Q-pods after this weekend. Polo.. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1714
Registered: Mar-07
|
| Posted on Monday, May 26, 2008 - 01:53 am: |
|
The driver does fit in perfect (made sure when I was mounting the speaker ring lol)
There is also actually a little bit of room. Even with these pods, I will not have much foot room lol. |
Gold Member Username: Mr_kebo
Albertville,
Al
USA
Post Number: 1484
Registered: Nov-04
|
| Posted on Monday, May 26, 2008 - 02:39 am: |
|
Looking good. |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8088
Registered: Jul-06
|
| Posted on Monday, May 26, 2008 - 05:26 pm: |
|
I wish the project I have in mind was as easy as this. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1721
Registered: Mar-07
|
| Posted on Monday, May 26, 2008 - 09:17 pm: |
|
Lol Rob.
Guys I got the other pod filled today, but I just can not seem to get these things in paintable shape
I'm considering just wrapping them. |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2212
Registered: Mar-07
|
| Posted on Monday, May 26, 2008 - 09:22 pm: |
|
Got anymore pics, Nick? |
Gold Member Username: Frkkevin
Team DLS
SuperNatural...
Post Number: 5160
Registered: Nov-05
|
| Posted on Monday, May 26, 2008 - 09:37 pm: |
|
takes a lot of work to get pods ready for paint.. have you tried using filler primer? |
Silver Member Username: Surferdude9371
Im BTL Bumpin
Post Number: 980
Registered: Mar-07
|
| Posted on Monday, May 26, 2008 - 09:50 pm: |
|
ya use a high build primer you used body filler right? |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1723
Registered: Mar-07
|
| Posted on Monday, May 26, 2008 - 09:55 pm: |
|
yeah, i used body filler and filler primer. There are just a few high spots and craters left in the filler that I can not seem to work out. The pinholes are no problem, its everthing else that I'm trying to get fixed lol. |
Gold Member Username: Frkkevin
Team DLS
SuperNatural...
Post Number: 5161
Registered: Nov-05
|
| Posted on Monday, May 26, 2008 - 09:58 pm: |
|
you could go the easy way and use a 1/4" foam liner.. glue it over it then wrap in 8 stretch vinyl ..
problem with painting parts on the doors is they get so much use scratches can occur very quickly |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1732
Registered: Mar-07
|
| Posted on Tuesday, May 27, 2008 - 09:37 pm: |
|
Well guys, I got quite a bit done today. Hopefully I will finish it up tomorrow.
I decided to wrap the pods because there was a few bad edges where the fleece and glass meet that were not fixable. But just to see if I could do it, I tried getting one paintable with no imperfections and I did it :D
See any bad places lol?
I will finish up the other one tomorrow and wrap them both

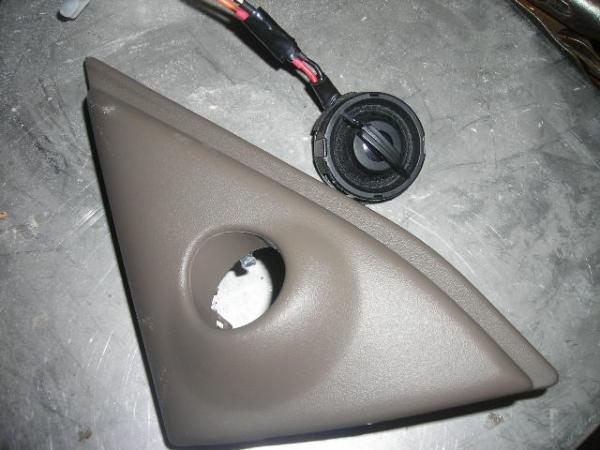

I really want to put my tweeter in the factory location, but im going to have to turn this piece into a tweeter pod ;) That will come soon.

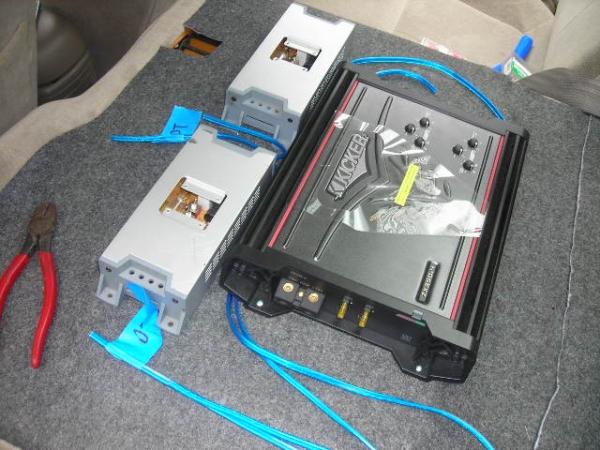

Just laying out the wires
Here are a few pics of the final product without the power and ground ran. My goal was to make it look as clean as possible.

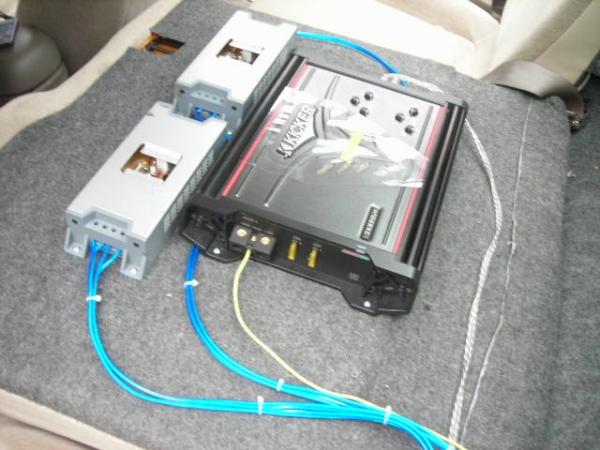

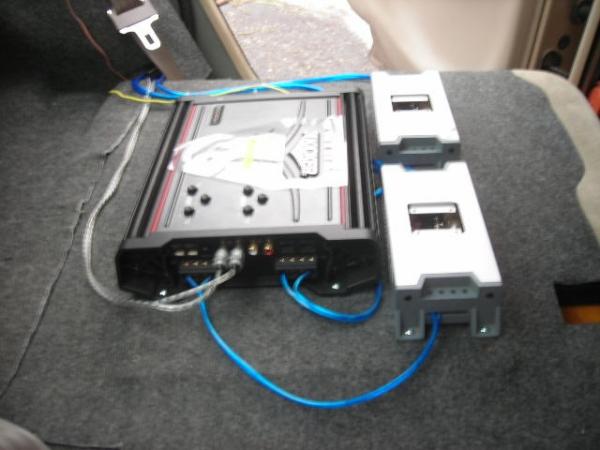

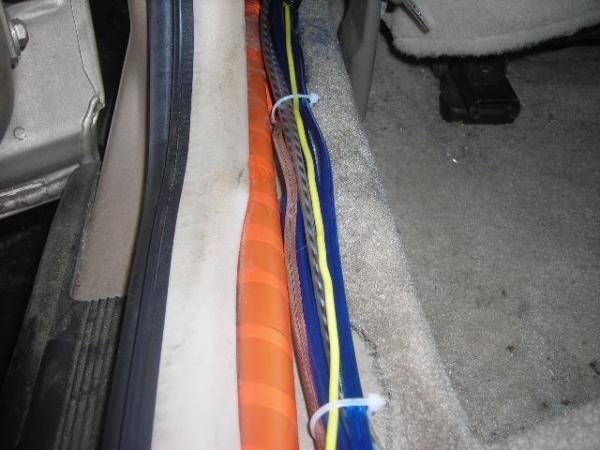

Just to show that the rest of the install is clean also. There were no shortcuts taken lol.
A gallon of Red Diamond Tea and hours of sunburn later, I finnally finished it up. Here are the wires in place ready for the pods and tweeters
Also, A sneak peek of what my next project is hehe.
 |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8091
Registered: Jul-06
|
| Posted on Tuesday, May 27, 2008 - 09:55 pm: |
|
Great work man, I know what you went through on this project haha |
Silver Member Username: Drant19
DUB-C,
TX
Post Number: 983
Registered: Aug-07
|
| Posted on Tuesday, May 27, 2008 - 10:48 pm: |
|
nice job man.
triple baffle FTW! |
Gold Member Username: Andrew571
Stillwater/Edmond,
Oklahoma
USA
Post Number: 1862
Registered: Oct-05
|
| Posted on Wednesday, May 28, 2008 - 03:58 am: |
|
Red Diamond rocks.
Also looks good.
coming together very nice |
Gold Member Username: The_image_dynamic
San Diego, California
Post Number: 3995
Registered: Dec-06
|
| Posted on Wednesday, May 28, 2008 - 05:50 am: |
|
Nicky V FTW! |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8103
Registered: Jul-06
|
| Posted on Wednesday, May 28, 2008 - 02:57 pm: |
|
I wonder what the output of your pods is going to sound like, hopefully good. How much air space do those Boston speakers ask for though? |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4559
Registered: Jan-06
|
| Posted on Wednesday, May 28, 2008 - 03:21 pm: |
|
Actually anything is better than playing them in a stock door more of an IB setup as it is impossible to seal a door up perfectly. Even if you did it would have way to airpace so acoustic suspension is waaay out of the question. Small and sealed it can only get better on the low end maybe inprove the overall frequency band down below, more power handling also. Polo. |
Gold Member Username: Loc_out
SOCAL
2 RE 15 XXX
Post Number: 2136
Registered: Feb-05
|
| Posted on Wednesday, May 28, 2008 - 03:25 pm: |
|
Nick your install looks really clean man. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1738
Registered: Mar-07
|
| Posted on Wednesday, May 28, 2008 - 03:46 pm: |
|
Thanks for the Feedback guys I am still working on these things, I changed my mind back to painting so now I am fixing the edges and hopefully have them finished up tomorrow.
Rob, This is really the most airspace I could get out of my doors considering there is not much foot room in my car as it is.
ANYTHING is better than what I had in there lol. |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4568
Registered: Jan-06
|
| Posted on Thursday, May 29, 2008 - 02:51 am: |
|

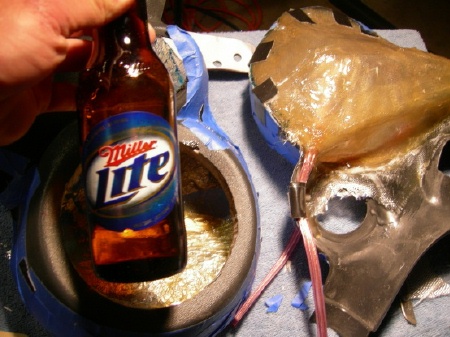

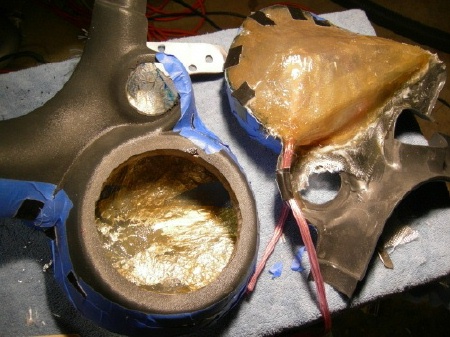

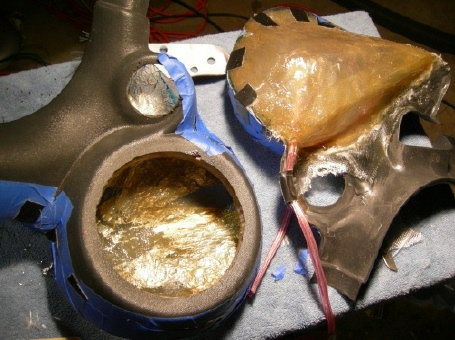

I love the smell of resin, hardner and wash it down with some Miller Lite lOl! Polo..
Last pic is me coaxing the cure with infrared lamps... |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4574
Registered: Jan-06
|
| Posted on Thursday, May 29, 2008 - 10:09 pm: |
|
cOME ON nick get ta crackin! Polo...
 |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8136
Registered: Jul-06
|
| Posted on Friday, May 30, 2008 - 12:34 am: |
|
Word on that. I think me and Polo are running rings around you. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1745
Registered: Mar-07
|
| Posted on Friday, May 30, 2008 - 01:43 am: |
|
I finished up today guys I will post pics tomorrow
These things sound so amazing. I haven't even mounted the tweeters yet or tuned them like I want to yet and they still sound awesome. I can't wait to get it just like I want it :D
Was well worth it :D |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2236
Registered: Mar-07
|
| Posted on Friday, May 30, 2008 - 09:27 am: |
|
We need pics today! |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 8143
Registered: Jul-06
|
| Posted on Saturday, May 31, 2008 - 08:53 am: |
|
We need pics yesterday! I've been busting my azz so I haven't posted much but it's been a rough couple of weeks. Work, work on my car and then work out and sleep. I've been running myself into the ground but it'll be worth it in the end...I think. |
Gold Member Username: Bernymac
Cambodia
Post Number: 3991
Registered: Sep-04
|
| Posted on Saturday, May 31, 2008 - 09:53 am: |
|
nick ftw. I want to see pictures also. Post them up today! like right now! |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2240
Registered: Mar-07
|
| Posted on Sunday, June 01, 2008 - 08:55 pm: |
|
What the F, Nick. You promised me you would have pics up Saturday morning. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1757
Registered: Mar-07
|
| Posted on Sunday, June 01, 2008 - 09:39 pm: |
|
I know, I'm slacking guys. Been really busy
I will try to have some up tomorrow lol. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3987
Registered: Mar-06
|
| Posted on Sunday, June 01, 2008 - 10:05 pm: |
|

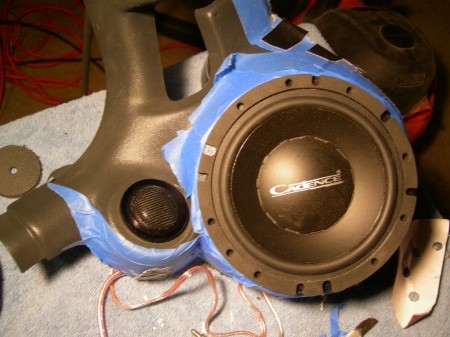

looks like your getting there. btw, theres a stuff called spot filler, comes in a tooth paste type tube, usually red. I use that to fill in any pin holes and scrathes. put 1-2 skim coats on, wet sand with like 600 grit, prime paint.

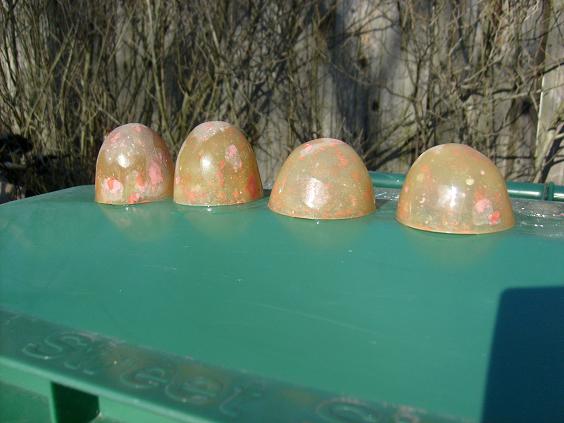

You can see the red areas in this.

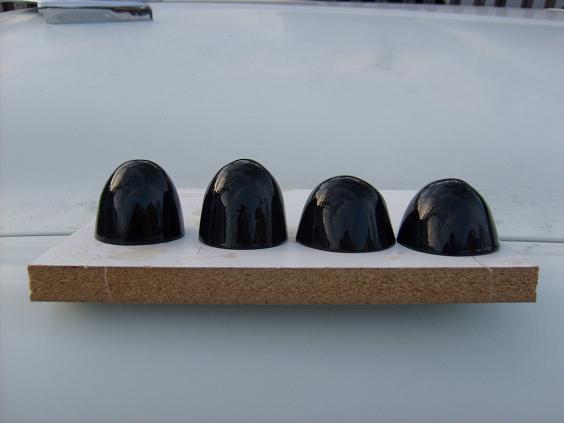

Painted.

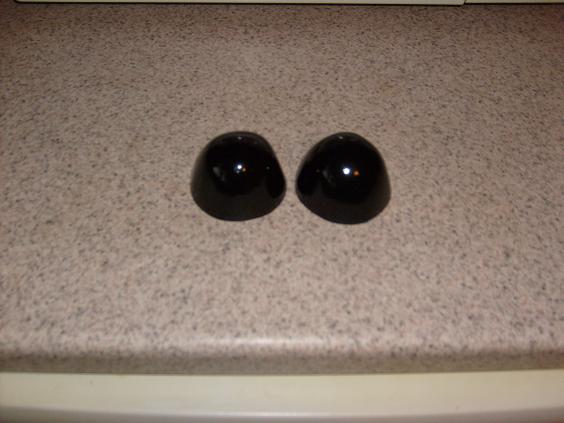

Extra set for sale.
 |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1759
Registered: Mar-07
|
| Posted on Sunday, June 01, 2008 - 10:12 pm: |
|
Yeah Marc, I used that stuff for minor pin holes. Worked great |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1765
Registered: Mar-07
|
| Posted on Monday, June 02, 2008 - 03:03 pm: |
|
Well guys here are the promised pics lol.

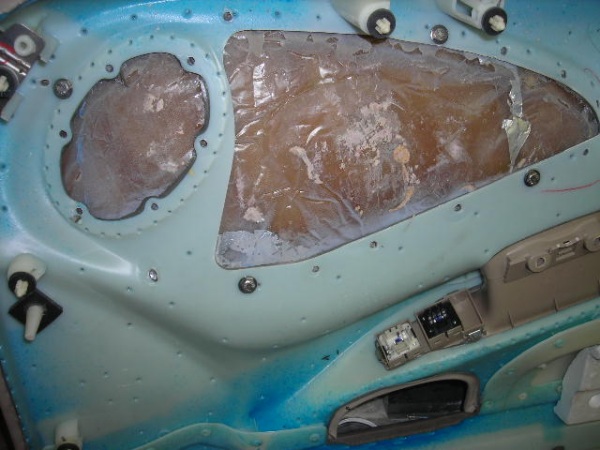

Heres a pic of the wires coming out of the door. To connect the wire running out the back of the pod to the wire running from the door, I decided to use spades since I'm always taking my door panels off.
Then I bolted the pod to the door panel. This idea worked perfectly.
Here is the spades connected to each other running to the pod.

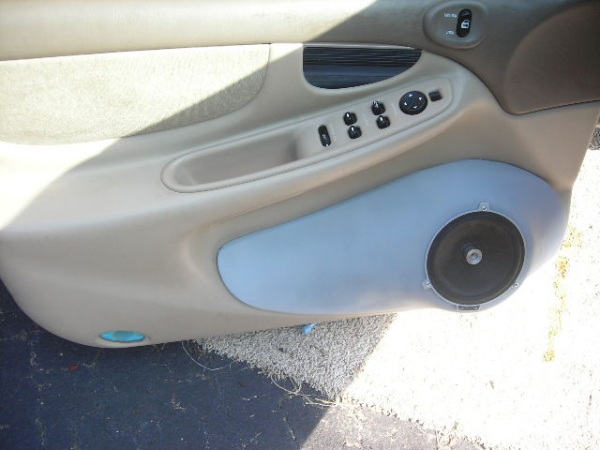

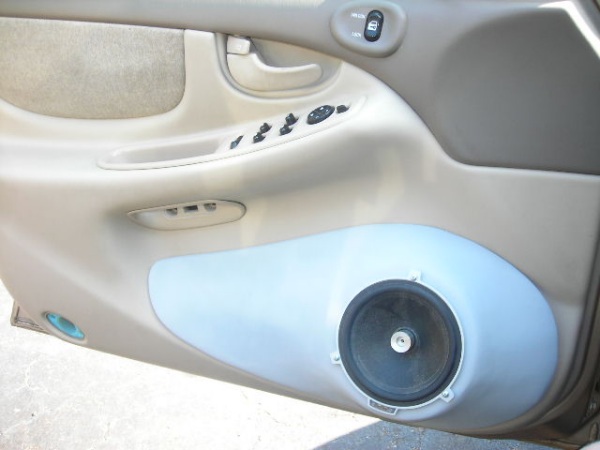

And here is how they looked on the doors
I really could not have done this project without the help of Berny Mac and Canaan. Mad thanks to you guys
Enough with the doors, Tomorrow it is time for the SPL ;) |
Gold Member Username: Frkkevin
Team DLS
SuperNatural...
Post Number: 5188
Registered: Nov-05
|
| Posted on Monday, June 02, 2008 - 03:09 pm: |
|
looks really good.. flows very well with the door..
color match it with the top of the door and youll have secks |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1767
Registered: Mar-07
|
| Posted on Monday, June 02, 2008 - 03:11 pm: |
|
I am getting my car painted soon
So after I get the car painted, I will then color match everything.
Expect a build log for all of that too very soon ;) |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
Post Number: 2246
Registered: Mar-07
|
| Posted on Monday, June 02, 2008 - 03:50 pm: |
|
Those came out perfect. Great job, Nick. I  |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3992
Registered: Mar-06
|
| Posted on Monday, June 02, 2008 - 08:30 pm: |
|
Nice job for your first 'glassing job'
Those look very at home there. |
Gold Member Username: Bernymac
Cambodia
Post Number: 4001
Registered: Sep-04
|
| Posted on Monday, June 02, 2008 - 09:25 pm: |
|
very nice nick. |
Silver Member Username: Surferdude9371
Im BTL Bumpin
Post Number: 998
Registered: Mar-07
|
| Posted on Tuesday, June 03, 2008 - 04:27 pm: |
|
looks great smooth and blends well |
