| Author |
Thread: Install pix |

Silver Member Username: Durski
Post Number: 414
Registered: Nov-06
|
| Posted on Thursday, April 24, 2008 - 06:40 pm: |
|

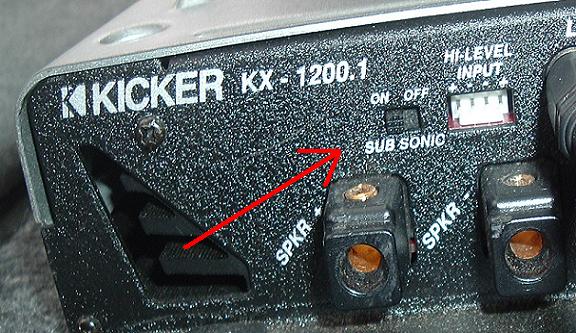

I still have to mount the sub and wire it to the amp, doing a little research before I blow something up... Anyone know what the "Sub Sonic" switch on my kx1200.1 is for?
 |
|
|
|
Silver Member Username: Durski
Post Number: 415
Registered: Nov-06
|
| Posted on Thursday, April 24, 2008 - 06:46 pm: |
|
I have a dual 2 ohm fi.Q, wiring it to 1 ohm to my kx1200.1 should be like this?
right? Is that what I should do? |
Silver Member Username: Pike110
TC-Sounds LMS 5400 18,
Indianapolis...
Post Number: 426
Registered: Oct-05
|
| Posted on Thursday, April 24, 2008 - 06:46 pm: |
|
It filters out the high freq. from going to the sub or subs. you need it on. |
Gold Member Username: Crayola0
Portage,
Wisconsin
Post Number: 2375
Registered: Jun-06
|
| Posted on Thursday, April 24, 2008 - 06:47 pm: |
|
what is your box covered with and how much was it |
Silver Member Username: Pike110
TC-Sounds LMS 5400 18,
Indianapolis...
Post Number: 427
Registered: Oct-05
|
| Posted on Thursday, April 24, 2008 - 06:50 pm: |
|
I led you wrong. it filters out the realy low freq. sounds. |
Silver Member Username: Pike110
TC-Sounds LMS 5400 18,
Indianapolis...
Post Number: 428
Registered: Oct-05
|
| Posted on Thursday, April 24, 2008 - 06:52 pm: |
|
Yeah, that is correct. that amp at 1ohm should be perfect for that q. |
Silver Member Username: Durski
Post Number: 416
Registered: Nov-06
|
| Posted on Thursday, April 24, 2008 - 06:54 pm: |
|
Pike, since this is a 15" I want that filter off... I think, I wanna wang on the lows.

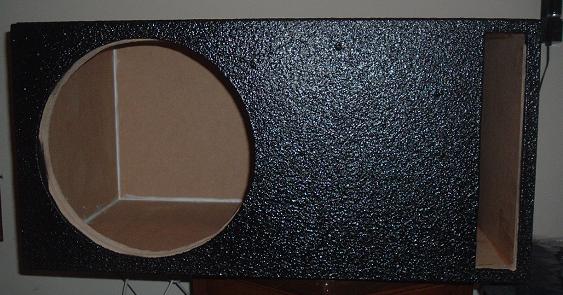

Jay, Rhino liner - $102 after tax, kinda expensive, but I got lazy and didn't wanna carpet / put the liner on myself. Looks good but it doesn't cover up some of the flaws like I hoped it would, but that's my fault |
Gold Member Username: Joebruce
Mach5Audio M...
Post Number: 2005
Registered: May-04
|
| Posted on Thursday, April 24, 2008 - 07:00 pm: |
|
Your sub sonic filter should be set at or just a tad below the box tuning. It is so it wont damage your sub. So it should be on and set it to whatever your tuning freq of the box is. You would want to turn it off if you had a sealed box. |
Silver Member Username: Durski
Post Number: 417
Registered: Nov-06
|
| Posted on Thursday, April 24, 2008 - 07:48 pm: |
|
There is no freq dial for the sub sonic filter. Hooked up, test drove, fantastic. Gain only 1/2 way up cuz I'm afraid of this amp.  I'm sure that will find it's way to 90% soon enough, I just don't wanna give it the full 1400+ rms that the amp can dish out. Pix coming soon. |
Gold Member Username: Denali_on_22s
I get Bucks like Milwa...
Post Number: 5554
Registered: Feb-06
|
| Posted on Thursday, April 24, 2008 - 08:02 pm: |
|
^ you're not serious are you? the gain is meant to be set a certain way for a reason and after that it should not be messed with. if you put the gains up to 90% you will fry your sub and probably your amp. |
Silver Member Username: Hittin1
LakeCharles LA.,
La
Post Number: 221
Registered: May-07
|
| Posted on Thursday, April 24, 2008 - 08:12 pm: |
|
By turning your subsonic filter on you are saving power on your amp by not powering your subs for frequencies that you can't hear as well as wear and tear.
Gain is not a bass volume control. It needs to bet set correctly and left alone.
That illustration was the correct way to wire your sub. Good luck |
Diamond Member Username: Bestmankind
Los Angeles,
CA
USA
Post Number: 20529
Registered: Oct-05
|
| Posted on Thursday, April 24, 2008 - 08:17 pm: |
|
i believe that kicker amp's subsonic filter is set at 20hz. |
Silver Member Username: Hittin1
LakeCharles LA.,
La
Post Number: 223
Registered: May-07
|
| Posted on Thursday, April 24, 2008 - 08:20 pm: |
|
I believe you are right Chad...The human ear cant hear frq below 20 hz. according to discovery channel.lol |
Diamond Member Username: Bestmankind
Los Angeles,
CA
USA
Post Number: 20531
Registered: Oct-05
|
| Posted on Thursday, April 24, 2008 - 08:22 pm: |
|
and they said you can't learn anything from television. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16244
Registered: Jun-06
|
| Posted on Thursday, April 24, 2008 - 08:23 pm: |
|
Nice lining. Looks rough. Anyone ever have/had any problems with air leakage around the rim due to the thick lining? Looks like it would hinder a tight seal. I know a rubber gasket fixes this but how many use one?
Just curious. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16245
Registered: Jun-06
|
| Posted on Thursday, April 24, 2008 - 08:24 pm: |
|
"I believe you are right Chad...The human ear cant hear frq below 20 hz. according to discovery channel.lol"
I remember reading 11hz is the human threshold. Let me go investigate. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16246
Registered: Jun-06
|
| Posted on Thursday, April 24, 2008 - 08:29 pm: |
|
You are correct sir.
http://hyperphysics.phy-astr.gsu.edu/Hbase/sound/earsens.html
Where did I get 11hz from lol? |
Gold Member Username: Mj23dynasty
Alpine ida-x001/2 dd 2...,
Woodlawn Por...
USA
Post Number: 1957
Registered: Oct-07
|
| Posted on Thursday, April 24, 2008 - 09:44 pm: |
|
love the rhino liner lol |
Silver Member Username: O0airjordan120o
Post Number: 397
Registered: Sep-07
|
| Posted on Thursday, April 24, 2008 - 09:59 pm: |
|
whats the spray on the outside? |
Gold Member Username: Safe_cracker
Chicago,
IL
US
Post Number: 4424
Registered: Jan-06
|
| Posted on Thursday, April 24, 2008 - 10:28 pm: |
|
Actually Paul, as long as it isn't to uneven around the sub area, it seals like a rubber @ss gasket! I brush mine on instead of roll, comes out smoother but protects all the same. Polo. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 16249
Registered: Jun-06
|
| Posted on Thursday, April 24, 2008 - 10:55 pm: |
|
Good enough. It's just from the looks of it, it looks like there would be some kinda air gap.
The stuff looks similar to popcorn ceiling texture. That's why I asked. |
Gold Member Username: Somedonniedude
Illinois
United States
Post Number: 1489
Registered: May-07
|
| Posted on Thursday, April 24, 2008 - 11:05 pm: |
|
What is that box tuned to? Oh and the SSF on that amp is 25hz. |
Platinum Member Username: Rovin
1 15 = 149.1DBs
Trinidad & T...
Post Number: 13623
Registered: Jul-05
|
| Posted on Thursday, April 24, 2008 - 11:09 pm: |
|
interesting finish - should have sprayed inside d port with black sray paint to match & complete the look ...... |
Silver Member Username: Durski
Post Number: 418
Registered: Nov-06
|
| Posted on Friday, April 25, 2008 - 01:15 am: |
|
I'll paint the inside of the port black when I have some time this weekend, lots of people told me not to get that part sprayed with the liner.
This pic was a little odd, it's not that uneven around the rim. The Q came with a gasket, I was a little worried about the seal not being that great as well but I tried shining a light at all kinds of angles and nothing was getting through so I think that's sufficient. It's hard as hell to get this stuff off once it's on, I tried, other wise there wouldn't be excess aroung the speaker hole.
I know I should set the gain with a test tone and DMM, and that it's not a volume control. But since I dont have a DMM and I wanted to hear something to make sure chauncey didn't rip me off (he didn't) I just set it at 1/2. 90% was an exageration.
Box is 3.4 cubes @ between 31hz and 30hz, I forgot the exact tuning, changed box dimentions a little from the original design.
Started to rain, pix tomorrow |
