| Author |
Thread: Ho alternator rebuild kit |

Bronze Member Username: Msand951
Riverside,
Ca
Usa
Post Number: 68
Registered: Mar-07
|
| Posted on Tuesday, April 08, 2008 - 06:23 pm: |
|
has anyone tried any of these kits?http://www.springhillautoelectric.com/
also what do you think of these pulleys?
it will probably shorten my alt life i think.http://www.highoutputalternator.com/otherpart.htm |
|
Relevant Product Info
|
|
Gold Member Username: Lbeckner
Tulsa,
Ok
Usa
Post Number: 1573
Registered: Oct-04
|
| Posted on Wednesday, April 09, 2008 - 03:24 pm: |
|
The diodes went out on my Irragi alternator so replaced them with 150V 240A Schottky Diode in a D-67 HALF-Pak. I built an external heatsink to mount them on and mounted it behind my grill. Now I dont have to worry about the cheap stamped diodes going out again.... Usually they are the first thing to go on an alternator. They dont have very good heat dissipation. |
Gold Member Username: Lbeckner
Tulsa,
Ok
Usa
Post Number: 1574
Registered: Oct-04
|
| Posted on Wednesday, April 09, 2008 - 03:27 pm: |
|

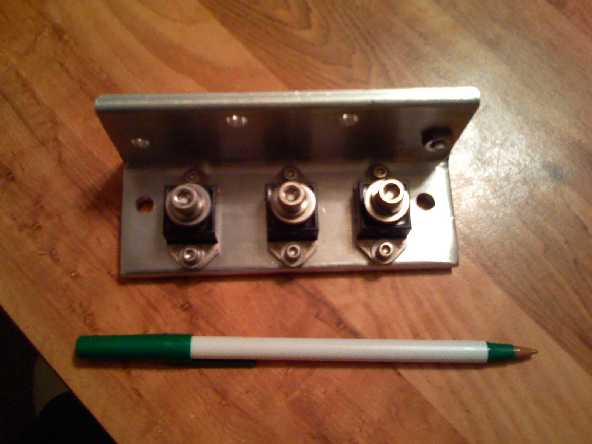

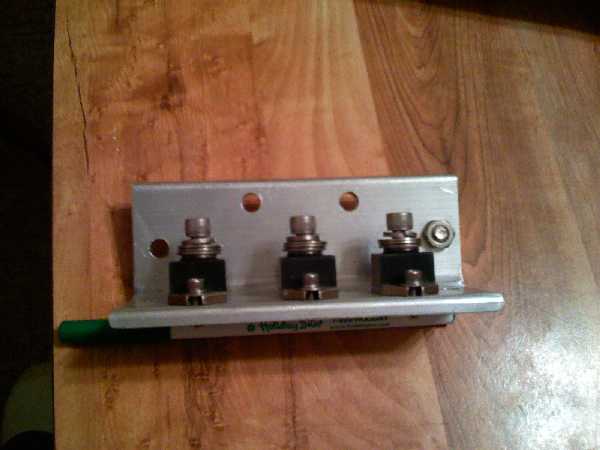

I used 3 150V 240A Schottky Diode in a D-67 HALF-Pak and made an external rectifier.... |
Gold Member Username: Somedonniedude
Illinois
United States
Post Number: 1406
Registered: May-07
|
| Posted on Wednesday, April 09, 2008 - 07:47 pm: |
|
Lucas, do you have any pics. Sounds interesting. |
Gold Member Username: Lbeckner
Tulsa,
Ok
Usa
Post Number: 1580
Registered: Oct-04
|
| Posted on Thursday, April 10, 2008 - 12:19 pm: |
|
On the alternator there are 3 wires coming from the back of it. One for each phase. They connect to the diodes and the heatsink of the diodes connect to my battery. I will never have another alternator problem....I hope.
 |
Gold Member Username: Th3pwn3r
I compensate...
Post Number: 7882
Registered: Jul-06
|
| Posted on Thursday, April 10, 2008 - 03:15 pm: |
|
The only downfall is building up an alternator with a small case. They usually lack cooling to be as efficient as possible. |
Gold Member Username: Lbeckner
Tulsa,
Ok
Usa
Post Number: 1587
Registered: Oct-04
|
| Posted on Thursday, April 10, 2008 - 03:28 pm: |
|
yeah, the little stamp diodes that they use with very little heatsink. mine worked good for about a year, but my alternator puts out 240amps. it was gonna catch up sooner or later. thats why instead of sending it in for another cheap rectifier to be installed I decided to make an external rectifier that isnt underneath the hood with my hot engine. |
|
