This by far is will the biggest cabinet I have ever designed and to be built.
The customer is using a RL-s 15 for Home Audio. The cabinet is 29" w x 29" h x 38" d and the entire beast is 1" MDF - Triple Baffled w/ the subwoofer recessed and braced like a solid brick sh!t house. The back of the cabinet is within the interior of the cabinet with a 6" space to the exterior back for mounting an plate amp. The space isolates the plate amp for the enclosure interior.
The customer requested the bracing to be pure overkill to deaden the enclosure.
A custom grill cover will be done that slips within the recess cutout which the front part of the grill cover will protrude beyond the front baffle. The grill cover will be held in place with rare earth magnets flush mounted into the grill cover flange and front baffle.
And to complete it the exterior with be done with Mahogany Quarter Sawn Veneer.

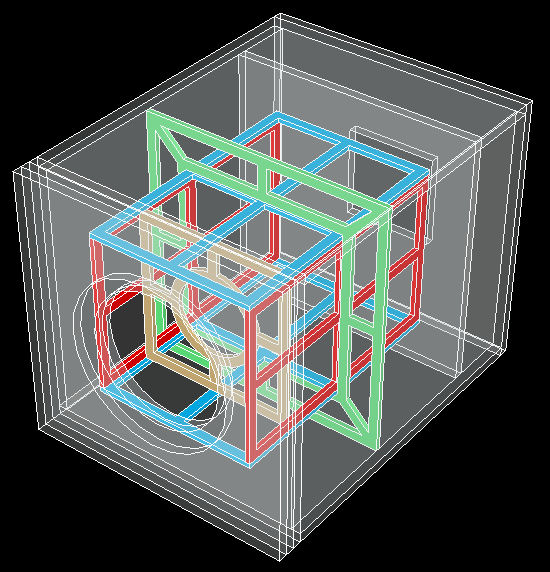

Cabinet Thru View

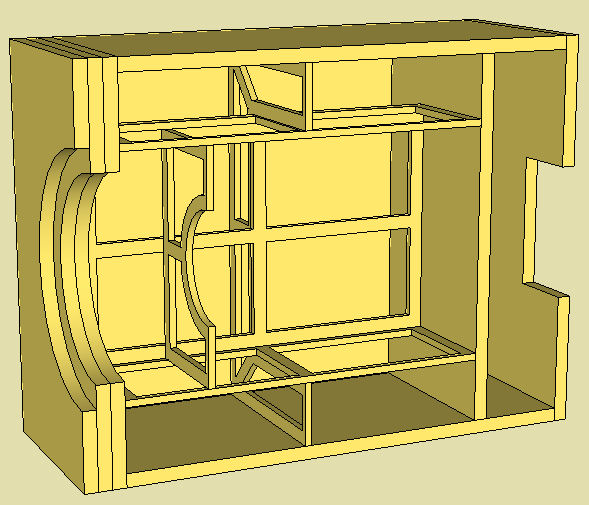

Side Cut View
Design Draft Details:
http://s29.photobucket.com/albums/c251/MrCabinetry/Sound%20Splinter%20RL-s%2015%20Audio%20Cabinet/ |
|
