| Author |
Thread: WHAT AM I DOING WRONG??!!!?? |

Silver Member Username: Ridinspinnas
Cayuga,
Ontario
Canada
Post Number: 197
Registered: May-06
|
| Posted on Saturday, March 29, 2008 - 12:48 am: |
|
guys whats up, ive only hooked up a few systems but right now i need some serious help
I just bought 2 15" Rockfords HX2's 600 watts rms each at 4ohm dvc, ,and a clarion dvx1200.1 amp it is 1 ohm stable amp, ,so i got the wiring confifs and wired the subs down to 1 ohm and they sound way f***in louder now but i turn my take up to around 17 or 18 (out of 40) and the amp shuts off and the blue power light just flickers, the idiot who ran the power wire for his tiny system just 4 gauge wire then at the fuse 8 gauge all the way to the trunk do you think this is why my amp shuts off and wont turn back on until i restart my car, i am almost 100% positive i wired those subs right, what should i do
? i have 0 gauge wire here should i try that i just dont want to waste it, let me know thanks guys |
|
Relevant Product Info
|
|
Platinum Member Username: Rovin
4 10 Pioneer...
Post Number: 13457
Registered: Jul-05
|
| Posted on Saturday, March 29, 2008 - 12:51 am: |
|
lower down the gain to see if that helps .... |
Gold Member Username: Philly306
New quote coming soon,
North carolina
Post Number: 1020
Registered: Apr-07
|
| Posted on Saturday, March 29, 2008 - 12:57 am: |
|
8 guage wire isn't enough |
Silver Member Username: Ridinspinnas
Cayuga,
Ontario
Canada
Post Number: 198
Registered: May-06
|
| Posted on Saturday, March 29, 2008 - 01:42 am: |
|
i lowered the gain but around the same volume still cut out, im thinking since i dropped it down from 4 ohm to 1 ohm and now its taking 1250 watts rms isntead of 500 that may be why, ill run the 0 gauge theres no harm, if it doesnt work tomorrow ill post back up in the morning but if you guys have any other suggestions let me know |
Silver Member Username: Hittin1
LakeCharles LA.,
La
Post Number: 120
Registered: May-07
|
| Posted on Saturday, March 29, 2008 - 01:43 am: |
|
you shouldn't need 0 gauge for that amp... 4 ga. should be plenty.. Just add the 4 ga. from the fuse to the amp or distribution block.. Make sure your ground is making a good connection to the chassis.. check and make sure your speaker wires are not touching each other.. (+ and -).. try backing down the gain. MAKE SURE YOU HAVE VOICE COILS ARE WIRED IN PARALLEL CORRECTLY.. Try that for now. It's a start. l8r |
Gold Member Username: 04redmach1
Lagrange,
GA
USA
Post Number: 1708
Registered: Mar-06
|
| Posted on Saturday, March 29, 2008 - 02:25 am: |
|
Change your 8 gauge to 4 gauge and you should be fine.
Kevin |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6237
Registered: Mar-04
|
| Posted on Saturday, March 29, 2008 - 10:14 am: |
|
Also, make sure the amp is not clipping.
An amp can clip even w/ the gain all the way down...It all depends on your HU's output voltage.
Set your gain correctly, check your gound, make sure the ground is 4ga, and change that 8ga to 4ga. |
Gold Member Username: Somedonniedude
Illinois
United States
Post Number: 1330
Registered: May-07
|
| Posted on Saturday, March 29, 2008 - 11:13 am: |
|
Whats your cars voltage at when your are bumping? Could maybe be a poor ground? |
Platinum Member Username: Bestmankind
Http://www.rdaudio.net...
Post Number: 19710
Registered: Oct-05
|
| Posted on Saturday, March 29, 2008 - 11:47 am: |
|
yea. stick a dmm to your amp's power and ground connection and check to see how much voltage there is. |
|
|
Silver Member Username: Ridinspinnas
Cayuga,
Ontario
Canada
Post Number: 199
Registered: May-06
|
| Posted on Saturday, March 29, 2008 - 01:21 pm: |
|
ok guys just went out and ran all the 0 gauge i had, and grounded it with 0 gauge seemslouder at a lower volume but at 16 the amp just shuts off, i dont know wat to do i have no voltage meter or nething but i turned it up to 15 and none of my interior lights or headlights dim at all, so i think im good there Now Cannan said something about my decks output voltage? out of anything this sounds like it could be he problem i bought this car with an old panasonic deck, could this be the problem? if not what else and are my subs even 4 ohm? it says on the bottom of them 2ohmX2 is this still 4 ohm? right now im gonna go and try to wire them back to 4 ohm and see what happens, ,post what you guys think, thanks |
Platinum Member Username: Bestmankind
Http://www.rdaudio.net...
Post Number: 19722
Registered: Oct-05
|
| Posted on Saturday, March 29, 2008 - 01:36 pm: |
|
do you have another amp you can try? maybe its the amp itself. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 15459
Registered: Jun-06
|
| Posted on Saturday, March 29, 2008 - 01:37 pm: |
|
"2ohmX2 is this still 4 ohm? "
Sounds like dvc 2ohm subs. Depending on how you wire the subs it could be.....
How did you wire yours?
If they are DVC 4ohm then it could only be wired at 4ohm or 1ohm. |
Gold Member Username: Kpa2727
Old Bridge,
NJ
USA !
Post Number: 1025
Registered: May-07
|
| Posted on Saturday, March 29, 2008 - 02:28 pm: |
|
i'm going to take pauls advice here and say he's on the right track. i'm going to say your wired to .5 not 1 and as you crank it up the amp is strong enough to come alive then just die for protection of the amp. also the way you jump out and say thier wayyyyyyyyyy louder and you haven't even cranked them plus turning gains down makes a whooooollle lot of sense that your wired down to a low load. and 2 x 2 is not 4 it's typicaly 4x4 so i can bet this is your whole problem, try wiring back to a safe ohm load and see what happens, i bet your amp runs fine. |
Gold Member Username: Somedonniedude
Illinois
United States
Post Number: 1334
Registered: May-07
|
| Posted on Saturday, March 29, 2008 - 03:19 pm: |
|
I would suggest getting a DMM( Digital multi meter). They are very useful for anyone who deals with car audio. Only like $10 or so at walmart.
Where did you ground it at, its in a blazer correct? |
Silver Member Username: Ridinspinnas
Cayuga,
Ontario
Canada
Post Number: 200
Registered: May-06
|
| Posted on Saturday, March 29, 2008 - 08:22 pm: |
|
no its in my 90 prelude, i grounded it on one of the bolts on the side of my trunk, i wired it back to 4 ohm and it pumps pretty loud, so since it says 2ohmx2 this doesnt necessarily mean its 4 ohm? can anybody check out forsure what kind of wiring i have to do? id rather do 1 ohm or 2 ohm instead of 4 ohm, let me know thanks for the help, |
Gold Member Username: Somedonniedude
Illinois
United States
Post Number: 1338
Registered: May-07
|
| Posted on Saturday, March 29, 2008 - 08:45 pm: |
|
You have a dual 2 ohm subs. Wire them like option #2 in the chart paul posted, into 2 ohms. |
Silver Member Username: Hittin1
LakeCharles LA.,
La
Post Number: 122
Registered: May-07
|
| Posted on Saturday, March 29, 2008 - 09:30 pm: |
|
lol need to change voice coil configuraction |
Platinum Member Username: Bestmankind
Http://www.rdaudio.net...
Post Number: 19732
Registered: Oct-05
|
| Posted on Saturday, March 29, 2008 - 11:02 pm: |
|
dude there's your problem. you are going below ohms. 2ohm x 2 is dual 2ohms.
good one paul. you're the best. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 15474
Registered: Jun-06
|
| Posted on Sunday, March 30, 2008 - 12:33 am: |
|
Let us know how it works out. |
Silver Member Username: Ridinspinnas
Cayuga,
Ontario
Canada
Post Number: 203
Registered: May-06
|
| Posted on Sunday, March 30, 2008 - 08:50 am: |
|
ok guys just woke up ill go out and get my subs and try them, now i dont know what i have them wire up to now since i thought they were 4 ohm, can nebody check i wired them to 4 ohm as i though the subs were dvc 4 ohm each, now that i know they are dvc 2 ohm, what are they currently wired at lol? |
Silver Member Username: Hittin1
LakeCharles LA.,
La
Post Number: 123
Registered: May-07
|
| Posted on Sunday, March 30, 2008 - 09:15 am: |
|

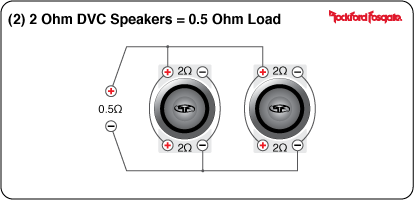

This is how you wire your subs...
If you thought you had 4 ohm dvc and you have them wired to 4 ohm.. then since they are 2 ohm dvc they are probably wired this way already... due to the subs 2 ohm voice coiles you are only gonna be running half the power that you need for those subs.. Did you buy them new... if so can you exchange them for 4 ohm voice coils? That would be ideal.. |
Silver Member Username: Ridinspinnas
Cayuga,
Ontario
Canada
Post Number: 204
Registered: May-06
|
| Posted on Sunday, March 30, 2008 - 10:34 am: |
|
bought them used in a box for 300$ canadian and the amp for 200$ the amp was used for 2 months, i heard if you have the right amp these subs can take almost double what they are rated and can do some damage... if i sell this amp what amp should i get? a kicker zx 1500.1? i want something .5 ohm stable, but still reliable? so how are they currently wired...?2ohm? if so that means they are only getting around 800 watts rms, and my door on my preludes flexing, and that at 22 out of 40 on my deck, if i turn it up any louder my deck skips im gettin an alpine deck next week it wont skip will it? and my trunk vibrates like sh!tttt... i know about dynomat, but never done it do i do my whole trunk and will that stop the rattling? and will that make my system quiter, i always have my back seat down, which way should i have my subs facing i know their supposed to be facing the back, but its the first time ive had 15's will they be louder the other way if my seat is down facing the windshield? im only 15 and i know you guys are pros, thanks |
