Thread: Just alil box I finished today... |

Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6138
Registered: Mar-04
|
| Posted on Thursday, March 13, 2008 - 08:46 pm: |
|
Well, a guy came by and wanted 4 CVR 12's in his crown vic. The deal was that he only wanted to box in the center area of the trunk and it had to be level w/ the shelf up next to the seats. Not really enough room the way he wanted it, but he was dead set on it.

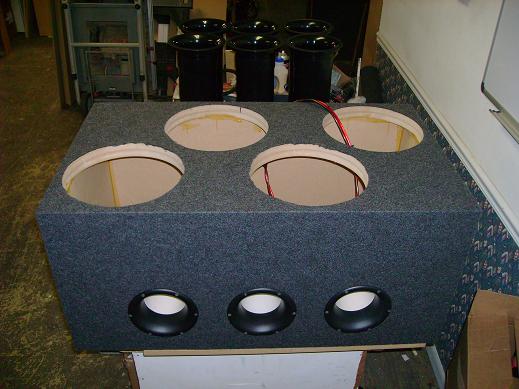

Here is how it turned out.

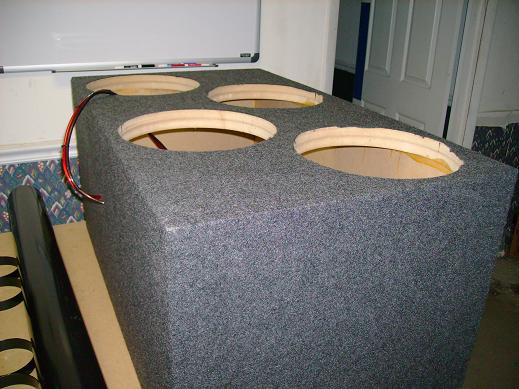

Close shave getting all 4 12's in.

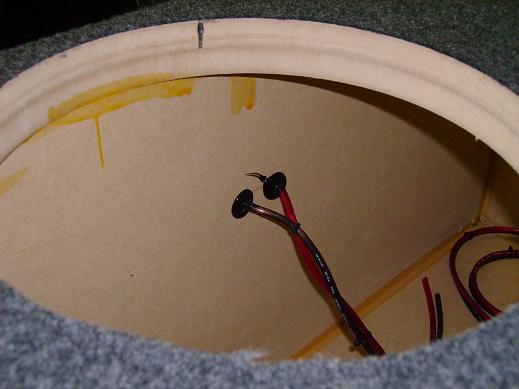

8ga wire into the box.

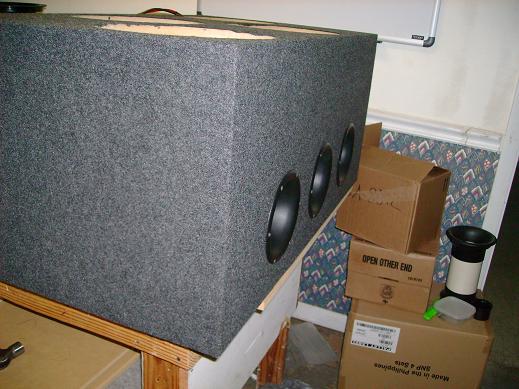

Only going to be 1.6cuft per sub and 3 4" flares, but hell thats what he wanted. Shouldn't sound bad though. Tuned to 37hz on paper. |
|
|
|
Silver Member Username: Ska
USA
Post Number: 723
Registered: Jan-08
|
| Posted on Thursday, March 13, 2008 - 08:48 pm: |
|
looks sick dude, how much space is going to be between each sub when mounted? |
Gold Member Username: Nd4spd18
Northwest PA
Post Number: 6814
Registered: Jul-06
|
| Posted on Thursday, March 13, 2008 - 08:49 pm: |
|
You guys sell kicker? |
Gold Member Username: Jakeyplaysbass
Clarion Hert...
Post Number: 2476
Registered: Jul-05
|
| Posted on Thursday, March 13, 2008 - 08:50 pm: |
|
As always, nice work Canaan... |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6140
Registered: Mar-04
|
| Posted on Thursday, March 13, 2008 - 08:51 pm: |
|
Nope, he got em online. |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 14907
Registered: Jun-06
|
| Posted on Thursday, March 13, 2008 - 08:51 pm: |
|
Me likey.
Did you trim those flares down? |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6143
Registered: Mar-04
|
| Posted on Thursday, March 13, 2008 - 08:54 pm: |
|
As far as the space between the subs, I didn't have the CVR's to test-fit.
But with Clarion SW1251's its ~1/8" between the subs. |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6144
Registered: Mar-04
|
| Posted on Thursday, March 13, 2008 - 08:58 pm: |
|
No, those are not PSP ports.
They are Xscorpion ports. Not as wide a flare as PSP 4's but look OK. They are stock length in that box (~10"), it just worked out that the tuning was good like that.
I had 4 at the shop that we ordered to tryout, after seeing them we ordered PSP's. I actually finished this box before we got the 4 and 6" PSP's in today. |
Silver Member Username: Ska
USA
Post Number: 725
Registered: Jan-08
|
| Posted on Thursday, March 13, 2008 - 09:01 pm: |
|
dang canaan.... your a gutsy guy for cuttin them that close with no way to test, but you know what yoru doing i doubt they wont fit |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6148
Registered: Mar-04
|
| Posted on Thursday, March 13, 2008 - 09:08 pm: |
|
Don't worry, I drew the baffle up on sketchup.
I looked on kickers sight for OD on the subs. |
Platinum Member Username: Rovin
4 10 Pioneer...
Post Number: 13357
Registered: Jul-05
|
| Posted on Friday, March 14, 2008 - 12:06 am: |
|
They are Xscorpion ports''''''
i instantly recognised em since i used these b4 - not as wide as others but works ok
box looks good ..... |
Gold Member Username: Southernrebel
Monroe,
Louisiana
2 DD3515s, 2...
Post Number: 6152
Registered: Mar-04
|
| Posted on Friday, March 14, 2008 - 05:23 pm: |
|
Yea, Xscorpion makes some good stuff. Those ports are alil off, but otherwise their assesories are nice.
We carry all Xscorpion wire, RCA, amp kits, etc. Great prices on that stuff to, we were carrying Hooker but Xscorpion was just as good but alil less. They just went to the super flexable casing on their 1/0ga wire too  . Same price as before, only ALOT more flexable. Full sized too, i have a hard time fitting it in my 20.1's terminals. |
