Thread: Clear Something Up |

New member Username: Guntha3
Post Number: 10
Registered: Mar-08
|
| Posted on Saturday, March 08, 2008 - 07:23 pm: |
|
ok so i have 2 jl w6v2-d4s. i have a 2 channel amp (JBL GTO1201.1II). the subs are 4 ohms. i have 2 sets of speaker wire. I plug one in + and the other - to the amp and to the box. i do the same with the other set in the next channel. is this correct setup ? |
|
Relevant Product Info
|
|
Silver Member Username: Ska
USA
Post Number: 661
Registered: Jan-08
|
| Posted on Saturday, March 08, 2008 - 07:50 pm: |
|
that would be wireing it to 2 ohms @ 2 channels... |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3634
Registered: Mar-06
|
| Posted on Saturday, March 08, 2008 - 10:26 pm: |
|

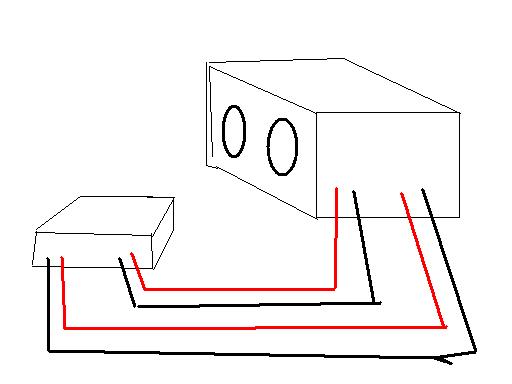

do you mean like this?
 |
Bronze Member Username: Guntha3
Post Number: 12
Registered: Mar-08
|
| Posted on Sunday, March 09, 2008 - 12:54 am: |
|
yes thats what i mean marc |
Bronze Member Username: Guntha3
Post Number: 14
Registered: Mar-08
|
| Posted on Sunday, March 09, 2008 - 12:54 am: |
|
yes i do marc |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3638
Registered: Mar-06
|
| Posted on Sunday, March 09, 2008 - 01:10 am: |
|
hows it wired in the box? |
Bronze Member Username: Guntha3
Post Number: 15
Registered: Mar-08
|
| Posted on Monday, March 10, 2008 - 07:05 am: |
|
4 ohm series |
Gold Member Username: Somedonniedude
Illinois
United States
Post Number: 1150
Registered: May-07
|
| Posted on Monday, March 10, 2008 - 05:32 pm: |
|
What? So each is wired @ 8 ohms or 2 ohms? |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3653
Registered: Mar-06
|
| Posted on Monday, March 10, 2008 - 07:14 pm: |
|

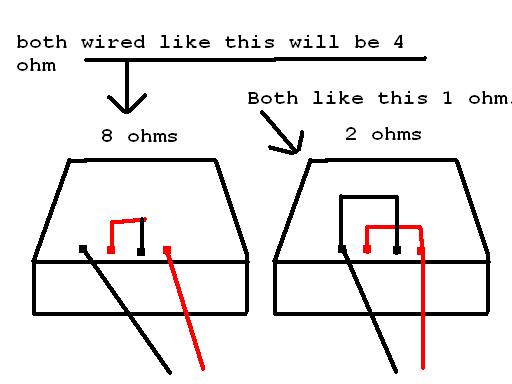

Do any of these look like how the subs are wired?
http://mobile.jlaudio.com/support_pages.php?page_id=161
And if you say you have 2 wires coming out of the box, 1 wire to each amp terminal, then you must either have 2 ohm wiring or 8 ohm wiring. But you will not know unless you look at the subs, or use a dmm on one set of wires.
And if it is 2 ohm wiring, to each amp channel,
Then your feeding the amp 1 ohm.
Amplifier Type: Mono
RMS Power: 787W x 1 @ 4 Ohms
RMS Power: 1114W x 1 @ 2 Ohms
Not 1 ohm Stable.
The only way they could be wired at 4 ohms is if there was only 1 wire going to the amp, as in the JL link i posted.
 |
|
|
Silver Member Username: Gavbo211
JL Audio 10w3v2,
IL
US
Post Number: 862
Registered: Jan-05
|
| Posted on Monday, March 10, 2008 - 07:17 pm: |
|
running the two voice coils of each driver in series (+ to -) and the drivers themselves in parallel (+ to +, etc.) will give you a total of a 4ohm load. however, that amp is only rated for 787wrms at a 4ohm load.. which isn't going to get those jls moving to full potential.
i can't find the specs on that amp for seperate channels (they all give the bridged power) but if you know them then look it up, because you can run each subwoofer on each channel in parallel (+ to +, - to -) and get a 2ohm load on each channel. however don't do this if you don't know if each channel is 2ohm stable.
here, this will help you out a lot:
http://mobile.jlaudio.com/support_pages.php?page_id=161 |
Silver Member Username: Gavbo211
JL Audio 10w3v2,
IL
US
Post Number: 863
Registered: Jan-05
|
| Posted on Monday, March 10, 2008 - 07:18 pm: |
|
haha.. damn marc you beat me to it. looks like i need to type faster next time. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3654
Registered: Mar-06
|
| Posted on Monday, March 10, 2008 - 07:50 pm: |
|
"I can't find the specs on that amp for seperate channels (they all give the bridged power)"
Thats cause its a mono amp.
Amplifier Type: Mono
RMS Power: 787W x 1 @ 4 Ohms
RMS Power: 1114W x 1 @ 2 Ohms
Not 1 ohm Stable. |
Silver Member Username: Gavbo211
JL Audio 10w3v2,
IL
US
Post Number: 866
Registered: Jan-05
|
| Posted on Monday, March 10, 2008 - 08:04 pm: |
|
ah sh*it no wonder. i wasn't paying close enough attention i guess. |
Bronze Member Username: Guntha3
Post Number: 16
Registered: Mar-08
|
| Posted on Monday, March 10, 2008 - 09:32 pm: |
|
2 ohm |
