| Author |
Thread: SPL Car Build Pics |

Gold Member Username: Van_man
Boston South,
MA
Post Number: 3624
Registered: Mar-06
|
| Posted on Thursday, March 06, 2008 - 10:18 pm: |
|

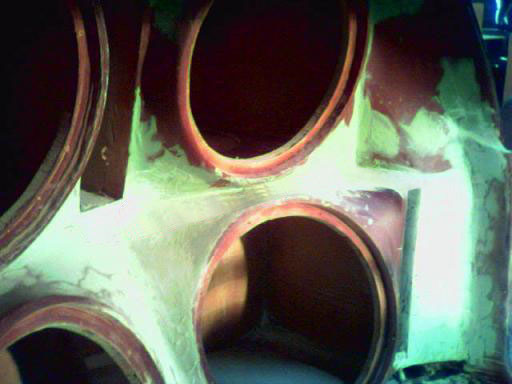

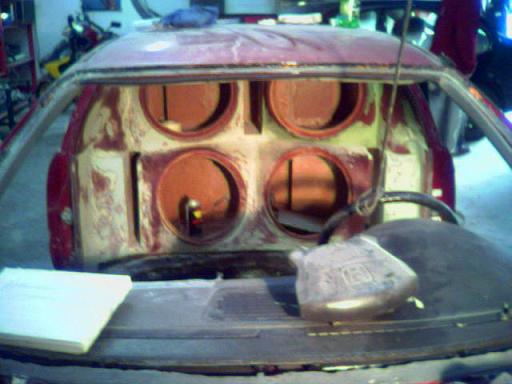

These are a few shots of a car in progress at Sound Quest auto in Worchester MA. The Owners been working on it . Things gonna be sick. 4 15"s.

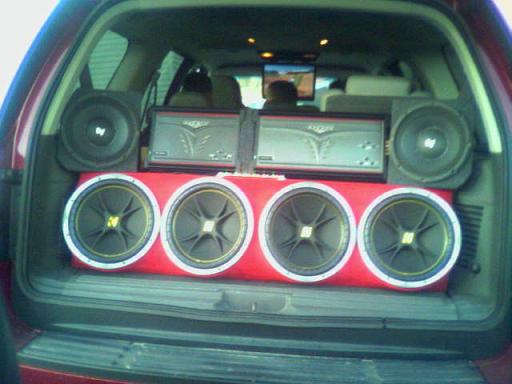

And this was an install He just finnished.
Those speakers on the top side are EV, also a few more pairs inside.
 |
|
Relevant Product Info
|
|
Silver Member Username: Prozack52
Cincinnati,
2-D615D4 Dia...
Post Number: 158
Registered: Feb-08
|
| Posted on Thursday, March 06, 2008 - 10:20 pm: |
|
sickness!!! |
Silver Member Username: Surferdude9371
Im BTL Bumpin
Post Number: 757
Registered: Mar-07
|
| Posted on Thursday, March 06, 2008 - 10:22 pm: |
|
ballin |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 14645
Registered: Jun-06
|
| Posted on Thursday, March 06, 2008 - 10:30 pm: |
|
WTF? Those two outside Kicker subs look like they're overhanging the box. Not to mention they're too close together IMO.
That first setup looks to be intense. |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 4706
Registered: Nov-05
|
| Posted on Thursday, March 06, 2008 - 11:00 pm: |
|
im not even gonna say anything lol.. that spl car is a joke  |
Gold Member Username: Young_james
Canada
Post Number: 1721
Registered: Sep-05
|
| Posted on Friday, March 07, 2008 - 12:01 am: |
|
looks like from the last pic that it was thrown together in a few hours |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 2353
Registered: Mar-06
|
| Posted on Friday, March 07, 2008 - 02:37 am: |
|
WTF is up with the port on the right side?" Wouldnt that throw the tuning off seeing as its shaped like it is? |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 4708
Registered: Nov-05
|
| Posted on Friday, March 07, 2008 - 07:52 am: |
|
he has the top portion sharing a port and the two bottom enclosures of the 4 has one on each side.. the guy obviously doesn't know what he is doing when it comes to box design |
Gold Member Username: Th3pwn3r
Post Number:...
Post Number: 7222
Registered: Jul-06
|
| Posted on Friday, March 07, 2008 - 08:59 am: |
|
^It's kind of hard to tell what's going on from the pictures. Who knows...the top subs could be in a different chamber from the bottom and the middle port looks to be twice the size of the bottom ports width wise which would then be equal port volume but it's hard to tell. |
|
|
Gold Member Username: Talon01
Team Revolution ,
Pa
Usa
Post Number: 1014
Registered: Jun-07
|
| Posted on Friday, March 07, 2008 - 10:16 am: |
|
i would have to agree with kevin |
Silver Member Username: Ducka
Shelby Township,
MI
United States
Post Number: 165
Registered: Jan-08
|
| Posted on Friday, March 07, 2008 - 10:34 am: |
|
From what I can see the top 2 are cut off from the bottom 2. the top 2 share the port between them. The bottom 2 seem to share the same air space and just have 2 ports of 1/2 the size of the top port. Im clearly not an expert but it looks all good to me. |
Gold Member Username: Frkkevin
¤ Resonant Engineering...,
¤ Fort Worth...
Email
Post Number: 4710
Registered: Nov-05
|
| Posted on Friday, March 07, 2008 - 10:40 am: |
|
if your going to build a wall, do a common chamber.. what he has done is like stacking two ported boxes, wow
idk, something about the work hes done that was posted.. it all looks cluttered and just thrown in
don't get me wrong for street beat itll bump but as far as numbers, pfft
not to diss on him since ive not seen all his work but from whats posted, meh |
Silver Member Username: Ducka
Shelby Township,
MI
United States
Post Number: 167
Registered: Jan-08
|
| Posted on Friday, March 07, 2008 - 10:43 am: |
|
I stand corrected lol |
Gold Member Username: Th3pwn3r
Post Number:...
Post Number: 7226
Registered: Jul-06
|
| Posted on Friday, March 07, 2008 - 10:58 am: |
|
Eh, I won't really comment on it because I can't tell what he's done there. I can KIND of see things but the pictures won't give you exact dimensions on the porting or anything. The Kicker setup does look funky though. |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3627
Registered: Mar-06
|
| Posted on Friday, March 07, 2008 - 05:21 pm: |
|
Let me re-phrase the heading.
Loud show car build.

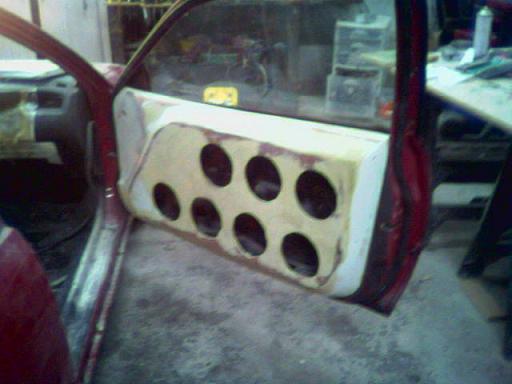

top subs share center port. Bottom subs, l/r ports. Doors are getting 14 Whip 6.5 drivers.}
And as far as that kicker set up. I realy didnt get to close to it. But it does look like the subs are out of the box, lol. And thats what the customer wanted.. Not Nelsons (The Owner) idea.
Also, he had some roof dvds and stuff. Kids are in the back playing PS2.
Nelson does nice work, It all depends what the customer wants, and how much they want to spend.
That part of MA, ppl tend to want to go cheap. |
Silver Member Username: Waresgaragestereo
Fort Valley,
GA
United States
Post Number: 157
Registered: Jan-08
|
| Posted on Friday, March 07, 2008 - 08:13 pm: |
|
"Those two outside Kicker subs look like they're overhanging the box. Not to mention they're too close together " Paul, i agree.
Young James, I agree with you as well.
But as for that car with the 4 15's in it, i'd like to see it again after its done. |
Gold Member Username: Dakangofkrunk16
Boca Raton,
Florida
Post Number: 1270
Registered: May-07
|
| Posted on Friday, March 07, 2008 - 09:04 pm: |
|
What 15's is he gonna put in it |
Platinum Member Username: Rovin
4 10 Pioneer...
Post Number: 13316
Registered: Jul-05
|
| Posted on Friday, March 07, 2008 - 10:32 pm: |
|
waiting to see completed build b4 i make a wrong comment ..... |
Silver Member Username: Durski
Post Number: 312
Registered: Nov-06
|
| Posted on Monday, March 10, 2008 - 12:03 pm: |
|
Judging by the last pic... Do those even work? What did you screw the kickers on the out sides to? From the looks of it I can't imagine that being functional, and if it's for show I would imagine a more uniform box for it all and more even spacing between the subs.
just my $0.02 |
Gold Member Username: Drivingreckless
DD 9515f,
148.2 db Mov...
Post Number: 5632
Registered: Apr-06
|
| Posted on Monday, March 10, 2008 - 01:13 pm: |
|
"just my $0.02"
exactly what its worth. |
Silver Member Username: Durski
Post Number: 313
Registered: Nov-06
|
| Posted on Monday, March 10, 2008 - 04:35 pm: |
|
Thanks for not being a d!ck driving, I know to only ask questions now, not comment. |
Gold Member Username: Drivingreckless
DD 9515f,
148.2 db Mov...
Post Number: 5634
Registered: Apr-06
|
| Posted on Monday, March 10, 2008 - 05:49 pm: |
|
only f\/cking with you
no need to become maddddddddd......
but your insulting the mans install, which i dont think you could have done any better...
fiberglass much? |
Gold Member Username: Van_man
Boston South,
MA
Post Number: 3649
Registered: Mar-06
|
| Posted on Monday, March 10, 2008 - 06:06 pm: |
|
Well there chris. First of all, I did not do the kicker build. The guy who owns an audio shop installed it. His customer wanted that set up, installed that way. So I dont know why you would bash the installer. That would be like saying a Home painter suxs cause he painted a house pink. Thats what the customer wanted and paid for.
Secondly, the kicker SUV is not a show car. Its a customers who showed up to hang out. The first pics of the Honda are the show car. And again, Its a loud show car hes building. Just to show some of his products and install. |
Gold Member Username: Drivingreckless
DD 9515f,
148.2 db Mov...
Post Number: 5636
Registered: Apr-06
|
| Posted on Monday, March 10, 2008 - 06:23 pm: |
|
thanks marc..picutures are always nice |
Silver Member Username: Mesodumm
Tri-City,
Az
Usa
Post Number: 435
Registered: Apr-07
|
| Posted on Monday, March 10, 2008 - 07:10 pm: |
|
there is fixed nothing else to complain about lets get back to talking about subwoofers!!! ha ha ha
 |
Silver Member Username: Durski
Post Number: 314
Registered: Nov-06
|
| Posted on Tuesday, March 11, 2008 - 12:01 am: |
|
reading through the other posts I didn't make any SUGGESTIONS that wern't already mentioned, and for some reason mine are insults?
good luck with the build |
Gold Member Username: Zacdavis
Beloit,
Wi
Post Number: 1607
Registered: Dec-03
|
| Posted on Tuesday, March 11, 2008 - 01:06 am: |
|
Looks cool, keep up the good work. |
Gold Member Username: Tatonka
-[Team Audib...
Post Number: 1523
Registered: Mar-07
|
| Posted on Tuesday, March 11, 2008 - 01:26 am: |
|
The red box with the four kicker subs looks fiberglassed to me. Below the second sub from the left, if you look below it, it looks as if the sub comes up on a ring, which gives me the thought of the ends being on an unseen ring that extends from the box. Look at how the subs are angled. |
Gold Member Username: Stateprop486
PA
Post Number: 1104
Registered: Jan-08
|
| Posted on Tuesday, March 11, 2008 - 07:15 am: |
|
"Judging by the last pic... Do those even work? What did you screw the kickers on the out sides to? From the looks of it I can't imagine that being functional, and if it's for show I would imagine a more uniform box for it all and more even spacing between the subs."
here's ur answer...
""Below the second sub from the left, if you look below it, it looks as if the sub comes up on a ring, which gives me the thought of the ends being on an unseen ring that extends from the box. Look at how the subs are angled." |
Silver Member Username: Durski
Post Number: 315
Registered: Nov-06
|
| Posted on Tuesday, March 11, 2008 - 09:40 am: |
|
^^^I see how that is possible now, at first glance it just looked like a weird pic and that they were not actually angled. |
