| Author |
Thread: Capps' box build (pics) |

Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1770
Registered: Mar-06
|
| Posted on Thursday, January 24, 2008 - 11:55 pm: |
|

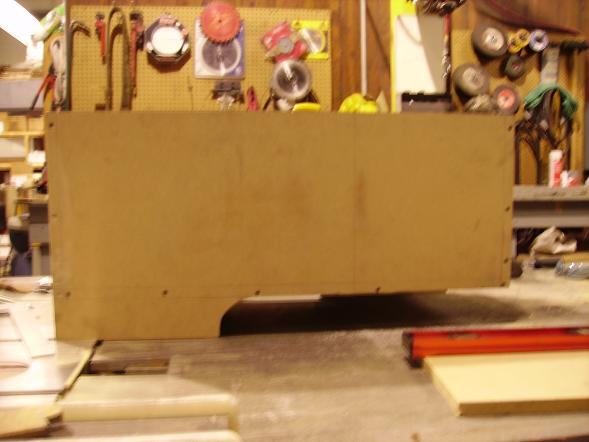

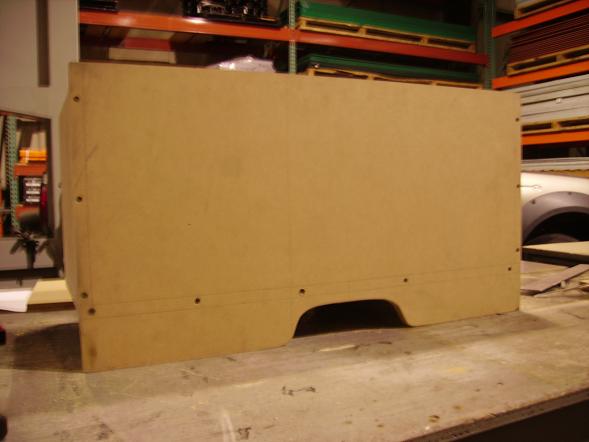

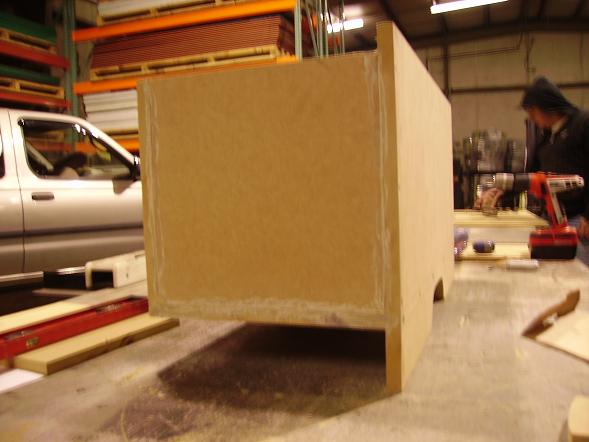

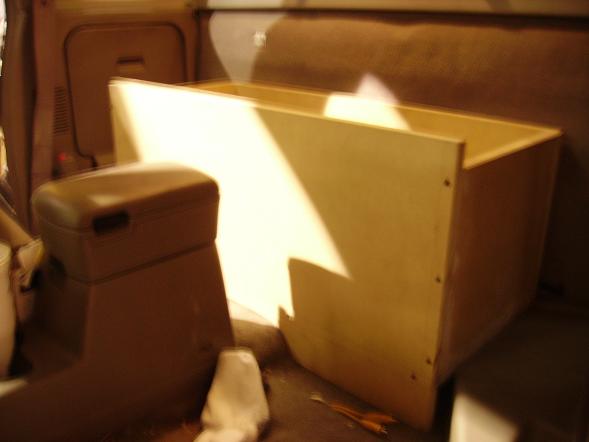

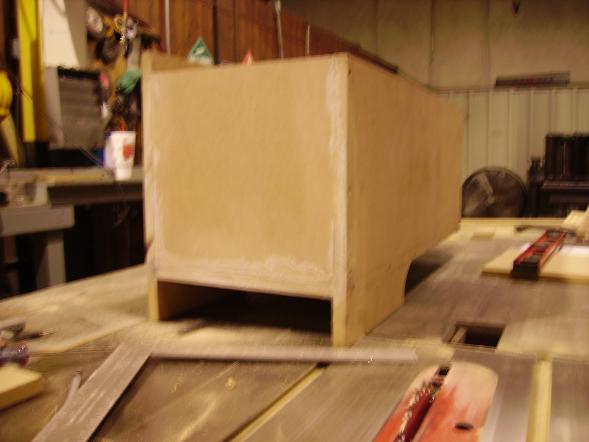

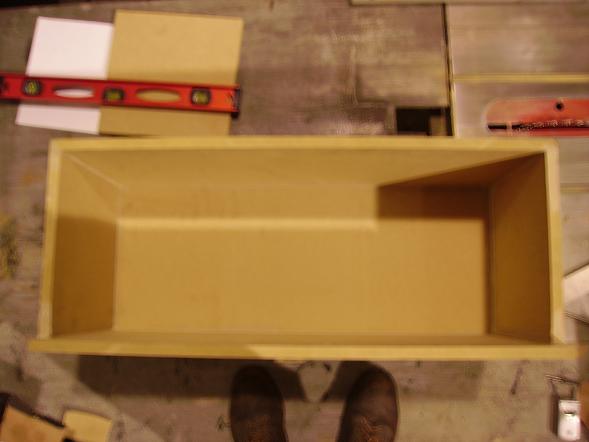

Started it tonight. It is 2.45cu ft tuned to 32hz. The sub will be inverted behind the drivers seat and obviously the port will be behind the passenger. I'm thinking about a flared port but I'm not sure yet... Here are pics
I'm going to work on it tomorrow and hopefully get it put together  |
|
|
|
Gold Member Username: Naledge503
Http://www.LowDownForu...
Post Number: 2838
Registered: Jun-06
|
| Posted on Thursday, January 24, 2008 - 11:57 pm: |
|
Lookin good. What sub is going in this? |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1771
Registered: Mar-06
|
| Posted on Thursday, January 24, 2008 - 11:59 pm: |
|
12" AA Arsenal. I havent had bump in about a year so I am DYING to get this in! |
Gold Member Username: Naledge503
Http://www.LowDownForu...
Post Number: 2840
Registered: Jun-06
|
| Posted on Friday, January 25, 2008 - 12:24 am: |
|
lol..I just got my bump back in after 2 1\2 months and that was long enough.
I thought you were going to get a couple of 8's. What happened with that? |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1781
Registered: Mar-06
|
| Posted on Friday, January 25, 2008 - 01:08 am: |
|
I couldnt find anyone to buy the 12 so I decided to go with it. I'm WAY to poor to buy 2 more subs and still have this one. bout to double my hours every week at work so I hope that changes. haha |
Platinum Member Username: Bestmankind
RD 1000.1D with SI MAG...
Post Number: 17324
Registered: Oct-05
|
| Posted on Friday, January 25, 2008 - 01:28 am: |
|
nice man. good work. its about time. lol. |
Gold Member Username: Andrew571
Stillwater/Edmond,
Oklahoma
USA
Post Number: 1395
Registered: Oct-05
|
| Posted on Friday, January 25, 2008 - 02:15 am: |
|
Lookin good |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1787
Registered: Mar-06
|
| Posted on Friday, January 25, 2008 - 10:16 am: |
|
thanks guys. I'm so fukkin excited to hear what this will sound like in my truck. My 15 Rocked my jeep so we will see about the 12
"its about time"
I know. I built one box but it did it in a rush and it came out looking like sh!t and ever since then I've been busy so I'm just now getting around to making it... Still pissed that I didnt have 2 8's but oh well. |
Gold Member Username: Big_edge_head
Milwaukee,
Wisconsin
MY SUB...
Post Number: 1225
Registered: Mar-07
|
| Posted on Friday, January 25, 2008 - 10:38 am: |
|
Nice looking box. good job. |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1789
Registered: Mar-06
|
| Posted on Friday, January 25, 2008 - 10:46 am: |
|
thanks man |
Silver Member Username: Mendonmafia
USA
Post Number: 870
Registered: Aug-06
|
| Posted on Friday, January 25, 2008 - 12:58 pm: |
|
very nice man! i like how it looks like it fits nice and tightly, thats how i like to build my boxes. |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1791
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 01:15 am: |
|
Thanks Mark

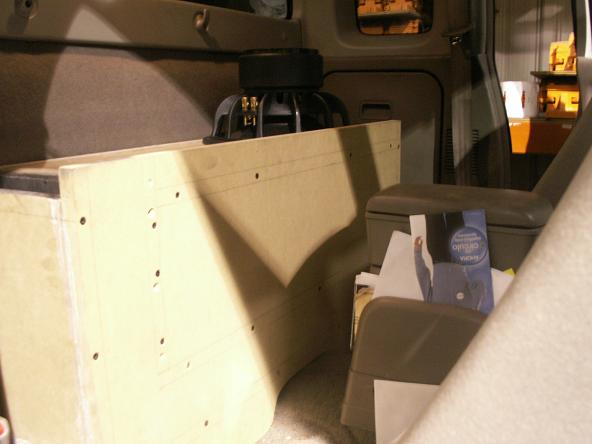

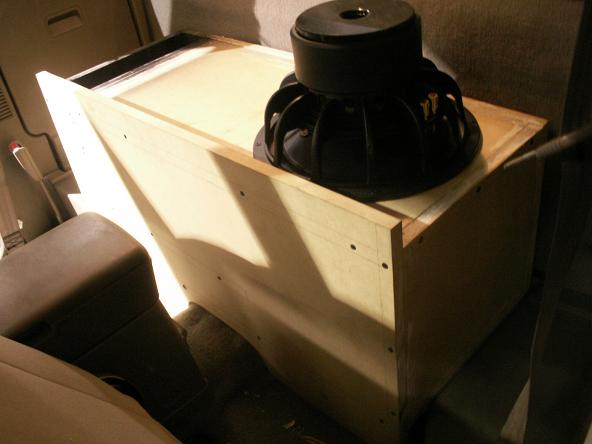

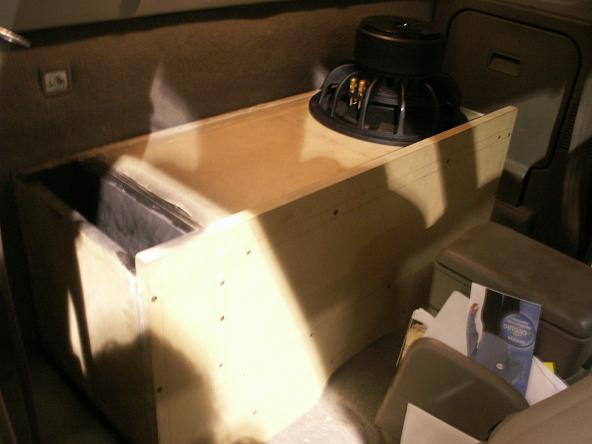

I finished tonight!! More pics. All I am waiting for is the amp to get here and it will be up and running. I will carpet it later, right now I'm a broke mofo plus, I'm adding on a little something to it next week...
 |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1794
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 02:02 am: |
|
bump b/c I'm so ffin ready to get my amp |
Silver Member Username: Kyle_lowe
Post Number: 787
Registered: Apr-06
|
| Posted on Saturday, January 26, 2008 - 02:09 am: |
|
what amp are you getting |
Bronze Member Username: Waresgaragestereo
Fort Valley,
GA
United States
Post Number: 69
Registered: Jan-08
|
| Posted on Saturday, January 26, 2008 - 06:57 am: |
|
why is the speaker up side down in the box? they box really looks good. |
Silver Member Username: Surferdude9371
Im BTL Bumpin
Post Number: 535
Registered: Mar-07
|
| Posted on Saturday, January 26, 2008 - 07:15 am: |
|
looks great man wish i could set my 18 in there like that |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1799
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 08:47 am: |
|
Ive got a zx750.1. I blew my last one and didnt feel like sending it off to get fixed so I got a new one.
one, its upside down to save airspace, two, it just looks better IMO
P rick. That would be funny. Ive always thought, the bigger the sub the funnier the backside of it looks. The cone just dwarfs the magnet |
Gold Member Username: Mj23dynasty
They Love 2 Hate Me,
Most Hated a...
USA
Post Number: 1232
Registered: Oct-07
|
| Posted on Saturday, January 26, 2008 - 09:20 am: |
|
What are the benefits of inverted and won't the wires coming from the VC's make it look "un clean"? |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1800
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 09:46 am: |
|
With the sub inverted it wont be taking up airspace inside the box therefor I can build it a little smaller, which is what I needed in the truck. Also, I bought wires to hook up to the VC so it doesnt look tacky. They are not plain looking ones. As long as I try and make it look good, it will. |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1801
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 09:46 am: |
|
oh yeah, I lied. It's 2.6 cu ft before port disp. |
Gold Member Username: Insearchofbass
Post Number: 7654
Registered: Jun-04
|
| Posted on Saturday, January 26, 2008 - 09:50 am: |
|
seeing that sub makes me wonder if there are some possible advantages not thought about with a sub being inverted...I might have to test and see |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1803
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 09:51 am: |
|
what would you think those were? Ive never given it much thought besides airspace... |
Gold Member Username: Insearchofbass
Post Number: 7655
Registered: Jun-04
|
| Posted on Saturday, January 26, 2008 - 09:52 am: |
|
nice work on that box Andrew |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1804
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 09:55 am: |
|
thanks. I bought 2 sheets of MDF for some reason so I now have another sheet I need to find something to do with. I might build a higher tuned box for sh!ts and giggles |
Gold Member Username: Insearchofbass
Post Number: 7656
Registered: Jun-04
|
| Posted on Saturday, January 26, 2008 - 09:59 am: |
|
well one thing im thinking is you might be able to help cool the subwoofers voice coil better that way and one way is with the air conditioning in the vehicle and that would help control impedance rise from heat....this would be good in a spl only type situation as well possibly allowing you to apply more power to a subwoofer |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1805
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 10:16 am: |
|
good points. if I was half as snart as you gys... |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 12762
Registered: Jun-06
|
| Posted on Saturday, January 26, 2008 - 11:17 am: |
|
Inverting is cooool. I love seeing the motor structure and how it works. With some of the newest subs out it's almost a shame to hide them in the box.
Great job man. |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1806
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 03:33 pm: |
|
Thanks paul. yeah, I liked your mag box where you could see the magnet on the mag... Yanks needs to do that too. I especially like this b/c I love black and with the arsenal being all black, it kinda makes me touch myself in naughty places. |
Gold Member Username: Jtown
Team Revolution,
Texas
Post Number: 1802
Registered: Mar-07
|
| Posted on Saturday, January 26, 2008 - 05:10 pm: |
|
is there anything wrong with painting your basket black? I've been thinking about doing that, I love the look.
sean, wouldn't the A/C not work because of the amount of air the speaker is moving inside the cab would displace the cold air blowing to it? |
Platinum Member Username: Wingmanalive
A pic is worth
1000 posts!!
Post Number: 12782
Registered: Jun-06
|
| Posted on Saturday, January 26, 2008 - 05:14 pm: |
|
Huh? |
Gold Member Username: Jtown
Team Revolution,
Texas
Post Number: 1804
Registered: Mar-07
|
| Posted on Saturday, January 26, 2008 - 05:39 pm: |
|
sean said he thinks he may be able to use the air conditioning to help cool the sub when being used in an SPL application. but the amount of air that the speaker would displace when being played would defeat the purpose of air conditioning cooling the speaker, unless the air conditioning was being blown directly on the speaker. right? |
Gold Member Username: •cam•
BC
Canada
Post Number: 1764
Registered: Nov-06
|
| Posted on Saturday, January 26, 2008 - 05:46 pm: |
|
Inverted, it's still interacting with possibly cooler air, though, right? |
Gold Member Username: Jtown
Team Revolution,
Texas
Post Number: 1805
Registered: Mar-07
|
| Posted on Saturday, January 26, 2008 - 06:43 pm: |
|
yeah, I don't see why not. |
Gold Member Username: Insearchofbass
Post Number: 7677
Registered: Jun-04
|
| Posted on Saturday, January 26, 2008 - 07:01 pm: |
|
yeah it was just a quick thought i had figuring the air outside the box would be cooler than inside the box but ideally using it for spl you would have a coil cool anyway before burping so there's no gain to be had there really....but daily use it would probably help a little if your overpowering the sub and you would smell the coil quicker if you were overheating it...so overall my idea wasnt as good as I thought |
Gold Member Username: •cam•
BC
Canada
Post Number: 1768
Registered: Nov-06
|
| Posted on Saturday, January 26, 2008 - 07:30 pm: |
|
What about bassrace? |
Gold Member Username: Shortysetnies
Rock Vegas,
NC
US
Post Number: 1813
Registered: Mar-06
|
| Posted on Saturday, January 26, 2008 - 11:32 pm: |
|
good point theives. I would assume that you're right but like sean said, the outside air has to be different than that inside the box so it may help a little. I just know it saves space and looks sweet to me. haha |
