Thread: Ford Factory Navigation radio connections |

New member Username: Kpregan34
Post Number: 1
Registered: May-07
|
| Posted on Saturday, May 12, 2007 - 08:27 pm: |
|
Ok, I recently purchased a Ford Nav system to install in my Fusion, had it reprogrammed by the guys at ARC (recommended in a thread on this site) and it works great.
Here's my simple question - there are three connection points in the back of the radio. Two are occupied with the existing harness. What's the third socket for?
Thanks. |
|
Relevant Product Info
|
|
Silver Member Username: Skibum12189
Cleveland
Post Number: 562
Registered: Mar-06
|
| Posted on Monday, May 14, 2007 - 07:25 pm: |
|
take a picture of it |
New member Username: Kpregan34
Post Number: 2
Registered: May-07
|
| Posted on Wednesday, May 16, 2007 - 08:48 pm: |
|

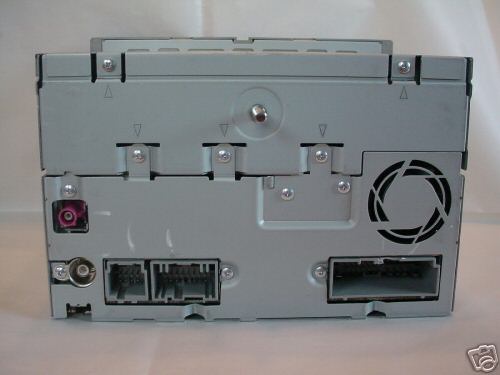

Ok, here's shot of the back.
 |
New member Username: Wmckay
Fayetteville,
NC
US
Post Number: 2
Registered: Aug-07
|
| Posted on Friday, August 31, 2007 - 12:02 pm: |
|
Sir, the 24 pin (largest) is for the power and speaker wires, speed, back lights. The second largest is for sirius input, line-in and DVD input. The small one is for the Subwoffer output. If you need help in the future, please write me @ wmckay@nc.rr.com |
New member Username: Lincolntowncar
Post Number: 2
Registered: Sep-07
|
| Posted on Saturday, September 22, 2007 - 06:16 pm: |
|
Hi William, Can you please tell me what pin number on the large plug is for the speed and the pin for the back lights? Thank you. |
|
