Author Thread: Amp help! just confusing problems...
Top of pagePrevious messageNext messageBottom of page Link to this message

satyam veean
New member
Username: Fsu0320fsu

Post Number: 1
Registered: Jan-07
Posted on Wednesday, January 03, 2007 - 12:07 am:    Edit Post
hey. well i have a Hifonics BXi 1206D amplifier and it has 2 sets of speaker outputs. well im powering with that amp 2 CompVR's 12" and they are Dual voice coils 2 ohms. how would i go about wiring my subs so that the amp will see the load as 2 OHMS? and will i use both sets of speaker outputs?? or just one? }
Top of pagePrevious messageNext messageBottom of page Link to this message

Logan
Gold Member
Username: Logan__tille

[:-]15 RE XXX[:-]

Post Number: 4289
Registered: Feb-06
Posted on Friday, January 05, 2007 - 10:07 pm:    Edit Post

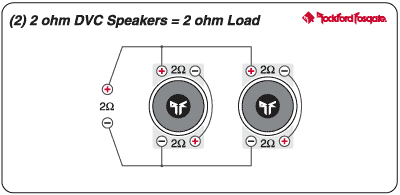

Just use one. Wire it like this..
Upload
Top of pagePrevious messageNext messageBottom of page Link to this message

grocery go-getter
New member
Username: Jnralp00

Post Number: 7
Registered: Nov-06
Posted on Saturday, January 06, 2007 - 09:36 pm:    Edit Post
It has 2 sets of speaker inputs but it still a mono amp. Whichever way is easiest for you. Extra output was easier on my BXi 2006D.
