New member Username: Croneal1986
Laurinburg,
NC
Post Number: 1
Registered: Aug-06
|
| Posted on Sunday, August 27, 2006 - 11:02 am: |
|
Mike,
I have a 98 ford explorer xlt and i need some serious help trying to hook up the cd player, have a amp and sub hooked up just need to know how to match my cd player wires to the factory wires, my cd player has a blue/white, yellow, black, red, black/purple, white, white/black, grey, green, grey/black, purple, and a green/black. please help me to match up. thanks |
|
|
|
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 593
Registered: Jan-06
|
| Posted on Sunday, August 27, 2006 - 11:37 am: |
|
for Colby O'Neal:
|
New member Username: Abwhite86
Post Number: 2
Registered: Aug-06
|
| Posted on Sunday, August 27, 2006 - 02:45 pm: |
|
can i get awiring diagram for a pioneer p6400 i already got the stock diagram for my 96 jeep cherokee sport |
New member Username: Theherm11706
Post Number: 3
Registered: Aug-06
|
| Posted on Sunday, August 27, 2006 - 02:51 pm: |
|
Do you have a color diagram for a 1990 honda civic hatchback? |
New member Username: Abwhite86
Post Number: 3
Registered: Aug-06
|
| Posted on Sunday, August 27, 2006 - 02:54 pm: |
|
look on the top of your stock stereo for the wiring diagram |
New member Username: Brett_498
Mikado ,
MI
USA
Post Number: 3
Registered: Aug-06
|
| Posted on Sunday, August 27, 2006 - 04:04 pm: |
|
i need OEM wire diagram for a 1991 dodge shadow? please |
New member Username: Maresgreg
Post Number: 1
Registered: Aug-06
|
| Posted on Sunday, August 27, 2006 - 04:56 pm: |
|
Hello All,
I need a wiring diagram for 1990 ford mustang LX. The person before me cut the connectors so I am down to colored wires. Please help.
Thanks,
Greg |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 594
Registered: Jan-06
|
| Posted on Sunday, August 27, 2006 - 09:46 pm: |
|
for Greg and his baby:
|
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 595
Registered: Jan-06
|
| Posted on Sunday, August 27, 2006 - 09:53 pm: |
|
for brett and his baby:
|
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 597
Registered: Jan-06
|
| Posted on Sunday, August 27, 2006 - 09:59 pm: |
|
Sorry Joseph Herrmann, for 1990 honda civic hatchback I have nothing |
New member Username: Maresgreg
Post Number: 2
Registered: Aug-06
|
| Posted on Monday, August 28, 2006 - 07:46 am: |
|
Thanks a million Mike! |
New member Username: Jeepdave
Post Number: 1
Registered: Aug-06
|
| Posted on Monday, August 28, 2006 - 10:50 am: |
|
I am looking for the wiring diagram for a 1992 Jeep Cherokee. Four speakers. Thanks. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 598
Registered: Jan-06
|
| Posted on Monday, August 28, 2006 - 12:44 pm: |
|
David,4 speakers and 6 speakers,its the same wiring :
P.S.on speakers: wire A= Plus, wire B= Minus |
New member Username: Maresgreg
Post Number: 3
Registered: Aug-06
|
| Posted on Monday, August 28, 2006 - 03:31 pm: |
|
Hey Mike,
Another question. I believe I have it right. But I connect the yellow from the radio (contant) to the Yellow/Green on my car, the red (radio) to the yellow/black (car), and black (radio) to the to the red (car) or to a new ground correct?
Thanks! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 600
Registered: Jan-06
|
| Posted on Monday, August 28, 2006 - 04:41 pm: |
|
well Greg:
if your yellow from radio Constant(aka Batt/Memory) you have to connect to the LT GRN/YEL.
The red one form radio to the YEL/BLK.
and ground Black from radio to the Red or BLK/LT GRN.
yes its correct.dont worry be happy! |
New member Username: Bates44
Sewell,
Nj
United States
Post Number: 1
Registered: Aug-06
|
| Posted on Monday, August 28, 2006 - 05:47 pm: |
|
i need help. the original stereo harness in my jeep was cut. i need help trying to figure out what color wires do what in a 1994 jeep cherokee sport. 4 original speakers. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 601
Registered: Jan-06
|
| Posted on Monday, August 28, 2006 - 06:42 pm: |
|
for Brian E Bates
|
New member Username: Bates44
Sewell,
Nj
United States
Post Number: 2
Registered: Aug-06
|
| Posted on Monday, August 28, 2006 - 09:06 pm: |
|
mike,
thank you very much. i have gone through 3 head units thinking they were faulty. they probably weren't. you just saved me over a hundred bucks. appreciate it.
thank you,
brian bates |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 603
Registered: Jan-06
|
| Posted on Monday, August 28, 2006 - 09:16 pm: |
|
no problem Brian E Bates,any time! |
New member Username: Maresgreg
Post Number: 4
Registered: Aug-06
|
| Posted on Tuesday, August 29, 2006 - 09:43 am: |
|
All works great. Thanks Mike! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 604
Registered: Jan-06
|
| Posted on Tuesday, August 29, 2006 - 12:50 pm: |
|
Alright Greg!no problem! |
New member Username: Jmaruca
Rancho Cordova,
CA
USA
Post Number: 1
Registered: Aug-06
|
| Posted on Tuesday, August 29, 2006 - 09:43 pm: |
|
Hi all. I hooked up a Jensen to my 1995 Honda Accord using Mike W Lee postd (thanks, Mike!). Stil, it has power but absolutely no sound and no display lighting on the Jensen unit.
There is only one wire that I don't where where to connect in the Jensen. It's the red/black one that the diagram says is for illumination. There's no where to hook it on the Jensen stero unit. Is this the reason why there's no display on the Jensen? Any help at all would be appreciated! |
New member Username: Kristoffer209
Post Number: 1
Registered: Aug-06
|
| Posted on Wednesday, August 30, 2006 - 07:07 am: |
|
Mike W Lee can you help me out with the stock radio wiring codes for a 99 Honda Civic. Thank You. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 606
Registered: Jan-06
|
| Posted on Wednesday, August 30, 2006 - 10:16 am: |
|
Kris,please read inside the txt.file |
New member Username: Kristoffer209
Post Number: 2
Registered: Aug-06
|
| Posted on Wednesday, August 30, 2006 - 08:02 pm: |
|
Thanks Mike I've been looking every where for that diagram. Seems like you have all of the car radio answers. Thanks again. |
New member Username: Pagnotti
Harveys lake,
Pa
Us
Post Number: 1
Registered: Aug-06
|
| Posted on Wednesday, August 30, 2006 - 10:59 pm: |
|
need wire diagram for 94 lincoln continental with jbl system in it. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 608
Registered: Jan-06
|
| Posted on Thursday, August 31, 2006 - 12:31 pm: |
|
for joseph pagnotti:
|
New member Username: Dagedetter
Grand Island ,
Nebraska
United States
Post Number: 1
Registered: Aug-06
|
| Posted on Thursday, August 31, 2006 - 08:39 pm: |
|
i need help with the wirirng of a 2000 dodge durango. like what color wires goes where, and if i can hook up my steering wheel remote to my aftermarket cd player........please help...thanks
dage |
New member Username: Blown67
Post Number: 1
Registered: Aug-06
|
| Posted on Thursday, August 31, 2006 - 09:36 pm: |
|
I just installed an AIWA CDC-X207 in my 83 jeep cj7, Everything works great except the display isnt lighting up, the text is but it is supposed to be an illuminated blue. I have 2 wires I can still connect, both orange, 1 is marked dimmer and other is marked illumination positve, any idea what to tap into for these, dash panel lighting? Thanks |
New member Username: Scott_allen
Post Number: 1
Registered: Sep-06
|
| Posted on Friday, September 01, 2006 - 02:54 pm: |
|
I have a 2001 Chevy Cavalier and I'm trying to hook up a CD player. My wires are cut and I'm in need of a diagram. Any help would be greatly appreciated. Thanks!
-Scott |
New member Username: Cozza171
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 02, 2006 - 06:04 am: |
|
hi i have a nissan skyline silhouette 1987 model care and im trying to connect a kenwood head unit, the wires with the head unit are labled but i dont know what to match them up 2, does any one have a diagrame of what wires in the car are? |
New member Username: Airborne2182
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 02, 2006 - 01:39 pm: |
|
i have a 2002 Jeep Grand Cherokee Laredo w/o Premium sound. If some one can please let me know what the wiring diagram is |
New member Username: Monophobia
Greenford,
Middlesex
United Kingdom
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 02, 2006 - 04:10 pm: |
|
I have just replaced the standard cassette/radio and speakers of my Ford Ka (2000) with a Panasonic MP3 CD player and Sony 3-way speakers using wiring adaptors with limited success. Everything works fine, but I lose all my radio and EQ settings whenever the vehicle is switched off for more than a few minutes. I am guessing that this is due to a wiring problem or that the stereo needs to be directly connected to the battery, but what do I know? If it is a wiring problem could anyone give me a diagram of what should go where? |
New member Username: Gary_alan
Howell ,
Mi
Post Number: 1
Registered: Sep-06
|
| Posted on Sunday, September 03, 2006 - 11:13 am: |
|
I'm looking for a wiring diagram for the radio and rear control unit for a 2004 Ford Taurus SE.The unit in the trunk was altered before I bought it and its a mess! |
New member Username: Green3
Monticello,
GA
USA
Post Number: 1
Registered: Sep-06
|
| Posted on Sunday, September 03, 2006 - 10:55 pm: |
|
Hello. I am looking for the radio wiring diagram for a 1988 Ford Escort Wagon. Bought a hook-up kit, but don't know what to match up. Thanks. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 612
Registered: Jan-06
|
| Posted on Monday, September 04, 2006 - 09:17 am: |
|
Cynthia Stewart
This is with out oem Amp:
|
New member Username: Green3
Monticello,
GA
USA
Post Number: 2
Registered: Sep-06
|
| Posted on Monday, September 04, 2006 - 11:13 am: |
|
Thanks Mike! My daughter will be excited...4 hour road trip! |
New member Username: Dschave
Post Number: 1
Registered: Sep-06
|
| Posted on Monday, September 04, 2006 - 01:31 pm: |
|
Need a wiring diagram for a 2001 Toyota Camry with the JBL system. 1 connector. 20 pin. I think there are only about 12 wires active. Trying to get this thing finished today.
Thanks in advance |
New member Username: Trs
Guelph,
On
Canada
Post Number: 1
Registered: Sep-06
|
| Posted on Monday, September 04, 2006 - 01:36 pm: |
|
I have 1994 Altima - I have 2 red/yellow wires and 2 red/blue wires that were attached to my stero wire harness that I'm not sure what to connect them to. If I attach the red yellow wires to a ground all my dash lights work properly, if I attach them to power they just stay on allways. The red/blue wires also stay on allways if attached to power but blow a fuse if attached to ground. Do I need these wires (red/blue)hooked up? Also should the red/yellow wires be grounded? Please help!!!! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 614
Registered: Jan-06
|
| Posted on Monday, September 04, 2006 - 03:21 pm: |
|
Cynthia I am happy...any time! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 615
Registered: Jan-06
|
| Posted on Monday, September 04, 2006 - 03:24 pm: |
|
Danny Schave try this:
|
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 616
Registered: Jan-06
|
| Posted on Monday, September 04, 2006 - 03:34 pm: |
|
Todd Schell ,those wires for light system,this is for ya:
|
New member Username: Trs
Guelph,
On
Canada
Post Number: 2
Registered: Sep-06
|
| Posted on Tuesday, September 05, 2006 - 04:16 pm: |
|
Thank you so much Mike, But I still have a problem, I don't quite understand the diagrams that you sent me. The wire harness has been removed from the vehicle by the previous owner and the stero that I'm installing doesn't have these wires on it's harness for me to connect to. So my dilema is I need to know what to do with these wires. If you have any further info. that would be great!!! Thanks again for all the help so far. |
New member Username: Wbstein
Post Number: 1
Registered: Sep-06
|
| Posted on Wednesday, September 06, 2006 - 01:46 pm: |
|
I need a wiring diagram for a 1997 Lincoln Continental with JBL (premium) sound.
THANKS! |
New member Username: Dasupertech
Post Number: 2
Registered: Sep-06
|
| Posted on Wednesday, September 06, 2006 - 07:26 pm: |
|
I Need a Wire diagram for a 2002 Chevy Suburban with onstar, I dont have a Bose System. I need to be able to find the front and read speakers outputs from the head unit. I would also like to know if there is a wire i can use as a remote Amp turn on? |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 218
Registered: Jul-06
|
| Posted on Wednesday, September 06, 2006 - 07:46 pm: |
|
check this out: |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 219
Registered: Jul-06
|
| Posted on Wednesday, September 06, 2006 - 07:49 pm: |
|
a wire i can use as a remote Amp turn on?
you can use ignition wire or any of ACC. |
New member Username: Dasupertech
Post Number: 3
Registered: Sep-06
|
| Posted on Wednesday, September 06, 2006 - 07:54 pm: |
|
I think I found a wire that use to go to the Aux Tape deck in the console that has a 12 volt source when ever the Deck is on.
My Suburban also has the stock 8" sub is there a wiring diagram for it? |
New member Username: Dasupertech
Post Number: 4
Registered: Sep-06
|
| Posted on Wednesday, September 06, 2006 - 08:03 pm: |
|
Jenifer some of the wire colors match up but a few others Do not...Is it safe to say that those numbers are the correct ones? Thanks for the quick replys |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 220
Registered: Jul-06
|
| Posted on Wednesday, September 06, 2006 - 08:25 pm: |
|
give(if you can)wires color from your system,so can compare to my diagrams.I saw there is four kinds !of the radios in this GM |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 221
Registered: Jul-06
|
| Posted on Wednesday, September 06, 2006 - 08:31 pm: |
|
from your car,I meaned...or count,how many wires in plug! |
New member Username: Dasupertech
Post Number: 5
Registered: Sep-06
|
| Posted on Wednesday, September 06, 2006 - 08:35 pm: |
|
1. Baby Blue
2. Lt. Brown
3. Lt. green
4. Lt. green
5. Black
6. Dark Brown
7. Gray
8. Orange
9. Dark Green
10. Orange
11.Purple
12. Black with White Stripe
13. Blue
14. No Wire
15. Green
16. Green
17. black
18. Blue
19. Dark brown
20. Dark Brown
I got the numbering off the back of the unit |
New member Username: Latigerlily
Post Number: 1
Registered: Sep-06
|
| Posted on Wednesday, September 06, 2006 - 09:15 pm: |
|
Does anyone have wiring color codes for a 2002 Mustang Convertible?
(In an attempt to be a good newb I did a search and didn't find a previous posting of this particular request)
Thanks in advance! |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 231
Registered: Jul-06
|
| Posted on Wednesday, September 06, 2006 - 11:33 pm: |
|
Jamie,you got a nice system:
|
New member Username: Dasupertech
Post Number: 6
Registered: Sep-06
|
| Posted on Thursday, September 07, 2006 - 12:07 am: |
|
Jenifer you are Awesome!!!!!!!!! Thanks very much!!!!!!!!!!!!!!! |
New member Username: Rick_t_c
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 09, 2006 - 04:25 am: |
|
I just bought a 2006 GMC Canyon and wanted to upgrade the stereo. All the autoparts stores say the harness is not available yet, too new. Would you have a wiring diagram for it? It is standard cab, 2 speakers. |
New member Username: Virtthemaest
Post Number: 2
Registered: Sep-06
|
| Posted on Saturday, September 09, 2006 - 08:55 am: |
|
Does anyone have the wiring diagrams for a 1995 Ford EF Falcon?
I have timelessly been trying to install a new CD player because the stock standard Ford cassette radio says “err” but I cannot figure out the wiring for the life of me! I have tried every combination but been so unsuccessful. If I can download the manuals car cassette radio wiring diagrams it will help me heaps, as I’m banging my head against a wall here.
Even if I took a photo of the stereo wiring will that help?
Regards,
Virt |
New member Username: Sandmanxx
Grover,
NC
Post Number: 1
Registered: Sep-06
|
| Posted on Wednesday, September 13, 2006 - 11:28 pm: |
|
Hello. Looks like this is the place for a wiring diagram inquiry. I'm looking for the car side diagram of a 2001 Chevy cavalier, base model, with the factory cd player. I purchased one of the harness converters for the GM, but no go. Some of the harness connectors wires are offset from the car's wiring. The car's plug has 2 rows of 12 pins, female, and the radio has the male pins in the square plug hole. Thanks for any help! Any other info needed, please ask.
Warren |
New member Username: Djformi
Columbia,
Maryland
USA
Post Number: 1
Registered: Sep-06
|
| Posted on Thursday, September 14, 2006 - 10:56 am: |
|
Curious if any of you could help me find out where the speed sense/speed signal inoput wire is on a 2001 ford econoline. Also need the reverse gear input. We are trying to install a AVIC-D2 in our office mobile van and this is stumping us. Any help is appreicated thanks
Dan |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 625
Registered: Jan-06
|
| Posted on Thursday, September 14, 2006 - 11:14 am: |
|
Daniel J,take a look at this diagram and find VSS INPUT...this is speed wire...
the reverse gear input wire...take it from tail light,reverse light..
|
New member Username: Djformi
Columbia,
Maryland
USA
Post Number: 2
Registered: Sep-06
|
| Posted on Thursday, September 14, 2006 - 01:17 pm: |
|
thanks so much |
New member Username: Am862004
Post Number: 1
Registered: Sep-06
|
| Posted on Friday, September 15, 2006 - 12:42 am: |
|
1997 Ford Thunderbird Wiring Diagram??? |
Bronze Member Username: Noviceinstaller
Here,
There
Post Number: 76
Registered: Sep-06
|
| Posted on Friday, September 15, 2006 - 04:46 pm: |
|
Amy:
http://installdr.com/Harnesses/Ford-Wiring.pdf |
New member Username: Fyau
Sydney,
NSW
Australia
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 16, 2006 - 01:43 pm: |
|

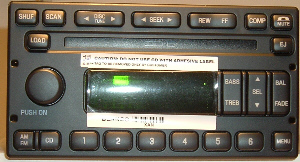

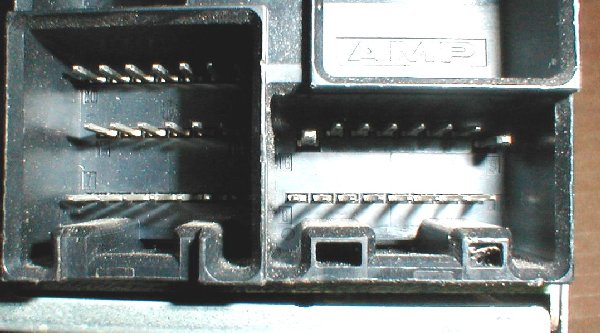

I bought a Ford OEM CD6 MP3 player as shown and the model number is 5C2T-18C815-AC. It has got 2 connectors at the back, 1 at 20-pin and 1 at 16-pin. There is no schematics and operation manual. Could you please help?
 |
New member Username: Galen
Bay city ,
Tx
United states
Post Number: 9
Registered: Sep-06
|
| Posted on Saturday, September 16, 2006 - 03:59 pm: |
|
i hooked up a stereo in my friend's 01 cavalier and then someone broke into it and cut all of the wires. I know how to hook up the speakers but i am not sure how to hook up the other ones, can anyone give me some help. |
New member Username: Galen
Bay city ,
Tx
United states
Post Number: 10
Registered: Sep-06
|
| Posted on Saturday, September 16, 2006 - 05:00 pm: |
|
can someone give me some direction on where i need to go to get this information? |
New member Username: M_anderson09
Greybull,
Wy
USA
Post Number: 1
Registered: Sep-06
|
| Posted on Tuesday, September 19, 2006 - 11:36 pm: |
|
Wiring Diagram for 1999 Chevy Suburban Radio.. Please! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 640
Registered: Jan-06
|
| Posted on Wednesday, September 20, 2006 - 11:11 am: |
|
need more info about your car...oem amp,cd,sub...??? |
New member Username: N_a_t_h_a_n
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 23, 2006 - 02:12 am: |
|
I have just bought a sony xplod head deck and some new 4 inch speakers to put into my ford laser (1988 model) I got the speakers in fine, but need the wiring diagram for the head deck. Can anyone help me?? |
New member Username: Leperking
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 23, 2006 - 10:00 am: |
|
Wiring colour codes for a Mercedes-Benz CLK 200 (Year 2000) please!
I have that..
Speed = ?
Diag = Green and Brown
Mute = ?
+12V = Red and Blue
Antenna = White and Blue
Lights = ?
Ignition = ?
Ground = Brown
Thanks,
LK. |
New member Username: Mrendas
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 23, 2006 - 11:34 am: |
|
I have a 1998 Cavalier Z24 2.4L and im looking for a wiring diagram for the stereo.
Thanks,
Matt |
New member Username: Engrsapper42
Buffalo,
NY
Post Number: 1
Registered: Sep-06
|
| Posted on Monday, September 25, 2006 - 07:32 pm: |
|
I have a question about a 2001 ford taurus radio. Im trying to hook up an amplifier and sub woofer but I dont know where to connect the remote wire. I want the amp to turn on with the factory radio but I dont know the pin diagram for the radio unit in the trunk. I appreciate any suggestions. Thanks |
New member Username: Skippy1895
Post Number: 1
Registered: Sep-06
|
| Posted on Tuesday, September 26, 2006 - 01:29 pm: |
|
I'm installing an aftermarket cd player in my cousin's 97' Ford Taurus and I need help with the wiring. I need the color codes for the wiring on the factory side of the harness. I have the faceplate kit installed and connected all of climate control knobs and wires but I can't figure out the radios wires. Any help is greatly appreciated. |
New member Username: Admir814
Erie,
Pa
Usa
Post Number: 1
Registered: Sep-06
|
| Posted on Friday, September 29, 2006 - 01:49 am: |
|
what color wire do i need to connect for the remote wire my system has on an 06 ford focus? |
New member Username: Rynes
Post Number: 1
Registered: Sep-06
|
| Posted on Saturday, September 30, 2006 - 09:13 pm: |
|
Hello , I need major help trying to find out the wire colors for a 1992 mercury topaz audio system, Their is two connectors ) one is black and one is Gray) and i just need to know each wire( what it is) thank you for your time. |
New member Username: Killyx
Post Number: 1
Registered: Oct-06
|
| Posted on Wednesday, October 04, 2006 - 12:09 am: |
|
hey i saw you had 2001 camry but i don't know if its the same wiring i need wiring for Toyota Camry 1998 LE thanks! |
New member Username: Twotimesthedimes
Neenah,
Wisconsin
United State...
Post Number: 1
Registered: Oct-06
|
| Posted on Sunday, October 08, 2006 - 12:20 am: |
|
Hey Mike, can you figure this one out? 1995 Ford Mustang, non-GT, V6, with Mach 460 stereo. I wired in a JVC I think and it's all working fine, except if you turn the key to the accessory position, let it sit for a bit, then start it, it makes a really loud popping noise. I heard that Ford factory amps take a 5 volt turn on lead and the CD player I know is putting out 12. Is there a way I could wire in a resistor to stop this? If so, what size resistor and what wire? Thanks. |
New member Username: Twotimesthedimes
Neenah,
Wisconsin
United State...
Post Number: 2
Registered: Oct-06
|
| Posted on Sunday, October 08, 2006 - 12:23 am: |
|
Also, do you have a diagram of a Sony/JVC harness. I have one that came in my JVC in my truck and the wires are in the wrong spots. My back speakers are my fronts and a bunch are screwed up. I just need to see which pins are for what speakers. |
New member Username: Scary_man
Post Number: 1
Registered: Oct-06
|
| Posted on Monday, October 09, 2006 - 06:57 pm: |
|
i need a color stero diagram for a 89 chevy cavalier.
thanks in advance! |
New member Username: Psu711
Post Number: 1
Registered: Oct-06
|
| Posted on Thursday, October 12, 2006 - 05:28 pm: |
|
I need a stereo diagram for a '02 maxima with bose.
My pioneer HU was stolen and I would like to put the factory 6 disc bose back in. I have found some wire diagrams but they dont seem to match. I also have a grey wire with white stripes that i cant find what it is anywhere.
Here is a post of one of the wiring diagrams i saw.
http://forums.nicoclub.com/zerothread/157919
notice no mention of the silver(or grey)/white wire
its 5th gen ('02) maxima with bose.
thanks |
Bronze Member Username: Tort
Post Number: 66
Registered: Jul-06
|
| Posted on Friday, October 13, 2006 - 02:44 pm: |
|
Hey, Stephen R. Cole!you can get all electr.schemas for your Maxima 02-03 here:
http://www.jencyborg.com/Maxima/
Thanks to Jennifer Contreras!(This web-site belongs to her). |
New member Username: Breakout
Phoenix,
Arizona
U.S.A
Post Number: 1
Registered: Oct-06
|
| Posted on Tuesday, October 17, 2006 - 10:52 pm: |
|
I followed a Googel link to this site looking for info on a VSS Circut on a 2.2L Chevy Corsica. I have the Chilton schematic but it's really vague. I need to know what it is, what it does and how to test/fix it. (Being able to find it would be nice also) |
New member Username: 90gts
Post Number: 1
Registered: Oct-06
|
| Posted on Saturday, October 21, 2006 - 03:34 pm: |
|
what about a 90 celica gts with factory amp and 10 speaker system?
Thanks for saving my from the headache i got trying this. And there is no grey wire for remote from factory |
New member Username: Fyau
Sydney,
NSW
Australia
Post Number: 3
Registered: Sep-06
|
| Posted on Sunday, October 22, 2006 - 06:15 am: |
|
Hi, has anyone got the car-audio schematics for Toyota RAV4 3-door Edge 2002 model? Thanks. |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 376
Registered: Jul-06
|
| Posted on Sunday, October 22, 2006 - 07:11 am: |
|
For you Freddy!
|
New member Username: Yesterdaysfuture
Houston,
TX
Post Number: 1
Registered: Oct-06
|
| Posted on Sunday, October 22, 2006 - 11:30 am: |
|
2005 Ford Aviator wiring diagram needed help.
I've installed a 2005 Lincoln Aviator satellite ready head unit in a 2004 Ford Crown Vic and do not have lighted buttons or dimmer controls? |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 378
Registered: Jul-06
|
| Posted on Sunday, October 22, 2006 - 12:20 pm: |
|
this is ford crown vic:
this is lin.avia.
 |
New member Username: Yesterdaysfuture
Houston,
TX
Post Number: 2
Registered: Oct-06
|
| Posted on Sunday, October 22, 2006 - 12:29 pm: |
|
Many thanks - I'll go check the voltages - |
New member Username: Chuck07
Post Number: 2
Registered: Oct-06
|
| Posted on Sunday, October 22, 2006 - 06:41 pm: |
|
anybody please have a 1991 dodge grand caravan wiring diagram with infinity premium sound. 4 of the 6 speakers have mini factory amps on them |
New member Username: Jpodpora
Post Number: 1
Registered: Oct-06
|
| Posted on Monday, October 23, 2006 - 09:19 am: |
|
Hey all! I was wondering if anybody could help me. I need a wiring diagram to find the Vehicle Speed Sensor (VSS) wire and reverse gear wire for a 2003 Nissan Altima 3.5SE. I see that jencyborg.com has them for the Maxima -- but I'm guessing the systems are different. (I'm doing a Pioneer AVIC-D2 intall...) |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 379
Registered: Jul-06
|
| Posted on Monday, October 23, 2006 - 12:18 pm: |
|
Hey Jody! I have to know which radio you got?(base,bose or midline)! |
New member Username: Jpodpora
Post Number: 3
Registered: Oct-06
|
| Posted on Monday, October 23, 2006 - 02:47 pm: |
|
Thanks for the quick response! Well -- I got the car used and I'm not 100% sure which radio it is. It's definitely NOT the Bose (there are no Bose labels anywhere). How can I tell the difference between "Base" and "Midline"? |
New member Username: Zac_stashko
Post Number: 2
Registered: Oct-06
|
| Posted on Monday, October 23, 2006 - 03:02 pm: |
|
Hey can anyone tell me if the Panasonic Head Unit model number CQ-DF202 needs the illumination wire. I am hooking it up to a 1989 Ford Tarus and the 16 pin connector I have to go into my deck does not have the illumination wire in it (despite the packaging saying it should) but the dealer told me some models don't need the illumination wire. I hooked everything up last night without the illumination wire but had nothing on the screen and didn't hear any sound, didn't try to but in a cd though. If this head unit doesn't need an illumination wire can anyone else think what maybe my problem. Thanks |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 381
Registered: Jul-06
|
| Posted on Monday, October 23, 2006 - 04:30 pm: |
|
Jody,go take schemas
http://www.jencyborg.com/Jody
the difference between "Base" , "Midline" and "Base"
As I see by the schemas:
The Boss system come out with OEM AMP and VSS signal.
The Midline come out only with VSS signal.
Base system come out ,let say "naked"
VSS signal(speed signal)needed for automatical audio volume control.More speeding= louder music (automatical)!
Let me know,if everything is alright! |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 382
Registered: Jul-06
|
| Posted on Monday, October 23, 2006 - 04:40 pm: |
|
Jody actually,you got altima 3.5L it's top of the line.it's cannot be cheap radio there! |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 383
Registered: Jul-06
|
| Posted on Monday, October 23, 2006 - 04:41 pm: |
|
Have to be Xenon light too! |
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 384
Registered: Jul-06
|
| Posted on Monday, October 23, 2006 - 04:45 pm: |
|
BTW. I included all schemas(the three radios and reversing)! |
New member Username: Dch921
Post Number: 1
Registered: Oct-06
|
| Posted on Monday, October 23, 2006 - 11:00 pm: |
|
need wiring diagram for 96 explorer xlt with amp. Trying to wire the rear controls. Thanks |
New member Username: Leperking
Post Number: 2
Registered: Sep-06
|
| Posted on Tuesday, October 24, 2006 - 03:28 am: |
|
Bump...
Wiring colour codes for a Mercedes-Benz CLK 200 (Year 2000) please!
I have that..
Speed = ?
Diag = Green and Brown
Mute = ?
+12V = Red and Blue
Antenna = White and Blue
Lights = ?
Ignition = ?
Ground = Brown
Thanks,
LK. |
New member Username: Jpodpora
Post Number: 4
Registered: Oct-06
|
| Posted on Tuesday, October 24, 2006 - 12:01 pm: |
|
Hey Jenifer, sorry to bother you again -- but I was wondering...is "Joint Connector 3" (the block/box that magically splits the Front Right output of the stock headunit into Tweeter and Door Speaker outputs) an amplifier that would need to be bypassed for the headunit installation, or just a simple crossover? |
Upload
