| Author |
Thread: Archive through August 26, 2006 |

Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 517
Registered: Jan-06
|
| Posted on Monday, August 14, 2006 - 02:23 pm: |
|

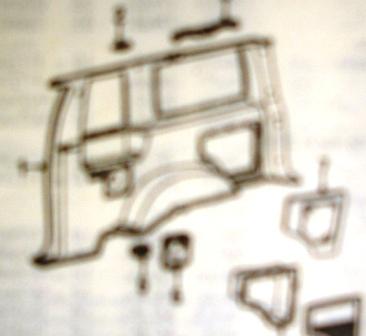

this pic.from ford.ex. sport (two doors),but it will give you idea,how to get there.
 |
|
Relevant Product Info
|
|
Silver Member Username: Jenifer_contreras
Tampa,
Florida
USA
Post Number: 114
Registered: Jul-06
|
| Posted on Monday, August 14, 2006 - 02:46 pm: |
|

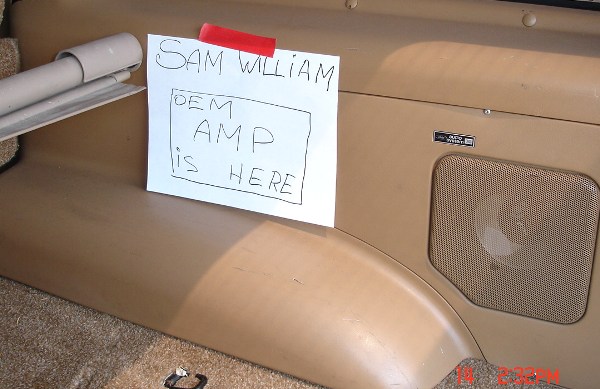

for Sam: location of oem Amp.
 |
New member Username: Hueso007
Post Number: 5
Registered: Aug-06
|
| Posted on Tuesday, August 15, 2006 - 02:34 pm: |
|
I have a good one for Mike. I was over hearing a buddy of mine tell me that there is an adaptor for the stock stereo (connecting plug) from the car that you can plug into and attach a new stereo unit without cutting wires. Is this true? If so, damn I've been gone a while. If they do exist, what are they called and where can I purchase one?
Thank a million.
Aaron |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 518
Registered: Jan-06
|
| Posted on Tuesday, August 15, 2006 - 03:01 pm: |
|
well Aaron.

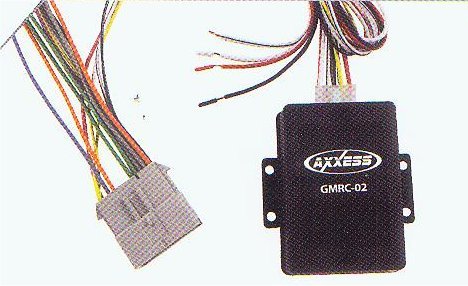

the name of this sh!t: Stereo Wire Harnesses.
you can get it from bunch of place...
this link is for example.
http://www.installer.com/wires/ |
New member Username: Hueso007
Post Number: 6
Registered: Aug-06
|
| Posted on Tuesday, August 15, 2006 - 04:21 pm: |
|
Damn your good. Thanks again for all your help.
You rock, keep up the good work.
Aaron |
New member Username: Markvint
Post Number: 1
Registered: Aug-06
|
| Posted on Tuesday, August 15, 2006 - 09:18 pm: |
|
1995 honda accord lx, pretty please, make my day ! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 520
Registered: Jan-06
|
| Posted on Wednesday, August 16, 2006 - 04:11 pm: |
|
Aaron,any time!
I hope you get it right.
good luck! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 521
Registered: Jan-06
|
| Posted on Wednesday, August 16, 2006 - 04:14 pm: |
|
and for m
honda accord lx,diagrams for base and premium radio
|
New member Username: Lgalaz24
Post Number: 3
Registered: Aug-06
|
| Posted on Wednesday, August 16, 2006 - 05:26 pm: |
|
I'm a little fustrated, I just tried to install a after market radio on my 1997 mustang gt... But for some reson when I try to connect the speakers to the new radio I don't get any sound.. I have the wiring diagram for it but I don't get any sound... I have the radio with rear amps, I'm not to sure if I didn't connect the wire for the amp... I don't really know where to connect it or which wires... So please help me!!! |
|
|
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 522
Registered: Jan-06
|
| Posted on Wednesday, August 16, 2006 - 09:20 pm: |
|
Louie,Download this diagrams,print them out,go to the car,see which oem amp you got.
check all sound system fuses (it's only three of them). Then connect all wires exatcly by schema!double check!Start your car(or turn to ACC).
P.S.the second problem, could be problem with "Om's" setting.Oem speakers and amp does not match to "Om's"setting at your new HU.,then you need buy new set of speakers and go straight ...
|
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 523
Registered: Jan-06
|
| Posted on Wednesday, August 16, 2006 - 09:24 pm: |
|
once I saw 2000 toyota camry le,with oem speakers 16 Om.... |
New member Username: Lgalaz24
Post Number: 4
Registered: Aug-06
|
| Posted on Wednesday, August 16, 2006 - 10:04 pm: |
|
Yes!!!Mike, I got it going I used the diagrams and found out that I didn't connect the blue audio wire... Wow man, I really appreciate the help Mike.. You really know your stuff thanks a lot!!!!! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 524
Registered: Jan-06
|
| Posted on Wednesday, August 16, 2006 - 10:34 pm: |
|
thanks Louie,Im happy for you |
New member Username: Hitman1214
Post Number: 1
Registered: Aug-06
|
| Posted on Wednesday, August 16, 2006 - 11:18 pm: |
|
I need 95 Mercury Tracer Stereo Information
Thanks |
New member Username: Carrottcake
Victoria,
BC
Canada
Post Number: 2
Registered: Aug-06
|
| Posted on Wednesday, August 16, 2006 - 11:28 pm: |
|
Hey, I thought I was lost when I was starting the stereo thing. Now this internet thread thing is making me think I'm getting old and can't handle the technicals anymore. Anyways I'm looking for the know how to install a mp3 player in my 88 jetta. I just connect the wires to the other matching colored wires and then tape em? The wires on my new stereo wont be the same as the ones in the car will they? Will I blow myself up?  Thanks for choosing to help me |
New member Username: Cindyb
Bellevue,
NE
Post Number: 1
Registered: Aug-06
|
| Posted on Thursday, August 17, 2006 - 09:51 am: |
|
Help Please!!!
I have a 1994 Jeep Grand Cherokee--I've seen wiring info that was close, and thought I had it right once, but nothing seems to match exactly.
One odd wire from the car to head unit is Brown/Pink. There is also Brown/Red. Any wiring that includes those???
Thanks so much! |
New member Username: Cindyb
Bellevue,
NE
Post Number: 2
Registered: Aug-06
|
| Posted on Thursday, August 17, 2006 - 10:24 am: |
|
Do you have info for a 1992 Plymouth Laser? I installed a Pioneer head unit--and maybe the problem is the unit--but I can't get the darn thing to dim at night. It is horribley bright!
Thanks again! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 528
Registered: Jan-06
|
| Posted on Thursday, August 17, 2006 - 12:26 pm: |
|
Cindy,this one for plymouth laser.
try to reconnect your wires, exactly by this schema.
dont look at yel/red and wht/red wires
 |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 529
Registered: Jan-06
|
| Posted on Thursday, August 17, 2006 - 12:37 pm: |
|
Cindy,about yours JEEP,I need more info:what is it?(laredo,limited..etc.)and how many original speakers 4 or 6 !!!
thanks. |
New member Username: Daddy_xlt
San Bernardino,
CA
USA
Post Number: 1
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 01:10 am: |
|
Anybody have a diagram or can give me a description of the wiring on a 06 F150 with factory Sirius satelite?
Thanks |
New member Username: Daddy_xlt
San Bernardino,
CA
USA
Post Number: 2
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 01:14 am: |
|
Oops... that was pretty vague. I'm looking for a description on the stereo and satelite wiring. Thanks |
New member Username: Ryan86
Tonopah,
Nevada
USA
Post Number: 1
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 01:27 pm: |
|
I want to hook up a new amp to my 97 ford explorer it has a JBL premium system with a stock amp already in it can i use those wires to hook them up to the new amp and if so how i need wiring codes |
New member Username: Onyx_ice
Michigan
America
Post Number: 2
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 02:31 pm: |
|
I need some help re-wiring a Jensen MP7610 into a '93 Ford Ranger. Everything's hooked up and works, but if my truck sits for a few hours without being started, when I do start it the clock and settings are reset. Not sure which wire is wrong, but if anyone could suggest a fix it'd be greatly appreciated. |
New member Username: Onyx_ice
Michigan
America
Post Number: 3
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 02:37 pm: |
|
I need some help re-wiring a Jensen MP7610 into a '93 Ford Ranger. Everything's hooked up and works, but if my truck sits for a few hours without being started, when I do start it the clock and settings are reset. Not sure which wire is wrong, but if anyone could suggest a fix it'd be greatly appreciated. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 536
Registered: Jan-06
|
| Posted on Friday, August 18, 2006 - 03:17 pm: |
|
battery wire wrong connected. |
New member Username: Nickintx
Kilgore,
Tx
US
Post Number: 2
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 05:46 pm: |
|
ok Mike, I know this isnt an AUDIO question, but has to do with wiring, so here we go, I just recently purchased some new side mirrors for my '98 Cavalier, well they have led lights to connect to the blinkers, to make for a newer style blinker, well Im not sure the colors nor the location of the original blinkers to hook into could ya help me out |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 540
Registered: Jan-06
|
| Posted on Friday, August 18, 2006 - 07:58 pm: |
|
Nicholas you have two choices:

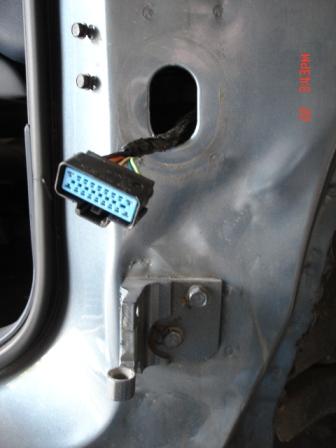

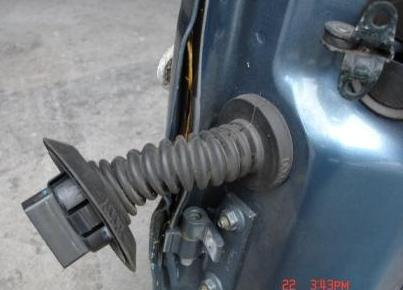

short way:remove trim panel on a door/be carefull,dont broke plastic retainers/.then remove turn/hazard-headlamp swith assembly and look for light blue(for left turn) & dark blue(right turn) wires.Run new line through post to the mirror with main line(like speaker,power windows,locks...etc.).Watch out for glass,when it's going down,glass can cut your new line.Ground wire you can connect into any unpainted metal place inside of the door.Put everything back.Do the same with another door(if it's right door then the wire will be much longer.)
make everywhere proper connection!
---------------------------
second way:
you can run each line,straight from park/turn signal lamp.Wires is the same color light blue for left turn signal & dark blue for right turn signal.But when you open the hood and see all this wires going to somewhere,it's looks...you know how..
let me know,if you got some problem.
Goodluck. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 541
Registered: Jan-06
|
| Posted on Friday, August 18, 2006 - 08:39 pm: |
|
Nicholas ,maybe you need this diagram too(schema of the mirror).
|
New member Username: Jew
Post Number: 1
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 10:33 pm: |
|
does any one have the wiring diagram for a 97 chrysler sebring coupe, i had a diagram an it said hook the remote from the radio to the antenna but i dont know what too look for, can any one help? |
New member Username: Ts31
Post Number: 1
Registered: Aug-06
|
| Posted on Friday, August 18, 2006 - 11:24 pm: |
|
I am trying to install an alpine stereo in my 1994 nissan altima but the factory wire harness has been cut out. I aquired the wire coding for both the stereo, There are 2 constant and switched power lines on the car witch one do I use? There are 2 illumination wires and a dimmer wire, what do i hook them up too? Is the attenna trigger wire on the altim and the power attenna the same? The alpine stero also requires a remote on and a audio mute wire that isn't listed on the wiring diagram for the altima where get hooked up? Please some body help!!!! |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 542
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 12:06 am: |
|
for john williams ,try blue wire(this is ignition wire,aka acc wire).The red one is battery +12V. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 543
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 12:21 am: |
|
for Todd Schell:
the attenna trigger wire on the altim and the power attenna the same= yes.
There are 2 constant and switched power lines=one (two) powered radio and the other two CD player.
audio mute wire=connect to the ground.
and schema is here:
|
New member Username: M8ball
Aurora,
IL
USA
Post Number: 3
Registered: Jul-06
|
| Posted on Saturday, August 19, 2006 - 01:52 am: |
|
Need wiring diagram for 2000 Ford Explorer. |
New member Username: Greg123456789
Jarvis,
Ontario
Canada
Post Number: 3
Registered: Jun-06
|
| Posted on Saturday, August 19, 2006 - 09:12 am: |
|
hey i need the wiring schematics for a 1997 Mazda 626. thanx in advance |
New member Username: Greg123456789
Jarvis,
Ontario
Canada
Post Number: 4
Registered: Jun-06
|
| Posted on Saturday, August 19, 2006 - 09:15 am: |
|
i need a wiring diagram for a 1997 Mazda 626. thanx in advance |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 544
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 10:18 am: |
|
greg,mazda DX,Es,LX????? |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 545
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 10:37 am: |
|
for Michael J Heise,radio base model with cd changer
|
New member Username: Coyote
Post Number: 1
Registered: Aug-06
|
| Posted on Saturday, August 19, 2006 - 02:46 pm: |
|
hello mike, im looking for a 2005 ford escape color-code diagram for the stereo harness, any ideas.......... |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 546
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 04:13 pm: |
|
...
2005 ford escape
|
New member Username: Weldmen
Post Number: 1
Registered: Aug-06
|
| Posted on Saturday, August 19, 2006 - 06:22 pm: |
|
Hello Mike,
I am looking for the pin out diagram for a 2001 ford radio. T100 plug end. I have attached some pics for reference.
Thanks
Weldmen
 |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 548
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 07:10 pm: |
|
It's very hard to say,ford make alot of modification. I need:exactly from which model of ford the radio was pulled out. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 549
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 07:30 pm: |
|
if you not sure from which model is it,make me pictures of the label with serial and model number & monday I will call to the ford dealer. |
New member Username: Weldmen
Post Number: 2
Registered: Aug-06
|
| Posted on Saturday, August 19, 2006 - 08:09 pm: |
|
Hey Mike,

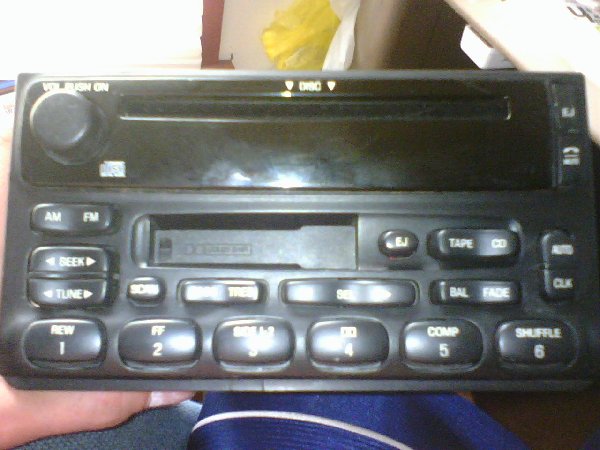

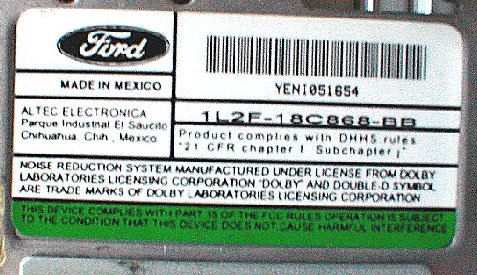

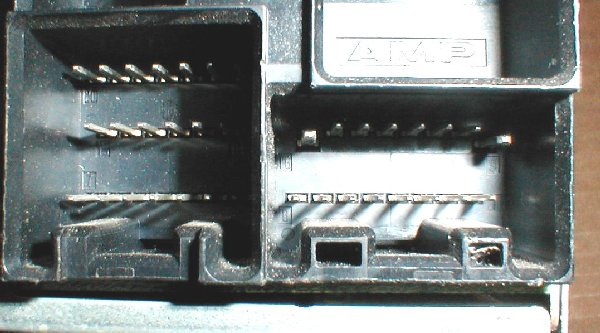

It is out of a Explorer I think. But here is the pic of the tag on back. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 550
Registered: Jan-06
|
| Posted on Saturday, August 19, 2006 - 09:08 pm: |
|
ford explorer 2001 base model: |
New member Username: Wm05a2687
Tappan ,
NY
US
Post Number: 2
Registered: Aug-06
|
| Posted on Saturday, August 19, 2006 - 09:27 pm: |
|
I have a 97 ford explorer with a stock face and I needed to get a adjustable line output converter for the avs for the subs but i dont knwo what wires go to what and i dont know all the of speaker wired on my truck, can anyone help ? |
New member Username: Baddog89
CA
USA
Post Number: 1
Registered: Aug-06
|
| Posted on Saturday, August 19, 2006 - 09:31 pm: |
|
I have a 1997 Ford Explorer XLT and having problems with the factory radio (casette/cd w/ 6 cd changer)
The display on the radio has gone out and sometimes I can't adjust the volume
any ideas?
thank you for your time |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 551
Registered: Jan-06
|
| Posted on Sunday, August 20, 2006 - 06:51 am: |
|
John Martin ,time to change radio.If you prefer original HU,then go to local junk yard ,Iam sure they have it in stock...,dont pay more then 150$ for the HU. |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 552
Registered: Jan-06
|
| Posted on Sunday, August 20, 2006 - 07:55 am: |
|
Ted Plenge,fire up your truck,then cross Tappan Z bridge and meet me at Nayak Nissan dealer ship.I'll give you everything there...just kiding,
give me more info about your car,(what is ..XLT...do you have cd changer or oem amp..etc.) |
New member Username: Jeepnhard
Post Number: 1
Registered: Aug-06
|
| Posted on Sunday, August 20, 2006 - 09:18 am: |
|
Need a 1988 Jeep Cherokee full harness diagram, do you have this? |
Silver Member Username: Leew
Ketchikan,
ALASKA
USA
Post Number: 553
Registered: Jan-06
|
| Posted on Sunday, August 20, 2006 - 09:45 am: |
|
nope,only for radio |
New member Username: Wm05a2687
Tappan ,
NY
US
Post Number: 3
Registered: Aug-06
|
| Posted on Sunday, August 20, 2006 - 11:56 am: |
|
Ok so its a 97 ford explorer xlt control trac 4wd it had a stock radio which has a casset and a 6 disk cd changer in the center consol. I need to attach a adjustable line output converter and It needs to be attached to the rear speakers. The wires on the converter are gray, gray w/ blk stripe, white, white with blck stripe and 2 brown grd wires. Help please ! i dont klnow which wires go where i cant decifer the speaker wires and even if i do i dont know which wires from the av converter should attach to what |
|
|
Upload
