| Author |
Thread: Archive through May 16, 2006 |

Gold Member Username: Tjmutlow
Post Number: 1965
Registered: Sep-05
|
| Posted on Tuesday, May 02, 2006 - 04:44 pm: |
|
jay dubbs, it shows a regualr harness, go to a car audio shop or crutchfield.com. |
|
|
|
Gold Member Username: Tjmutlow
Post Number: 1966
Registered: Sep-05
|
| Posted on Tuesday, May 02, 2006 - 04:48 pm: |
|
kelly, van or truck |
New member Username: Kkarnes897
Post Number: 2
Registered: May-06
|
| Posted on Wednesday, May 03, 2006 - 06:48 am: |
|
This would be a van,I bought a stereo for it but don't know the color code for the old radio. thanks |
New member Username: Redlancer73
Post Number: 1
Registered: May-06
|
| Posted on Wednesday, May 03, 2006 - 11:21 am: |
|
I need the wiring layout for a 1990 ford probe lx...Thanks! |
Gold Member Username: Tjmutlow
Post Number: 1969
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 12:51 pm: |
|
Econoline Van Stereo Information )
1992-93 Ford Econoline Van Stereo Information
Constant 12V+ Green/Yellow
Switched 12V+ Yellow/Black
Ground Chassis
Illumination Blue/Red
Dimmer n/a
Antenna Trigger n/a
Antenna Right Front
Front Speakers 6" x 8" Doors
Left Front (+) Orange/Green
Left Front (-) Black/White
Right Front (+) White/Green
Right Front (-) Black/White
Rear Speakers 6" x 8" Side Panels
Left Rear (+) Pink/Green
Left Rear (-) Pink/Blue
Right Rear (+) Pink/Blue
Right Rear (-) Green/Orange
• Alarm Information • Cruise Information
|
Gold Member Username: Tjmutlow
Post Number: 1970
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 12:52 pm: |
|
1990-92 Ford Probe Stereo Information
Constant 12V+ Blue/Red
Switched 12V+ Blue/White
Ground Chassis
Illumination Light Green/Black
Dimmer n/a
Antenna Trigger White
Antenna Right Rear
Front Speakers 6 1/2" Doors
Left Front (+) Blue/Orange
Left Front (-) Blue/Black
Right Front (+) Blue
Right Front (-) Blue/Green
Rear Speakers 6 1/2" Side Panels
Left Rear (+) Green/Orange
Left Rear (-) Green/Red
Right Rear (+) Green/Blue
Right Rear (-) Green
• Alarm Information • Cruise Information
|
New member Username: Boulder55
Post Number: 1
Registered: May-06
|
| Posted on Wednesday, May 03, 2006 - 03:57 pm: |
|
I am looking for the radio wiring diagram for a 2000 Ford Explorer Sport. I'm trying to hook up my subs and can't figure out which wires to connect the subs to. Please Help!! |
Silver Member Username: Thomas_g
NM
Post Number: 353
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 04:10 pm: |
|
I have no clue how the fu*k to install my deck. Cory you wanna find the RCA outputs?? |
Silver Member Username: Thomas_g
NM
Post Number: 354
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 04:14 pm: |
|
Nypd-Lapd u have wire colors for a 03 ford focas sedan?? Thanx man.... |
New member Username: Boulder55
Post Number: 2
Registered: May-06
|
| Posted on Wednesday, May 03, 2006 - 04:21 pm: |
|

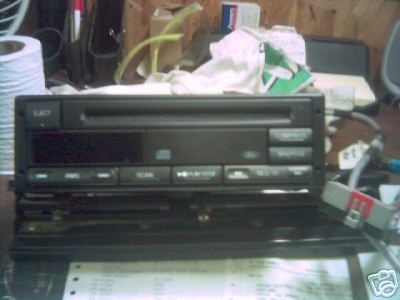

There are no RCA outputs for my deck (Stock 6 CD changer) I have a converter, but no clue which wires to connect the converter to... |
Gold Member Username: Tjmutlow
Post Number: 1973
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 04:22 pm: |
|
2000 Ford Explorer Stereo Information
Constant 12V+ Light Green
Switched 12V+ Yellow/Black
Ground Black
Illumination Light Blue/Red
Dimmer n/a
Amplifier Remote Blue
Antenna Right Front
Front Speakers 5" x 7" Doors
Left Front (+) Orange/Light Green
Left Front (-) Light Blue/White
Right Front (+) Dark Green/Orange
Right Front (-) White/Light Green
Rear Speakers 5" x 7" Rear Door
Left Rear (+) Gray/Light Blue
Left Rear (-) Tan/Yellow
Right Rear (+) Orange/Red
Right Rear (-) Brown/Pink
• Alarm Information • Cruise Information
|
Gold Member Username: Tjmutlow
Post Number: 1975
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 04:23 pm: |
|
--------------------------------------------------------------------------------
03 ford focus
Item Wire Color Polarity Wire Location
12V red + ignition harness
STARTER gray/black + ignition harness
IGNITION green/yellow + ignition harness
ACCESSORY yellow + ignition harness
SECOND ACCESSORY none
TACHOMETER black/green ignition coil
POWER LOCK black/red - drivers kick panel
POWER UNLOCK black/yellow - drivers kick panel
PARKING LIGHTS + orange/yellow headlight switch
PARKING LIGHTS -
DOOR TRIGGER black/blue - low in drivers kick panel
HEADLIGHTS grn/blu(L),grn/yel(H + steering column *3
WIPERS white/green + steering column
LF WINDOW UP/DN yellow - white A in drivers door at motor
RF WINDOW UP/DN yel/pur - wht/pur A drivers switch or kick panel
LR WINDOW UP/DN yel/blu - wht/blu A drivers switch or kick panel
RR WINDOW UP/DN yellow - white A drivers switch or kick panel
TRUNK/HATCH PIN black/white - trunk light
HOOD PIN black/yellow *4 - keyless module *1
TRUNK/HATCH RELEASE black/yellow - switch or keyless module *1
FACTORY ALARM ARM
FACTORY ALARM DISARM
HORN TRIGGER black/blue - steering column
BRAKE WIRE lt. green/red + brake switch *2
LOCK MOTOR yellow/black drivers kick panel
UNLOCK MOTOR white/black drivers kick panel
DISARM DEFEAT white/black passengers kick panel
DISARM NO UNLOCK
DOME SUPERVISION use door trigger
SPEED SENSE white/green radio
SUN ROOF OPEN/CLOSE
SUN ROOF LIMIT
LF SPEAKER wht/blk - gry/blk radio
RF SPEAKER wht/red - gry/red radio
LR SPEAKER wht/pur - gry/wht radio
RR SPEAKER white - gray radio
RADIO 12V orange/black (thick) + radio
RADIO GROUND blk/yel & blk/grn - radio
RADIO SWITCH yellow/green + radio
RADIO ILLUMINATE orange/black (thin) + radio
POWER ANTENNA
Notes: NOTE: This vehicle is equipped with a passive immobilizer that needs to be bypassed for remote start operation only. Use DEI part number 555S to bypass. *1 Keyless module is behind the glove box to the right. *2 To meter the brake wire, must turn ignition on. *3 Low beam at the headlight switch is green/red. *4 Only if equipped with factory alarm.
Back to Top
|
Silver Member Username: Thomas_g
NM
Post Number: 357
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 04:26 pm: |
|
Ty Mutlow 03 ford focus sedan wire colors?? Cory I remember i connected my converter by myself to my factory deck but dont remember how, now i need to install a new deck but have no clue how thats why i need to know what color of wires go to what. Thanx...... |
Gold Member Username: Tjmutlow
Post Number: 1976
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 04:28 pm: |
|
ther is no differrence listed for a focus or a sedan, see above |
Silver Member Username: Thomas_g
NM
Post Number: 358
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 04:30 pm: |
|
Ty Mutlow u da SHIZZNIT!! I didnt see ur post till after i posted mine so ignore it. Thanx. |
Silver Member Username: Thomas_g
NM
Post Number: 359
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 04:33 pm: |
|
Ty Mutlow what comes in a HU install kit. Is it the proper connecter for the new deck and on the other side of that wires to be wired to the cars wires?? Thanx man!!! |
Gold Member Username: Tjmutlow
Post Number: 1977
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 04:43 pm: |
|
the only thing that comes with that kit is just the kit( with pocket)if your car came with a Blaupaunkt radio, you need special antenna adapter and a volkswagon wiring harness(all sold seperate) and even with the regular radio, you may need special antenna adapter, |
Silver Member Username: Thomas_g
NM
Post Number: 361
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 04:47 pm: |
|
So if i put a new HU i dont have to buy new wires at all just the face plate that fits properly for the HU?? Thanx ty! |
New member Username: Boulder55
Post Number: 3
Registered: May-06
|
| Posted on Wednesday, May 03, 2006 - 05:26 pm: |
|
any suggestions as to which wire I should connect the remote turn on wire for my amp to? (2000 Ford Explorer). |
Silver Member Username: Thomas_g
NM
Post Number: 363
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 06:08 pm: |
|
Hey Cory man do what i did go buy a cheap toggle switch, cut remote wire in half, get 1 half put to remote on amp and put other side of that wire to toggle switch, get other half of remote wire put to power on amp and other side to toggle switch, very easy just make sure u put ur switch where it doesnt touch n e thing medal to ur car. |
Silver Member Username: Thomas_g
NM
Post Number: 364
Registered: Oct-05
|
| Posted on Wednesday, May 03, 2006 - 06:10 pm: |
|
yup yup,
So if i put a new HU i dont have to buy new wires at all just the face plate that fits properly for the HU?? Thanx ty! |
Gold Member Username: Tjmutlow
Post Number: 1978
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 07:19 pm: |
|
you still need the wiring harness that connects your aftermarket radio harness to the cars harness, and an antenna adapter. |
Gold Member Username: Tjmutlow
Post Number: 1980
Registered: Sep-05
|
| Posted on Wednesday, May 03, 2006 - 07:22 pm: |
|
the remote goes to the blue wire off the aftermarket harness you should have bought. |
New member Username: Mynova23
Post Number: 1
Registered: May-06
|
| Posted on Wednesday, May 03, 2006 - 10:21 pm: |
|
Need 1999 ford f-150 stock radio wiring diagram ...thanks |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 377
Registered: Feb-06
|
| Posted on Wednesday, May 03, 2006 - 11:37 pm: |
|
1999 Ford F-150
Constant 12V+ Light Green/Pink
Switched 12V+ Black/Purple
Ground Black
Amplifier Remote Blue
Front Speakers
Left Front (+) Light Blue/White
Left Front (-) Orange/Light Green
Right Front (+) Dark Green
Right Front (-) White/Light Green
Rear Speakers
Left Rear (+) Tan/Yellow
Left Rear (-) Gray/Light Blue
Right Rear (+) Brown/Pink
Right Rear (-) Orange/Red |
Silver Member Username: Thomas_g
NM
Post Number: 365
Registered: Oct-05
|
| Posted on Thursday, May 04, 2006 - 01:22 am: |
|
Ok ty i just got back from the stores and got both kits. I think i got the right ones. So a certain connecter plugs ur wires from ur car to any aftermarket HU? Looks like it came with like 4 different plugs on it. I hope my kit for resizing deck frame fits.... Ty or nypd-lapd, can you help me connect my kit with all the wires?? Thanx guyz... |
New member Username: Jellee
Post Number: 1
Registered: May-06
|
| Posted on Thursday, May 04, 2006 - 04:35 am: |
|
Hi,
Here comes a difficult one (i guess).
I have an Opel Corsa 1.2i Swing.
There are 2 wires for the power. These are black and brown. I'm not sure if these are the original wires but it seems like they are.
Can you tell me anything about these wires?
Great work you're doing btw! All this information is difficult to find on the internet. Maybe you should build a Wiki-page where you can store your infomation, just an idea. Thanks! |
New member Username: Lexzus
Canada
Post Number: 2
Registered: May-06
|
| Posted on Thursday, May 04, 2006 - 01:32 pm: |
|
I have a 1984 Ford Ranger I'm trying to install a new head unit into, but not sure about wiring. I have:
a blue wire, looks new
orange
yellow with black dashes
blue with red stripe
thick black, antenna wire? (it has a connector on the end of it)
a bundle of: 2 black with white dashes,
orange with green dashes
white with green dashes
Help!
Lex
|
Gold Member Username: Tjmutlow
Post Number: 1989
Registered: Sep-05
|
| Posted on Thursday, May 04, 2006 - 06:38 pm: |
|
1983-85 Ford Ranger Stereo Information
Constant 12V+ Light Green
Switched 12V+ Yellow/Black
Ground Chassis
Illumination Blue/Brown
Dimmer n/a
Antenna Trigger n/a
Antenna Right Front
Front Speakers 4" Dash
Left Front (+) Green
Left Front (-) Black/White
Right Front (+) White/Red
Right Front (-) Black/White
Rear Speakers 5" x 7" Rear Corners
Left Rear (+) Pink/Red
Left Rear (-) Pink/Blue
Right Rear (+) Pink/Blue
Right Rear (-) Green/Red
• Alarm Information • Cruise Information
|
New member Username: It2bgood2u
Post Number: 1
Registered: May-06
|
| Posted on Friday, May 05, 2006 - 06:55 am: |
|
1997 Toyota Celica ST-202 radio wiring colour.
Got 2 wire don't know what are they?
- Black w/ Red
- Pink w/ Blue
I assume they both are Power Antenna wires, is that right?
Which wire to connect to aftermarket radio Power Antenna?
Thanks |
New member Username: Lexzus
Canada
Post Number: 3
Registered: May-06
|
| Posted on Friday, May 05, 2006 - 12:52 pm: |
|
THANX A LOT TY! |
New member Username: Magnummafia
Post Number: 1
Registered: May-06
|
| Posted on Friday, May 05, 2006 - 03:14 pm: |
|
hi i need the stock radio wiring for a 2001 frontier. id really appreciate it.
thanks |
Gold Member Username: Lexuscoop
Phx,
Arizona
Post Number: 1465
Registered: Dec-05
|
| Posted on Friday, May 05, 2006 - 03:16 pm: |
|
i hooked up my alpine 9813 about a year ago, and ever since then, my anntena hasn't been working, i've asked best buy circut city altimate electronics and auido express but they can't figure it out, i have a lexus SC300 and the HU is as i said a alpine 9813.. |
New member Username: Magnummafia
Post Number: 2
Registered: May-06
|
| Posted on Friday, May 05, 2006 - 03:25 pm: |
|
is it an antena that goes up when the radio turns on, or is it always up |
Gold Member Username: Lexuscoop
Phx,
Arizona
Post Number: 1466
Registered: Dec-05
|
| Posted on Friday, May 05, 2006 - 03:30 pm: |
|
antena that goes up, i know its not broken because i uninstalled my old system then it stopped working. i don't know where to put the antena cord because there is no spot for it on the HU |
Gold Member Username: Tjmutlow
Post Number: 1993
Registered: Sep-05
|
| Posted on Friday, May 05, 2006 - 04:22 pm: |
|
found 2000, for Frontier, this should help....they s/
2000 Nissan Frontier Pickup Stereo Information
Constant 12V+ Pink
Switched 12V+ Blue
Ground Gray
Illumination Red/Blue
Dimmer Red/Yellow
Antenna Right Front
Front Speakers 5 1/4" Doors
Left Front (+) Pink
Left Front (-) Blue
Right Front (+) White
Right Front (-) Black
Rear Speakers 5" Rear Door
Left Rear (+) Light Green
Left Rear (-) Purple
Right Rear (+) Blue
Right Rear (-) Pink
• Alarm Information • Cruise Information
b the same... |
Gold Member Username: Tjmutlow
Post Number: 1994
Registered: Sep-05
|
| Posted on Friday, May 05, 2006 - 04:22 pm: |
|
1995-97 Toyota Celica Stereo Information
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Dimmer n/a
Antenna Trigger Black/Red
Antenna Left Rear
Front Speakers 6 1/2" Doors
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers 6 1/2" Side Panels
Left Rear (+) Black
Left Rear (-) Yellow
Right Rear (+) Red
Right Rear (-) White
• Alarm Information • Cruise Information
|
Gold Member Username: Tjmutlow
Post Number: 1995
Registered: Sep-05
|
| Posted on Friday, May 05, 2006 - 04:28 pm: |
|
sc300 antenna sounds like it is not getting power, make sure the power antenna lead from radio is hooked up to the correct wire in the harness, i can not find the diagram, |
Gold Member Username: Lexuscoop
Phx,
Arizona
Post Number: 1468
Registered: Dec-05
|
| Posted on Friday, May 05, 2006 - 04:28 pm: |
|
would that be the same for the 98's? |
Gold Member Username: Tjmutlow
Post Number: 1996
Registered: Sep-05
|
| Posted on Friday, May 05, 2006 - 04:30 pm: |
|
it does not matter what year, there are no klits and harness made for those cars, the wire has to be found in the harness that supplies power to the antenna and then needs to be tapped in with the power antenna from the radio... |
Gold Member Username: Lexuscoop
Phx,
Arizona
Post Number: 1469
Registered: Dec-05
|
| Posted on Friday, May 05, 2006 - 04:39 pm: |
|
so the antena wire would be black/red... what would i attach that to on the HU? |
Gold Member Username: Tjmutlow
Post Number: 1999
Registered: Sep-05
|
| Posted on Friday, May 05, 2006 - 09:44 pm: |
|
I do not know you need a schematic for the wiring harness for that car..... and the radio has a power antenna wire, either solid blue on Alpine |
New member Username: Mikejhane
Post Number: 2
Registered: May-06
|
| Posted on Monday, May 08, 2006 - 01:51 am: |
|
Can I get the wire color code for a 1998 Ford Expedition with premium sound? |
New member Username: Dodgekid
Reeders,
Pa
Usa
Post Number: 1
Registered: May-06
|
| Posted on Monday, May 08, 2006 - 06:15 am: |
|
hi can any one give me what the stock wiring colors mean so i can hook up my new head unit
its a dodge 1500 98 sport 4x4 |
New member Username: Freeagent
Post Number: 1
Registered: May-06
|
| Posted on Monday, May 08, 2006 - 12:31 pm: |
|
wiring codes for 1990 benz 300e series please |
New member Username: Freeagent
Post Number: 2
Registered: May-06
|
| Posted on Monday, May 08, 2006 - 12:33 pm: |
|
wiring codes for 1990 benz 300e series please |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 392
Registered: Feb-06
|
| Posted on Monday, May 08, 2006 - 04:39 pm: |
|
Constant 12V+ Red
Switched 12V+ Black/Yellow
Ground Brown
Illumination Gray/Blue
Antenna Trigger Blue
Front Speakers
Left Front (+) White
Left Front (-) Black
Right Front (+) White
Right Front (-) Black
Rear Speakers
Left Rear (+) White
Left Rear (-) Black
Right Rear (+) White
Right Rear (-) Black |
New member Username: Mikejhane
Post Number: 3
Registered: May-06
|
| Posted on Monday, May 08, 2006 - 07:13 pm: |
|
Nypd-Lapd what car is that code for? |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 399
Registered: Feb-06
|
| Posted on Monday, May 08, 2006 - 07:18 pm: |
|
the benz...i will post your now SORRY FOR THE LONG WAIT!! |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 400
Registered: Feb-06
|
| Posted on Monday, May 08, 2006 - 07:21 pm: |
|
Constant 12V+ White/Purple
Switched 12V+ Black/Pink
Ground Black/Green
Illumination Blue/Black
Dimmer n/a
Amplifier Remote Blue
Antenna Right Front
Front Speakers 6" x 8" Doors
Left Front (+) Light Blue/White
Left Front (-) Orange/Light Green
Right Front (+) Dark Green/Orange
Right Front (-) White/Light Green
Rear Speakers 6" x 8" Rear Doors
Left Rear (+) Tan/Yellow
Left Rear (-) Gray/Light Blue
Right Rear (+) Brown/Pink
Right Rear (-) Orange/Red |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 401
Registered: Feb-06
|
| Posted on Monday, May 08, 2006 - 07:24 pm: |
|
98 dodge 1500
Constant 12V+ Red
Switched 12V+ Red/White
Ground Black
Dimmer Orange/White
Antenna Trigger Yellow
Front Speakers
Left Front (+) Dark Green
Left Front (-) Brown/Red
Right Front (+) Purple
Right Front (-) Dark Blue/Red
Rear Speakers
Left Rear (+) Brown/Yellow
Left Rear (-) Brown/Light Blue
Right Rear (+) Dark Blue/White
Right Rear (-) Dark Blue/Orange |
New member Username: Vw95jetta06
Post Number: 1
Registered: May-06
|
| Posted on Monday, May 08, 2006 - 10:11 pm: |
|
i was wondering if anyone had the wireing color for a 95 Jetta it would be alot of help... |
Gold Member Username: Tjmutlow
Post Number: 2005
Registered: Sep-05
|
| Posted on Tuesday, May 09, 2006 - 06:40 am: |
|
1995-96 Volkswagen Jetta III Stereo Information
Constant 12V+ Red/White
Switched 12V+ Gray/Blue
Ground Brown
Illumination n/a
Dimmer n/a
Antenna Left Front
Front Speakers 6 1/2" Dash
Left Front (+) Blue/Black
Left Front (-) Orange/Blue
Right Front (+) Red/White
Right Front (-) Orange/White
Rear Speakers 6 1/2" Rear Doors
Left Rear (+) Red/Light Green
Left Rear (-) Orange/Black
Right Rear (+) Blue/Light Green
Right Rear (-) Orange/Red
|
New member Username: Freeagent
Post Number: 4
Registered: May-06
|
| Posted on Tuesday, May 09, 2006 - 10:12 am: |
|
thnx for the codes.... |
New member Username: Mikejhane
Post Number: 4
Registered: May-06
|
| Posted on Tuesday, May 09, 2006 - 11:50 am: |
|
Thanks a lot buddy  |
New member Username: Jo770
Post Number: 5
Registered: Feb-06
|
| Posted on Tuesday, May 09, 2006 - 02:56 pm: |
|
You might be able to help me.
I have got a 1991 mazda proceed (jap import into New Zealand) and I am trying to install a Fujitsu Ten h/u into it that came out of a 1995 Toyota Aristo.
I have not got the plugs that fit into the back of the h/u, so I am actually looking for which pins do what in the back of the radio.
TIA
I can PM pics to you if you want them
|
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 407
Registered: Feb-06
|
| Posted on Tuesday, May 09, 2006 - 04:53 pm: |
|
Constant 12V+ Blue/Red
Switched 12V+ Blue/White
Ground black
Illumination Red/Black
Front Speakers
Left Front (+) Blue
Left Front (-) Blue/White
Right Front (+) Blue/Red
Right Front (-) Blue/Yellow
Rear Speakers
Left Rear (+) Blue/Red
Left Rear (-) Blue/Green
Right Rear (+) Blue/White
Right Rear (-) Blue/Green |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 408
Registered: Feb-06
|
| Posted on Tuesday, May 09, 2006 - 04:55 pm: |
|
^^^^1991 proceed^^^^^^^
i cant find tha toyota!!!
SORRY |
New member Username: Vw95jetta06
New Paltz,
New York
Post Number: 2
Registered: May-06
|
| Posted on Wednesday, May 10, 2006 - 04:14 pm: |
|
I was wondering if anyone knew the wiring color code for a 1995 Volkswagen Jetta to a ECD-412, it will be alot of help... |
New member Username: Vw95jetta06
New Paltz,
New York
Post Number: 3
Registered: May-06
|
| Posted on Wednesday, May 10, 2006 - 04:18 pm: |
|
I was wondering if anyone knew the wiring color code for a 1995 Volkswagen Jetta to a Eclipse ECD-412, it will be alot of help... |
New member Username: M3rd3074
Post Number: 1
Registered: May-06
|
| Posted on Wednesday, May 10, 2006 - 04:53 pm: |
|
2005 mazda6 w/out bose |
New member Username: Steven_booth
Post Number: 1
Registered: May-06
|
| Posted on Thursday, May 11, 2006 - 04:34 am: |
|
Anyone know the diagram for a 89 mustang? |
Gold Member Username: Tjmutlow
Post Number: 2012
Registered: Sep-05
|
| Posted on Thursday, May 11, 2006 - 06:38 am: |
|
1988-89 Ford Mustang Stereo Information
Constant 12V+ Green/Yellow
Switched 12V+ Yellow/Black
Ground Chassis
Illumination Blue/Red
Dimmer n/a
Antenna Trigger Orange/Blue
Antenna Right Front
Front Speakers 5 1/4" Doors
Left Front (+) Orange/Green
Left Front (-) Light Blue/White
Right Front (+) White/Green
Right Front (-) Green/Orange
Rear Speakers 5" x 7" Side Panels
Left Rear (+) Pink/Green
Left Rear (-) Pink/Blue
Right Rear (+) Pink/Blue
Right Rear (-) Green/Orange
• Alarm Information • Cruise Information
Sponsored Links
|
New member Username: Eezom
Post Number: 1
Registered: May-06
|
| Posted on Thursday, May 11, 2006 - 07:18 pm: |
|
hi, im looking for color codes for a 96 camry. thanks. |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 419
Registered: Feb-06
|
| Posted on Thursday, May 11, 2006 - 07:27 pm: |
|
1995-96 Toyota Camry Stereo Information
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Antenna Trigger Black/Red
Front Speakers
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers
Left Rear (+) Black
Left Rear (-) Yellow
Right Rear (+) Red
Right Rear (-) White |
New member Username: Eezom
Post Number: 2
Registered: May-06
|
| Posted on Thursday, May 11, 2006 - 07:34 pm: |
|
wow thanks for the quick reply |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 421
Registered: Feb-06
|
| Posted on Thursday, May 11, 2006 - 07:43 pm: |
|
NP |
Bronze Member Username: Paps
Yuma,
AZ
Post Number: 63
Registered: Mar-06
|
| Posted on Thursday, May 11, 2006 - 10:31 pm: |
|
dont know if this got asked already but...
2001 Dodge Ram 1500 Quad Cab |
New member Username: Riceboidavid
Post Number: 3
Registered: May-06
|
| Posted on Friday, May 12, 2006 - 03:56 am: |
|
1998 Toyota Camry, thanks in advance |
New member Username: Odello
Post Number: 1
Registered: May-06
|
| Posted on Friday, May 12, 2006 - 09:44 am: |
|
1995 Ford Fiesta Mk3 |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 430
Registered: Feb-06
|
| Posted on Friday, May 12, 2006 - 08:27 pm: |
|
Camary
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Antenna Trigger Black/Red
Front Speakers
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers
Left Rear (+) Black
Left Rear (-) Yellow
Right Rear (+) Red
Right Rear (-) White |
New member Username: Damon
Post Number: 1
Registered: May-06
|
| Posted on Saturday, May 13, 2006 - 05:23 am: |
|
I need help on a 1986 ford meteor, it the same model as a 1986 mazda 323, also the same as a 1986 laser, im pretty sure. |
Gold Member Username: Tjmutlow
Post Number: 2030
Registered: Sep-05
|
| Posted on Saturday, May 13, 2006 - 09:34 am: |
|
1986-88 Mazda 323 Stereo Information
Constant 12V+ Blue/Red
Switched 12V+ Blue/White
Ground n/a
Illumination Red/Black
Dimmer n/a
Antenna Driver's Pillar
Front Speakers 4" Dash
Left Front (+) Blue/
Left Front (-) Blue/White
Right Front (+) Blue/Red
Right Front (-) Blue/Yellow
Rear Speakers 6 1/2" Side Shelves
Left Rear (+) Blue/Red
Left Rear (-) Blue/Yellow
Right Rear (+) Blue/White
Right Rear (-) Blue/Green
1984-86 Chrysler Lazer Stereo Information
Constant 12V+ Red
Switched 12V+ Red/White
Ground Black
Illumination n/a
Dimmer Orange/White
Antenna Trigger Yellow
Antenna Right Front
Front Speakers 3 1/2" Dash
Left Front (+) Green
Left Front (-) Green/Yellow
Right Front (+) Purple
Right Front (-) Purple/Yellow
Rear Speakers 5 1/4" Side Panels
Left Rear (+) Brown
Left Rear (-) Brown/Yellow
Right Rear (+) Blue/Red
Right Rear (-) Blue/White
|
New member Username: Mands
Post Number: 1
Registered: May-06
|
| Posted on Saturday, May 13, 2006 - 10:12 am: |
|
I have a 1994 Ford Explorer Ltd with premium sound. I bought a slave cd player on ebay and need some assistance with the wiring. The cd player is out of a mustang with the same head unit so I know my head unit will accomodate this. I know one wire goes from the the cd player to the back of the head unit where the jumper is, but the other harness I'm not too sure about. Can this be properly connected with an explorer? Thanks in advance to anyone that can help. |
New member Username: Ohio_geoff
Post Number: 1
Registered: May-06
|
| Posted on Saturday, May 13, 2006 - 01:21 pm: |
|
I have an 02 explorer xlt. I want to add my subs,but I don't know which wire I can hook my remote wire (aka Blue, aka Power Antenna) up to. Any help??? Thanks!!!!! |
New member Username: Flanciro
Dublin
Post Number: 1
Registered: May-06
|
| Posted on Saturday, May 13, 2006 - 05:20 pm: |
|
Hey NYPD-Lapd, can you help me i need to know the wire colours and what they are for 02 toyota celica. much appreciated |
New member Username: Subzero02
Post Number: 2
Registered: May-06
|
| Posted on Saturday, May 13, 2006 - 09:54 pm: |
|
I have a 1997 Clarion DRX9375R do not have the clarion wire hareness. The plug has 8 pins 4 top 4 bottom need to know what color is where so i can wire it up myself so if you can tell me the colors working from top left to bottom right would be great thanks |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 432
Registered: Feb-06
|
| Posted on Sunday, May 14, 2006 - 01:22 am: |
|
2020 Ford Explorer
Constant 12V+ Light Green
Switched 12V+ Yellow/Black
Ground Black
Illumination Light Blue/Red
Dimmer n/a
Amplifier Remote Blue
Antenna Right Front
Front Speakers 5" x 7" Doors
Left Front (+) Orange/Light Green
Left Front (-) Light Blue/White
Right Front (+) Dark Green/Orange
Right Front (-) White/Light Green
Rear Speakers 5" x 7" Rear Door
Left Rear (+) Gray/Light Blue
Left Rear (-) Tan/Yellow
Right Rear (+) Orange/Red
Right Rear (-) Brown/Pink |
New member Username: Dsugioka
Post Number: 1
Registered: May-06
|
| Posted on Sunday, May 14, 2006 - 04:35 am: |
|
Need wiring for Ford Ranger xlt 2000 |
New member Username: Dark2099
Post Number: 1
Registered: May-06
|
| Posted on Sunday, May 14, 2006 - 05:08 pm: |
|
I have a 1995 Nissan Altima, and I saw the post regarding the 1996 (my car is also a gxe) but there were two set of wires posted and I am not sure which is correct so pointing that out (or if it is different giving me that info) it would be greatly appreciated! |
Silver Member Username: Nypdlapd
Ontario
Canada
Post Number: 433
Registered: Feb-06
|
| Posted on Sunday, May 14, 2006 - 07:17 pm: |
|
Altima
Constant 12V+ Pink
Switched 12V+ Blue
Ground Chassis
Illumination Red/Blue
Dimmer Red/Yellow
Antenna Trigger Green/White
Front Speakers
Left Front (+) Blue/White
Left Front (-) Blue/Yellow
Right Front (+) Brown
Right Front (-) Brown/White
Rear Speakers
Left Rear (+) Red
Left Rear (-) Green
Right Rear (+) Blue
Right Rear (-) Pink |
New member Username: Zatch_06
Post Number: 1
Registered: May-06
|
| Posted on Sunday, May 14, 2006 - 07:21 pm: |
|
I need help with the wired in a 1995 Camry with Factory external amplifier. any help would be greatly appreciated |
New member Username: X_man
Post Number: 1
Registered: May-06
|
| Posted on Sunday, May 14, 2006 - 08:55 pm: |
|
I have a mercury tracer (1994) and I'm trying to put an aftermarket radio in it. I cut the wires from the original radio and was able to determine what colors the speaker wires were but don't know the color of the power wires. Can you help me |
New member Username: Ikeri
Post Number: 1
Registered: May-06
|
| Posted on Monday, May 15, 2006 - 02:28 am: |
|
I have a 1999 celica gt. My cousin's ex attempted to take the stock stereo out and put a new one in.. he screwed it up, cut tons of wires, now it looks like someone threw up spaghetti in my dash. We want to put the stock stereo back in, but need a wiring schematic. All the wires SEEM like they should work, but we feel like something is missing, but we don't know what. |
Gold Member Username: Tjmutlow
Post Number: 2035
Registered: Sep-05
|
| Posted on Monday, May 15, 2006 - 06:57 am: |
|
1995-96 Toyota Camry Stereo Information
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Dimmer n/a
Antenna Trigger Black/Red
Antenna Driver's Pillar
Front Speakers 5 1/4" Doors
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers 6" x 9" Tail Gate
Left Rear (+) Black
Left Rear (-) Yellow
Right Rear (+) Red
Right Rear (-) White
• Alarm Information • Cruise Information
1995-96 Toyota Camry Stereo Information
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Dimmer n/a
Antenna Trigger Black/Red
Antenna Driver's Pillar
Front Speakers 5 1/4" Doors
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers 6 1/2" Rear Deck
Left Rear (+) Black
Left Rear (-) Yellow
Right Rear (+) Red
Right Rear (-) White
1995-96 Toyota Camry Stereo Information
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Dimmer n/a
Antenna Trigger Black/Red
Antenna Driver's Pillar
Front Speakers 6 1/2" Doors
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers 6" x 9" Rear Deck
Left Rear (+) Black
Left Rear (-) Yellow
Right Rear (+) Red
Right Rear (-) White
• Alarm Information • Cruise Information
|
Gold Member Username: Tjmutlow
Post Number: 2036
Registered: Sep-05
|
| Posted on Monday, May 15, 2006 - 06:58 am: |
|
1994 Mercury Tracer Stereo Information
Constant 12V+ Blue/Red
Switched 12V+ Blue/White
Ground n/a
Illumination Red/Black
Dimmer n/a
Antenna Driver's Pillar
Front Speakers 5 1/4" Doors
Left Front (+) Blue
Left Front (-) Blue/White
Right Front (+) Blue/Red
Right Front (-) Blue/Yellow
Rear Speakers 6" x 9" Rear Deck
Left Rear (+) Blue/White
Left Rear (-) Blue/Green
Right Rear (+) Blue/Red
Right Rear (-) Blue/Green
• Alarm Information • Cruise Information
|
Gold Member Username: Tjmutlow
Post Number: 2037
Registered: Sep-05
|
| Posted on Monday, May 15, 2006 - 06:59 am: |
|
1999 Toyota Celica Stereo Information
Constant 12V+ Blue/Yellow
Switched 12V+ Gray
Ground Brown
Illumination Green
Dimmer n/a
Antenna Trigger Black/Red
Antenna Left Rear
Front Speakers 6 1/2" Doors
Left Front (+) Pink
Left Front (-) Purple
Right Front (+) Light Green
Right Front (-) Blue
Rear Speakers 6 1/2" Side Panels
Left Rear (+) Black
Right Rear (+) Red
Right Rear (-) White
• Alarm Information • Cruise Information
|
New member Username: Jessiedawl
IL
USA
Post Number: 1
Registered: May-06
|
| Posted on Monday, May 15, 2006 - 11:06 am: |
|
I have a 2002 Dodge Stratus and my boyfriend, whose trying to help, also cut the wires so he could put in an Alpine. Would you please be able to tell me which wires do what? Thanks so much. |
New member Username: Jessiedawl
IL
USA
Post Number: 3
Registered: May-06
|
| Posted on Monday, May 15, 2006 - 12:41 pm: |
|
My Dodge Stratus is a sedan too, if that makes any difference. The wire colors are: black, dark green, brown, blue/brown or purple stripe, purple, orange/brown or purple stripe, red/white stripe, dark blue/white stripe, blue/orange stripe, brown/light blue stripe, brown/yellow stripe, purple/yellow stripe, and pink. Once again, thanks a bunch! |
New member Username: Phatty34
Post Number: 1
Registered: May-06
|
| Posted on Monday, May 15, 2006 - 05:04 pm: |
|
how about for a 1999 isuzu rodeo wiring for a cd player |
Gold Member Username: Tjmutlow
Post Number: 2042
Registered: Sep-05
|
| Posted on Monday, May 15, 2006 - 06:40 pm: |
|
02 status
--------------------------------------------------------------------------------
| ITEM | WIRE COLOR |POL| WIRE LOCATION |
| 12V|white/red |+ |ignition harness |
| STARTER|black/red |+ |ignition harness |
| IGNITION|dk. green |+ |ignition harness |
| ACCESSORY|blue/red |+ |ignition harness |
| SECOND ACCESSORY|blue/black |+ |ignition harness |
| POWER LOCK|lt. green/black *2 |- |drivers kick panel *1 |
| POWER UNLOCK|orange *2 |- |drivers kick panel *1 |
| LOCK MOTOR|lt. green | |drivers kick panel *1 |
| UNLOCK MOTOR|dk. green/red | |drivers kick panel *1 |
| DISARM DEFEAT|blue/black | |passenger kick panel or *9 |
| PARKING LIGHTS +|grn/wht or pnk/blk | |low in drivers kick |
| HEADLIGHTS|orange |- |headlight relay under hood |
| DOOR TRIGGER|green/yellow |- |fuse box *8 |
| DOME SUPERVISION|green/orange |- |fuse box *3 |
| TRUNK/HATCH PIN|red |- |drivers kick panel *7 |
|TRNK/HTCH RELEASE|green/white |5wi|drivers kick panel *7 |
| FCTRY ALARM ARM|arms with lock | | |
|FCTRY ALRM DISARM|disarms with unlock | | |
| DISARM NO UNLOCK|*6 | | |
| TACHOMETER|*4 | |*4 |
| SPEED SENSE|white/blue | |center console *5 |
| BRAKE WIRE|green/orange |+ |brake pedal switch |
| HORN TRIGGER|lt. green/black |- |steering column |
| WIPERS|blu/org & blu/yel |+ |wiper motor |
| LF WINDOW UP/DN|red/blk - grn/blk |A |drivers window switch |
| RF WINDOW UP/DN|red/wht - green |A |drivers kick panel *1 |
| SUN RF OPN/CLOSE|not recommended | | |
| RADIO 12V|orange/black |+ |radio |
| RADIO SWITCH|white/black |+ |radio |
| RADIO ILLUMINATE|green/white |+ |radio |
| LF SPEAKER|wht/blu - blk/blu | |radio |
| RF SPEAKER|wht/red - blk/red | |radio |
| LR SPEAKER|yel/blu - gry/blu | |radio |
| RR SPEAKER|yel/red - gry/red | |radio |
Notes:
NOTE: This vehicle is equipped with an immobilizer. *1 Located in a black 32 pin plug. *2 These are the door key cylinder wires. Meter the wires while turning the key in the drivers door. Unlock requires a double pulse. On vehicles without the factory alarm use purple for lock and lt. green/red for unlock, these are the door lock switch wires. *3 In the plug on the upper right side of the fuse box under the driver side dash. *4 Go to the test connector inside the fusebox under the hood, it is a T shaped plug. Tach is the terminal on the top left of the T, the wire under the terminal is white or white/red. *5 Located in a large white 38 pin plug behind the radio. *6 To disarm without unlocking, use a single pulse on the unlock wire. *7 Located in a white 43 pin plug. *8 Located in a black 19 pin plug on the back of the fuse box under the driver side dash. *9 Also found in a black 20 pin plug on the front of the fuse box under the driver side dash.
___________________________________________
Jeff
Velocity Motorsports
Morden, Manitoba
techsupport@velocitymotorsport
|
Gold Member Username: Tjmutlow
Post Number: 2043
Registered: Sep-05
|
| Posted on Monday, May 15, 2006 - 06:41 pm: |
|
1999 Isuzu Rodeo Stereo Information
Constant 12V+ Red/White
Switched 12V+ Red/Yellow
Ground Black
Illumination Green/Red
Dimmer Red/Yellow
Antenna Right Front
Front Speakers 5 1/4" Doors
Left Front (+) Blue
Left Front (-) Yellow
Right Front (+) Green
Right Front (-) Gray
Rear Speakers 4" Roof Mount
Left Rear (+) Orange
Left Rear (-) White
Right Rear (+) Orange/Blue
Right Rear (-) Orange/White
• Alarm Information • Cruise Information
|
New member Username: Phatty34
Post Number: 2
Registered: May-06
|
| Posted on Monday, May 15, 2006 - 08:11 pm: |
|
i need help!!! i have a 1999 isuzu rodeo and the factory wiring end has been cut off i then wired it directly to the cd player as a result. i have lost dash lights since then. the fuses are all fine and no wires are touching each other. what can i do |
Gold Member Username: Tjmutlow
Post Number: 2044
Registered: Sep-05
|
| Posted on Tuesday, May 16, 2006 - 05:13 am: |
|
there has to be a blown fuse somewhere, did you check under the hood and make sure you use a test light and check both sides of the fuse. |
New member Username: L_bones
Post Number: 2
Registered: May-06
|
| Posted on Tuesday, May 16, 2006 - 08:38 am: |
|
1995 Ford Ranger? I have seen other Rangers but not this year...thanks! |
New member Username: Phatty34
Post Number: 4
Registered: May-06
|
| Posted on Tuesday, May 16, 2006 - 10:36 am: |
|
do you know which fuse it could be under the hood for this model of vehicle |
New member Username: Lilapsudrummer
Clarksville,
Tn
Usa
Post Number: 1
Registered: May-06
|
| Posted on Tuesday, May 16, 2006 - 01:24 pm: |
|
hi i need help with a mitsubishi montero sport 2001. i have an adaptor to hook up an amp to the factroy radio but i dont know what color wire goes to what speaker can anyone help
|
Gold Member Username: Tjmutlow
Post Number: 2045
Registered: Sep-05
|
| Posted on Tuesday, May 16, 2006 - 01:39 pm: |
|
1995-97 Ford Ranger Stereo Information
Constant 12V+ Green/Purple
Switched 12V+ Yellow/Black
Ground Black/Light Green
Illumination Light Blue/Red
Dimmer n/a
Amplifier Remote Blue
Antenna Right Front
Front Speakers 6 1/2" Doors
Left Front (+) Orange/Light Green
Left Front (-) Orange/Light Green
Right Front (+) White/Light Green
Right Front (-) Dark Green/Orange
Rear Speakers 5" x 7" Rear Corners
Left Rear (+) Gray/Light Blue
Left Rear (-) Tan/Yellow
Right Rear (+) Orange/Red
Right Rear (-) Brown/Pink
|
New member Username: L_bones
Post Number: 4
Registered: May-06
|
| Posted on Tuesday, May 16, 2006 - 03:06 pm: |
|
awesome thanks! |
Gold Member Username: Tjmutlow
Post Number: 2046
Registered: Sep-05
|
| Posted on Tuesday, May 16, 2006 - 03:10 pm: |
|
could not find 01, here is 00
2000 Mitsubishi Montero Sport Stereo Information
Constant 12V+ Red/Black
Switched 12V+ Blue
Ground Chassis
Illumination Green/White
Dimmer Black/Yellow
Antenna Trigger White/Black
Antenna Right Front
Front Speakers 4" Dash
Left Front (+) White/Blue
Left Front (-) Black/Blue
Right Front (+) White/Red
Right Front (-) Black/Red
Rear Speakers 6" x 9" Side Panels
Left Rear (+) Yellow/Blue
Left Rear (-) Gray/Blue
Right Rear (+) Yellow/Red
Right Rear (-) Gray/Red
• Alarm Information • Cruise Information
|
