Author Thread: How do i hook this up :'(
Top of pagePrevious messageNext messageBottom of page Link to this message

kumanan
Bronze Member
Username: Kumanan

Post Number: 12
Registered: Jan-05
Posted on Sunday, January 23, 2005 - 08:44 pm:    Edit Post

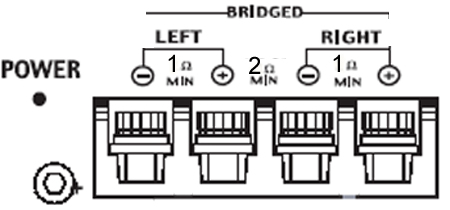

i got a clarion dpx1001.1 amp. below is a picture of the connection panel. I want to hook up 2 Dual 4 ohm L5's!.. can i hook them both up? my amp is 1000 rms at 2 Ohms bridged by the way. is my amp 1 ohm stable??Upload
Top of pagePrevious messageNext messageBottom of page Link to this message

Isaac
Gold Member
Username: Carguy

Post Number: 1199
Registered: Nov-04
Posted on Tuesday, January 25, 2005 - 09:30 am:    Edit Post
Yes you can hook them both up. Dual 4ohms will become 2ohms wired in parallel and your diagram says 1ohm minimum. You are safe.
