Thread: Dual 2 ohm Inifinity run one ohm on jbl 600, please simplify  |

|
| Posted on Tuesday, October 19, 2004 - 02:59 am: |
|
I have request if someone can help, I have two dual coil inifinity kappas, but I need to know how to wire them to a 600 jbl bp600.1 amp in one ohm, I really don't know how to do that as simple as it maybe? so can anyone please simplify it for me an connect the dots on how to set it up, the guy who hooked up my system said it couldn't be done! I don't know why? |
|
|
|
Gold Member Username: Jonathan_f
GA
USA
Post Number: 2384
Registered: May-04
|
| Posted on Tuesday, October 19, 2004 - 03:06 am: |
|
You can't hook two dual 2 ohm subs up for a 1 ohm load, your only options are either a .5 ohm, 2 ohm, or 8 ohm load with two of those subwoofers. That JBL 600.1 amp puts out 600W RMS at both 1 or 2 ohms, so wire for a 2 ohm load.
http://www.crutchfieldadvisor.com/learningcenter/car/subwoofers_wiring.html?subs =2&impedance=DVC2x2
2 ohm load option. |
|
| Posted on Tuesday, October 19, 2004 - 03:24 am: |
|
oh sorry for posting three times, eek, and I made another mistake, their 4 ohms DVC, can I do it now, and how? [IMG]http://img.photobucket.com/albums/v154/Rocksja/Untitled-1.jpg[/IMG] |
Gold Member Username: Jonathan_f
GA
USA
Post Number: 2385
Registered: May-04
|
| Posted on Tuesday, October 19, 2004 - 03:29 am: |
|
Yes, with dual 4 ohm subs you can wire for a 1 ohm load. Do this:
http://www.crutchfieldadvisor.com/learningcenter/car/subwoofers_wiring.html?subs =2&impedance=DVC4x2
And do the 1 ohm load option. You can wire one sub to each terminal of your amp saying your amp has two terminals (for convenience purposes, it's still mono and presents a 1 ohm load). |
|
| Posted on Tuesday, October 19, 2004 - 03:39 am: |
|
I know, but please, I'm gonna try to do it myself, and don't really get it, so if anyone can please connect the dots to the pic? please? yeah I'm that clueless? http://img.photobucket.com/albums/v154/Rocksja/Untitled-1.jpg |
Gold Member Username: Jonathan_f
GA
USA
Post Number: 2388
Registered: May-04
|
| Posted on Tuesday, October 19, 2004 - 01:38 pm: |
|

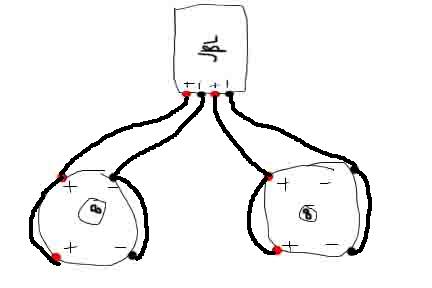

Here ya go:
The black is just regular speaker wire. |
|
| Posted on Tuesday, October 19, 2004 - 05:39 pm: |
|
Thanks, so it's not nessary to just set both subs into one terminal, THANKS Jonathan! |
|
| Posted on Thursday, October 21, 2004 - 12:40 am: |
|
ok im thinking of doing something similar, so let me get this straight.. if i have 2 4ohm dvc subs, with a 800rms amp @ 1ohm, wiring the subs as shown there would yeild.. 800 watts to both subs? or what.. im confused sorry |
Gold Member Username: Jonathan_f
GA
USA
Post Number: 2418
Registered: May-04
|
| Posted on Thursday, October 21, 2004 - 01:02 am: |
|
800 watts total, 400 to each sub, the power divides between the two. You wire the same way as drawn above, only difference is your amp likely has one terminal instead of two (there's no difference, the 2nd terminal is just for convenience). |
Michael F Unregistered guest |
| Posted on Thursday, October 21, 2004 - 02:12 am: |
|
Jonathan i got a similar problem see if you can help me i have a jbl1200.1 and two rockford fosgate12" 500 rms dvc 4ohm subs right know i have them wired like this, I have 1 speaker wired in parallel for 2ohm and the other one wired in parallel also. since the jbl has 2 channels or inputs + - + - i put both of them in their separate inputs. Did I wire them right? Thanks for your help. |
Gold Member Username: Jonathan_f
GA
USA
Post Number: 2428
Registered: May-04
|
| Posted on Thursday, October 21, 2004 - 02:20 am: |
|
Yep. Those two inputs are solely there for wiring convenience, it's the same as putting both subs on one terminal. |
