Thread: Advice hooking up TV, DVD/VCR, cable, & stereo receiver |

New member Username: Jujudee
Post Number: 1
Registered: 01-2004
|
| Posted on Monday, January 26, 2004 - 07:33 pm: |
|
I thought I knew what I was doing, but it's not working.
What we want: audio from TV speakers as well as the option for audio through stereo speakers, plus best possible connections for picture quality.
We are trying to connect a cable box, TV, Combo DVD/VCR, and Stereo Receiver.
Previously had it working fine, but with older TV and coaxial cable connections and RCA connections. Just got a new TV with Component Video and S-Video connections. Was told to use the Component Video for the DVD/VCR player and S-Video connection for Cable box (and RCA for the audio).
Looking for someone to tell me what cables to connect where. (or to point me to a source that will tell me)
First tried:
Component Video from DVD to TV.
S-Video from Cable box to TV
Cable in from wall to Cable box.
Audio (rca) out from TV to Receiver.
Audio from dvd/vcr to receiver.
Audio from cable out to TV.
With this config. we had cable sound on TV and on speakers, but sound was very very quiet, unacceptable.
And also had no DVD image on the TV, but did have DVD audio from the speakers. The TV remote has a switch for the different "inputs", and we did switch it to the Input 3/ Component, but still no picture.
We switched to RCA cables on the DVD and now have DVd picture and sound on tv and stereo speakers.
We switched to coax cable from cable box to TV, and audio from cable box to Receiver, and have sound in speakers and TV, but poor quality picture on cable.
I must be missing something? I would be ever grateful if anyone feels like helping me out on this, or knows where I can go to get some assistance.
Also wondering about recording onto the VCR.
Note: the back of the combo DVD/ VCR has one side that says "DVD ONLY" and has the s-video and component video connections. On the other side, it says "DVD or VCR" and has only RCA connections available.
|
|
Relevant Product Info
|
|
New member Username: Jujudee
Post Number: 2
Registered: 01-2004
|
| Posted on Tuesday, January 27, 2004 - 02:07 am: |
|
UPDATE:
After hours of research and experimenting, I've gone back to that original hook-up described above and have everything working. So maybe it will help someone else trying to set these components up.
It is not simple or convenient at all to operate though-- anything I can do about these things? To turn on the stereo speakers, I have to go to the TVs menu and turn on Fixed Audio Output every time. That was why the audio was quiet on the speakers. Was more convenient before using the coaxial connection, but the picture was too crummy.
Also inconvenient is with the DVD/VCR combo, the reason we weren't getting DVD picture was a setting on the DVD Player. We had to change it to Component (default was set on s-video). Sounds simple, but you cannot view the darn menu to change it! (get it? if there is no picture, there's nothing to view!) I randomly pressed the Progressive button and got a split/doubled screen fuzzy version of it, barely enough to make it out to change the setting--- is that normal? sounds faulty to me. This is a Sony SLV- D201P. And when power is disconnected, the setting goes back to default and has to be reset.
Third inconvenience is that I had to hook up the VCR part of the combo in the FRONT of the TV, since I ran out of A/V inputs in the back. Now that has to be shared with the video game.
My question now is: are all of these inconveniences normal? It seems awfully complicated. Should be a common need to hook up these units and speakers, is there a simpler way? |
Kent Murphy Unregistered guest |
| Posted on Sunday, February 15, 2004 - 09:44 pm: |
|
My answer to you is your same normal question. I am attempting to hook up all Sony; Wide Screen TV, DVD/VCR Combo and Home Theater. Wouldn't one think the graphics would relate across the instructions?
Insight to your Component/SVideo. With all the fiddling around, I went back to change the setting to S Video(S V cable install, so S V setting right??.) It was "defaulted" to Component. Attempted to change, it flashed, went to black screen and had to re-setup to get back to that option. I then found the Component over S Video priority note.
My question. I am as far as, DVD audio is through Home Theater but not TV. VCR audio is through TV but not Home Theater. Cycle through my TV/Video button: 1 is VCR, 2,blank, 3, screen fuzzy as you call it. DVD I think. 4, blank, 5, Clear DVD. The rest, blank.
Sound familar? I'm hooking up SLV-D300P. Your VCR hook up to the front of the TV.., I have more open on receiver and TV.
Thanks for your response & input. |
Thomas Verkamp Unregistered guest |
| Posted on Tuesday, February 17, 2004 - 03:33 am: |
|
Thanks Julie! |
Unregistered guest |
| Posted on Saturday, February 21, 2004 - 11:26 pm: |
|
i have a tv , a cable box io digital, a dvd player , a vcr and some sort of amplifier or merging thing they gave me from a electronic store. it worked fine for 1 month we moved and kept everything as it was except siconnected the cable from the back of the vcr when we settled i reconnected the cable from the tv back to the vcr and now all i get is snow!!! can someone tell me what the heck has happened i tried everything i get fine reception if i connect the cable directly to the tv. i can watch a movie, not a dvd or cable. has this connecting box gone bad?? what is the correct way to hook these things up |
Matthew Mckenzie Unregistered guest |
| Posted on Sunday, February 22, 2004 - 09:36 am: |
|
We have a Sylvania DVD\VCR palyer, a cable box and a gold star tv. We have tried numerous times to connect all the components. both the tv and dvd/vcr player have multiple connections. Needless to say we have been unsuccessful in hooking them all up. We even purchased a rf modulator video converter thinking that this would make our lives less stressful LOL but no luck. Is there something simple that we are overlooking.
Thank you for your cooperation
macattack56@yahoo.com |
sheridan Unregistered guest |
| Posted on Tuesday, March 23, 2004 - 01:01 am: |
|
I would like to know if you can hook up an s-video cable from my sat. reciever to my tv for better picture. But i also have a surround sound system,dvd,vcr,and my tv and sat. reciever are the only ones with s-video. What i want to do is be able to record off the sat. reciever and watch vhs tapes? My ? is can i even do this or do i have to stick with coaxile? what i'm looking for is better quality picture and be able to record and watch vhs tapes? thank you for any advice you may have. |
Unregistered guest |
| Posted on Friday, April 02, 2004 - 09:34 pm: |
|
Can some one please help me by emailing me directions as to how to hook up a TV, VCR/DVD player,Tape Deck, 5 CD changer, Digital Cable reciever, to a surround sound reciever with 5 speakers. I am exhausted from trying everything.
Greatful
Peg |
New member Username: Sholiz
Honolulu,
Hawaii
US
Post Number: 1
Registered: Apr-04
|
| Posted on Saturday, April 03, 2004 - 03:02 am: |
|
I'm lost....How do I hook up my home sorround sound system? I am trying to get sorround sound from my tv, dvd player and vcr. |
|
|
Unregistered guest |
| Posted on Wednesday, April 14, 2004 - 08:18 pm: |
|
My VCR is not communicating to my TV. There is a cable line from the cable box to the VCR. There is another cable line from the the vcr/tv combo , on the cable box that goes to the tv. I try to change this connection by pluging that cable line into the vcr since it has vcr/tv combo, but the tv will not come on. There is the cable from the wall going to the TV. |
billyhaze Unregistered guest |
| Posted on Wednesday, April 14, 2004 - 10:55 pm: |
|
I found a great site with all the different connections to hook up a variety of systems and components .including most of the above posts.
www.crutchfield.com also regarding a hookup with digital cable here is an attachment Surround Sound
Surround Sound will allow you to enhance the viewing of appropriately formatted
television signals by connecting the audio out jacks to a receiver/amplifier capable of
surround sound.
Hookup Overview
• The signal from the cable wall plate is connected to the set-top box’s input. The RF
output of the set-top box is connected to the ANT/Cable input of the VCR.
• The signal from the VCR’s RF output is connected to the TV Ant/CATV input
of the TV set.
• The TV’s left and right audio channel outputs are connected to the surround
sound receiver via two sets of audio wires. These have RCA connectors on
each end
|
Unregistered guest |
| Posted on Wednesday, April 14, 2004 - 10:58 pm: |
|
This should help ,some configurations vary but basically it is the same .
Hookups with a Home Theater A/V Receiver can be the most complex, but knowing
what to look for is the key. Every home theater system will be a little different, but
the basic connections and components are similar. This type of a hookup is also
referred to as the star pattern, because all the components connect into one central
component, the A/V receiver.
• Signal in from the wall plate is split (for PIP) at the 2-way splitter. One output
goes directly to the TV and the second output goes to the input of the Digital
Set-Top box.
• All the other component outputs connect directly to the A/V receiver and the
A/V receiver has one output to the TV. Audio signals are processed by the
A/V receiver and sent directly to the home theater speakers.
• You will control all video and audio information with the A/V receiver remote
control (the digital set-top remote may also have to be used to control the settop
box). |
Unregistered guest |
| Posted on Sunday, April 25, 2004 - 07:50 am: |
|

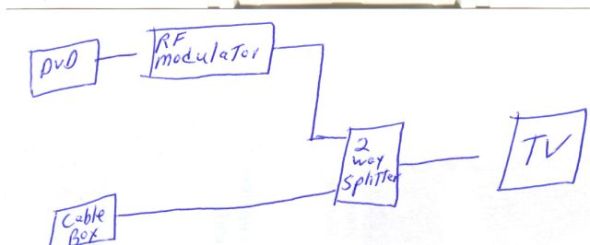

I am trying to hook up a dvd player with an RF modulator and a A/B switch along with a digital cable box to my tv. Could some one email me and tell me how to hook them up so everything works please? thanks. |
notorious av guy Unregistered guest |
| Posted on Monday, April 26, 2004 - 04:12 am: |
|
Ok Terrie
Easy solution: most modern rf modulators have an auto detect circuit whereby if it senses the video sync from say your DVD's video output, it'll AUTOMATICALLY do the switching for you - pretty cool eh, you don't have to manually switch anything.
Hard way: (since ur using an rf mod, I assuming you just have a coax plug on the tv and that ur tv lacks av jacks) Take your cable box's rf/coax antenna output and plug it into "A" of the a/b switch. Now hookup the audio and video from the dvd to the rf mod...then take the coax out from the rf mod and plug it to B of the a/b swtich.
Lastly take the TV out of the a/b switch and plug it to the TV. Set everything - rf mod, cable box channel output, and the tv itself to channel 3
A = cable
B = DVD |
Unregistered guest |
| Posted on Tuesday, June 15, 2004 - 01:52 pm: |
|
hi - technical idiot here, so please be gentle. We just moved. trying to hook up the TV, IO Digital cable, CD player, VCR & a DVD player - all to play through my stereo (an NAD system). we used to be able to view TV in stereo through the VCR...i see this question is posted a lot, but darned if i can figure out how to view the responses (that's how inept i am) Could some one please e-mail me some simple instructions to FiaSophia@hotmail.com ? thanx tons |
Unregistered guest |
| Posted on Sunday, June 20, 2004 - 06:39 pm: |
|
How to set up VCR to record with receiver??
Current setup is as follows:
wall cable in to cable box
red/white audio to receiver
receiver video out to tv
then the vcr out composite cables to receiver vcr in
now when I hook composite cables to receiver vcr out and vcr in and try to record what's currently on tv, all I get is fuzz.
Can anyone help me try to sort this out? It all worked fine until we added the home theater system with the receiver.
Thanks in advance. |
Silver Member Username: Project6
Post Number: 868
Registered: Dec-03
|
| Posted on Sunday, June 20, 2004 - 10:17 pm: |
|
karen
go back to the original configuration before the HT purchase.
Don't use the receiver as a go between to record onto vcr.
Use the home theater to enhance the sound experience, all video inputs should go directly to the TV and all audio goes to HT.
|
|
| Posted on Wednesday, June 23, 2004 - 08:43 pm: |
|
I have an a/b switch and I want to connect my cable box, tv, & vcr/dvd/rw so that I can record either from the cable box or from the tv. The way it's hooked up now, I can't record from the cable box, but, before I moved, I had it hooked up so that I could --so I know that it's possible. The thing is, I lost the booklet with the diagram showing how to hook it up correctly. Can anyone point me to a diagram or advise me how to do this? Thanks- |
Unregistered guest |
| Posted on Monday, June 28, 2004 - 05:37 pm: |
|
I presently have two different types of hook ups I need advice, and directions on how to do?
1. I have a JVC stereo TV, Hatachi VCR, Memorex DVD player, and a cable box. Later I plan on adding a surround sound system to this one. but for right now I just need the diagram and instructions for this installation, oh by the way it has the optional S-Viedo?
2. I have a Apex color TV (Flat Screen), a Emerson VCR, RCA DVD player with progressive scan capabilities, Panasonic bookshelf stereo system, and a cable box. At presnt I have the TV, VCR, Stero System, and Cable box all hooked up. I just need to know how to add the RCA DVD to the whole system. Please also send me diagram along with instructions.
Also inform me on what additional cables I need to pick up, and or other electronic hardware items.
Thank you for your help in this matter
Sincerly
Larry J. Homan |
New member Username: Dirtfarmer
Post Number: 8
Registered: May-04
|
| Posted on Tuesday, June 29, 2004 - 11:05 pm: |
|
http://forum.ecoustics.com/cgi-bin/bbs/show.pl?2/16195 |
Unregistered guest |
| Posted on Wednesday, June 30, 2004 - 09:42 pm: |
|
I have an RCA XL 100 television and just bought a DVD player. There are only three 'ports' on the back of my TV: one for the cable conection, and two others for 'plug ins' one on top of the other, unlabelled. (Which 'port' is which?) Because the DVD player has two audio and one video plug do I need a modulator or a 'y' connector for the audio plugs? What channel should I be using on the tv?
Many thanks- |
Unregistered guest |
| Posted on Sunday, July 11, 2004 - 07:19 pm: |
|
I have an Apex DVD, RCA VCR, Dish Network sattelite system, and older tv. The VCR is hooked up through the sattelite system. I want to hook up DVD through the VCR, as I was told it is easier. I can get sound, but picture is fuzzy and goes diagonally left. There are 2 video in/out and 2 audio in/out on VCR, and 8 outlets on DVD - Video, R, L, Coaxial, S-video, Y, Pb, Pr. Three cords came with DVD. Several combos have not improved the picture. Need simple instructions. Thanks. |
|
| Posted on Monday, August 09, 2004 - 01:02 pm: |
|
Please help.... I have read all of the above, but still am confused. I need to know how to hookup my projection tv, digital cable, dvd, and receiver for surround sound. Could anyone give me step by step directions. Many thanks... |
Unregistered guest |
| Posted on Wednesday, August 11, 2004 - 01:31 pm: |
|
Please help, I've read all of the previous emails and still very confusing. I have a Denon 1804 AV receiver with separate DVD player and a VCR player. Doe anybody have a diagram or advise how to hook up and then setup the av receiver to make everything work?
Many thanks |
New member Username: Hokievt
Post Number: 2
Registered: Aug-04
|
| Posted on Thursday, August 12, 2004 - 03:17 pm: |
|
Here's what I did:
Audio output goes from the TV to the receiver into the audio input.
VCR goes into the TV via the cable. Wall to VCR to TV.
The DVD goes to the TV via S-video cable.
DVD audio goes from DVD to receiver via digital cable.
Note: this was all laid out in my owners manual. You should be able to find your owners manual online. I did. |
Unregistered guest |
| Posted on Wednesday, August 18, 2004 - 02:52 pm: |
|
hi everyone. hopefully someone can help me. we just received dish network but none of the channels are in stereo. I've called dish network and they tell me that the tv need to set to stereo which it already is. does anyone else have this problem or know how to fix it? |
|
| Posted on Friday, August 20, 2004 - 02:22 pm: |
|
Hello folks...I yes an idiot !! well I just moved and I rushed to unplugged all!!...know I'm "0" and brain is on pain.
I have to hookup with the following compoments
1)SAT Receiver from dish network to: TV, Stereo Receiver, CD, VCR, DVD all JVC. Please any body can help!!
Thank very much!!
<pacmart1@earthlink.net>
|
J. Vgine Unregistered guest |
| Posted on Friday, August 20, 2004 - 06:13 pm: |
|
See if anything here helps:
http://www.prillaman.net/ht_info_8-wiring.html |
J. Vigne Unregistered guest |
| Posted on Friday, August 20, 2004 - 06:24 pm: |
|
You can also put "home theater wiring diagrams" into a search engine and browse till you find what suits your needs. Unfortunately there are too many variations to tell how to hook up everything in one easy answer. These guides will get you started and then it is best to sit down with your owner's manual. You can also always call the store where you bought your system for some professional assistance from someone who now has some of your money. |
Unregistered guest |
| Posted on Saturday, August 21, 2004 - 12:28 am: |
|
I have a coax cable feeding from a Dish box, I have a PS2, and VCR and would like to hook them so I can use them when needed...I was told I could use an A/B switch...Any written or schematic help would be appreciated....Thanks! |
Unregistered guest |
| Posted on Thursday, August 26, 2004 - 04:30 pm: |
|
Hello, I'm trying add a DVD player to a tv,cable box, vcr setup.I'm using a S-cable from DVD to TV but its not working I'm using the video out on the tv,I think I need a video in but don't see that connection. Any suggestions?
Thanks,
Sue |
Unregistered guest |
| Posted on Saturday, August 28, 2004 - 03:59 pm: |
|
Can someone please e-mail me a diagram on how to link a TV to a VCR, a digi-box and a DVD player. Urgent...Mother-In-Law about to kill! |
Bronze Member Username: Dirtfarmer
Post Number: 17
Registered: May-04
|
| Posted on Saturday, August 28, 2004 - 08:03 pm: |
|
http://forum.ecoustics.com/cgi-bin/bbs/show.pl?3/10874
|
Bronze Member Username: Dirtfarmer
Post Number: 18
Registered: May-04
|
| Posted on Saturday, August 28, 2004 - 08:45 pm: |
|
sorry posted the wrong link
go here for more info and diagam and photo
http://forum.ecoustics.com/cgi-bin/bbs/show.pl?2/16195 |
|
| Posted on Sunday, August 29, 2004 - 01:08 pm: |
|
I looked thorugh all of these wiring guides and cant find my exact situation. I have an older tv(with only coax input), cable straight from the wall, a vcr, dvd, and a sony reciever/surround sound speakers. I read a lot about the RF Modulator, and it sounds like that would work to an extent, but I dont know how sound would work from the tv. Can anyone help??!?!...Please!! |
New member Username: Am_beauty
Post Number: 2
Registered: Sep-04
|
| Posted on Saturday, September 04, 2004 - 12:42 am: |
|
I'm trying to setup my new tv to my dvd/vcr and HT. The tv has S-video, RCA in and out and has the component connections. My dvd/vcr has on one side: dvd & vcr (only RCA plugs); other side has just dvd (component and S-video) and also it has digital coaxial audio and fiber optic digital audio. my stereo receiver has the coaxial and optic digital and places for just the dvd (out), video2 (out), and two video1(in & out) and a single monitor (out).
1. do I need all these hooked up at same time? (ex sound: RCA, Digital coaxial & optic digital audio)(ex video: RCA, S-video & component)I get conflicting messages that they do the same thing but one is better than the other. true?
2. no matter what setup i try i still have the same problem: stereo sound thru tv but not dvd or vise versa. i'll set the audio out from tv into stereo In, i'll get sound, nothing through dvd. Same happens when i change the audio out from dvd to stereo; get sound, but when i turn dvd off, nothing thru the tv.
3. With the stereo hooked up, I need to be able to control the sound through the tv's volume. Same when the dvd is on. (ex problem: tv is turned all the way down, but sound is still coming from stereo. Or vcr player is on, tv is off, but sound is coming through the stereo). I had the tv/stereo hooked up right with the old tv, but now i can't get it. I was never able to control the sound thru the tv while a dvd is playing. (vcr yes, dvd no. i had to change the setting on my stereo to dvd and turn the volume of the tv down and control the sound thru the stereo only. there must be a way around all that.)
This is all very complicated!!!!!!
PLEASE, PLEASE email me (am_beauty2001@yahoo.com)
|
Gold Member Username: Project6
Post Number: 1334
Registered: Dec-03
|
| Posted on Saturday, September 04, 2004 - 08:20 am: |
|
Heather,
How many audio inputs do you have on your TV? |
Unregistered guest |
| Posted on Saturday, September 04, 2004 - 06:05 pm: |
|
My daughter has a TV with just the one output. We were hooked up to a VCR and DVD through an
RF modulator with an old cable converter box that went bad. We have had to replace it with a digital, and when I hook it up the way it was with the old converter box it doesn't work. Do I need additonal equipment? I have been changing things all day and can't get anything to work like it use to. At this point all I have is the digital cable working |
Gold Member Username: Project6
Post Number: 1353
Registered: Dec-03
|
| Posted on Sunday, September 05, 2004 - 07:05 am: |
|
You have 3 devices going into your TV?
1. VCR
2. DVD
3. Digital Cable box
The TV has 1 input and it is via coaxial cable?
Does it have a yellow colored video input?No?
You are going to need a switch, usually found at your local electronic store, Circuit City, Best Buy, Fry's, Radio Shack, etc. Tell them you are trying to use 3 devices into 1 tv that has only one output and they will point you to a product made for games usually made by Pelican or Mad Catz. You can hook up your equipment to one of these and you can just switch input devices by pushing a button.
Does the digital cable box have coaxial output or one with rca outputs? They usually don't play well with other devices. |
Unregistered guest |
| Posted on Sunday, September 05, 2004 - 09:31 am: |
|
The tv does not have a yellow colored video input.
I don't understand the terminology, the digital cable box has so many connections in the back that I don't know what to do. There were the 2 regular ones that that have nothing where I hooked up the tv and vcr and then there are little cables already connected . There are 2 RF In's connected to each other with a little cable and then a Conv In and to TV/VCR that are connected to each other via cable. Then there is an area with 5 Audio/Video one row has the red, white, yellow -Audio out R & L and Video, then a reddish auxilary and a white video in. I did go to Radio Shack, but the girl just kept insisting I needed to buy a new RF Modulator that mine must have gone bad, but as it was working up until the minute I changed from the digital to the regular converter, I doubt that. Currently I gave up and just have the VCR hooked up with the RF Modulator. |
Bronze Member Username: Dirtfarmer
Post Number: 23
Registered: May-04
|
| Posted on Sunday, September 05, 2004 - 10:14 am: |
|
any one wanting more info on dvd and tv and how to connect, go to this forum
http://forum.ecoustics.com/cgi-bin/bbs/show.pl?2/16195
i post pictures, info new letter and a lot more
|
New member Username: Am_beauty
Post Number: 4
Registered: Sep-04
|
| Posted on Sunday, September 05, 2004 - 11:09 am: |
|
Berny,
I have one RCA and Component Inputs and one RCA output. |
New member Username: Am_beauty
Post Number: 5
Registered: Sep-04
|
| Posted on Sunday, September 05, 2004 - 11:32 am: |
|
Also I'm getting mixed messages about what to connect everything with. On TV I have RCA, S-Video, and Component. Do I need all these. On DVD/VCR I have on one side and In/Out RCAs, then on DVD side only the Components, S-Video. There are also Digital fiber optical and coaxial plug that can go in the HT. Right now I have just about all them hook up, but I heard that some are better than other, and if so I need to get rid of some wires (cause it's a mess back there) |
Unregistered guest |
| Posted on Monday, September 06, 2004 - 10:24 am: |
|
I must connect cable tv for two tv's and only have one cable outlet. One tv is in the living room (the outlet is in this room) and one in the bedroom.
What is the best way to do this? |
Gold Member Username: Project6
Post Number: 1368
Registered: Dec-03
|
| Posted on Monday, September 06, 2004 - 01:09 pm: |
|
Heather,
see if you can make sense of this
DVD/VCR Output (use component from DVD video) to component input of TV. You do not need to use the RCA and S-Video, you will lose any video pictures if they are hooked up at the same time to one device.
Does the VCR side output its own video signal? If it does, you have to connect this to a separate video input n the TV, e.g., Video 2.
How many Video choices do you have on the TV when you switch video choices, i.e., Video 1, Video 2 etc.? I will assume you have at least 2.
On the Audio side, you can chose one or all, but for neatness' sake you can pick either one, Coaxial or Optical entirely up to you. Benefits and disadvantages are a whole different can of worms so we won't even discuss it here
Hook up the Digital output to the digital input of your home theater receiver.
Let us make sure this set-up works first and then we'll tackle the audio control issues.
cheers
|
Gold Member Username: Project6
Post Number: 1369
Registered: Dec-03
|
| Posted on Monday, September 06, 2004 - 01:11 pm: |
|

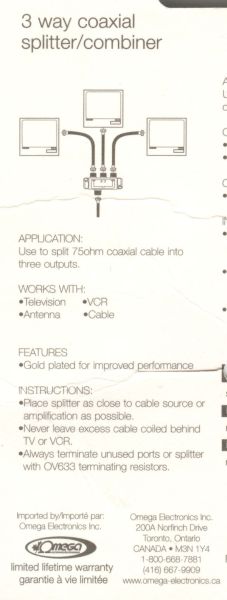

Robert, you need a cable splitter. Go to Radio Shack and they will have what you are looking for. |
Unregistered guest |
| Posted on Tuesday, September 07, 2004 - 12:24 pm: |
|
Hi....I have a new tv, using an old vcr, have cable. hooked cable to cable box, hooked cable out to vcr, hooked vcr cable to tv, cable box did not come on.....I know this is probably stupid, but I am a widow and I am 72..please help. |
|
| Posted on Monday, September 13, 2004 - 07:02 pm: |
|
I have a Goldstar VCR which I rexceived as a gift in 1989. It was hooked up for me at that time. I
moved a year ago and have not been able to hook
up the VCE to the cable TV. It is the same TV I had in 1989. It is a Sony. The cable connection is
visible from the wall into the UHF TV outlet, but
there is no wire from the VCR that fits ino the other outlet. Cany you help? |
New member Username: Ozzywyant
Post Number: 1
Registered: Sep-04
|
| Posted on Thursday, September 16, 2004 - 11:41 am: |
|
help! I have an older Ge portable tv,emerson DVD/CD player a sharp vcr a sharp stereo cassette deck and a technics stereo receiver and possably a admiral CD player though I really don't need it.I need to know how to hook this all together I have 2 speakers can get 2 more if necessary. Help please!! |
Bronze Member Username: Jdsaenz1
Post Number: 63
Registered: Jun-04
|
| Posted on Thursday, September 16, 2004 - 06:06 pm: |
|
What model number is your Technics receiver and tv? This will help to identify what kind of connections you'll need. |
Marilyn chubaca Unregistered guest |
| Posted on Friday, September 17, 2004 - 11:10 am: |
|
Connecting DVD to TV/VCR combo.
RF modulator can't bypass VCR component in TV combo. Been reading all the post messages but none seems to address this issue, anybody with knowledge of this, please help!!!!!!! |
Unregistered guest |
| Posted on Friday, September 17, 2004 - 03:49 pm: |
|
I am trying to hook a CD burner into a stereo system, in order to record some LPs. I have a new ONKYO receiver with Tape 1 and Tape 2 input and output jacks, along with the normal phono and cd jacks. The burner has a play deck and a play/record deck. The receiver recognizes the CD burner when you play existing CDs and the burner will record CDs played within itself; the record function will not recognize any external source. The manuals for both the burner and the receiver are not helpful. Can anyone give me some direction? |
|
|
