| Author |
Thread: Mtx 81001d amp 4 Sale |

New member Username: Legend_rider
Metairie,
Louisiana
United states
Post Number: 2
Registered: Aug-08
|
| Posted on Tuesday, August 26, 2008 - 05:01 am: |
|

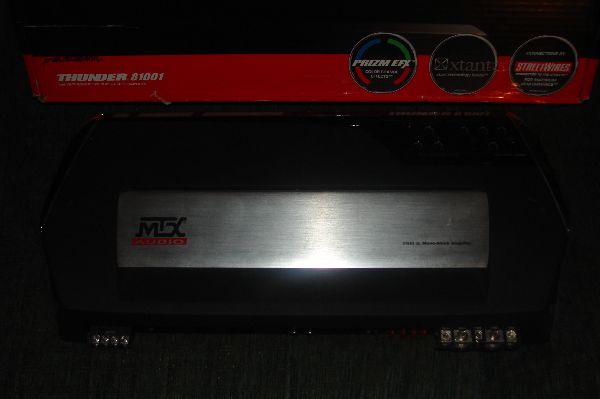

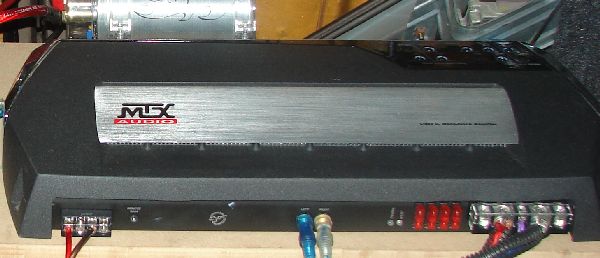

I recently purchased this amp at the end of February 2008 for about $450 only used it for about 3 or 4 months still in like new condition accept for a few marks on it. Hasn't been repaired and not a refurbished amp have the original box and all accessories to go with it spec sheet bass knob and etc. Askin atleast $300.00 or best offer
 |
|
|
|
New member Username: Steveyhustle
Rancho Cucamonga,
CA
Post Number: 7
Registered: Jun-08
|
| Posted on Wednesday, August 27, 2008 - 06:16 pm: |
|
specs? |
New member Username: Legend_rider
Metairie,
Louisiana
United states
Post Number: 4
Registered: Aug-08
|
| Posted on Wednesday, August 27, 2008 - 06:57 pm: |
|
HERE ARE THE SPECS FOR THE MTX 81001d amp
Click For More Images
Click for more Images
Quick Install Settings
Quick Install Wiring
Owner's Manual
StreetWires
Amplifier Dimensions
TA81001 Specifications
# of Channels 1
Minimum Single Channel Impedance 1
Class D (Patented Adaptive Class D)
(Pat. No: US06753729) x
Amp Type Optimized for Subwoofer x
Power Supply Semi Unregulated MOSFET
(Pat. No: US05598325) x
THD + Noise (1 Watt) 0.5%
Signal-To-Noise Ratio (1 Watt) 68 dB
Overload Protection x
Thermal Protection x
Xtant Technology Cooling Continuously Variable Fan Speed x
Connection Terminals StreetWires Connectors x
14.4VDC Power 4 Ω 500W
2 Ω 1000W
1 Ω 1500W
4 Ω (Two Amps Strapped - wattage is combined power from both amps) 2000W
2 Ω (Two Amps Strapped - wattage is combined power from both amps) 3000W
INPUT (RCA Connection) Low Level x
Hi Level w/ Smart Engage (Pat. No: US06556683) x
INPUT SWITCH Input Sense 100mV-1V/1V-10V x
GAIN CONTROL Mono - 100mV-10V x
CROSSOVER Low @ 40Hz-200Hz, 24dB x
SubSonic @ 20-50Hz, 12dB/oct x
EQUALIZATION Parametric: Boost/Cut +/-12dB, Freq. 30Hz-80Hz, Q 0.5-4.0 x
OTHER FEATURES Remote Subwoofer Level Control Parallelable x
Phase: 0 or 180 x
FUSE RATING Total 160
Quantity x Fuse Value 4 x 40
DIMENSIONS Width 20-11/16"
Depth 9-5/8"
Height 2-1/2"
MONO-BLOCK
TA92001
TA81001
TA7801
2-CHANNEL
TA91002
TA8502
TA7402
4-CHANNEL
TA7804
ThunderTA
Super Amp Main
Compare Super Amplifiers
Match TA Amps
to Subwoofers
Match TA Amps to
SledgeHammer Enclosures
Match TA Amps
to Speakers
Thunder Amplifier Dyno Certificate
©2008 MiTek. All Rights Reserved.
NEWS · SUPPORT · WHERE TO BUY · ISO 9001 CERTIFIED · CONTACT |
New member Username: Steveyhustle
Rancho Cucamonga,
CA
Post Number: 8
Registered: Jun-08
|
| Posted on Wednesday, August 27, 2008 - 07:04 pm: |
|
Hmm honestly cant really understand those, whats the amp do 1x@2ohms ? |
New member Username: Legend_rider
Metairie,
Louisiana
United states
Post Number: 6
Registered: Aug-08
|
| Posted on Wednesday, August 27, 2008 - 07:53 pm: |
|
the amp does 1000 watts rated and 1516 watts measured @ 2 ohm and at it does 1500 watts rated and 1871 watts measured @ 1 Ohm |
Gold Member Username: Mike_16
Reedsburg,
Wisconsin
Us
Post Number: 1051
Registered: Aug-06
|
| Posted on Saturday, September 13, 2008 - 12:52 pm: |
|
still for sale? |
New member Username: Legend_rider
Metairie,
Louisiana
United states
Post Number: 7
Registered: Aug-08
|
| Posted on Saturday, September 13, 2008 - 02:49 pm: |
|
yes it is are. you interested in buying it? |
Silver Member Username: Teamdeboy1971
OPTIDRIVE LN. La F...,
TN
Major Bass P...
Post Number: 549
Registered: Nov-06
|
| Posted on Saturday, December 06, 2008 - 02:52 am: |
|
Is this amp still for sale????? |
Gold Member Username: Mike_16
Mauston wi,
Wisconsin
Us
Post Number: 1109
Registered: Aug-06
|
| Posted on Sunday, March 22, 2009 - 09:21 pm: |
|
is the amp still for sale?????? |
New member Username: Mariano_831
Post Number: 1
Registered: Oct-09
|
| Posted on Tuesday, October 20, 2009 - 02:18 pm: |
|
do you know if this amp can handle 18 volts? |
