Author Thread: How do I connect 2 hd lcds?
Top of pagePrevious messageNext messageBottom of page Link to this message

Jason
New member
Username: Tibr6

Post Number: 1
Registered: Mar-07
Posted on Friday, March 30, 2007 - 02:10 pm:    Edit Post
I am trying to figure out how to connect both of my hd lcd tvs to a single hd motorola cable box and a xbox 360. Any help would be great. Thanks
Top of pagePrevious messageNext messageBottom of page Link to this message

King Tapeman
Silver Member
Username: Tapeman

New York, NY

Post Number: 910
Registered: Oct-06
Posted on Saturday, March 31, 2007 - 02:57 pm:    Edit Post

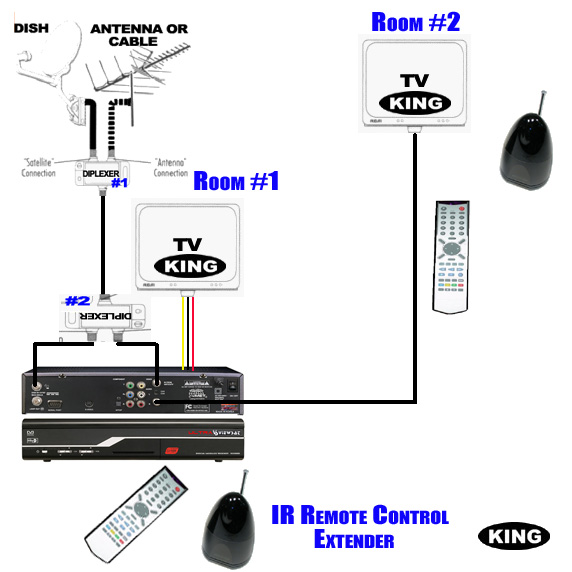

One simple way:
- Run a second coaxial cable from receiver.
- You need to use a Jensen IR remote extender


How to share and change thru channels with one Single Receiver

Requirements:
- Wireless IR Remote Control Extender about $25
- You can use same remote, or extra remote control
- One Coax cable out from Receiver to 2nd TV Set
IT WON'T BE HD BROADCAST ON SECOND TV SET

It will let you change remote and all features in your Receivers
IR Signal will go thru the walls and up to about 100 feet
It will be same program on both TV sets
You can also use extended remote to share Tivos, DVRs, VCR etc.
GREAT REFERENCE TO HAVE
Upload

For more cool installations
http://forum.ecoustics.com/bbs/messages/2/330353.html
