Thread: Questions for LK, Kings Tape-110 and CH data |

New member Username: David_2
Post Number: 1
Registered: Jan-07
|
| Posted on Friday, January 05, 2007 - 11:48 am: |
|
RECEIVER: 3500SD
DISH 1: 119/110, TWIN LNB: DISHPRO PLUS
DISH 2: 61.5, LNB: DISHPRO
DiSEq: 4 X 1
Right now, cables from 119 LNB to DiSEq 1, 110 LNB to DiSEq 2, 61.5 LNB to DiSEq 3
And one cable from DisEq to receiver
I cannot get any channels scanned on 110 (echo 8.6).
CHANNELS FROM other 2 Satellites are fine
Do you have any suggestions?
Also, when I try to backup my channel list by going to MENU, SD MEMORY
I do not see anything like Code, CH DATA, MP3
How can I get it back
thanks |
|
|
|
Silver Member Username: Tapeman
Post Number: 327
Registered: Oct-06
|
| Posted on Friday, January 05, 2007 - 12:09 pm: |
|
2 things must consider
With receiver off and 61.5 not plugged at first
Then turn receiver on to Antenna set-up
1- Match LNB type in LNB Type option
2- In DISEqC switch Assign each LNB to a seperate port
Assuming that you don't have an alignment issue these are the 2 areas you need to try
Can't use Standard/universal option in LNB set-up
First try OSD-DP in LNB set-up
119 to port-1 in DISEqC
110 to port-2 in DISEqC
or step and repeat:
Twin LNB-1 in LNB set-up
119 to port-1 in DISEqC
110 to port-2 in DISEqC
Twin LNB-1 in LNB set-up
With receiver off and 61.5 not plugged
Let me know if these options work |
Gold Member Username: Prfrmnj
Post Number: 1127
Registered: Oct-05
|
| Posted on Friday, January 05, 2007 - 02:02 pm: |
|
King - I may be mistaking but look at this C/P from his post:
"RECEIVER: 3500SD
DISH 1: 119/110, TWIN LNB: DISHPRO PLUS
DISH 2: 61.5, LNB: DISHPRO
DiSEq: 4 X 1
Right now, cables from 119 LNB to DiSEq 1, 110 LNB to DiSEq 2, 61.5 LNB to DiSEq 3"
----------------------------------
SAMDO:
First - The problem I see here is that you are using a DishProPlus LNB (you will need a DN Receiver connected to this at all times in order to supply power to this LNB)
Second - Because this is a DishProPlus this mean that you do not use a DISECQ switch. the DishProPlus LNB has a built in Switch and an input for a third sat/lnb. You will have two outlets/outputs and one input on the fat head DishProPlus - From the two outlets/outputs you will run one cable directly into your STB and the other will have to go to your DN receiver (which will provide the power supply for the LNB).
The third connection in this LNB is for an additional sat input. What this means is that you will connect your 61.5 LNB into this (as mentioned it has an internal switch) and you will configuer DISEcQ as stated by King above:
119 = 1
110 = 2
61.5 = 3
LNB Type is DishPro (not standard) |
Gold Member Username: Prfrmnj
Post Number: 1128
Registered: Oct-05
|
| Posted on Friday, January 05, 2007 - 02:06 pm: |
|
Last but not least - These Dish Pro Plus LNB are not FTA friendly and while the power supply to the LNB is the biggest problem. Just adding any DN receiver will not work either. These were designed to be used with the newer models. A 311 or 322 will not do the job. |
Silver Member Username: Tapeman
Post Number: 331
Registered: Oct-06
|
| Posted on Friday, January 05, 2007 - 03:44 pm: |
|
I agree PRFRMNJ Twin DP may not be compatible with some receivers
But if it is a voltage problem neither LNB will power up
Therefore first best solution is to look for different LNB option like I was saying above he's got nothing to loose
Twin DP has its own circuit switch similar to SW34 and similar to SW21 will work on some Receivers and not others. I didn't start log to see which one works and which won't work.
Second best option is to use the Twin DP as a single LNB and strap a second to DISEqC with cleaver alignment
Third option is to miss with its voltage power supply without knowing proper requirement
Forth trade it for a regular DN500 Twin LNB
If necessary I'll start my research to modify this Twin DP |
New member Username: David_2
Post Number: 2
Registered: Jan-07
|
| Posted on Friday, January 05, 2007 - 03:51 pm: |
|
King Tape and PRFRMNJ
I thank you for your input
How about 2nd part of my original request about restoring channel data on my receiver |
Silver Member Username: Satscanner
Beaversbush,
Sportsmans P...
Great White ...
Post Number: 648
Registered: Nov-06
|
| Posted on Friday, January 05, 2007 - 05:31 pm: |
|
After you change your lnb just blind scan . |
Gold Member Username: Prfrmnj
Post Number: 1137
Registered: Oct-05
|
| Posted on Friday, January 05, 2007 - 06:36 pm: |
|
This really needs to be clarified:
There are THREE (Fat Heads) types of Dish Pro LNB's
Dish Pro Plus (NOT FTA Friendly Mainly Power issues)
Dish Pro Twin (two outputs/outlets)
Dish Pro Quad (four outputs/outlets)
The Twin and Quad are very FTA Friendly and I've tested with Pansats, Viewsats, Fortecs (okay you get my point).
To run a setup using a Dish Pro (Twin or Quad) with a third sat (61.5) the setup is as follows:
One dish using the Dish Pro (fat head) with 110 & 119
Another dish using a Single LNB on 61.5
All connected to a DP34 and running directly to your STB. Your antenas on the STB should be configured as follows:
LNB TYPE = DishPro or OSC-DP (depending on STB)
Frequency = 11250
22khz = Off
DISEcQ:
119 = 1
110 = 2
61.5 = 3
Again I repeat this is using the DishPro Fat Head (Twin or Quad). This is not the setup for the DishProPlus.
For the DishProPlus please refer to my post # 1127 |
Gold Member Username: Prfrmnj
Post Number: 1139
Registered: Oct-05
|
| Posted on Friday, January 05, 2007 - 06:48 pm: |
|

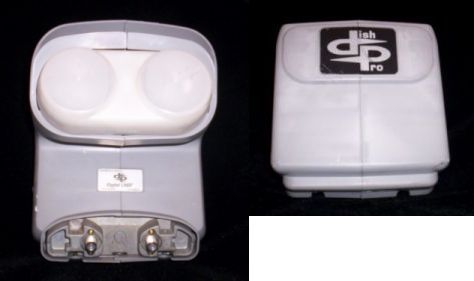

These are DishPro (Twin & Quad) Very FTA Friendly
Any of these will work for you! |
Gold Member Username: Prfrmnj
Post Number: 1140
Registered: Oct-05
|
| Posted on Friday, January 05, 2007 - 06:53 pm: |
|
This is a DishProPlus (Not FTA Friendly) Not Recommended....
Notice the two outputs/outlets for DN Recievers (new receivers that is) and one input for a third sat hookup without a need of a switch. |
New member Username: David_2
Post Number: 4
Registered: Jan-07
|
| Posted on Monday, January 08, 2007 - 06:12 pm: |
|
PRFRMNJ
For the DishProPlus please can you link to post # 1127?
thanks |
Gold Member Username: Prfrmnj
Post Number: 1158
Registered: Oct-05
|
| Posted on Monday, January 08, 2007 - 08:11 pm: |
|
Samdo - What are you asking? I've already posted pretty much every answer you need above! Did I miss something? |
New member Username: David_2
Post Number: 5
Registered: Jan-07
|
| Posted on Thursday, January 11, 2007 - 09:51 am: |
|
PRFRMNJ
sorry bud
I was looking for POST# 1127 and I see it above |
Gold Member Username: Lklives
Post Number: 7035
Registered: Jan-06
|
| Posted on Thursday, January 11, 2007 - 11:04 am: |
|

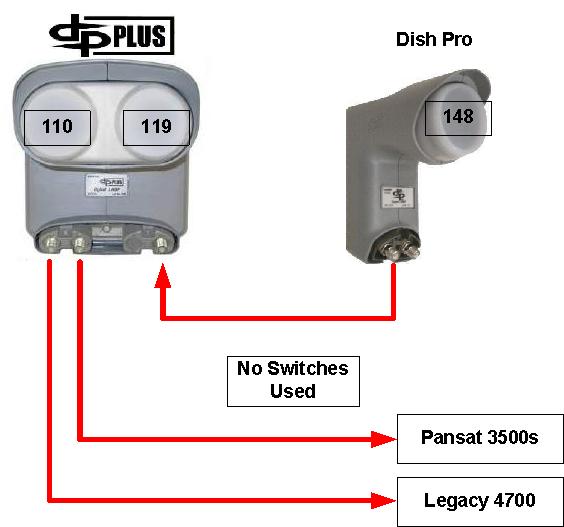

DPP setup...as already stated by PRFRMNJ, U need to keep BOTH receivers ON to power the Dish Pro Plus (DPP) LNB..and input correct antenna/dish settings in receiver...FTA receiver type doesn't matter...and I believe U can sub another FTA for the DN Legacy receiver in diagram (but not 100% sure)..and 3rd sat/LNB can be any one U want (NOT 148 necesarily)..
119-#1, 110-#2, #3-other sat
LNB type -Dish pro
freq-11250
etc..
 |
