| Author |
Thread: Samsung dlp restoring factory settings |

New member Username: Nctinter
Post Number: 1
Registered: Apr-06
|
| Posted on Sunday, April 02, 2006 - 09:18 pm: |
|
I have a Samsung hl-p5067 and the CCA settings have been changed. I had a listing of all the factory settings in the service menu but ( I swear this happened) my dogs ate it. Anyone out there have a listing of these factory settings. CCA and COEFFs? thanks |
|
|
|
Silver Member Username: Fyi
Dallas,
Texas
Post Number: 640
Registered: May-05
|
| Posted on Tuesday, April 04, 2006 - 07:17 pm: |
|
It's dfferent for each light engine. When a light engine is shipped to a tech to replace a bad one the box includes a data sheet with values specific to that engine.

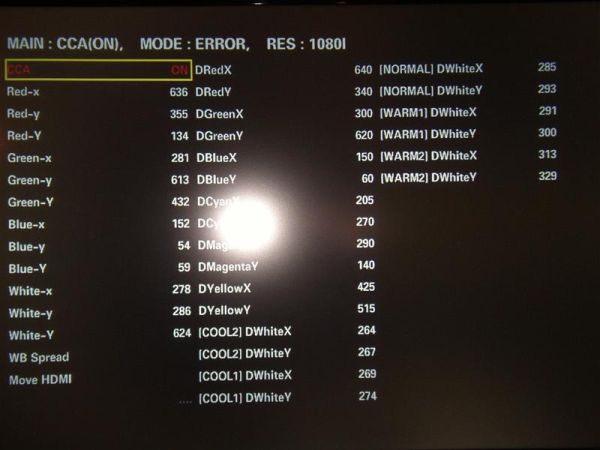

Here is a snapshot of one before tinkering, but use it for comparison or ballpark.
 |
New member Username: Nctinter
Post Number: 2
Registered: Apr-06
|
| Posted on Wednesday, April 05, 2006 - 12:03 am: |
|
thanks alot that helped alot. You wouldnt happen to have the DNIe settings also? Im not sure if they were messed with, but the numbers look funky. Thanks again, I've searched everywhere for this info! |
Silver Member Username: Fyi
Dallas,
Texas
Post Number: 645
Registered: May-05
|
| Posted on Wednesday, April 05, 2006 - 11:35 am: |
|
DNIE creates a lot of bad edge enhancements.
I turned all five or six DNIE values to -0-.
It sure cleaned up some squiggly outlines in standard def. Dropping your sharpness to 20 is a big help too. |
|
