| Author |
Thread: Archive through September 20, 2005 |

New member Username: Djohns95
Post Number: 2
Registered: Sep-05
|
| Posted on Monday, September 05, 2005 - 11:07 am: |
|
Mr. Lynch, can you add me to the list of people that you send the service manual to? Thanks. DJohns95@gmail.com |
|
Relevant Product Info
|
|
New member Username: Matgee
Post Number: 1
Registered: Sep-05
|
| Posted on Monday, September 05, 2005 - 06:42 pm: |
|
Mr. Lynch, can you also add me to the service manual list for a HD-52G786? Please send to matt.hruska@cox.net.. Thank you! |
Unregistered guest |
| Posted on Tuesday, September 06, 2005 - 10:26 am: |
|
Mr. Lynch, I just bought the 56G786 and would greatly appreciate it if you could send me the appropriate service manual. Please send to jclark88@comcast.net. Thank you very much! |
Bronze Member Username: Wearenotalone69
Post Number: 35
Registered: Aug-05
|
| Posted on Tuesday, September 06, 2005 - 01:33 pm: |
|
So.... can someone explain the Why's and Why Not's.. of connecting these JVC D-ILA TV's to a PC, a HDTPC?????
I would assume that because the TV is probally set up to mate with a input that has the copyright BS in the stream?? that this is why a PC /HDTPC with the DVI (HDMI?) output will not work right?
Why do they say in the manual these Tv's will not work with a PC?
Sort of sad, seeing how this is 2005...
Have the 61z575... would like to build a HDTPC...
Anyone? |
New member Username: B0b0
Colorado
Post Number: 2
Registered: Sep-05
|
| Posted on Tuesday, September 06, 2005 - 02:57 pm: |
|
WeAreNotAlone69,
I have an HTPC connected to my HD-52G786 and it works great. I have an ATI Radeon-based video card and am connecting from the card's DVI output to the JVC's component inputs via an ATI "DVI-to-HDTV Adapter" (http://shop.ati.com/product.asp?sku=2537967). The ATI CATALYST drivers allow for resolution tweaking to mitigate the screen clipping due to overscan....no need for Powerstrip. I don't mean to be a shill for ATI, but it has worked for me. Also, I HIGHLY recommend TheaterTek DVD software for playing DVDs and video files....the picture quality is outstanding on my setup. |
New member Username: B0b0
Colorado
Post Number: 3
Registered: Sep-05
|
| Posted on Tuesday, September 06, 2005 - 03:04 pm: |
|
WeAreNotAlone69 .... followup,
It just occurred to me that there ARE copyright issues with outputting high resolution DVD video to an external TV display, but you can get around this with the DVD Region Free utility (or similar).
|
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 840
Registered: Sep-04
|
| Posted on Tuesday, September 06, 2005 - 04:21 pm: |
|
For PC hookup thought the HDMI input, you need a videocard with HDCP compliant DVI output.
A lot of the newer ATI videocards with DVI out are HDCP compliant, which is what the JVCs HDMI inputs needs to work. Without that HDCP "handshake" you get a blank screen. |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 841
Registered: Sep-04
|
| Posted on Tuesday, September 06, 2005 - 04:58 pm: |
|
My baby turns 1 today. Help wish her a happy b-day!
 |
Bronze Member Username: Douga
Post Number: 48
Registered: Dec-04
|
| Posted on Tuesday, September 06, 2005 - 07:32 pm: |
|
LOL Mr. Lynch, nice work.
Is that purple fringing I see around the squiggly lines there? |
|
|
Bronze Member Username: Wearenotalone69
Post Number: 36
Registered: Aug-05
|
| Posted on Tuesday, September 06, 2005 - 10:57 pm: |
|
RE: I have an HTPC connected to my HD-52G786 and it works great. I have an ATI Radeon-based video card and am connecting from the card's DVI output to the JVC's component inputs via an ATI "DVI-to-HDTV Adapter" (http://shop.ati.com/product.asp?sku=2537967).
Bobo,

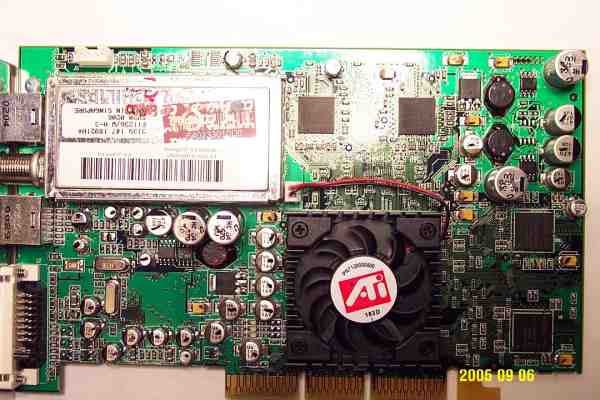

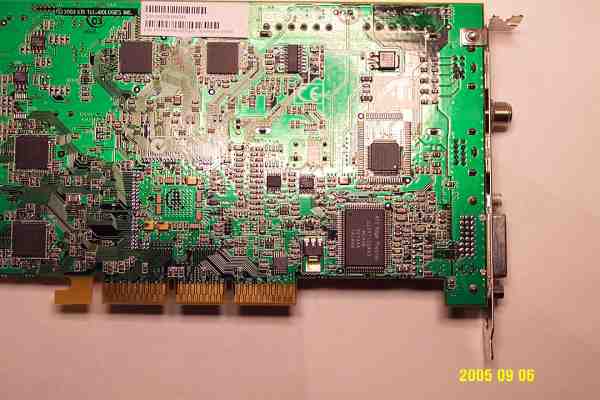

Picked up what looks like an older ATI card, there is a chip on the backside marked ATI RAGE Theater...(chip on second picture below near DVI output) Card has a COMPAQ part number on it. Appears to be new as there is no dust on fan.
Since it is probably NOT one of the newer cards that adapter sounds interesting...
Looks like I need to hunt around on the ATI website.. see what it is... see if the drivers will support the card. Have the card, a breakout box, a usb remote pickup, a ATI remote, a DVI cable, S-Video cable.... Got a good deal on it, so maybe it could be used for something (if not for the JVC)..
PS: Thanks for responding, and the info /tips!
I hope the people in Hollywood would drop off the face of the planet... More copyright stuff..
BTW: Have a SAMSUNG SIR-T451 HD-TUNER.... About 10 months old.. Anyone have an info on that unit, know where to get a SERVICE MANUAL.. or better yet know how to get into SERVICE MODE so maybe the overscan can be adjusted???? The modes on it really suck.. Had a Motorola tuner that did an excellent job of stretching. shrinking content... The Samsung is brain dead, you have to manually switch the modes... and the modes are WAY off.. Looks like crap.
Posted here, and have not gotten a single response?????? :-(
(http://forum.ecoustics.com/bbs/messages/2/157302.html
|
Bronze Member Username: Wearenotalone69
Post Number: 37
Registered: Aug-05
|
| Posted on Wednesday, September 07, 2005 - 12:35 am: |
|
Bobo,
According to the serial number it's a All-in-Wonder RADEON 8500 128MB DDR AGP NTSC.
Bios 11383601102
Part number of board: 1028360300
What board are you running? |
New member Username: Bnelsontfs
Post Number: 1
Registered: Sep-05
|
| Posted on Wednesday, September 07, 2005 - 10:02 am: |
|
Here we go again...
Mr. Lynch, can I pleasae get a copy of that manual? Send it to bnelsontfs@gmail.com.
Thanks! |
New member Username: Chindale
Post Number: 1
Registered: Sep-05
|
| Posted on Wednesday, September 07, 2005 - 07:44 pm: |
|
Please e-mail copy of 56G886 service manual to chindale@bellsouth.net.
Thank you |
Silver Member Username: Kano
Post Number: 651
Registered: Oct-04
|
| Posted on Thursday, September 08, 2005 - 07:31 am: |
|
Just purchased the 52" D-ILA (575) for a good deal.
First question: A lot of QC issues with this model vs. the newer models?
Also browsing through this thread I saw a reference that Mr. Lynch posted his picture settings but could not find them.
If you could re-post them and save me hours of staring blankly at the Avia test screens I'd appreciate it. |
Bronze Member Username: Wearenotalone69
Post Number: 39
Registered: Aug-05
|
| Posted on Thursday, September 08, 2005 - 12:22 pm: |
|
Kano,
The document is on this page... It's a little LESS than about a third the way down this page. About 20 posts down from the top.
I would assume this would find it also:
http://forum.ecoustics.com/cgi-bin/bbs/search.pl |
Bronze Member Username: Wearenotalone69
Post Number: 40
Registered: Aug-05
|
| Posted on Thursday, September 08, 2005 - 12:42 pm: |
|
Bobo,
In case you don't check your PM's.... I need to talk with you. Haven't installed the card yet, but do have a question for you about the ATI All in Wonder card. |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 844
Registered: Sep-04
|
| Posted on Thursday, September 08, 2005 - 01:40 pm: |
|
My settings after my set was calibrated by my ISF friend. The biggest changes he made where in the color drive values in the service menu. You should have something similar. The Green drive usually comes from the factory a little "hot" and might need to be lowered a bit.
These are the same document, just different formats..
|
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 845
Registered: Sep-04
|
| Posted on Thursday, September 08, 2005 - 01:46 pm: |
|
Kano-
QC issues were mainly with the first batch of sets manufactured (May 04-August 04). The worst of these had an HD-DILA sticker on the upper left on the TV (Pre July sets). They made quite a few "upgrades" with the 2nd batch of sets and they have been very reliable. My August 04 set had some early issues that were quickly taken care of and it has performed flawless ever since. I would purchase the same model again in a heartbeat. I love my HD-52z585. |
ikoiko2u Unregistered guest |
| Posted on Thursday, September 08, 2005 - 06:57 pm: |
|
Mr. Lynch, I just bought the JVC-HD-56G866! Could you send the service manual to this email address: rukind2 at comcast.net. Thanks.
I live in Issaquah...Go Seahawks!!!
|
Bronze Member Username: Mike_mike
Waldorf,
Maryland
Post Number: 17
Registered: Aug-05
|
| Posted on Thursday, September 08, 2005 - 10:20 pm: |
|
Okay... it's almost time to buy!!! I had been waiting to get closer to my date to move in to my new home... but the wait has been of great benefit. The prices have dropped again!!!!
Here is a question for you guys who have satelite TV...
I have heard and read that I may not need to upgrade to a HD satelite receiver yet because there are still many programs that I watch that are not in HD, and I am receiviving a digital signal anyway. So I am thinking about getting the DIRECTV DVR.
Should this be good enough until more programming that I watch are broadcast in HD?? |
Bronze Member Username: Uhphikap
Post Number: 18
Registered: Jun-05
|
| Posted on Thursday, September 08, 2005 - 11:11 pm: |
|
Mike,
I sure love my ESPN-HD on Dish Network's 811 HD Receiver...watched several College Football games last weekend....truly amazing!!! I haven't even made any adjustments to my set...I'm sure it will look even better after I make some adjustments! |
Silver Member Username: Kano
Post Number: 654
Registered: Oct-04
|
| Posted on Friday, September 09, 2005 - 02:47 am: |
|
Purchased an HDMI cable today to use with my Denon DVD2910.
First impressions are it looks less digital, especially the edges. The 2910 has a black level enhancer that is a good bonus through the HDMI only.
Through component the picture is almost too much... if that makes any sense. |
jmhalter Unregistered guest |
| Posted on Friday, September 09, 2005 - 12:15 pm: |
|
Mr Lynch,
I am also one of the masses that would like the service manual when you get a chance. Thank you very much.
jmhalter@gmail.com |
New member Username: Esheldon76
Post Number: 2
Registered: Sep-05
|
| Posted on Friday, September 09, 2005 - 12:27 pm: |
|
Okay, I've skimmed through this post a little. I just made a post for myself, as I'm overwhelmed with how many are on this one. But one thing I seem to see is that people are asking for the service manual alot. Why is that? And could I get one, as I'd like to see what I can do to it within reason... esheldon76@gmail.com . Thank you, and thanks in advance for anyone who helps me in my post. |
New member Username: Don3021
Post Number: 1
Registered: Sep-05
|
| Posted on Friday, September 09, 2005 - 12:41 pm: |
|
Mr lynch GOOD name. That is my last name too. Could I please have a copy of that service manual? I just bought a 61z886 and hoping I can get it to where I am satisfied.!! thanks so much
my email is don.lynch@dot.state.fl.us |
Unregistered guest |
| Posted on Friday, September 09, 2005 - 01:54 pm: |
|
Have followed this thread off and on for a bit. Bought an HD-52Z585 AA in May. Last week the picture went to heck. Three images, each a different color. Called closest Factory Service Center - outside their service zone. Had to call JVC, wait a week for response. JVC finally contacted with a request to send pics of the issue. Sent the pics and got fast response that Service Provider had "agreed" to service my machine. Now scheduled for 22nd. Initial failure was on the 3rd.
Diagnosis from pics is "Optical Drive replacement" per JVC. Any clues on what that means?
If anyone is interested I can try to post the pics I sent them.
Thanks for all contributors input, this forum is why I chose this machine over other candidates.
Note for Mr. Lynch, I would appreciate receiving a copy of the manual, thanks for your contributions. Please take the TRASH OUT of the embedded email address. Sorry for the hassle but it helps reduce the volume of spam. |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 848
Registered: Sep-04
|
| Posted on Friday, September 09, 2005 - 02:58 pm: |
|
"Optical Drive replacement" is also know as a light engine swap. It is a $1200 part and should take less than an hour to do. They open up the back and slide the entire chassis out. I had the swap done after a few months of ownership and it has been perfect since then.
I didn't see an email address posted. You can just send me a Private message if you don't want to post it. |
|
| Posted on Friday, September 09, 2005 - 03:10 pm: |
|
Click on his name. |
Bruce G Unregistered guest |
| Posted on Friday, September 09, 2005 - 03:15 pm: |
|
Mr. Lynch,
Sorry about that, I thought that my email address was embedded as a hyperlink in my name shown to the left of the message. It should read:
bglanville1975TRASH@OUTyahoo.com
Just take the TRASH OUT. |
New member Username: Maxoccupancy
Soquel,
CA
USA
Post Number: 1
Registered: Jun-05
|
| Posted on Friday, September 09, 2005 - 05:47 pm: |
|
Mr. Lynch,
I would appreciate a service manual. Thanks!!
maxoccupancy@netscape.net
YESSS! My new JVC HD52G886 is shipping from pac2000 today!! It took them two weeks but from what I hear, the TV should be worth the wait. |
New member Username: Bobsacameno
Post Number: 10
Registered: Apr-05
|
| Posted on Saturday, September 10, 2005 - 01:19 am: |
|
Hi,
I've had the 52" for about 6 months now and it's been great. I started with DVD/movies with my Toshiba/HDMI and just yesterday, got setup with OTA HD and watched the seasoner between Pats/Raiders. Just an amazing experience!!
Now that I'm completed hooked on HD - I am looking for a HD set for my bedroom. I really want to move the 52" to my bedroom and get the 61" since I am really really happy with JVC. However the 52" would be a tad overwhelming for my bedroom and since JVC doesn't have anything smaller - my question to you all is: What would you recommend for say between 40-50". Given it's in the bedroom, I would bias function (as in PQ, reliability, price, etc) over form (flat, sleek, etc)
Thanks in advance for the advice. |
New member Username: Darthrsg
Post Number: 1
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 01:47 am: |
|
i have had the engine swap on my 52z since its been stellar, it suffered from the purple smudge in the center of the screen, its gone now, jvc service rules, anyways i was wondering if mr lynch could the service menu my way? the settings on my set are really close to lynchs just with avia and dve, i would like the manual for info on focus adjustment. this forum is awesome, there is a great thread on avs forum about a filter mod other readers might find of use. thanks in advance for the manual mr lynch. email rsgrice@gmail.com i have invites as well |
Bronze Member Username: Wearenotalone69
Post Number: 41
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 03:31 am: |
|
As per TvShopper posted above in response to my question on the same subject:
"I have done a focus of my JVC. It's not hard to do. You need to remove both the left and right speaker grills. Then you remove the front plate on the TV to access the focus lever area. You loosen the focus lever using a hex wrench and then slide the lever left to right to focus. Once you have it completed, tighten the hex nut and reassemble" |
New member Username: Darthrsg
Post Number: 2
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 05:05 am: |
|
we are not alone,
do you do this with the power on or off? how many screws, its just one for the grills. but there are quite a few more behind those front plates, the center panel is attached by a cable. do you remove that panel? or am i overlooking something? |
Bronze Member Username: Wearenotalone69
Post Number: 42
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 01:00 pm: |
|
Scott,
I haven't done it myself yet... But I would assume once you get access to the focus adjustment screw....
You're going to have to have th TV turned ON... to be able to SEE the picture :-)
On all the CRT based sets I'v done... I've always had to have the set turned ON to see the display. |
Bronze Member Username: Wearenotalone69
Post Number: 44
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 08:53 pm: |
|
Scott,
I'm wondering "how" the three chips are adjusted during assembly.
Went into the service menu to adjust the convergence... One of the colors being slightly off. (Will not adjust, so I assume the static adjustment is off slighty.)
BTW: Would have been "nice" if they would have put the convergence menu in the regular user menu.
Not much that a user could "screw-up"... as it's not a very "involved" process. |
New member Username: Suzukiman
Yorkville,
IL
Us
Post Number: 1
Registered: Sep-05
|
| Posted on Sunday, September 11, 2005 - 09:54 pm: |
|
So I see we have a nice thread going on here.. I feel at home here already..lol. Let me start by giving you my info..I have the july 2004 build HD-ILA w/ out the sticker at the top. Up close (12" away) I have not identified any dead pixels. So far no light leakage either screen is uniform around corners and edges.. So what's my problem...No HDMI input I get only black screens. Will not work with two devices using two different DVI to HDMI adapter cables and still a no go.. Screen is BLACK. I have a zenith 318 DVD player and a dish network 811 receiver. Set devices to 480p 720p 1080i. What is strange is in the manual it says the output of signal must be 480p for digital-in to work. I just want the HDMI to work. My next question.. I would like anyone who has had the recall taken care (the ballast/poor solder) of express there experience...was it worth it, was it an easy in home job, or did really need to be a in shop repair. I don't want to let this out of my home.
And last this is for Mr. Lynch would it be too much trouble to email me a copy of that service manual. It would be greatly appreciated Suzukimandw@allvantage.com
|
Bronze Member Username: Wearenotalone69
Post Number: 45
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 10:02 pm: |
|
I would add to the above:
It would be NICE is someone could post PICTURES of the poor ballast solders.
Most of the time it's a simple fix to re-flow them.
I too am of the mindset of NOT letting the set out of my house (or letting the local "techs" touch the set)
Frank,
Are your devices HDCP compliant thru the DVI outputs?.
Without the HDCP "handshake" you get a blank screen |
Bronze Member Username: Wearenotalone69
Post Number: 46
Registered: Aug-05
|
| Posted on Sunday, September 11, 2005 - 10:03 pm: |
|
I would add to the above:
It would be NICE is someone could post PICTURES of the poor ballast solders.
Most of the time it's a simple fix to re-flow them.
I too am of the mindset of NOT letting the set out of my house (or letting the local "techs" touch the set)
Frank,
Are your devices HDCP compliant thru the DVI outputs?.
Without the HDCP "handshake" you will get a blank screen |
New member Username: Suzukiman
Yorkville,
IL
Us
Post Number: 2
Registered: Sep-05
|
| Posted on Sunday, September 11, 2005 - 11:49 pm: |
|
WeAreNotAlone69, Yes my Zenith 318 and the dish network 811 are both HDCP compliant. Again I read in the manual that the source needs to be 480p for digital in to work. Well it does recognise it when I set the source to that resolution all I see is black screen. But then I read lots of people dumping a 720p and even 1080i signal into the HDMI and they get it to work...hu? Mine won't even see the source unless she's a 480p nothing more nothing less. |
New member Username: Suzukiman
Yorkville,
IL
Us
Post Number: 3
Registered: Sep-05
|
| Posted on Monday, September 12, 2005 - 12:14 am: |
|
Ok, I did a self check and the HDMI says NG1 Should it say "OK" or no? The RGB says NG9. Don't know what this means until I take a look at the service manual. I'm techinical savy so don't worry I won't screw it up. Heck after the warranty is up I just might open this sucker up and resolder that poor ballast conection if need be..lol. I can solder very well. Any info would be greatly appreciated. |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 849
Registered: Sep-04
|
| Posted on Monday, September 12, 2005 - 04:08 pm: |
|
Frank,
The recall part is covered even if your warranty has expired. Just like with a car. Not all the sets that need the part replacement have a bad solder. There is just a potential for it. When I had mine replaced I watched the entire proceedure. There is not much to see. It is a small black box that has a wire clip, and 2 screws. The problem is inside the small black box. Pix would not show much.
Anytime the set experiences anything "odd", you will get an NG in the self check. It is very normal. The HDMI looks for a HDCP compliant device, and when one is not detected the first try you can get an NG. The RGB has alot to do with your signal, so any signal issue, may also trigger an NG. It is nothing to worry about unless your picture is messed up.
On the original batch of JVCs had some issues with the HDMI not working properly. Mine accepts a video signal, but no audio. I never got it fixed because it is not a big deal . My audio runs to a reciever so no TV sound is needed. I can also just hook up a set of RCA cables if I did need TV sound when using the HDMI input. |
Silver Member Username: Kano
Post Number: 662
Registered: Oct-04
|
| Posted on Monday, September 12, 2005 - 04:26 pm: |
|
Hey Mr. Lynch on the HDMI out of the Denon DVD2910 I can either pick HDMI Y Cb Cr or HDMI R G B. The manual doesn't explain the difference, both look very similar... any idea? |
New member Username: Suzukiman
Yorkville,
IL
Us
Post Number: 4
Registered: Sep-05
|
| Posted on Monday, September 12, 2005 - 07:59 pm: |
|
Mr. Lynch I still wonder why it will only make the HDCP handshake if the signal is a 480p.. anything else, and the digital-in wont even be on, as seen when you go into the menu and try to select size 1 or 2. None the less, it can see the 480p signal but all I get is a black screen. I wonder if the dvi to HDMI cable can't make the handshke correctly..
And, on another note if this tv is native at 720p does that mean that 1080i as advertised is not the correct resolution of the set. I guess what I'm saying is it possible for this set to display 1080i through component cables? |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 850
Registered: Sep-04
|
| Posted on Tuesday, September 13, 2005 - 01:05 pm: |
|
Kano-
You should use HDMI Y Cb Cr. It will allow the full 10 bit processing to go to the TV. Video should look slightly better. Less color banding and smoother edges. HDMI RGB is limited to 8 bit processing, and should only be used if your TV/Monitor does not support the HDMI Y Cb Cr.
Frank-
My HDMi input accects 480p, 720p and 1080i. I'm not sure why your's will not. I do know that 480p does not require the HDCP handshake like the HD resolutions do, so it must be an issue with the HDCP.
The JVC ACCEPTS a 480i, 480p, 720p and 1080i signal. It converts everything to it's native resolution of 1280x720. Basically 720p. A 1080i signal will be scaled down to 720p, but it looks almost exactly the same as a native 720p signal. Either way it looks damn good.
If your curious about the difference between 720p and 1080i, or think your missing out on something read this...
http://alvyray.com/DigitalTV/Naming_Proposal.htm
|
New member Username: Fkubick
Post Number: 10
Registered: Jan-05
|
| Posted on Tuesday, September 13, 2005 - 02:47 pm: |
|
My JVC 52Z575 was manufactured in August 2004. JVC has determined that the light engine needed replacement but, because there's a three week wait for that part they're going to replace the whole chassis. I'm really pleased with their service. Anyway, my question is: Is there any way to determine the manufacture date of the chassis, e.g. serial number? And if so, how do you make such a determination? |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 852
Registered: Sep-04
|
| Posted on Tuesday, September 13, 2005 - 05:04 pm: |
|
Frank,
I don't think there is a date or anything on them. The older light engine has a foil tape shielding, where as the updated version has an aluminum housing. When they do the swap, you can easily see the difference. After the swap, your setting will still be the same, but you will need to recallibrate it using AVIA or DVE. My original light engine had brightness settings of +5 and higher, the new light engine numbers are now all negative. The new version is a much brighter and efficent engine. With lower brightness levels, the black levels increase too. You should be very happy. |
Bronze Member Username: Mike_mike
Waldorf,
Maryland
Post Number: 18
Registered: Aug-05
|
| Posted on Tuesday, September 13, 2005 - 06:23 pm: |
|
Okay.... I did it last night... the 52G886 for $1799 + $249 shipping. I got it from Abe's of Maine and it should be here by next friday or that following Monday!!! I went on and ordered the HD receiver package from DirecTV too. I am extremely excited, but I am also a little concerned, because I am not half as tech savvy as some of you on here. I am concerned that I won't be able to do the configurations I read about, or get the video input set up correctly. I will have two video sources for the JVC (satelite and DVD) I assume that I will have to use the component cables for the DVD(no HDMI output) and HDMI for the satelite HD receiver.
Any thoughts??? |
Silver Member Username: Mr_lynch
Seattle,
WA
Post Number: 853
Registered: Sep-04
|
| Posted on Tuesday, September 13, 2005 - 06:49 pm: |
|
Are you running a surround setup too? |
Bronze Member Username: Turnkey
Roseville,
CA
United States< |
Upload
Upload
